1. Introduction
Thank you for choosing the Fasizi F540 3300 KV Brushless Motor and 60A ESC Combo Set. This high-performance system is designed for 1/10 scale RC cars, offering robust power and reliable control. This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new RC components. Please read this manual thoroughly before use to ensure safe and optimal performance.
2. Product Features
- Motor: High-torque 4-pole, 12-slot design.
- Heatsink: CNC machined 6061 T6 aluminum for efficient heat dissipation.
- Windings: High-purity copper windings maximize efficiency.
- Bearings: High RPM ABEC5 oversized bearings for durability.
- Compatibility: Universal fit for all 1/10 scale brushless RC cars with multiple M3 screw mounting system.
- Rotor: Precision balanced rotor for smoothness, reliability, and maximum RPM. Removable/replaceable design.
- Stator: Super thin (0.35mm) stator laminations.
- ESC: Waterproof 60A Electronic Speed Controller.
3. Safety Instructions
Always prioritize safety when working with RC electronics.
- Read all instructions before operating.
- Ensure all connections are secure and correctly polarized to prevent damage.
- Keep hands and loose clothing away from rotating parts.
- Do not operate in wet conditions unless the components are explicitly rated as waterproof. While the ESC is waterproof, ensure other components are protected.
- Use appropriate battery types and voltages as specified in the product specifications.
- Store batteries and electronics in a cool, dry place away from flammable materials.
- Adult supervision is recommended for younger users.
4. Package Contents
Verify that all items are present in your package:
- 1x Fasizi F540 3300 KV Brushless Motor
- 1x Fasizi 60A Waterproof Electronic Speed Controller (ESC)
- 1x English Instruction Manual (this document)
Image: The Fasizi F540 3300 KV Brushless Motor and 60A ESC Combo Set, showing the motor, ESC, and various connectors.
5. Setup
5.1 Motor Installation
- Mount the F540 motor securely into your 1/10 scale RC car chassis using M3 screws. Ensure proper gear mesh between the motor pinion and the spur gear.
- Confirm that the motor shaft rotates freely without obstruction.
Image: Front view of the Fasizi F540 3300 KV Brushless Motor, showing the shaft and mounting holes.

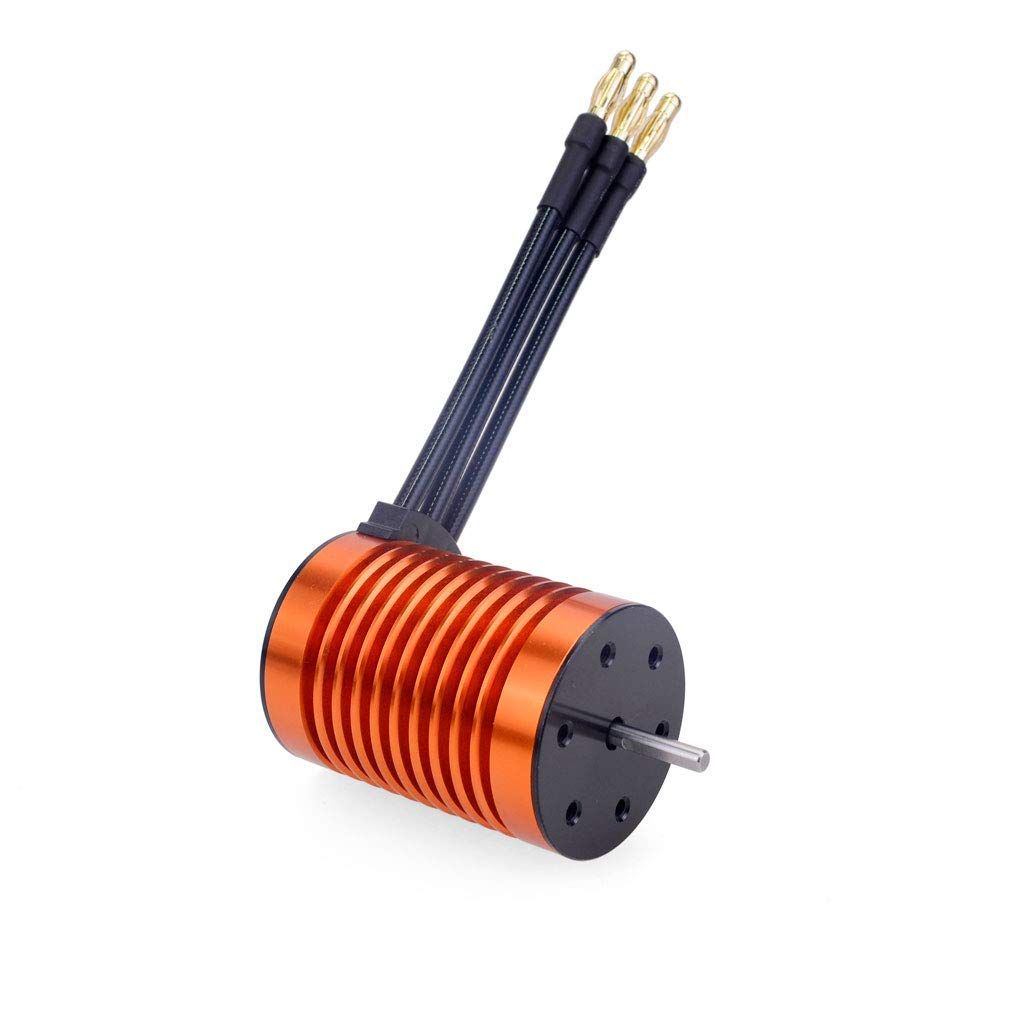

Image: Side view of the Fasizi F540 3300 KV Brushless Motor, highlighting the cooling fins and wire connections.
5.2 ESC Connection
- Connect the three motor wires from the ESC to the motor. The order of connection may affect motor rotation direction; if the motor spins in the wrong direction, swap any two of the three wires.
- Connect the ESC's receiver cable (usually a small, three-wire servo plug) to the throttle channel (typically channel 2) on your RC receiver.
- Connect the ESC's power input (T-plug male connector) to your battery pack (2S Li-Po or 6-cell NiMH recommended). Ensure correct polarity.
- Secure the ESC within the chassis, ensuring adequate airflow for cooling.
Image: Top view of the Fasizi 60A Waterproof ESC, showing the cooling fan and heat sink.

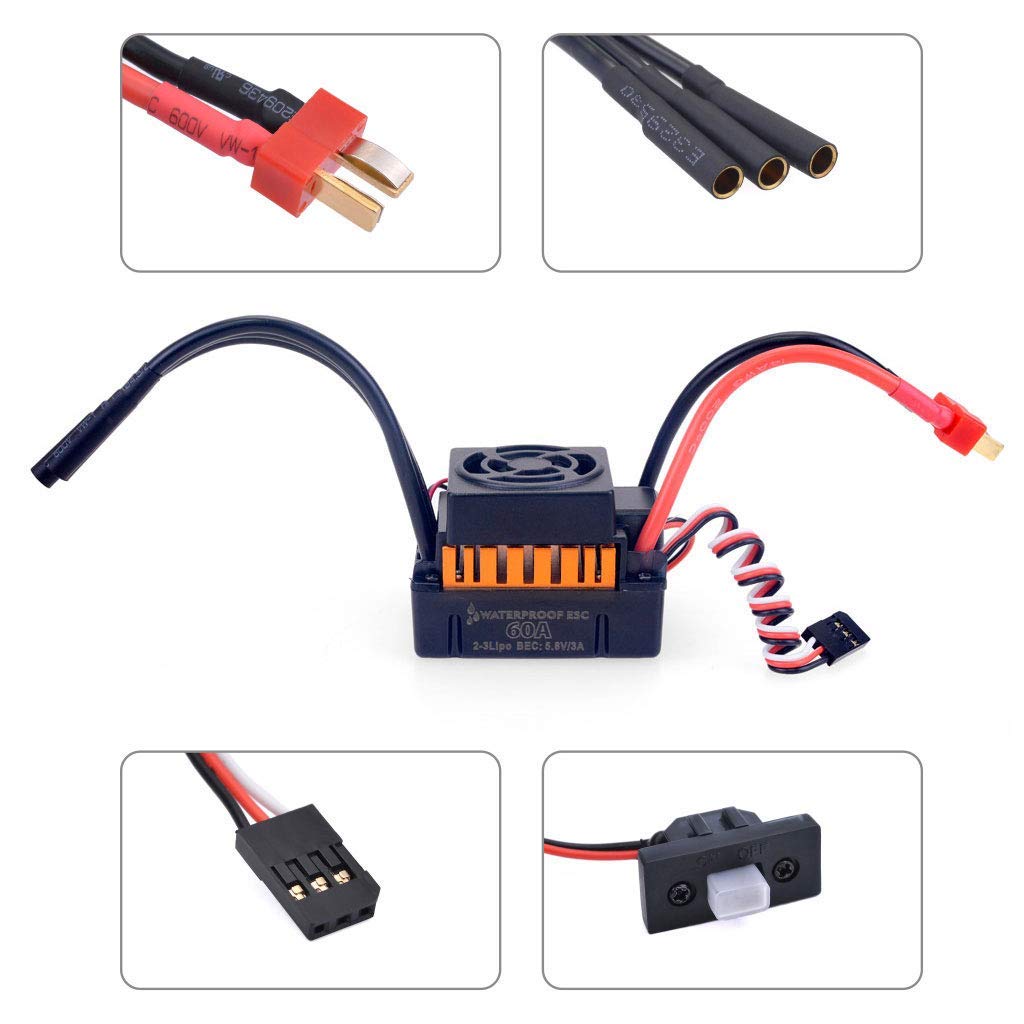

Image: Angled view of the Fasizi 60A Waterproof ESC, showing the power wires and receiver connection.
5.3 ESC Calibration (Throttle Range Setting)
While specific calibration steps are not detailed in the included manual, general practice for many ESCs involves:
- Ensure your transmitter is turned on and the throttle trim is at neutral.
- Turn on the RC car with the throttle stick at full forward. The ESC may emit a series of beeps.
- Move the throttle stick to full reverse. The ESC may emit another series of beeps.
- Return the throttle stick to neutral. The ESC should confirm calibration with a final set of beeps.
Note: If your ESC does not respond as expected, consult your radio system's manual for throttle range adjustment or search for generic brushless ESC calibration guides. Some users report a need to adjust radio settings to compensate for potential dead zones in throttle input.
6. Operating Instructions
- Power On: Turn on your transmitter first, then connect the battery to the ESC.
- Initial Test: Gently apply throttle to ensure the motor spins in the correct direction. If not, power off, swap two motor wires, and retest.
- Forward/Reverse/Brake:
- Applying forward throttle will propel the vehicle forward.
- Applying reverse throttle will engage the brake. To engage reverse movement, you typically need to return the throttle to neutral after braking, then apply reverse throttle again.
- The braking function may not be immediate or extremely powerful; allow for stopping distance.
- Power Off: Disconnect the battery from the ESC first, then turn off your transmitter.
7. Maintenance
- Motor: Regularly inspect the motor for dirt and debris. Keep the cooling fins clear for optimal heat dissipation. Check motor bearings for smooth operation; replace if they feel rough.
- ESC: Ensure the ESC's cooling fan is free from obstructions and spins properly. Clean any dust or dirt from the heatsink. While the ESC is waterproof, it is recommended to dry it thoroughly after exposure to moisture to prevent corrosion.
- Connections: Periodically check all electrical connections for tightness and signs of wear or corrosion.
- Storage: Store components in a dry, temperate environment when not in use.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor not spinning or erratic operation. | Loose motor/ESC connections, incorrect ESC calibration, low battery, damaged motor/ESC. | Check all connections. Recalibrate ESC. Charge battery. Inspect motor/ESC for visible damage. |
| Motor spins in the wrong direction. | Incorrect motor wire connection. | Swap any two of the three motor wires between the ESC and motor. |
| ESC fan making loud noise or screeching. | Fan bearing issue, obstruction. | Gently tap the fan to see if it resolves. Clear any obstructions. Consider replacing the fan if the issue persists. |
| Vehicle has poor braking performance. | Characteristic of the ESC's braking profile. | Allow for longer stopping distances. This ESC may not offer aggressive braking. |
| Significant throttle dead zone. | Transmitter throttle range not optimized for ESC. | Adjust throttle endpoints (EPA/ATV) on your transmitter to match the ESC's full range. |
9. Specifications
9.1 F540 3300 KV Brushless Motor
- Material: Metal (Copper, Aluminum)
- Recommended Model: 1/10 RC Model
- KV (RPM/Volt): 3300 KV
- Max RPM: 50,000 RPM
- Power: 820 W
- Max Voltage: <17 V
- Max Amps: 47 A
- Diameter: 36 mm (with fins)
- Length: 50 mm
- Extension Shaft Length: 15 mm
- Shaft Diameter: 3.175 mm
- Plug Type: 4 mm Gold Banana Plug
Image: Rear view of the Fasizi F540 3300 KV Brushless Motor, showing the mounting holes and wire exits.

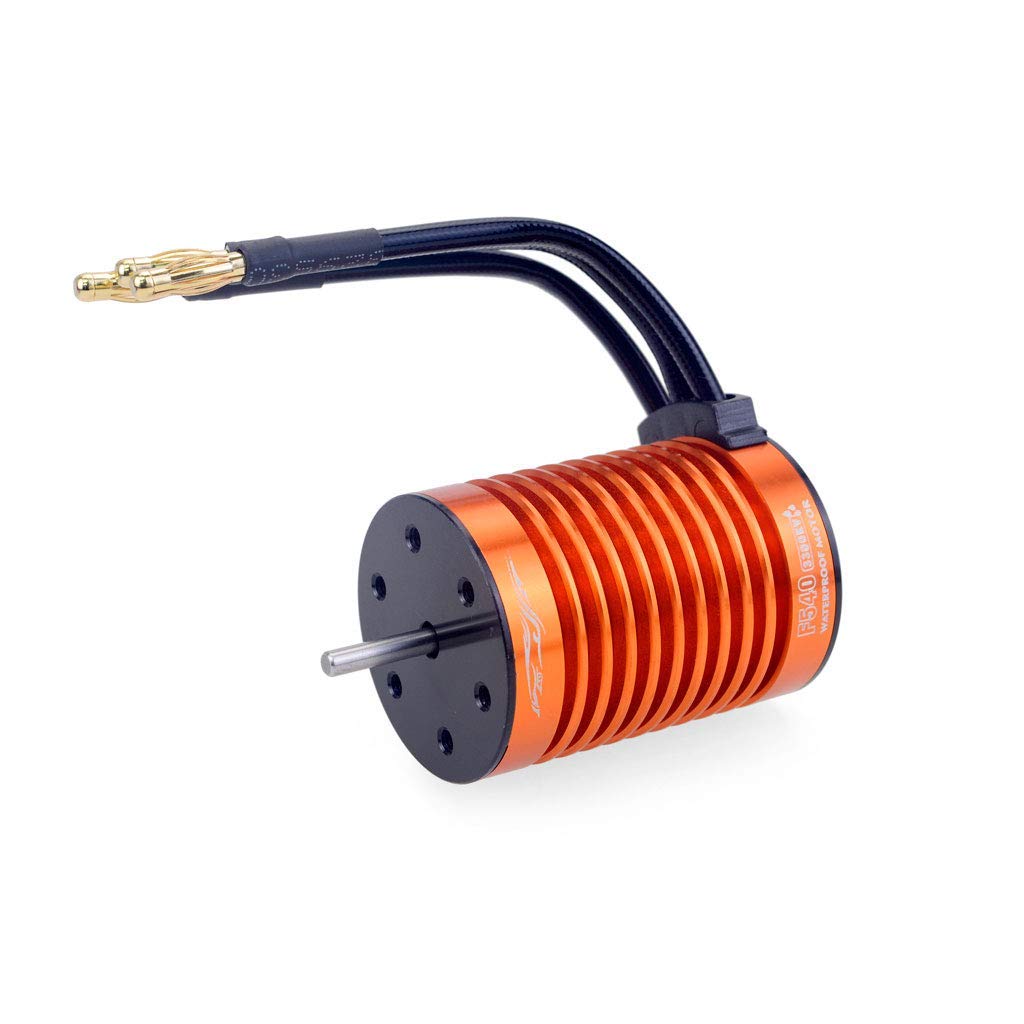

Image: Angled view of the Fasizi F540 3300 KV Brushless Motor, showcasing its design and connectors.
9.2 60A Waterproof ESC
- Item Name: Waterproof ESC
- Continuous Current: 60 A
- Burst Current: 320 A
- Battery: 2S Li-Po / 6 Cells NiMH
- BEC Output: 5.8 V / 3 A
- Power Plugs: T-Plug Male
- Motor Plugs: 4 mm Banana Female Plug
Image: Top view of the Fasizi 60A Waterproof ESC, clearly showing the cooling fan and "WATERPROOF ESC 60A" labeling.
10. Warranty Information
Specific warranty details for this product are not provided in the available information. Please refer to the retailer or manufacturer's website for current warranty terms and conditions. Typically, electronic components may have a limited warranty against manufacturing defects. Keep your proof of purchase for any warranty claims.
11. Support
For technical assistance, troubleshooting beyond this manual, or inquiries regarding your Fasizi F540 3300 KV Brushless Motor and 60A ESC Combo Set, please contact the seller or manufacturer directly.
- Refer to your purchase documentation for seller contact information.
- Visit the official Fasizi website (if available) for support resources.
