1. Introduction
Thank you for choosing the Frestec 3.2 Cu.Ft. Mini Fridge. This compact refrigerator is designed for efficient cooling and convenient storage in various settings such as bedrooms, offices, dorms, and small apartments. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance of your appliance.
2. Safety Information
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
- Read all instructions before using the appliance.
- Connect to a properly grounded outlet only.
- Do not attempt to repair or replace any part of your refrigerator unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
- Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
3. Product Overview
The Frestec 3.2 Cu.Ft. Mini Fridge offers a compact design with practical features for everyday use.
The Frestec 3.2 Cu.Ft. Mini Fridge with its door open, showcasing the internal layout including shelves and door storage.
Diagram illustrating the dimensions of the Frestec 3.2 Cu.Ft. Mini Fridge: 18.05 inches (width) x 17.83 inches (depth) x 32.48 inches (height).
Key Features:
- Capacity: 3.2 Cu.Ft. / 90L
- Energy Efficiency: Approximately 0.55 kWh per day
- Low Noise Operation: Below 37dB
- Adjustable Thermostat: 6 settings for temperature control
- Storage: 2 detachable glass shelves and a crisp drawer
- Door: Reversible door for flexible placement
- Defrosting: One-touch easy defrosting system
- Lighting: Internal LED light
- Leveling: Adjustable leveling legs
4. Setup
Unpacking:
- Remove all packaging materials, including the foam base and adhesive tape.
- Inspect the refrigerator for any damage. Report any damage to your retailer immediately.
Placement:
- Place the refrigerator on a flat, stable surface strong enough to support the appliance when fully loaded.
- Allow at least 4 inches (10 cm) of space around the back and sides of the refrigerator for proper air circulation.
- Avoid placing the refrigerator in direct sunlight or near heat sources (e.g., stoves, heaters).
Leveling:
The refrigerator must be level for proper operation. Use the adjustable leveling legs to ensure stability.
Image showing the adjustable leveling legs at the bottom of the refrigerator. Rotate the legs to raise or lower the unit until it is level.
Initial Power-On:
- After placement, wait at least 2-4 hours before plugging the refrigerator into a power outlet. This allows the refrigerant to settle.
- Plug the refrigerator into a dedicated, grounded electrical outlet.
- The refrigerator will begin cooling. Allow several hours for the internal temperature to stabilize before storing food.
5. Operating Instructions
Temperature Control:
Your refrigerator is equipped with an adjustable thermostat control with 6 settings. Setting '1' is the warmest, and '6' is the coldest. The recommended setting for general use is '3' or '4'.

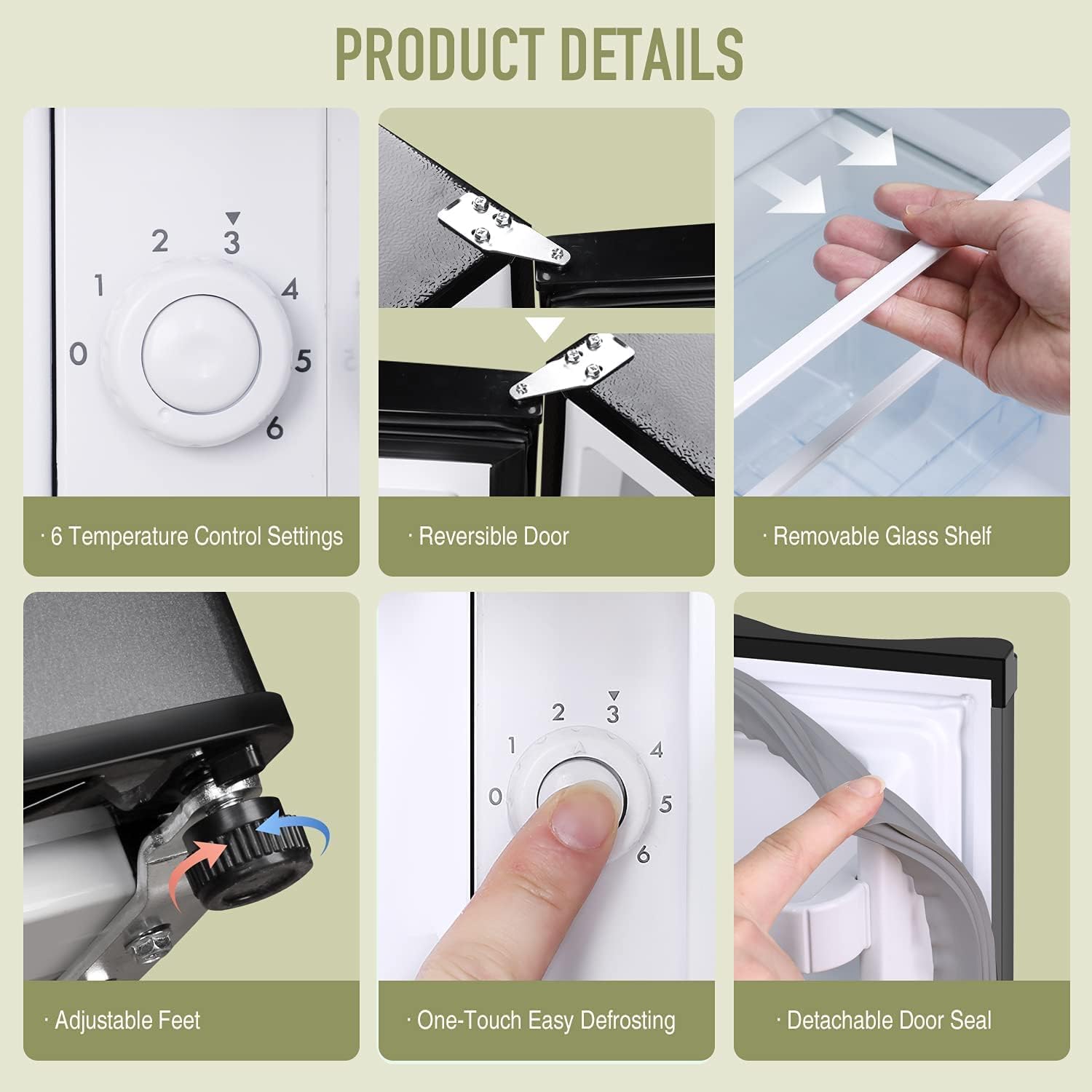

This image displays the temperature control dial with settings from 1 to 6, along with illustrations of the reversible door, removable glass shelf, adjustable feet, one-touch defrosting button, and detachable door seal.
- To adjust the temperature, rotate the dial located inside the refrigerator compartment.
- Higher numbers indicate colder temperatures. Adjust as needed based on ambient temperature and food load.
Storage:
The refrigerator includes two detachable glass shelves and a crisp drawer for organizing your items. The door also features compartments for bottles and smaller items.
Close-up view of a hand removing a glass shelf from the refrigerator, demonstrating its detachable design for flexible storage and cleaning.
Reversible Door:
The door is designed to be reversible, allowing it to open from either the left or right side to suit your space. Refer to the detailed instructions in the full user manual for reversing the door.
6. Maintenance
Defrosting:
This refrigerator features a one-touch easy defrosting system. When ice accumulates in the freezer compartment, press the defrost button located near the temperature control dial. The ice will melt and drain into a tray at the back of the unit, where it evaporates.
A finger pressing the one-touch defrosting button, located in the center of the temperature control dial, to initiate the defrost cycle.
Cleaning:
- Always unplug the refrigerator before cleaning.
- Clean the interior with a soft cloth dampened with a solution of baking soda and warm water (2 tablespoons baking soda to 1 quart water).
- Wash the removable shelves and crisp drawer in a mild detergent solution, then rinse and dry thoroughly.
- The soft detachable door seal can be removed for easy cleaning. Ensure it is properly re-seated after cleaning to maintain an airtight seal.
- Wipe the exterior with a soft cloth and mild detergent.
An interior view of the Frestec mini fridge, showing organized food items on the glass shelves and in the door compartments, highlighting the ease of access for cleaning.
7. Troubleshooting
Before contacting customer service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate | Not plugged in; circuit breaker tripped; temperature control set to '0' (off). | Ensure plug is secure; reset circuit breaker; adjust temperature control to a higher setting. |
| Temperature is too warm | Door opened too frequently; warm food placed inside; poor air circulation; temperature control set too low. | Minimize door openings; allow hot food to cool before storing; ensure adequate space around unit; adjust temperature control to a colder setting. |
| Excessive noise | Refrigerator not level; contact with wall/cabinet; loose parts. | Adjust leveling legs; move unit away from obstructions; check for and tighten any loose components. |
| Door does not close properly | Refrigerator not level; door seal dirty/damaged; obstruction. | Level the refrigerator; clean or replace door seal; remove any obstructions. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | Frestec |
| Capacity | 3.2 Cubic Feet |
| Configuration | Compact Internal Freezer |
| Color | Black with Handle |
| Installation Type | Freestanding |
| Number of Doors | 1 |
| Finish Type | Matte |
| Shelf Type | Glass |
| Cooling Method | Compressor |
| Number Of Shelves | 2 |
| Adjustable Temperature Control | Yes |
| Door Orientation | Reversible |
| Power Source | Corded Electric |
| Specification Met | Energy Star |
| UPC | 760354495524 |
| ASIN | B09Z255NS8 |
9. Warranty and Support
Warranty Information:
This Frestec mini fridge comes with a 1-year guarantee. This warranty covers manufacturing defects and issues arising from normal use. Please retain your proof of purchase for warranty claims.
Customer Support:
For any questions, concerns, or assistance with your product, please contact Frestec customer service. If you receive a damaged part or if the product does not meet your expectations, please reach out to us directly for support.
