Introduction
This manual provides essential information for the installation, operation, and maintenance of your ChipPower GS2 Performance Tuning Box. The GS2 is designed to optimize engine performance for compatible vehicles, specifically the Twingo Mk1 I 1.2 (55 kW / 75 HP, 1996-2007) gasoline engine. Please read these instructions carefully before installation to ensure proper function and safety.
Safety Information
The ChipPower GS2 tuning box is designed with engine protection functions to ensure safety. It complies with CE, UKCA, and RoHS safety standards. Always ensure the engine is off and cool before beginning installation. Disconnect the car battery's negative terminal before working on electrical components to prevent accidental short circuits or damage.
What's in the Box
Upon opening the package, verify that all components are present:
- ChipPower GS2 Tuning Box
- Vehicle-specific wiring harness
- Zip ties for securing cables
- Instruction manual (including QR code for online instructions)

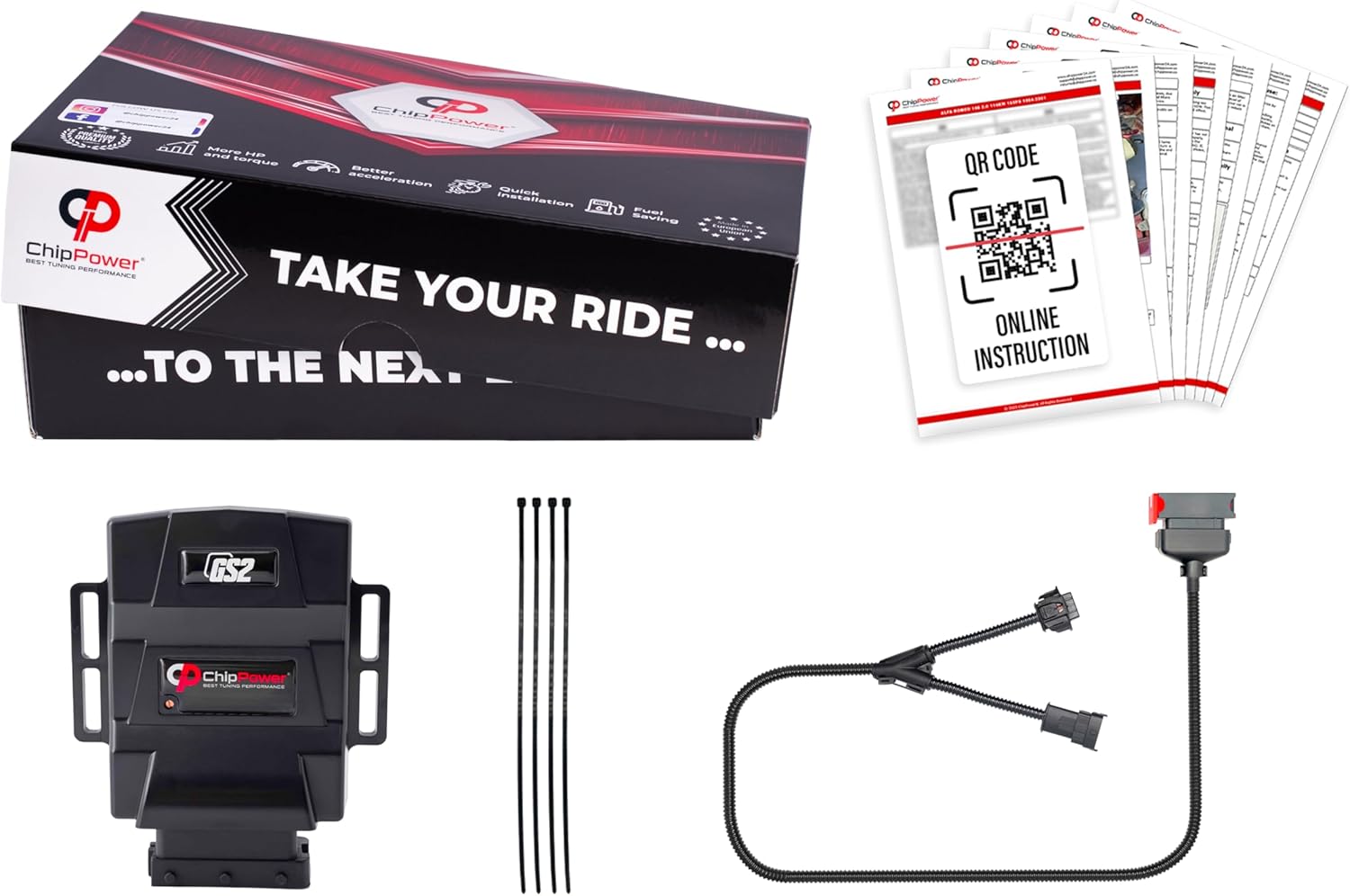

Image: The complete set of the ChipPower GS2 tuning box, showing the main unit, connecting cables, cable ties, and printed instructions with a QR code.
Installation Guide
Installation typically takes 5-15 minutes. The ChipPower GS2 connects to either the MAP (Manifold Absolute Pressure) or MAF (Mass Air Flow) / IAT (Intake Air Temperature) sensor, depending on your vehicle's configuration. For precise, vehicle-specific instructions, scan the QR code provided in your package or visit the ChipPower website.
General Installation Steps:
- Prepare the Vehicle: Ensure the engine is off and cool. Disconnect the negative terminal of the car battery.
- Locate the Sensor: Identify the MAP or MAF/IAT sensor in your engine bay. Refer to your vehicle's service manual or the ChipPower online instructions for the exact location.
- Disconnect the Sensor: Carefully disconnect the original connector from the chosen sensor.
- Connect the Wiring Harness:
Connect one end of the ChipPower wiring harness to the vehicle's sensor, and the other end to the original connector that was removed from the sensor. The harness acts as an intermediary between the sensor and the vehicle's ECU.
Image: A diagram illustrating the connection of the tuning box harness to the vehicle's sensor system.
Images: Examples of a MAP sensor (left) and a MAF sensor (right), common connection points for the tuning box.
- Connect the Tuning Box: Plug the main connector of the wiring harness into the ChipPower GS2 tuning box. Ensure a secure connection.
Image: Step-by-step visual guide showing how to securely connect the wiring harness to the ChipPower GS2 unit.
- Secure the Unit and Cables: Use the provided zip ties to secure the ChipPower GS2 unit and all cables away from hot or moving engine parts.
Image: The ChipPower GS2 tuning box installed and secured within a vehicle's engine compartment.
- Reconnect Battery: Reconnect the negative terminal of the car battery.
- Start Engine: Start your vehicle and check for any warning lights. If issues arise, refer to the troubleshooting section.
Fine-Tuning Adjustment:
The ChipPower GS2 features an adjustment screw for fine-tuning the performance. This allows you to customize the power delivery to your preference. Start with the factory setting and make small adjustments if desired. Refer to the online instructions for guidance on adjustment.
Image: A detailed view of the ChipPower GS2 unit, highlighting the accessible adjustment screw for fine-tuning.
Image: An illustration showing the location and function of the adjustment screw on the ChipPower GS2 tuning box.
Online Instructions:
For detailed, vehicle-specific installation guides and further information, scan the QR code below with your smartphone or visit the ChipPower official website.
Image: A QR code and text indicating access to online instructions for the ChipPower GS2.
Operation
Once correctly installed, the ChipPower GS2 tuning box operates automatically. It modifies signals from the engine's sensors to optimize fuel injection and ignition timing, resulting in improved horsepower and torque. The device is designed to work seamlessly with your vehicle's existing engine management system.
Maintenance
The ChipPower GS2 tuning box requires no routine maintenance. Ensure that all connections remain secure and free from dirt or moisture. Periodically check the mounting of the unit and cables to ensure they are not loose or interfering with other engine components.
Troubleshooting
If you encounter any issues after installation, consider the following:
- Check Connections: Ensure all connectors are fully seated and secure. A loose connection is a common cause of issues.
- Review Installation Steps: Double-check that the tuning box is connected to the correct sensor (MAP or MAF/IAT) as per your vehicle's requirements.
- Engine Warning Lights: If a warning light appears, disconnect the tuning box and reconnect the original sensor. If the light persists, consult a qualified mechanic. If the light disappears, re-evaluate the tuning box installation.
- Performance Issues: If performance is not as expected, try adjusting the tuning box settings using the adjustment screw. Make small, incremental changes.
- Online Resources: Consult the ChipPower online instructions (via QR code) for specific troubleshooting tips related to your vehicle model.
Specifications
| Feature | Detail |
|---|---|
| Brand | ChipPower |
| Model | GS2 |
| Manufacturer Part Number | 220105655 |
| Safety Rating | CE, UKCA, RoHS |
| Compatibility | Twingo Mk1 I 1.2 (55 kW / 75 HP, 1996-2007) Gasoline |
Warranty and Support
For warranty information, technical support, or any questions regarding your ChipPower GS2 Performance Tuning Box, please contact ChipPower directly through their official website or customer service channels. Retain your proof of purchase for warranty claims.
ChipPower was established in 2008 and specializes in the production and sale of chip boxes and other electronic devices, serving approximately 150,000 customers worldwide.
