Introduction
This manual provides instructions for the installation, operation, and maintenance of your BLNAN 12-inch square RGB Dimmable LED Ceiling Light. This ultra-thin, flush-mount fixture offers versatile lighting options, including adjustable color temperature (3000K-6500K), dimmable brightness, RGB mood lighting, and a night light mode. Its modern design is suitable for various indoor spaces.
Image: BLNAN 12-inch square RGB Dimmable LED Ceiling Light.
Key Features:
- Modern Ultra-Thin Design: With a thickness of only 0.99 inches, this low-profile light is ideal for various ceiling types.
- 4 Lighting Modes: Includes 3000K-6500K dimmable white light, night light, RGB mood lighting, and RGB cycle mode (fast/slow).
- Adjustable Color Temperature: Seamlessly adjust white light from warm (3000K) to cool (6500K).
- Dimmable Brightness: Adjust brightness from 10% to 100% for white light modes.
- Night Light Mode: Emits a soft 3000K white light with a 30-second off-delay function, suitable for children's rooms or nighttime use.
- 7 RGB Colors Selectable: Choose from 7 distinct RGB colors or utilize two RGB color cycle modes (fast/slow) to create various ambiances.
- Memory Function: The light retains the last settings if turned on for more than 1 minute and off for more than 10 seconds.
- Energy Efficient: Designed for low power consumption.
- Dustproof: Helps maintain light quality and longevity.
Image: Overview of BLNAN LED Ceiling Light features.
What's in the Box
- BLNAN 12-Inch Square RGB Dimmable LED Ceiling Light (x1)
- Remote Control (x1)
- Mounting Accessories Package (x1)
- Instruction Manual (x1)
Safety Information
Please read all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Always turn off power at the circuit breaker before beginning installation or performing any maintenance.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections are secure and comply with local codes and ordinances.
- Do not install this fixture in wet or damp locations. This product is for indoor use only.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
- Keep the remote control out of reach of children to prevent accidental operation or battery ingestion.
Setup and Installation
The BLNAN ceiling light is designed for quick and easy installation. Follow these steps for hardwired flush mounting:
- Prepare for Installation: Turn off the power to the junction box at the circuit breaker. Ensure the power is completely off before proceeding.
- Remove Mounting Plate: Carefully remove the mounting plate from the back of the light fixture. This is typically done by a 45-degree twist or by unscrewing.
- Mount the Plate: Align the mounting plate with your existing ceiling junction box. Secure the plate to the junction box using the provided screws. The light includes a thin cable and a hook on the mounting plate to temporarily hang the light during wiring.
- Connect Wiring: Connect the electrical wires from the ceiling to the corresponding wires on the light fixture using the included wire nuts. Typically, this involves connecting live (black), neutral (white), and ground wires. Ensure all connections are secure.
- Secure the Fixture: Carefully tuck the connected wires into the junction box. Align the light fixture with the mounted plate and twist or secure it into place until it is flush with the ceiling and firmly attached.
- Restore Power: Once the fixture is securely installed, restore power at the circuit breaker.
Image: Mounting plate dimensions for installation.
Image: Easy installation feature.
Operating Instructions
Your BLNAN LED Ceiling Light can be controlled using the included remote control or your existing wall switch.
Remote Control Functions:
Image: Remote control for BLNAN LED Ceiling Light.
Image: Remote control button layout and functions.
- ON/OFF Button: Powers the light on or off.
- 30s Delay Off: Activates a 30-second delay before turning off the light.
- Brightness +/- (Sun Icon): Adjusts the brightness of the white light modes (10%-100%).
- Color Temperature +/- (K- / K+): Adjusts the color temperature of the white light from 3000K (warm) to 6500K (cold).
- Night Light Mode (Moon Icon): Activates a soft 3000K white light.
- RGB Button: Cycles through 7 static RGB colors.
- RGB Cycle Mode (Circular Arrows): Toggles between fast and slow RGB color cycling modes.
- Preset Color Temperatures (3000K, 4000K, 6500K): Directly selects warm white, neutral white, or cold white light.
Wall Switch Control:
You can quickly switch between different lighting modes by toggling your standard wall switch ON and OFF. The sequence typically cycles through 6500K (Cold), 5000K (Warm), 4000K (Neutral), RGB Cycle, and Nightlight modes.
Image: Remote control and wall switch functionality.
Memory Function:
The light features a memory function. If the light is turned on for more than 1 minute and then turned off for more than 10 seconds, it will automatically restore the last used setting when turned back on (via remote or wall switch).
Lighting Modes Overview:
Image: Visual representation of the four main lighting modes.
Image: Adjusting color temperature and brightness.
Image: Night Light Mode in use.
Image: RGB Ambient Lighting for various moods.
Maintenance
To ensure the longevity and optimal performance of your BLNAN LED Ceiling Light, follow these maintenance guidelines:
- Cleaning: Before cleaning, ensure the power to the fixture is turned off at the circuit breaker. Use a soft, dry, or slightly damp cloth to wipe the surface of the light. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Dust Removal: The fixture is designed to be dustproof. Periodically wipe away any accumulated dust to maintain light output and appearance.
- Bulb Replacement: This fixture uses integrated LED components and does not require bulb replacement.
- Remote Control: If the remote control stops responding, check and replace the batteries (type not specified, typically AAA or CR2032).
Image: Anti-Dust feature icon.
Troubleshooting
If you encounter issues with your BLNAN LED Ceiling Light, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, loose wiring, faulty switch. | Check circuit breaker. Ensure all wiring connections are secure. Test the wall switch. |
| Remote control not working. | Dead batteries, remote out of range, interference. | Replace remote control batteries. Ensure remote is within effective range of the light. Remove any obstructions. |
| Light flickers or dims unexpectedly. | Unstable power supply, loose connection. | Verify stable power supply. Check wiring connections. |
| Color or brightness adjustment not working. | Remote control issue, memory function conflict. | Ensure remote batteries are fresh. Try resetting the light by turning off power at the breaker for 1 minute, then restoring. |
Specifications
| Feature | Detail |
|---|---|
| Brand | BLNAN |
| Model Number | 010-U |
| Product Dimensions | 12"L x 12"W x 0.99"H |
| Item Weight | 1.8 Pounds |
| Color | White |
| Material | Plastic |
| Style | Modern White Square Ultra-Thin Hardwired |
| Light Fixture Form | Close to Ceiling |
| Power Source | Corded Electric |
| Installation Type | Flush Mount |
| Control Method | Remote Control, Wall Switch |
| Light Source Type | LED |
| Voltage | 120 Volts |
| Light Color | RGB and 3000K-6500K |
| Wattage | 24 watts |
| Brightness | 2400 Lumens |
| Color Temperature | Adjustable 3000K-6500K |
| Color Rendering Index (CRI) | 80.00 |
| Average Life | 30000 Hours |
| Special Features | Adjustable Color Temperature, Color Changing, Dimmable, Energy Efficient, Night Light Mode, Memory Function |
| Water Resistance Level | Not Water Resistant |

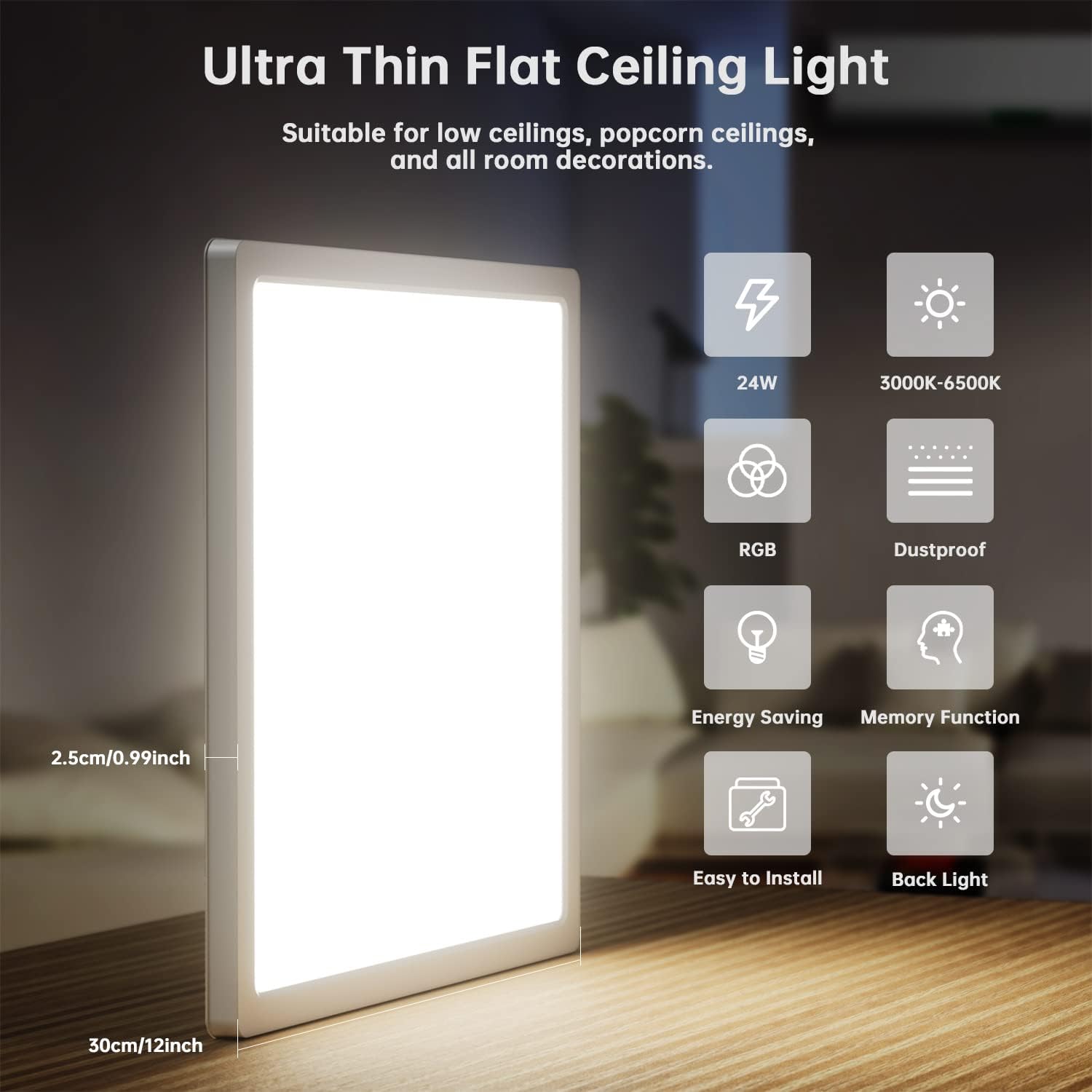

Image: Ultra-thin design and dimensions.
Warranty Information
BLNAN products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included in your product packaging or contact BLNAN customer support. Keep your purchase receipt as proof of purchase for any warranty claims.
Customer Support
If you have any questions, require assistance, or need to report an issue with your BLNAN LED Ceiling Light, please contact our customer support team. Contact information can typically be found on the product packaging or on the official BLNAN website.
Note: We do not have the authority to proactively contact buyers. Please reach out to us directly for support.
