Bezior XF200 Foldable Electric Bike User Manual

1. Introduction

Welcome to the world of electric biking with your new Bezior XF200 Foldable Electric Bike. This manual provides essential information for the safe operation, maintenance, and care of your e-bike. Please read this manual thoroughly before your first ride and keep it for future reference.

Figure 1: Bezior XF200 Foldable Electric Bike

2. Product Overview

The Bezior XF200 is a versatile foldable electric bike designed for various terrains, including snow, beach, and mountain trails. Its robust aluminum alloy frame and fat tires provide stability and comfort.

2.1. Key Features

• Foldable Design: The handlebars, pedals, and frame can be quickly disassembled and folded for compact storage and easy transport.
• Powerful Motor: Equipped with a 1000W brushless motor for excellent acceleration and climbing ability.
• Long-lasting Battery: Features a 48V 15Ah removable lithium battery, offering extended mileage in both electric and pedal-assist modes.
• Fat Tires: 20" x 4.0 aluminum alloy rims with fat tires provide superior grip and shock absorption.
• Hydraulic Disc Brakes: Ensures reliable stopping power in all conditions.
• 7-Speed Gear: Shimano 7-speed gear system for adaptable riding.

2.2. Foldable Design Details

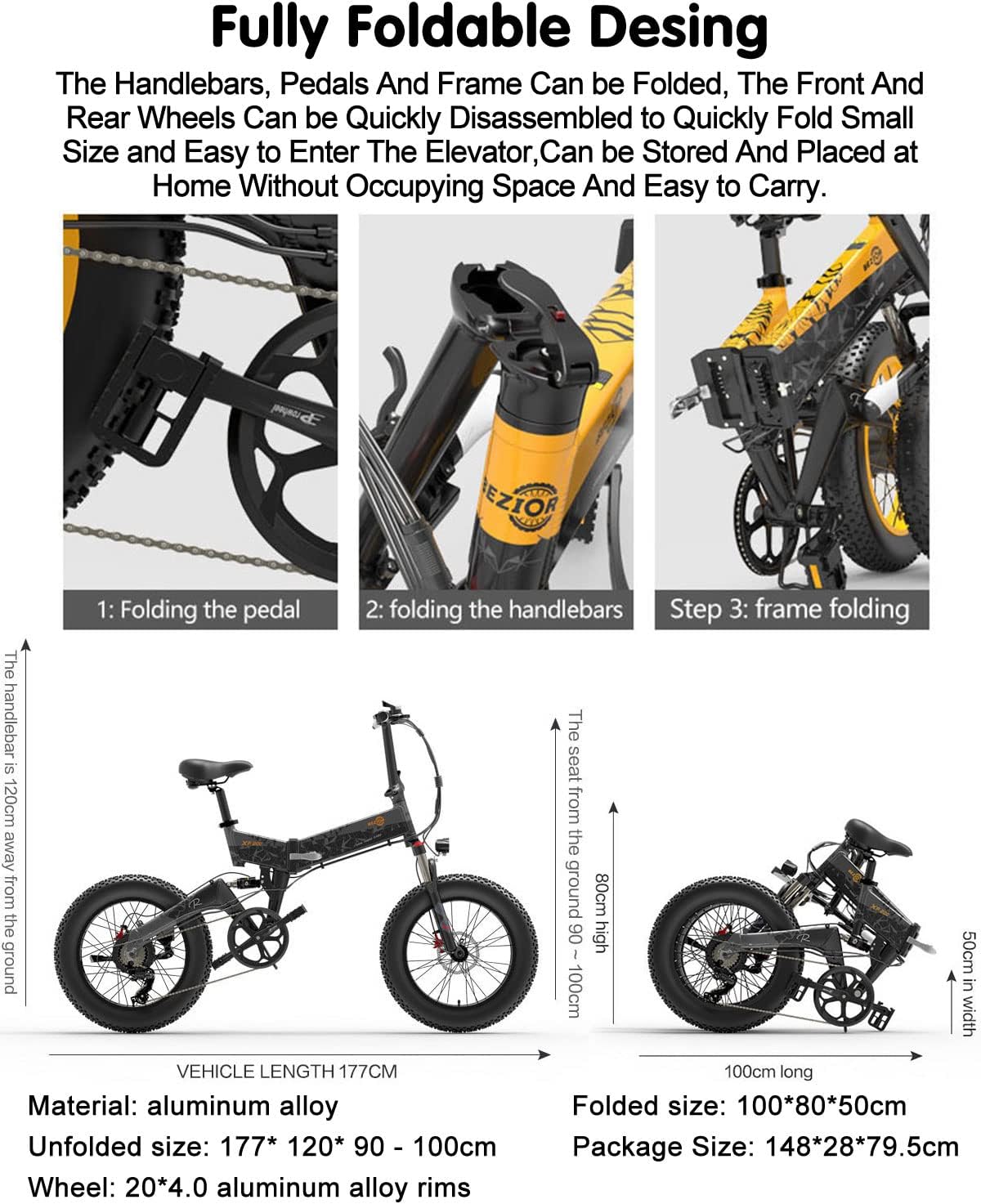

Figure 2: Steps for folding the Bezior XF200, including pedal, handlebar, and frame folding.

The compact folded size of 1000*800*500mm allows for convenient storage and portability.

Figure 3: Unfolded and folded dimensions of the Bezior XF200.

3. Setup

Your Bezior XF200 electric bike comes partially assembled. Follow these steps for final assembly and initial setup.

3.1. Unboxing and Component Check

1. Carefully remove all components from the packaging.
2. Verify that all listed items are present: 1 x BEZIOR XF200 Electric Moped Bicycle, 1 x Charger, 1 x Wrench, 1 x Inflator, 1 x Installation tool, 1 x Lock, 1 x Front wheel quick release, 1 x British plug, 1 x User Manual.

Figure 4: Illustration of the charging process for the removable lithium battery.

3.2. Initial Battery Charge

Before first use, fully charge the battery. The 48V 15Ah removable lithium battery takes approximately 6 to 7 hours to fully charge from an undervoltage state using the provided 48V 2.5A charger.

4. Operating Instructions

The Bezior XF200 offers three riding modes to suit your needs:

• Electric Mode: Turn the electronic throttle for full electric drive.
• Power Assist Mode: Provides 1-5 gears with 10%-80% output power, assisting your pedaling effort.
• Riding Mode: Standard bicycle riding mode with no electric assistance.

Figure 5: Visual representation of key features including hydraulic disc brakes and highlight LED headlights.

4.1. Riding Modes Overview

Figure 6: The 1000W high-speed brushless motor provides excellent acceleration and can climb grades up to 35°.

The maximum speed of the Bezior XF200 is 25 MPH.

4.2. Official Product Video

For a comprehensive guide on the features and usage of your Bezior XF200, please watch the official product video below:

Video 1: Detailed overview of the 20" x 4.0 Fat Tire Folding Electric Bike - Bezior XF200. This video covers various aspects of the bike's design, features, and performance.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Bezior XF200 electric bike.

5.1. General Care

• Keep the bike clean, especially after riding in wet or muddy conditions.
• Store the bike in a dry place, away from direct sunlight and extreme temperatures.

5.2. Battery Care

• Avoid fully discharging the battery frequently.
• Charge the battery regularly, even if the bike is not in use for extended periods.
• Use only the original charger provided with the bike.

5.3. Brake System

• Regularly check the hydraulic disc brakes for wear and proper function.
• Ensure brake pads are not worn down and replace them as needed.

6. Troubleshooting

This section addresses common issues you might encounter with your Bezior XF200 electric bike.

6.1. Power Issues

• Bike not turning on: Check if the battery is properly seated and charged. Ensure the power button is pressed correctly.
• Motor not engaging: Verify that the bike is in an electric or pedal-assist mode. Check for any error codes on the digital display.

6.2. Braking Issues

• Brakes feel spongy: This may indicate air in the hydraulic system or worn brake pads. Consult a professional for bleeding the brakes or replacing pads.
• Brakes making noise: Could be due to dirt, worn pads, or misaligned calipers. Clean the brakes or inspect pads for wear.

7. Specifications

8. Warranty and Support

The Bezior XF200 Foldable Electric Bike comes with a Lifetime Warranty. For any warranty claims, technical support, or inquiries, please contact Bezior customer service through their official channels. You can visit the Bezior Store on Amazon for more information and contact options.
