XIAOMI Redmi Note 11 Pro Plus 5G User Manual

1. Introduction

This manual provides essential instructions for setting up, operating, maintaining, and troubleshooting your XIAOMI Redmi Note 11 Pro Plus 5G smartphone. Please read this manual carefully before using your device to ensure proper functionality and safety.

Image 1.1: Front and back view of the XIAOMI Redmi Note 11 Pro Plus 5G smartphone.

2. What's in the Box

Verify that all items are present in your product packaging:

• XIAOMI Redmi Note 11 Pro Plus 5G Smartphone
• Power Adapter
• USB Cable
• Phone Case
• Fast Car Charger
• SIM Ejector Tool (not explicitly listed but typically included)
• Quick Start Guide (not explicitly listed but typically included)

3. Setup

3.1. SIM Card and MicroSD Card Installation

1. Locate the SIM tray on the side of your device.
2. Insert the SIM ejector tool into the small hole on the SIM tray and press firmly until the tray pops out.
3. Place your Nano-SIM card(s) and/or MicroSD card into the tray with the gold contacts facing down, ensuring they are correctly oriented.
4. Gently push the tray back into the device until it clicks into place.

Image 3.1: Side view of the device, illustrating the location of the SIM tray and power/volume buttons.

3.2. Initial Power On and Basic Configuration

1. Press and hold the Power button (located on the side) until the XIAOMI logo appears.
2. Follow the on-screen prompts to select your language, region, and connect to a Wi-Fi network.
3. Sign in with your Google account or create a new one to access Android services.
4. Set up a screen lock (PIN, pattern, password, or fingerprint) for security.

4. Operating Instructions

4.1. Display and Navigation

Your device features a 6.67-inch FHD+ AMOLED DotDisplay with a 120Hz refresh rate for smooth visuals. Navigate using touch gestures:

• Tap: Select an item or open an app.
• Swipe: Scroll through screens or lists.
• Pinch: Zoom in or out on images and web pages.

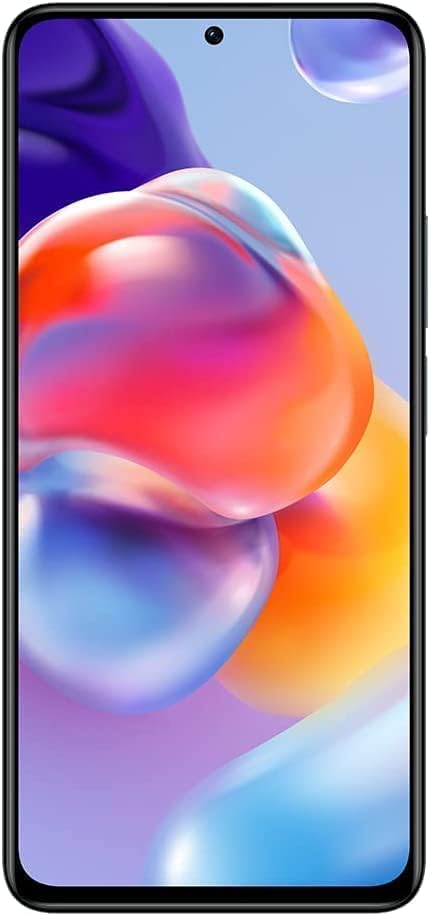

Image 4.1: Front view of the device, highlighting the AMOLED DotDisplay.

4.2. Camera Usage

The device is equipped with a 108MP main camera system. To open the camera app, tap the camera icon on your home screen or lock screen.

• Photo Mode: Tap the shutter button to capture a still image.
• Video Mode: Switch to video mode and tap the shutter button to start/stop recording.
• Other Modes: Explore modes like Portrait, Night, Macro, and Pro for advanced photography.

Image 4.2: Back view of the device, showcasing the 108MP camera module.

4.3. Battery Management and Charging

The device features a 5000mAh battery and supports 67W turbo charging. Use the provided adapter and USB cable for optimal charging speed.

• Connect the USB cable to the device's USB-C port and the power adapter.
• Plug the power adapter into a wall outlet.
• Avoid using non-certified chargers, which may damage the device or pose safety risks.

Image 4.3: Bottom view of the device, showing the USB-C charging port, speaker, and microphone.

4.4. Connectivity

The device supports various connectivity options:

• Wi-Fi: Go to Settings > Wi-Fi to connect to available networks.
• Bluetooth: Go to Settings > Bluetooth to pair with Bluetooth devices like headphones or speakers.
• Mobile Data: Ensure your SIM card is active and mobile data is enabled in Settings > SIM cards & mobile networks.
• GPS: Location services can be enabled or disabled in Quick Settings or Settings > Location.
• 3.5mm Headphone Jack: Located on the top of the device for wired audio accessories.

Image 4.4: Top view of the device, showing the 3.5mm headphone jack, speaker, and IR blaster.

5. Maintenance

5.1. Software Updates

Regularly check for and install software updates to ensure your device has the latest features, security patches, and performance improvements. Go to Settings > About phone > MIUI version to check for updates.

5.2. Cleaning Your Device

Use a soft, lint-free cloth to clean the screen and body of your phone. Avoid using harsh chemicals or abrasive materials, which can damage the display or finish. For stubborn smudges, slightly dampen the cloth with water.

5.3. Storage Management

Your device comes with 128GB of internal storage. To optimize performance, regularly clear unnecessary files, uninstall unused apps, and consider using cloud storage for photos and videos. You can also expand storage using a MicroSD card.

6. Troubleshooting

If you encounter issues with your device, try the following common solutions:

• Device not powering on: Ensure the battery is charged. Connect the device to the charger for at least 15 minutes, then try powering it on again.
• Apps crashing or freezing: Close the problematic app and reopen it. If the issue persists, restart your phone.
• Network connectivity issues: Check if Wi-Fi or mobile data is enabled. Restart your router for Wi-Fi issues or toggle Airplane Mode on/off for mobile data problems. Ensure your SIM card is properly inserted.
• Slow performance: Clear cache, uninstall unused apps, and free up storage space. Restarting the device can also help.
• Fingerprint sensor not working: Ensure your finger is clean and dry. Re-register your fingerprints in Settings > Password & security.

For more complex issues, refer to the official XIAOMI support website or contact customer service.

7. Specifications

Key technical specifications for the XIAOMI Redmi Note 11 Pro Plus 5G:

8. Safety Information

Please observe the following safety guidelines:

• Do not expose the device to extreme temperatures, direct sunlight, or excessive moisture.
• Use only approved chargers and accessories.
• Avoid dropping or subjecting the device to severe impact.
• Do not attempt to disassemble or repair the device yourself. Refer to qualified service personnel.
• Dispose of the device and its battery responsibly according to local regulations.

9. Warranty and Support

Your XIAOMI Redmi Note 11 Pro Plus 5G comes with a limited warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

For technical support, software updates, and additional resources, please visit the official XIAOMI support website:

https://www.mi.com/global/support

You may also contact XIAOMI customer service for assistance.
