1. Introduction
This manual provides comprehensive instructions for the assembly, setup, and operation of your Whadda WMT141 On/Off Timer kit. This educational soldering project is designed to introduce users to basic electronics and circuit functionality, offering a timing range from 1 second to 60 hours. Please read all instructions carefully before beginning assembly or operation.
The Whadda WMT141 is a versatile timer module, perfect for various applications requiring precise timing control. It is suitable for both beginners and advanced users interested in electronics.
2. Product Overview
The Whadda WMT141 On/Off Timer is a DIY kit that, once assembled, functions as a programmable timer. It features a circuit board with various electronic components, including a relay for switching external devices, push buttons for start/stop, LEDs for status indication, and a potentiometer for time adjustment.

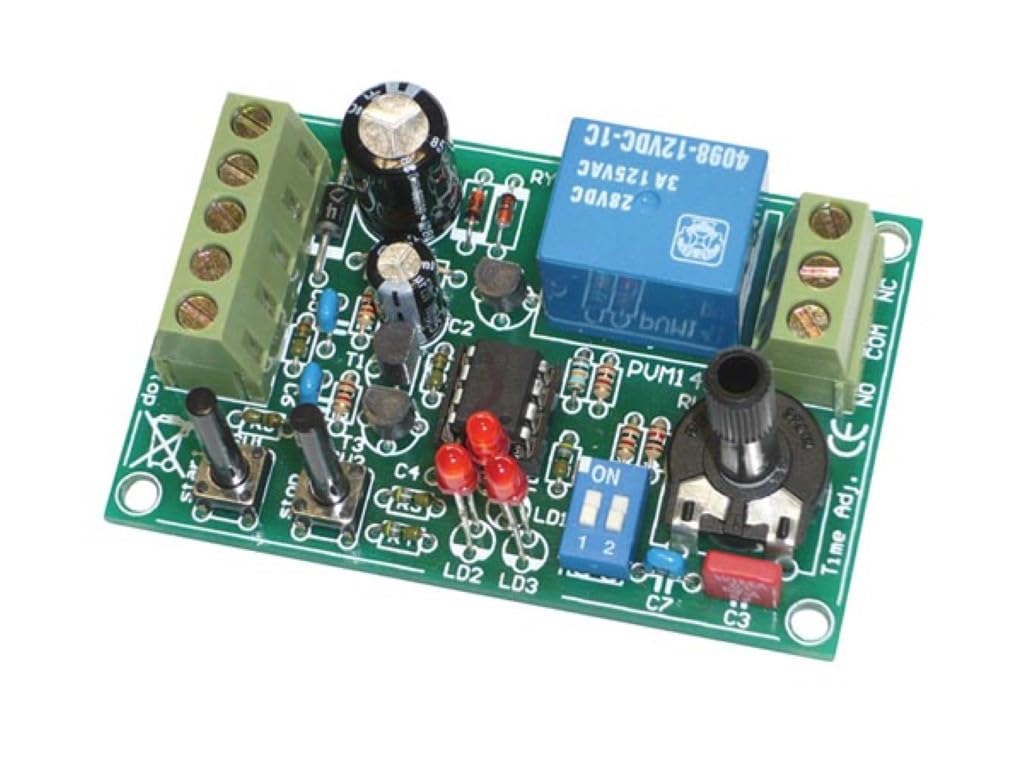

Figure 2.1: Assembled Whadda WMT141 On/Off Timer Module (Top View)
Figure 2.2: Angled View of the WMT141 Timer Module
Key Features:
- Educational: Designed for learning basic electronics and soldering techniques.
- Wide Timing Range: Adjustable from 1 second to 60 hours.
- On/Off Functionality: Controls external devices via a relay.
- STEM Project: Enhances problem-solving and creative thinking skills.
- User-Friendly: Clear instructions for all skill levels.
3. Setup and Assembly
As this is a DIY kit, assembly is required. Ensure you have the necessary tools, including a soldering iron, solder, wire cutters, and safety glasses. Follow the detailed assembly instructions provided with your kit package.
3.1 Component Identification
Before starting, familiarize yourself with the components. The PCB (Printed Circuit Board) is clearly marked for component placement.
3.2 Soldering Instructions
- Begin by soldering the smallest components first (resistors, diodes).
- Proceed with larger components such as capacitors, IC sockets (if applicable), and transistors.
- Solder the push buttons, LEDs, potentiometer, and terminal blocks.
- Finally, solder the relay.
- Ensure all solder joints are clean and secure, checking for any bridges or cold joints.
3.3 Power Connection
Connect a suitable DC power supply (typically 12V, refer to the kit's specific voltage requirements) to the designated power input terminals on the PCB. Observe polarity (+ and -).
3.4 Output Connection
The timer's output is controlled by a relay. Connect the device you wish to control to the relay's COM (Common), NO (Normally Open), and NC (Normally Closed) terminals as required by your application.
4. Operating Instructions
Once assembled and powered, the timer can be configured and operated.
4.1 Setting the Time Interval
Use the potentiometer labeled "Time Adj." to adjust the desired time interval. The range is from 1 second to 60 hours. Fine-tuning may require experimentation.
4.2 Dip Switch Configuration
The module includes a DIP switch (labeled "ON 1 2") for selecting different operating modes or time multipliers. Refer to the specific kit documentation for the exact function of each switch position. Typically, these switches might select between different timing ranges (e.g., seconds, minutes, hours) or trigger modes.
4.3 Start/Stop Functionality
- Press the "Start" button (labeled SU1 or similar) to initiate the timing sequence.
- Press the "Stop" button (labeled SU2 or similar) to halt the timing sequence.
4.4 LED Indicators
The LEDs (LD1, LD2, LD3) provide visual feedback on the timer's status, such as power on, timing in progress, or relay activation. Consult the kit's specific documentation for detailed LED behavior.
5. Maintenance
The Whadda WMT141 timer module is designed for durability and requires minimal maintenance.
- Cleaning: Keep the circuit board clean and free from dust and debris. Use a soft, dry brush or compressed air. Avoid using liquids directly on the PCB.
- Storage: Store the module in a dry, cool environment away from direct sunlight and extreme temperatures.
- Inspection: Periodically inspect solder joints for any signs of corrosion or damage, especially if the module is used in harsh environments.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Timer does not power on (no LEDs light up). | Incorrect power connection, faulty power supply, reversed polarity, or short circuit. | Check power supply voltage and current. Verify correct polarity. Inspect solder joints for shorts or breaks. Ensure power supply is functional. |
| Timer starts but does not count down or activate relay. | Incorrect potentiometer setting, faulty component, or incorrect DIP switch setting. | Adjust the "Time Adj." potentiometer. Check DIP switch settings against the manual. Inspect relevant components (e.g., IC, relay) for proper soldering and functionality. |
| Relay clicks but connected device does not turn on/off. | Incorrect wiring to relay terminals, faulty relay, or issue with the connected device. | Verify wiring to COM, NO, NC terminals. Test the connected device independently. Check relay functionality. |
| Inconsistent timing. | Loose connections, environmental factors (temperature), or component tolerance. | Re-check all solder joints. Ensure stable power supply. Operate in a stable environment. |
7. Specifications
- Model Number: WMT141
- Brand: Whadda
- Manufacturer: Velleman Group nv
- Product Dimensions (L x W x H): 3.8 x 7.8 x 15.5 cm
- Weight: 60 grams
- Material: Polycarbonate
- Timing Range: 1 second to 60 hours
- Counting Unit: 1 Total
8. Warranty Information
The Whadda WMT141 On/Off Timer kit comes with a 2-year manufacturer's warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from improper assembly, misuse, accidents, or unauthorized modifications.
9. Support
For technical assistance, troubleshooting, or further inquiries regarding your Whadda WMT141 On/Off Timer, please visit the official Whadda website or contact Velleman Group nv customer support.
