Introduction
This manual provides detailed instructions for the safe installation, operation, and maintenance of your ExBrite 32-33.5 in.W x 72 in.H Bifold Frameless Glass Shower Door. Please read all instructions carefully before beginning installation to ensure proper function and safety. Retain this manual for future reference.
Safety Information
- Always wear safety glasses during installation.
- Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges.
- Ensure the installation surface is structurally sound and capable of supporting the weight of the shower door.
- Use appropriate tools and hardware for installation. If drilling into tile, use a specialized tile drill bit.
- Two people are recommended for safe handling and installation of glass panels.
- Do not overtighten screws, as this may damage components or glass.
- Ensure all seals are properly installed to prevent water leakage.
Specifications
| Feature | Detail |
|---|---|
| Brand | ExBrite |
| Model Number | 3272FDCX |
| Dimensions | 32-33.5 in.W x 72 in.H |
| Walk-in Opening | 24 3/5 in. |
| Glass Thickness | 1/4 inch (6mm) |
| Glass Type | SGCC Certified Clear Tempered Glass |
| Hardware Finish | Chrome |
| Material | Tempered Glass, Aluminum |
| Item Weight | 58.4 pounds |
Package Contents
Verify that all components are present and undamaged before beginning installation. Refer to the diagram below for part identification.
Image Description: An exploded view diagram showing all individual components of the ExBrite bifold shower door, including glass panels, hinges, handles, gaskets, and wall jambs, labeled for identification.
- Bottom Gasket
- Door Panel-1
- Vertical Gasket
- Wall Jamb
- Door Panel-2
- Hinge
- Handle
- Magnetic Strip
- Magnetic Seal Aluminum
- Magnetic Seal Wall Jamb
- Water Seal
- Packaging Box (contains hardware)
Features
- Bifold Design: Provides a wide entry while minimizing space usage.
- Frameless Glass: 1/4 inch (6mm) thick clear tempered glass, SGCC certified for safety.
- High-Quality Materials: Aluminum frame and stainless steel hinges resist rust and blackening in humid environments.
- Adjustable Design: Offers 3/4 inch adjustability on each side within wall profiles for varying wall spacing widths, including trapezoidal walls.
- Reversible Installation: Can be installed for either right-hand or left-hand door opening.
- 180° Reinforced Hinges: Hinges and shaft allow for 180° rotation, saving space.
- Waterproof Sealing: Full-length clear vinyl magnetic door seal and bottom strips create an effective waterproof barrier. A 12.5° sloping and flexible silicone strip further prevents water spillage.
- Easy to Clean: Glass surface features an easy-to-clean coating for self-cleaning functionality.
Installation
Pre-Installation Considerations
- Measure your shower opening accurately after all wall finishes (tile, adhesive, etc.) are complete.
- Ensure the floor is level. The door features ground adjustment for uneven surfaces.
- Determine your preferred door opening direction (left or right).
Step-by-Step Guide
- Measure and Mark: Carefully measure the shower opening width and height. Mark the positions for the wall profiles.
- Install Wall Profiles: Secure the aluminum wall profiles to the wall using appropriate fasteners. The profiles allow for up to 1 3/8 inch wall adjustment to accommodate uneven walls.
- Attach Hinges: Install the reinforced hinges to the glass panels and wall profiles. These hinges allow the door to pivot 180 degrees.
- Mount Glass Panels: Carefully lift and position the glass panels into the installed hinges and wall profiles. Ensure they are level and plumb.
- Install Seals: Apply the full-length clear vinyl magnetic door seal and bottom strips. These are crucial for creating a waterproof barrier. Additionally, install the 12.5° sloping silicone strip at the bottom to prevent water from spilling out.
- Attach Handle: Secure the stainless steel handle to the door panel.
- Ground Adjustment: Utilize the up and down function of the hinges for ground adjustment to ensure proper alignment on uneven surfaces.
- Seal with Silicone: Apply a bead of silicone sealant along the exterior joints where the wall profiles meet the wall and along the bottom edge of the fixed panel to prevent leaks. Allow adequate curing time before use.

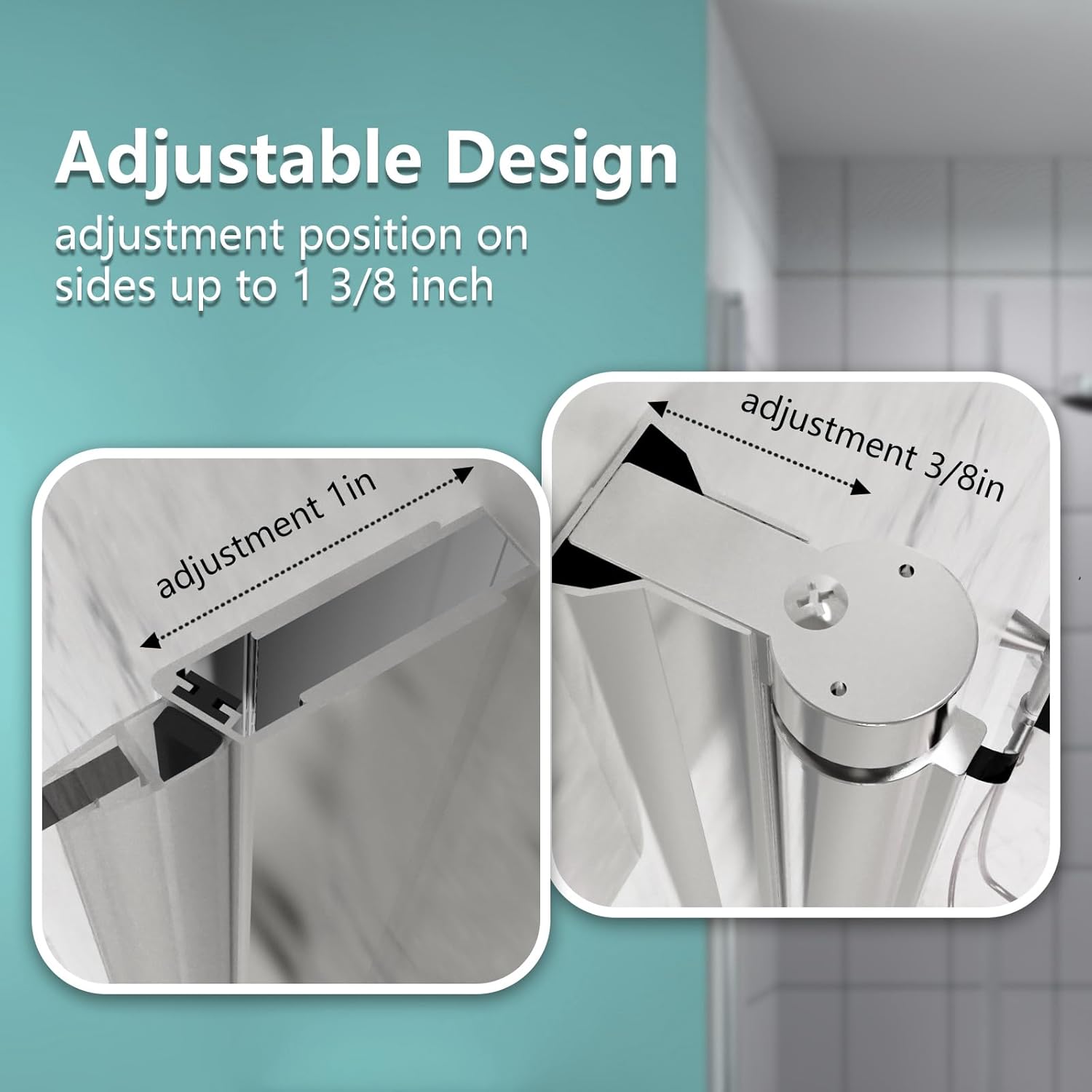

Image Description: A close-up view illustrating the adjustable design of the shower door's wall profiles, showing how the frame can be adjusted by 1 inch and the hinge by 3/8 inch for a total of 1 3/8 inch adjustment.
Image Description: A detailed image of the reinforced hinge mechanism, demonstrating its ability to rotate 180 degrees, which is beneficial for space-saving in shower enclosures.

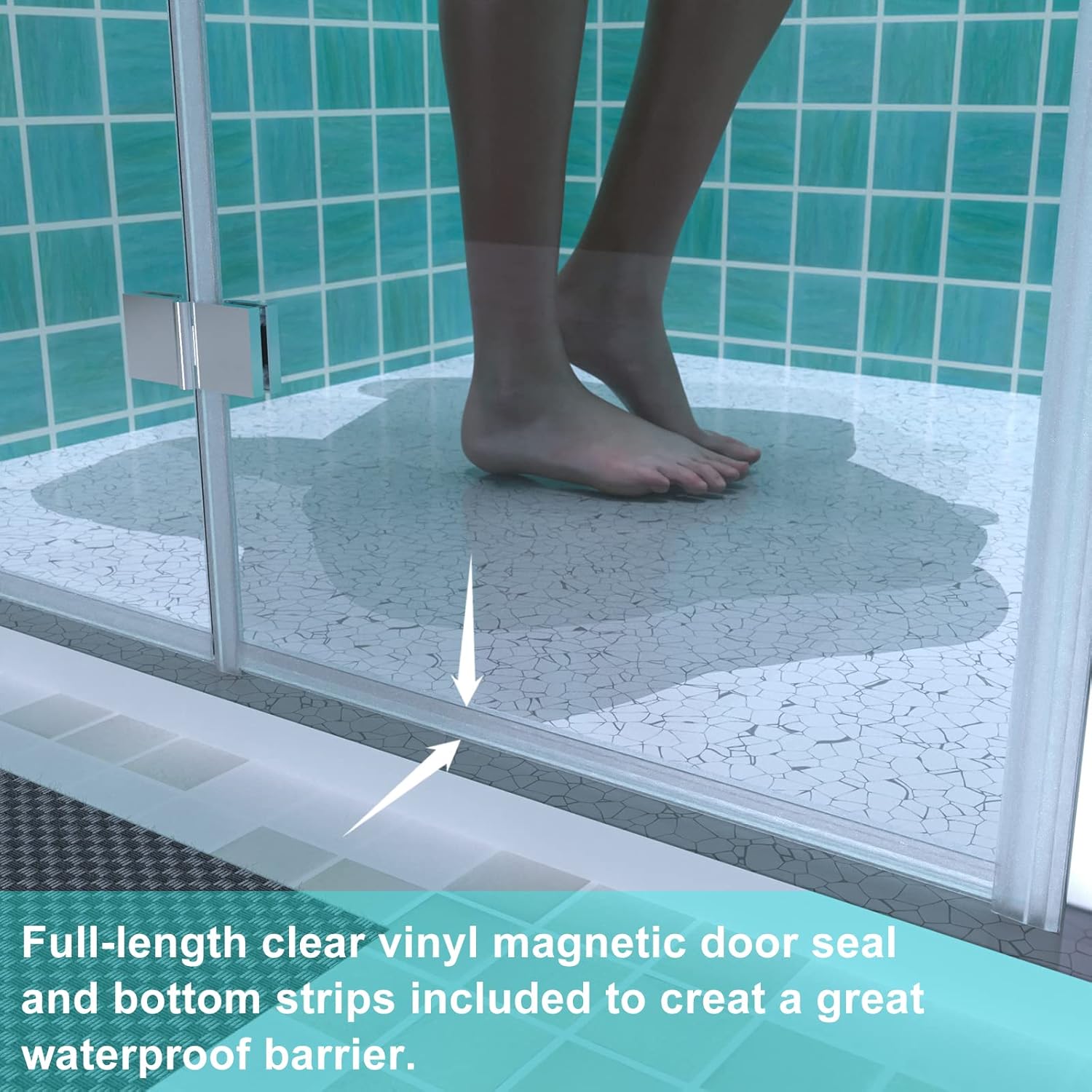

Image Description: A detailed view of the bottom section of the shower door, highlighting the full-length clear vinyl magnetic door seal and bottom strips designed to create a waterproof barrier and prevent leaks.
Image Description: A close-up showing the addition of a 12.5-degree sloping and flexible silicone strip at the bottom of the shower door, illustrating how it provides a good sealing effect and prevents water from spilling out.

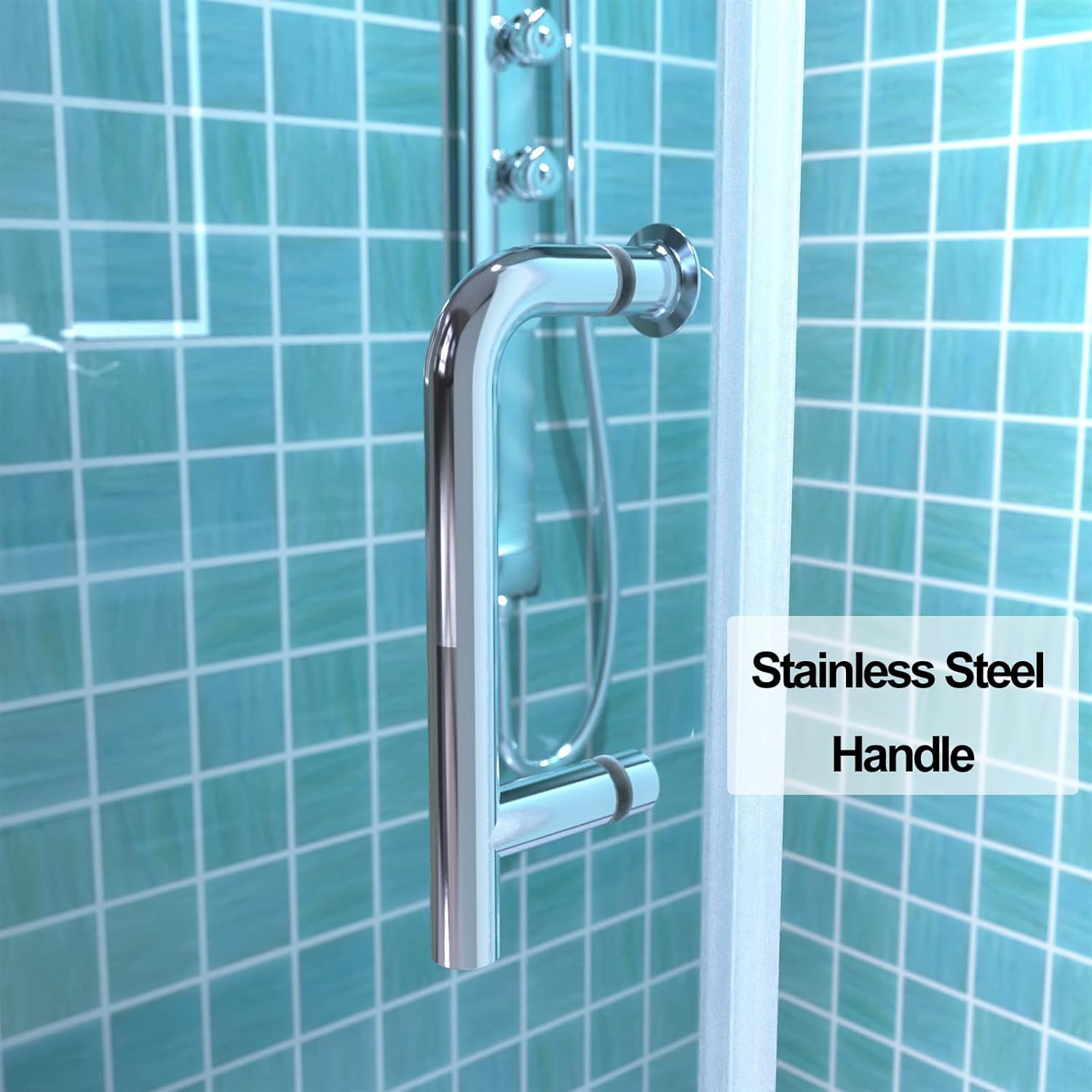

Image Description: A close-up image of the polished stainless steel handle attached to the glass shower door, emphasizing its design and material.
Image Description: A diagram illustrating the 'Ground Adjustment' feature, which allows for vertical adjustment of the door panels to compensate for uneven ground, showing 'Fall down' and 'Raise up' functions.
Reversible Installation
The ExBrite Bifold Frameless Glass Shower Door is designed for reversible installation, allowing you to choose between a left-hand or right-hand door opening to best suit your bathroom layout.
Image Description: A diagram illustrating two installation options for the shower door, showing how it can be configured for either a left-hand or right-hand opening, providing flexibility for different bathroom layouts.
Installation Video
For a visual guide on the installation process, please refer to the official ExBrite installation video:
Video Description: An official ExBrite video demonstrating the installation process and key features of the bifold shower door, including its adjustable design, sealing mechanisms, and smooth operation.
Operating the Shower Door
The bifold shower door is designed for smooth and quiet operation. To open the door, gently push the handle inward, allowing the panels to fold. To close, pull the handle outward until the magnetic seals engage. The rise and fall pivot mechanism ensures quiet and noiseless closing and opening.
Image Description: A top-down diagram illustrating the bifold shower door in both its open and closed positions, demonstrating how it provides a wide entry while using minimal space within the shower area.
Maintenance
Cleaning the Glass
The glass panels feature an easy-to-clean coating. For daily cleaning, wipe down the glass with a soft cloth and mild soap or a non-abrasive glass cleaner. Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the glass coating and hardware finish.
Hardware Care
Clean chrome finish hardware with a soft, damp cloth. Do not use abrasive cleaners or solvents. Regularly check screws and connections for tightness and tighten if necessary, but do not overtighten.
Seal Inspection
Periodically inspect the magnetic seals and bottom strips for wear or damage. Replace if necessary to maintain water tightness.
Troubleshooting
- Water Leakage:
- Check if all seals (magnetic, bottom strips, sloping silicone) are properly installed and undamaged.
- Ensure silicone sealant was applied correctly to all exterior joints and allowed to cure.
- Verify that the door is closing completely and the magnetic seals are engaging.
- Door Not Closing Smoothly:
- Check for any obstructions in the pivot mechanism or along the door's path.
- Ensure hinges are clean and free of debris.
- Verify that the door panels are properly aligned and adjusted using the ground adjustment feature.
- Glass Appears Unclean:
- Use recommended cleaning methods. Hard water spots may require a specialized descaling cleaner designed for glass.
Warranty and Support
ExBrite products typically come with a warranty. For specific warranty details, including coverage and duration, please refer to the documentation included with your purchase or contact ExBrite customer service. ExBrite offers customer support and aims to reply to inquiries within 24 hours.
For assistance, please visit the ExBrite Store on Amazon or contact their customer service directly.
