1. Introduction and Safety Information
This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Glem Gas Ceramic Electric Oven, Model SB9624VI. Please read this manual thoroughly before using the appliance and retain it for future reference.
1.1 Important Safety Instructions
- Ensure the appliance is correctly installed by a qualified technician before use.
- Do not store flammable materials in or near the oven.
- Keep children away from the appliance during operation, as surfaces can become hot.
- Always use oven mitts when handling hot dishes or oven racks.
- Do not use abrasive cleaners or sharp metal scrapers to clean the oven door glass, as they can scratch the surface, potentially leading to shattering.
- Disconnect the appliance from the power supply before performing any maintenance or cleaning.
- Never attempt to repair the appliance yourself. Contact authorized service personnel for all repairs.
2. Product Overview
The Glem Gas Ceramic Electric Oven SB9624VI is a freestanding appliance featuring a ceramic hob with 5 burners and a multi-function electric fan oven. It is designed for efficient and versatile cooking.

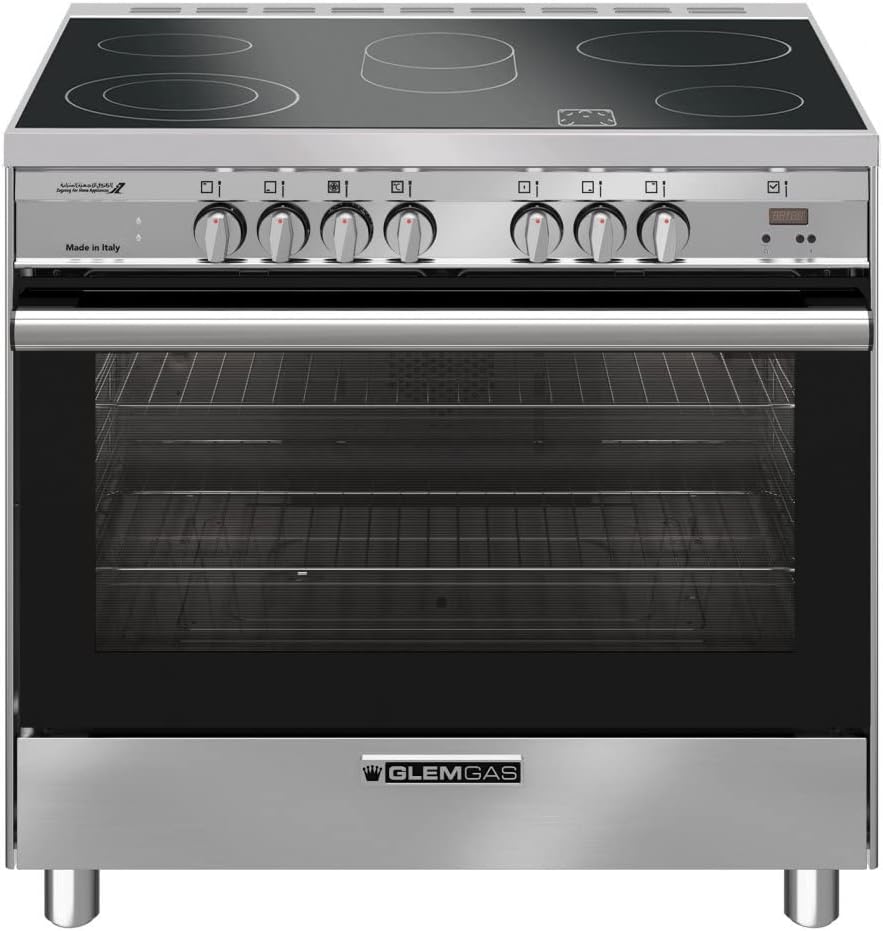

Figure 2.1: Front view of the Glem Gas Ceramic Electric Oven SB9624VI, showcasing the ceramic hob, control panel, and oven door.
Figure 2.2: Angled view of the oven, highlighting its freestanding design and side panel.
2.1 Key Features
- Ceramic Hob: Equipped with 5 electric heating elements for diverse cooking needs.
- Multi-function Electric Fan Oven: Offers various cooking programs and even heat distribution.
- Safe Touch System: Innovative tangential cooling system reduces operational surface temperatures.
- Smooth Closing Oven Door: Designed for quiet and effortless operation.
- Full Glass Inner Door: Facilitates easy cleaning.
- Sealed Cavity: Ensures uniform internal temperature and energy efficiency.
- Side Chromed Racks: Strong and stable for practical, safe use.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. Inspect the appliance for any signs of damage. Report any damage to your retailer immediately. Keep packaging materials away from children.
3.2 Placement and Dimensions
The oven is a freestanding unit. Ensure adequate ventilation around the appliance. Refer to the dimensions diagram for proper spacing.
Figure 3.1: Technical dimensions of the oven (Width: 90 cm, Depth: 60 cm, Height: 76 cm, adjustable to 86-91 cm).
3.3 Electrical Connection
This appliance requires a 240 Volts electrical supply with a wattage of 11500 watts. The electrical connection must be performed by a qualified electrician in accordance with local regulations. Ensure the appliance is properly earthed.
3.4 Initial Cleaning
Before first use, wipe down all surfaces with a damp cloth. Run the oven empty at maximum temperature for approximately 30 minutes to burn off any manufacturing residues. Ensure the room is well-ventilated during this process.
3.5 Installation Support
For professional installation services, please contact the following numbers:
- Riyadh: +966 -11- 4094006 Ext – 113
- Jeddah: +966- 12- 6577714
- Dammam: +966-13- 8343691
- Qassim: +966 581044198
- Abha: +966 593322785
4. Operating Instructions
4.1 Control Panel Overview
The control panel features touch controls for the oven and rotary knobs for the ceramic hob elements. An integrated display shows oven settings and time.
Figure 4.1: Close-up of the control panel with rotary knobs for hob elements and touch controls for the oven functions.
4.2 Ceramic Hob Operation
Each of the 5 ceramic burners is controlled by a dedicated rotary knob. Turn the knob clockwise to select the desired heat level. The hob surface will heat up quickly. Ensure cookware is suitable for ceramic hobs and covers the heating zone adequately.
4.3 Electric Oven Functions
The multi-function electric fan oven offers various cooking programs. Use the touch controls to select the desired function (e.g., conventional heating, fan-assisted cooking, grill) and set the temperature. The fan operation can be utilized at lower temperatures for energy saving and to prevent odor cross-contamination.
Figure 4.2: Oven interior demonstrating cooking with multiple dishes on the racks.
4.4 Safe Touch and Smooth Closing Door
The oven incorporates a 'Safe Touch' system with an induced tangential cooling system to keep external surfaces cooler during operation. The oven door features a 'Smooth Closing' mechanism, ensuring quiet and gentle closure.
Figure 4.3: Detail of the full glass inner door and the smooth closing hinge system, designed for ease of cleaning and quiet operation.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your oven.
5.1 Cleaning the Ceramic Hob
- Allow the hob to cool completely before cleaning.
- Use a ceramic hob scraper to remove stubborn food residues.
- Apply a specialized ceramic hob cleaner and wipe with a soft cloth.
- Rinse with a damp cloth and dry thoroughly to prevent streaks.
5.2 Cleaning the Oven Interior
The oven features a sealed cavity and a full glass inner door for easier cleaning.
Figure 5.1: View of the oven's seamless sealed cavity and the robust side chromed racks.
- Ensure the oven is cool before cleaning.
- The full glass inner door can be easily removed for thorough cleaning without the need for tools.
- Use a mild oven cleaner or a solution of warm soapy water to wipe down the interior. Avoid harsh abrasives.
- The side chromed racks are removable for separate cleaning. Wash them in warm soapy water and dry completely before reinserting.
- The sealed cavity design helps maintain a uniform temperature and simplifies cleaning.
6. Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven not heating | No power supply; incorrect settings; faulty element. | Check power connection and circuit breaker. Verify oven settings. If problem persists, contact service. |
| Hob element not heating | No power supply; knob not set correctly; faulty element. | Ensure power is on. Turn knob to a higher setting. If problem persists, contact service. |
| Uneven cooking | Incorrect rack position; overloaded oven; door not sealed. | Use recommended rack positions. Avoid overcrowding. Check door seal for damage. |
| Oven light not working | Bulb needs replacement. | Replace the oven bulb (ensure oven is cool and disconnected from power). |
7. Technical Specifications
| Feature | Specification |
|---|---|
| Brand Name | Glem Gas |
| Model Info | SB9624VI |
| Product Dimensions (W x D x H) | 90 x 60 x 76 cm |
| Item Weight | 63 kg |
| Efficiency | Energy Efficient |
| Annual Energy Consumption | 11.5 Kilowatt Hours |
| Installation Type | Freestanding / Countertop |
| Burner Type | Ceramic |
| Heating Elements | 5 |
| Oven Type | Electric Fan Oven |
| Control Console | Touch |
| Voltage | 240 Volts |
| Wattage | 11500 watts |
| Fuel Type | Electric |
| Material Type | Ceramic |
| Color | Grey |
| Drawer Type | Warming |
8. Warranty and Support
8.1 Product Warranty
This Glem Gas Ceramic Electric Oven, Model SB9624VI, comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.
8.2 Customer Support
For any technical assistance, service requests, or inquiries regarding your appliance, please contact Glem Gas customer support or an authorized service center. Refer to the installation support numbers provided in Section 3.5 for regional contacts.
