1. Introduction
This manual provides essential information for the safe installation, operation, and maintenance of your Big Ass Fans Essence 10-foot Indoor/Outdoor Ceiling Fan. Please read all instructions carefully before beginning installation or operation to ensure proper function and safety.
Image 1.1: The Big Ass Fans Essence 10-foot Ceiling Fan, shown in a large open space, demonstrating its scale and design.
2. Safety Information
Adherence to the following safety guidelines is crucial for preventing injury and ensuring the longevity of your fan. Keep this manual for future reference.
- Electrical Safety: All electrical wiring must be performed by a qualified electrician in accordance with national and local electrical codes. Disconnect power at the circuit breaker before installation or servicing.
- Mounting: Ensure the mounting structure can support the fan's weight (refer to specifications). Use only hardware provided or specified by Big Ass Fans.
- Clearance: Maintain adequate clearance between the fan blades and any obstructions (walls, ceilings, other objects) as specified in the installation instructions.
- Moving Parts: Keep hands, clothing, and other objects clear of rotating fan blades. Never operate the fan if blades are damaged or loose.
- Environmental Conditions: This fan is designed for indoor and outdoor use. Ensure the installation location is appropriate for the fan's IP rating and environmental conditions.
3. Setup and Installation
3.1. Pre-Installation Checklist
- Verify all components are present and undamaged.
- Confirm the mounting location is structurally sound and has appropriate electrical supply (120 Volts).
- Gather necessary tools: ladder, drill, screwdriver set, wire strippers, voltage tester, measuring tape.
3.2. Mounting the Fan
The Essence fan is designed for lightweight mounting to bar joists, beams, purlins, and wood frames. Follow the detailed instructions provided in the separate installation guide for secure mounting. Ensure all fasteners are tightened to the specified torque.
Image 3.1: Close-up view of the fan's motor and hub assembly, showing the connection points for the airfoils.
3.3. Electrical Wiring
Connect the fan's electrical wiring to the main power supply (120V) according to the wiring diagram in the full installation manual. Ensure all connections are secure and insulated. Consult a qualified electrician if you are unsure about any wiring procedures.
3.4. Airfoil Assembly
Attach the eight anodized airfoils to the fan hub using the provided hardware. Each airfoil includes winglets and safety restraints. Ensure each airfoil is securely fastened and properly aligned before proceeding.
Image 3.2: Detail of an Essence fan airfoil, highlighting the winglet design for optimized airflow.
4. Operating Your Essence Fan
4.1. Control Methods
The Essence fan is primarily controlled via a dedicated mobile application. Download the Big Ass Fans app from your device's app store. Follow the in-app instructions to pair your fan and access its features.
Image 4.1: An example of a Big Ass Fans control interface, which may be used in conjunction with the mobile app.
4.2. Fan Speed Settings
The fan offers 3 distinct power levels, allowing you to adjust airflow to your preference. Use the mobile app to select the desired speed. The gearless direct-drive motor ensures virtually silent operation across all settings.
5. Care and Maintenance
Regular maintenance ensures optimal performance and extends the life of your Essence fan.
- Cleaning: Periodically wipe down the airfoils and motor housing with a soft, damp cloth. Avoid abrasive cleaners or solvents.
- Inspection: Annually inspect all mounting hardware and electrical connections for tightness and wear. Check airfoils for any signs of damage or imbalance.
- Motor: The gearless direct-drive motor is maintenance-free and does not require lubrication.
6. Troubleshooting Guide
Refer to the table below for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on | No power supply; Loose wiring; App not connected | Check circuit breaker; Verify wiring connections; Re-pair fan with app |
| Fan makes unusual noise | Loose mounting hardware; Damaged airfoil; Obstruction | Tighten all fasteners; Inspect airfoils for damage; Remove any obstructions |
| Reduced airflow | Incorrect speed setting; Dirty airfoils | Adjust speed via app; Clean airfoils |
7. Technical Specifications
Detailed specifications for the Big Ass Fans Essence 10-foot Ceiling Fan.
| Feature | Detail |
|---|---|
| Brand | Big Ass Fans |
| Model Name | Essence |
| Size | 10-foot (diameter) |
| Color | Silver |
| Electric Fan Design | Ceiling Fan |
| Power Source | Gearless direct drive motor |
| Room Type | Indoor or Outdoor |
| Special Features | Eight anodized airfoils with winglets and safety restraints, Virtually silent gearless direct-drive motor, Lightweight design, Variety of control options |
| Recommended Uses | Air Circulation, Cooling |
| Noise Level | 35 Decibels |
| Number of Blades | 8 |
| Voltage | 120 Volts |
| Control Method | App |
| Number of Power Levels | 3 |
| Item Model Number | 00810013339444 |

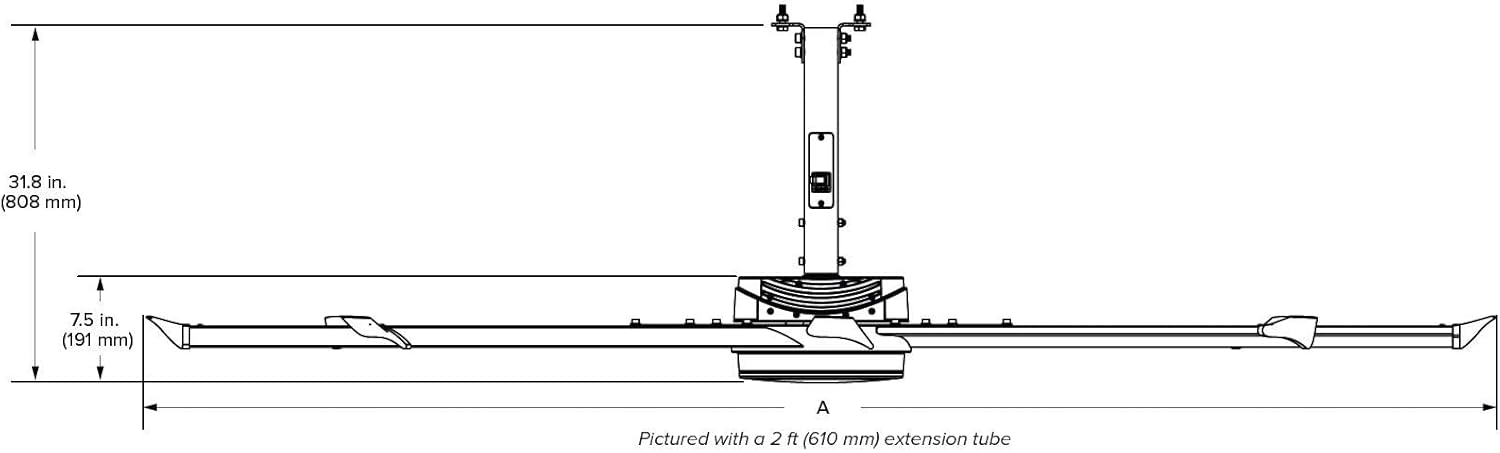

Image 7.1: Technical diagram illustrating the dimensions of the Essence 10-foot fan, including overall span and drop from ceiling.
8. Warranty and Customer Support
Big Ass Fans products are designed for durability and performance. For specific warranty details, please refer to the warranty card included with your product or visit the official Big Ass Fans website. In case of issues not covered by the troubleshooting guide, or for further assistance, please contact Big Ass Fans customer support.
Contact Information: Please refer to the Big Ass Fans official website for the most current customer support contact details, including phone numbers and email addresses.
