1. Product Overview
This ZEVNI Black Gold Vanity Light Fixture features a unique design with three hammer glass shades, a painted black frame, and copper-plated lamp heads and backplate. It is designed to provide soft, warm illumination, suitable for creating a pleasant atmosphere in your bathroom or other indoor spaces.
Figure 1.1: ZEVNI Black Gold Vanity Light Fixture in a bathroom setting.
2. Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause serious damage.
- Always turn off the power at the main circuit breaker before installing or servicing the fixture.
- Consult a qualified electrician if you are unsure about the installation process.
- Use only the specified bulb type and wattage (E26 base, max 40W).
- Do not exceed the maximum wattage.
- Handle glass shades with care to prevent breakage.
- Ensure all electrical connections are secure and comply with local codes.
- This fixture is designed for indoor use only.
3. Package Contents
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, contact ZEVNI customer support.
Figure 3.1: Included components for the ZEVNI Black Gold Vanity Light Fixture.
- Vanity Light Fixture (pre-assembled bar with lamp holders and backplate)
- Hammer Glass Shades (3)
- Mounting Hardware Kit (screws, wire nuts, mounting plate)
- Instruction Manual
4. Specifications
| Feature | Detail |
|---|---|
| Brand | ZEVNI |
| Model Name | bathroom light fixture |
| Color | Black Gold |
| Material | Metal, Glass |
| Style | Modern |
| Light Fixture Form | Vanity |
| Product Dimensions (L x W x H) | 20" x 7" x 7" |
| Back Plate Dimensions | 4.7" x 4.7" x 1" |
| Per Glass Shade Dimensions | 4.7" x 4.7" x 5" |
| Specific Uses | Indoor use only |
| Power Source | AC |
| Installation Type | Wall-mount |
| Special Feature | Dimmable (with compatible dimmer switch, not included) |
| Light Source Type | LED (compatible) |
| Number of Light Sources | 3 |
| Voltage | 120 Volts |
| Wattage (Max) | 40 watts per bulb |
| Bulb Base | E26 US Standard Base (bulbs not included) |
| Recommended Bulb Type | Type T bulbs |
| Item Weight | 3.7 Pounds |
| Assembly Required | Yes |

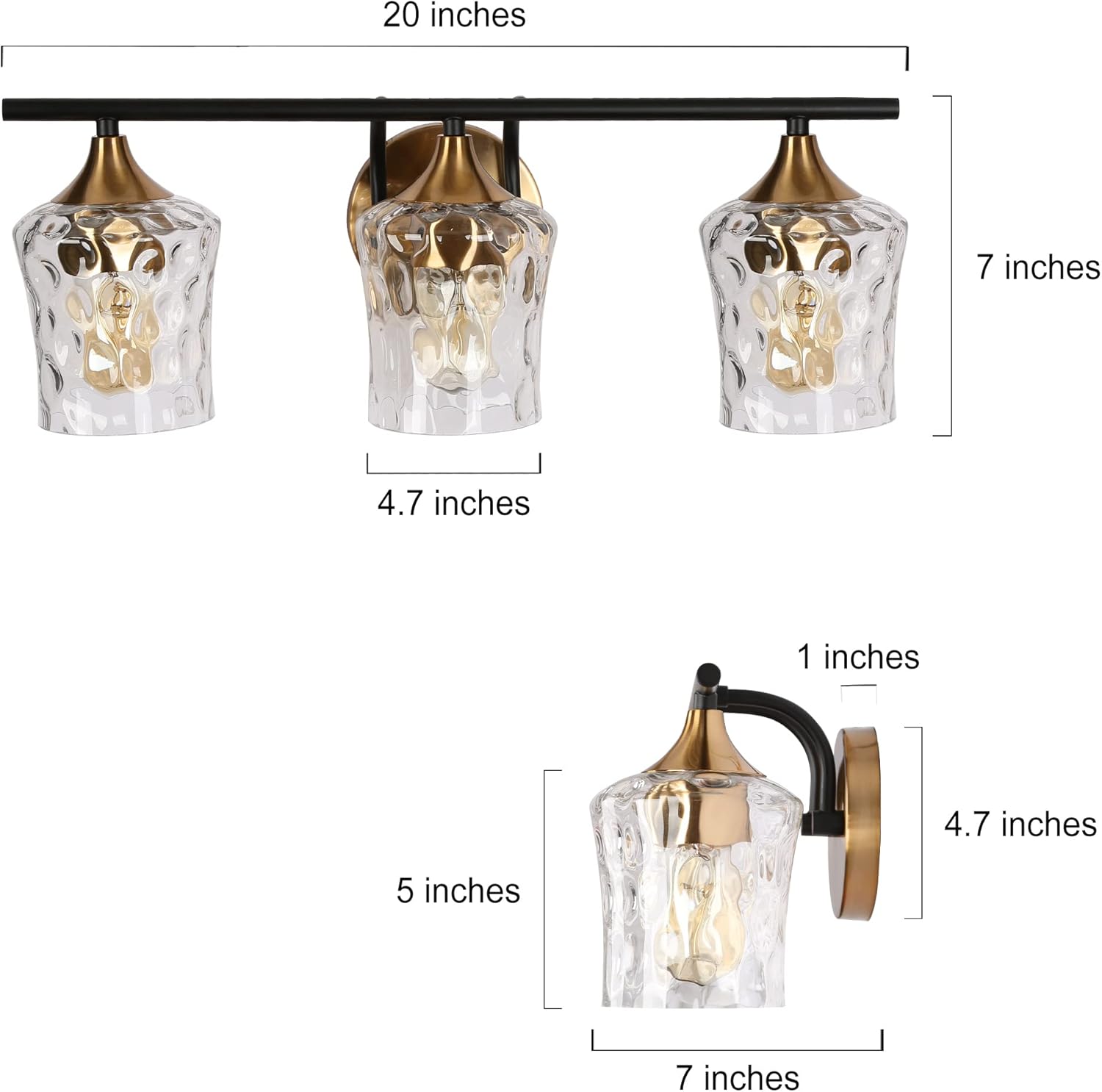

Figure 4.1: Product dimensions.
5. Setup and Installation
Tools Required (Not Included):
- Phillips Head Screwdriver
- Wire Strippers
- Electrical Tape (optional)
- Safety Glasses
Installation Steps:
- Prepare for Installation: Turn off the power at the main circuit breaker. Ensure the wall box is clean and ready for mounting.
- Attach Mounting Plate: Secure the mounting plate (included in hardware kit) to the electrical junction box in the wall using the provided screws.
- Wire Connections: Connect the fixture's wires to the corresponding house wires using wire nuts. Connect the black wire to the black wire, the white wire to the white wire, and the ground wire to the ground wire. Ensure all connections are secure.
- Mount Fixture: Carefully align the fixture's backplate with the mounting plate and secure it with the provided screws. The fixture can be mounted with the shades facing up or down.
- Install Glass Shades: Gently place each hammer glass shade onto its respective lamp holder. Tighten the brass metal caps to secure the shades.
- Insert Bulbs: Screw E26 base max 40W bulbs (not included, Type T recommended) into each lamp holder. Do not overtighten.
- Restore Power: Once installation is complete and all connections are secure, turn the power back on at the main circuit breaker.

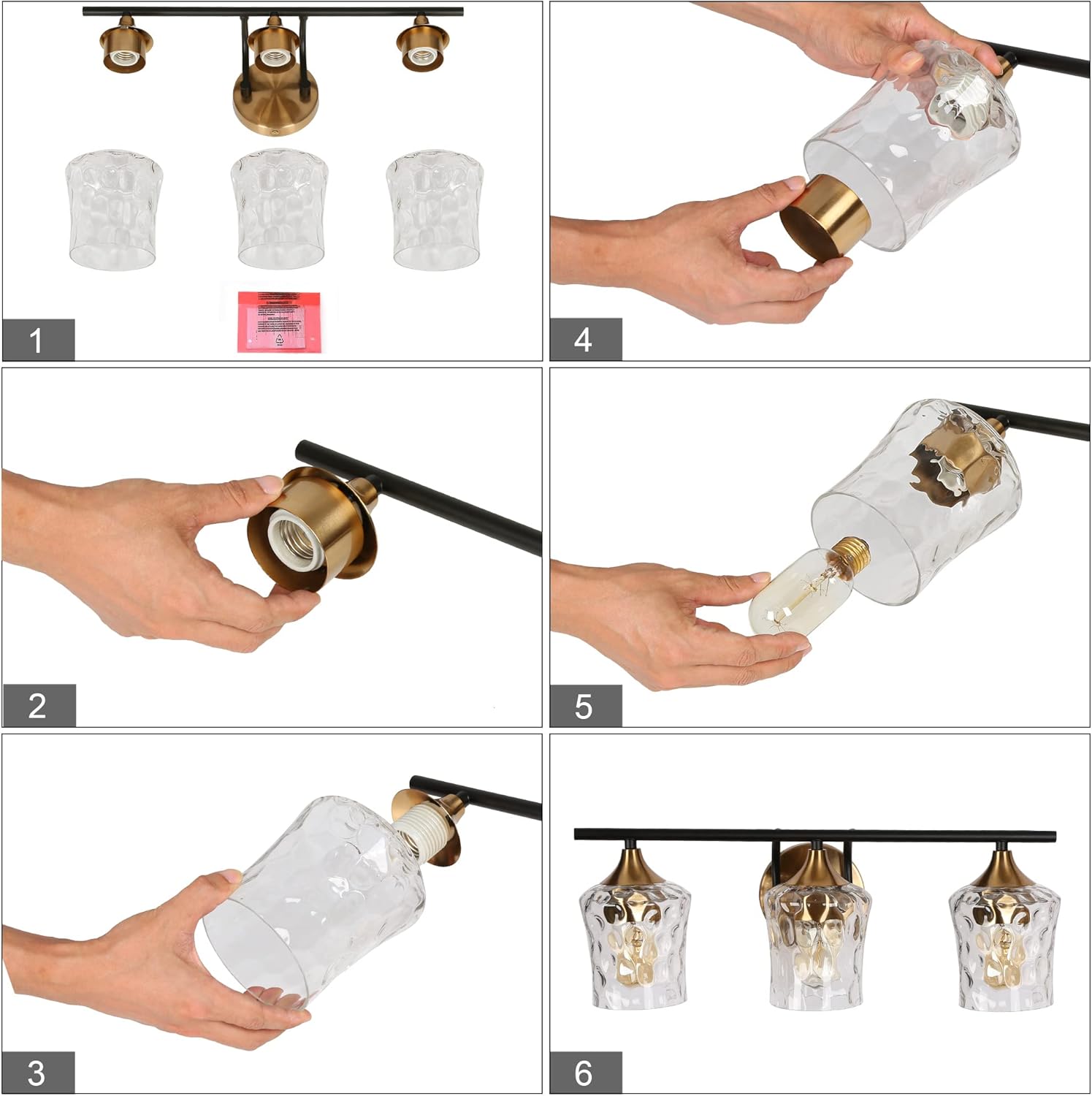

Figure 5.1: Step-by-step installation guide for the vanity light fixture.
6. Operating Instructions
This ZEVNI vanity light fixture is designed for simple operation.
- Turning On/Off: Use your standard wall switch to turn the light fixture on or off.
- Dimming Functionality: If you have installed a compatible dimmer switch (not included) and dimmable E26 bulbs, you can adjust the brightness of the light to your desired level.
Figure 6.1: Light fixture demonstrating off and on states, highlighting dimmable feature.
7. Maintenance
Regular maintenance will help prolong the life and appearance of your light fixture.
- Cleaning: To clean the fixture, turn off the power and wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents as they may damage the finish or glass.
- Bulb Replacement: Ensure the power is off and the bulbs have cooled before replacing. Unscrew the old bulb and screw in a new E26 base max 40W bulb.
- Glass Shade Care: The hammer glass shades can be carefully removed for cleaning if necessary. Wash with mild soap and water, rinse thoroughly, and dry completely before reattaching.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. Bulb is faulty or loose. Incorrect wiring. | Check circuit breaker. Tighten or replace bulb. Verify wiring connections (consult electrician if unsure). |
| Light flickers. | Loose bulb. Incompatible dimmer switch/bulb. Loose wiring connection. | Tighten bulb. Ensure dimmer and bulbs are compatible. Check wiring connections. |
| Glass shade is loose. | Brass metal cap not tightened. | Gently tighten the brass metal cap on the lamp holder. |
9. Warranty and Support
ZEVNI provides a 2-year warranty for this light fixture. All our light fixtures have passed multiple inspection tests to ensure the best quality.
If you encounter any problems with your product or require further assistance, please do not hesitate to contact ZEVNI customer support. We offer 24-hour quick customer support to address your concerns.
For more information or to contact support, please visit the official ZEVNI store or contact details provided with your purchase.
ZEVNI Official Store: Visit ZEVNI Store on Amazon
