Introduction
Thank you for choosing the Auraglow AG695 Solar and USB Rechargeable Garden Lantern. This manual provides essential information for the safe and efficient use of your lantern. Please read it thoroughly before operation and retain it for future reference.
Image: The Auraglow AG695 Solar and USB Rechargeable Garden Lantern, featuring a black matte aluminum frame and a vintage filament LED bulb.
Product Features
- Dual Charging Capability: Rechargeable via solar power and USB-C, offering up to 48 hours of illumination on a full charge.
- Automatic Dusk-to-Dawn Sensor: The integrated light sensor automatically activates the lantern at dusk and deactivates it at dawn.
- Vintage Modern Design: Features a matte black aluminum frame and a vintage-style LED filament bulb, suitable for both indoor and outdoor settings.
- Flexible Placement: Can be hung using its handle or placed on any flat surface.
- Adjustable Brightness: Offers three brightness levels: Soft (40 lumens, dusk-to-dawn mode), Medium (200 lumens), and High (400 lumens).
- Durable Construction: IP44 rated for outdoor use, providing resistance against splashes of water.
Package Contents
Please ensure all items are present and in good condition upon unpacking:
- 1 x Auraglow AG695 Solar and USB Rechargeable Garden Lantern
- 1 x USB-C Charging Cable
- 2 x Lithium-ion Batteries (pre-installed)
Image: Close-up view of the lantern's base, showing the USB-C charging port and the included USB-C cable.
Setup and Installation
- Initial Charge: Before first use, fully charge the lantern.
- Solar Charging: Place the lantern in direct sunlight for at least 8-10 hours. Ensure the solar panel on top is clean and unobstructed.
- USB Charging: Connect the provided USB-C cable to the lantern's charging port (located on the base) and to a 5V 1A USB power adapter (not included). A full USB charge typically takes 4-6 hours.
- Placement:
- For optimal solar charging, position the lantern where it receives maximum direct sunlight throughout the day.
- The lantern can be placed on any flat surface, such as a table or patio floor.
- Utilize the integrated handle to hang the lantern from a hook or branch.
- Weather Resistance: The lantern is IP44 rated, making it suitable for outdoor use and resistant to splashing water. However, avoid submerging it in water.
Image: The Auraglow AG695 lantern illuminating a garden area at night, demonstrating its outdoor placement.
Operating Instructions
- Power On/Off: Locate the power button on the base of the lantern. Press once to turn on, press again to cycle through brightness modes, and press a final time to turn off.
- Brightness Modes: The lantern offers three brightness settings:
- Soft (40 Lumens): This is the default dusk-to-dawn mode. The lantern will automatically turn on at dusk and off at dawn.
- Medium (200 Lumens): For brighter ambient lighting.
- High (400 Lumens): For maximum illumination.
- Automatic Operation (Dusk-to-Dawn): When the lantern is set to the Soft (40 lumens) mode, its integrated light sensor will detect ambient light levels. It will automatically switch on when it gets dark and switch off when it becomes light. Ensure the solar panel is not covered for accurate sensor operation.
- Manual Operation: For specific brightness levels (200 or 400 lumens), the lantern will remain on until manually turned off or until the battery is depleted.
Image: The Auraglow AG695 lantern suspended from a tree branch, demonstrating its versatility in placement and illumination at night.
Maintenance
- Cleaning: Wipe the lantern with a soft, damp cloth. Do not use abrasive cleaners or solvents. Regularly clean the solar panel to ensure efficient charging.
- Battery Care: The lantern uses Lithium-ion batteries. For optimal battery life, avoid prolonged exposure to extreme temperatures. If storing for an extended period, ensure the battery is partially charged (around 50%) and recharge every few months.
- Water Resistance: The IP44 rating protects against splashing water. Do not immerse the lantern in water or expose it to heavy jets of water.
- Bulb Replacement: The LED filament bulb is designed for long-term use and is generally not user-replaceable. If a bulb issue occurs, please contact customer support.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Lantern does not turn on. | Low battery charge. | Charge the lantern fully via solar power (direct sunlight) or USB-C cable. |
| Lantern does not turn on automatically at dusk. | Light sensor obstructed or in a brightly lit area. | Ensure the solar panel (which houses the sensor) is clean and not covered. Move the lantern to a darker location if necessary. Ensure it is in Soft (dusk-to-dawn) mode. |
| Light is dim or runtime is short. | Insufficient solar charging. | Relocate the lantern to an area with more direct sunlight. Ensure the solar panel is clean. Use USB-C charging for a full charge. |
| Water ingress. | Exposure to heavy rain or submersion. | The lantern is IP44 rated for splashes, not heavy downpours or submersion. Bring indoors during extreme weather. If water has entered, discontinue use and allow to dry completely before attempting to use again. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | AG695 |
| Brand | Auraglow |
| Light Source Type | LED (Vintage Filament Style) |
| Power Source | Solar Powered, USB Rechargeable (USB-C 5V 1A input) |
| Material | Aluminum (Matte Black Finish) |
| Maximum Light Output | 400 Lumens |
| Brightness Settings | 40 (Soft/Dusk-to-Dawn), 200 (Medium), 400 (High) Lumens |
| Battery Type | Lithium-ion (2 included) |
| Battery Life (Full Charge) | Up to 48 hours |
| Water Resistance Rating | IP44 (Splash-proof) |
| Voltage | 5 Volts |
| Wattage | 4 Watts |
| Dimensions (Approx.) | 18cm (W) x 18cm (D) x 30cm (H) |
| Country of Origin | China |

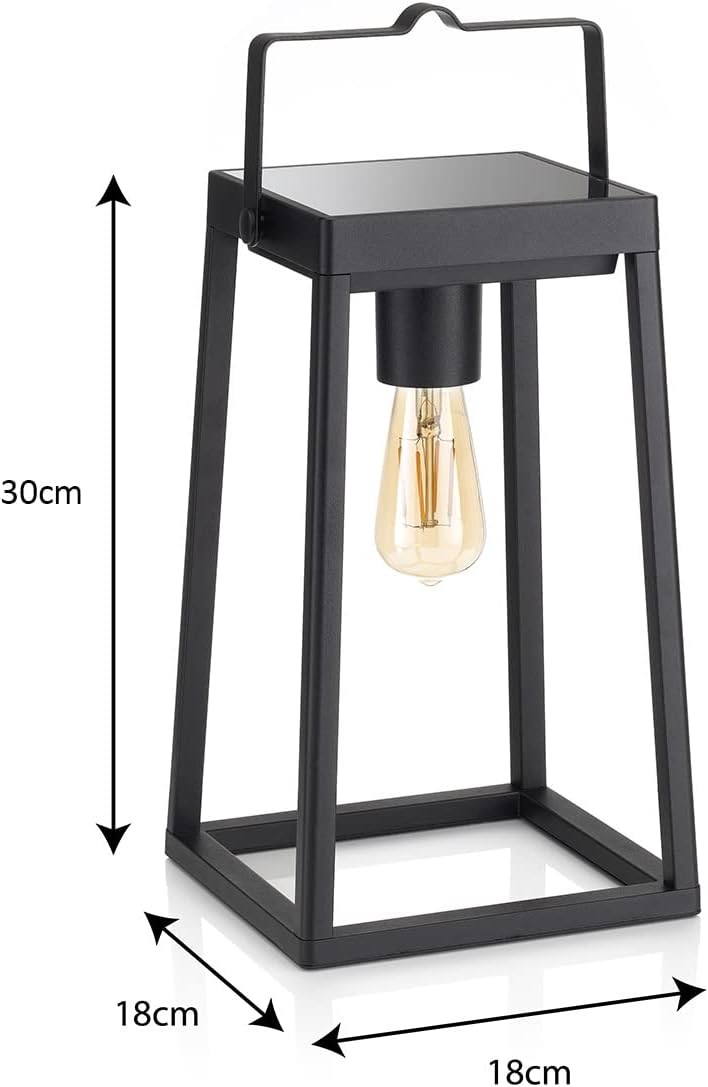

Image: Diagram showing the approximate dimensions of the Auraglow AG695 lantern: 18cm width, 18cm depth, and 30cm height.
Warranty and Support
Auraglow products are designed for quality and durability. For any questions, technical support, or warranty claims, please contact Auraglow customer service through your retailer or the official Auraglow website. Please have your model number (AG695) and purchase details ready.
Note: Specific warranty terms and conditions may vary by region and retailer. Please refer to your purchase documentation for details.
