Vrabocry 5mm Red Straw Hat LED Diode Lights Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Vrabocry 5mm Red Straw Hat LED Diodes. Please read these instructions carefully before use to ensure proper functionality and longevity of the product.

2. Product Overview

The Vrabocry 5mm Red Straw Hat LED Diodes are miniature light-emitting diodes designed for various electronic projects, indicators, and lighting applications. Each pack contains 100 pieces of these transparent, straw hat lens LEDs.

• Lens Type: 5mm Diameter, Transparent, Straw Hat
• Emitting Color: Red (620-625nm)
• Luminous Intensity: 1200-1400mcd (typical)
• Viewing Angle: 120 Degrees
• Forward Voltage: 2V - 2.2V
• Forward Current: 20mA
• Polarity: Anode (Longer Leg), Cathode (Shorter Leg)

Image: A row of five Vrabocry 5mm Red Straw Hat LED Diodes, showing their transparent straw hat lenses and metal leads.

3. Setup Instructions

Proper setup is crucial for the safe and efficient operation of your LEDs. Always ensure power is disconnected before making any connections.

3.1 Identifying Polarity

LEDs are polarized components, meaning they must be connected in the correct orientation. Incorrect polarity will prevent the LED from lighting up and can potentially damage it if excessive voltage is applied.

• The Anode (+) is the longer lead.
• The Cathode (-) is the shorter lead.

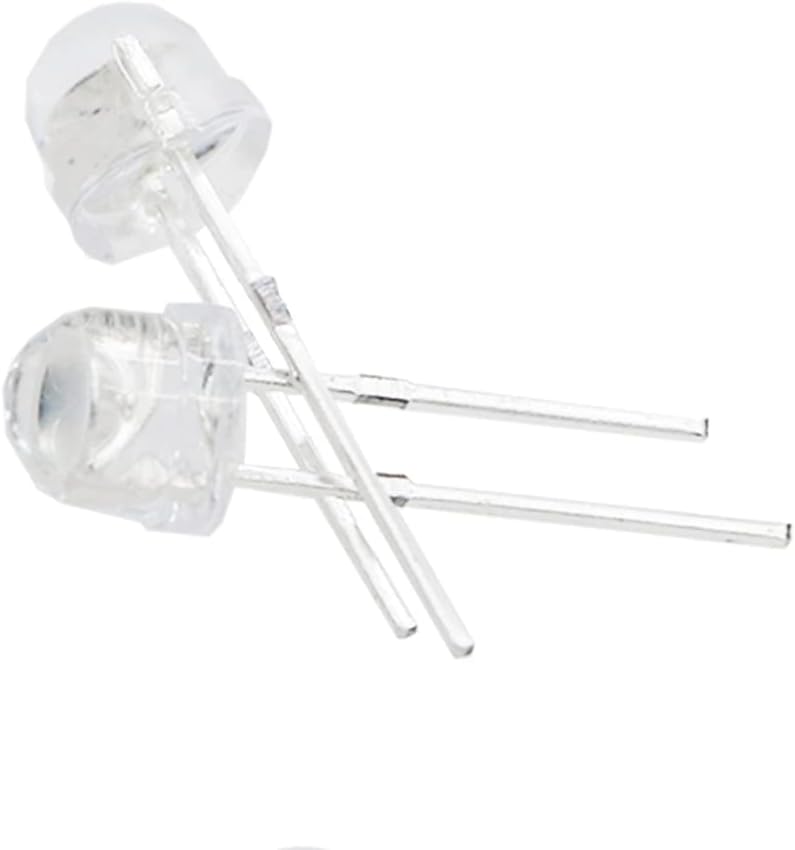

Image: A close-up view of two Vrabocry 5mm Red Straw Hat LED Diodes, clearly showing the difference in length between the anode (longer) and cathode (shorter) leads.

3.2 Connecting to a Power Source

WARNING: Always use a current-limiting resistor in series with the LED. Connecting an LED directly to a voltage source without a resistor will cause it to burn out immediately.

To connect the LED:

1. Determine the appropriate resistor value for your power supply voltage and the LED's forward voltage (2V-2.2V) and current (20mA). A common formula is R = (Vs - Vf) / I, where Vs is supply voltage, Vf is forward voltage, and I is forward current.
2. Connect the Anode (longer leg) of the LED to the positive (+) terminal of your power supply, typically through the calculated current-limiting resistor.
3. Connect the Cathode (shorter leg) of the LED to the negative (-) terminal (ground) of your power supply.
4. Ensure all connections are secure, whether on a PCB, breadboard, or other circuit.

4. Operating Instructions

Once correctly connected to a power source with the appropriate current-limiting resistor, the Vrabocry 5mm Red Straw Hat LED Diode will emit a bright red light.

• The LED is designed for a forward current of 20mA for optimal brightness and lifespan.
• The 120-degree viewing angle ensures broad light distribution.

Image: A single Vrabocry 5mm Red Straw Hat LED Diode illuminated, emitting a bright red light.

5. Maintenance

These LEDs require minimal maintenance. Follow these guidelines to ensure their longevity:

• Handling: Handle LEDs by their body, not their leads, to prevent bending or breaking.
• Cleaning: If necessary, gently wipe the lens with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• Storage: Store unused LEDs in a dry, cool environment, away from direct sunlight and static electricity. Keep them in their original packaging or an anti-static bag.
• Environmental Conditions: Avoid exposing LEDs to extreme temperatures or high humidity, which can affect performance and lifespan.

6. Troubleshooting

If your LED is not functioning as expected, consider the following common issues and solutions:

• LED Not Lighting Up:
  • Check polarity: Ensure the anode (longer leg) is connected to positive and cathode (shorter leg) to negative/ground.
  • Verify power supply: Confirm the power supply is providing the correct voltage (2V-2.2V for the LED, but consider the resistor drop).
  • Inspect resistor: Ensure a current-limiting resistor is used and its value is correct for your circuit. An open circuit or too high a resistance will prevent current flow.
  • Check connections: Ensure all wires and components are securely connected.
  • Test LED: Try the LED in a known working circuit or with a low-voltage power supply and appropriate resistor to confirm it is not faulty.
• LED Too Dim or Too Bright:
  • Adjust resistor value: The resistor controls the current flowing through the LED. A higher resistance will make the LED dimmer, and a lower resistance (within safe limits) will make it brighter. Do not exceed 20mA.
  • Check power supply voltage: Ensure the supply voltage is stable and within expected parameters.
• LED Burns Out Quickly:
  • Crucial: This is almost always due to not using a current-limiting resistor or using one with too low a resistance, allowing excessive current to flow. Re-calculate and install the correct resistor.
  • Verify power supply voltage: Ensure the voltage is not significantly higher than intended.

7. Specifications

Detailed technical specifications for the Vrabocry 5mm Red Straw Hat LED Diode:

Image: A table detailing typical electrical and optical characteristics for various 5mm Straw Hat Water-Clear LEDs, including Red, Blue, Green, Pink, Yellow, White, and Warm White. The Red LED row shows a dominant wavelength of 620-630nm, luminous intensity of 600-800mcd, 120-degree viewing angle, 2.0-2.2V forward voltage, and 20mA recommended forward current.

8. Warranty Information

Specific warranty details for Vrabocry products are not provided in this manual. For information regarding warranty coverage, returns, or replacements, please refer to the purchase documentation or contact the seller directly.

9. Support

For technical assistance, questions, or concerns regarding your Vrabocry 5mm Red Straw Hat LED Diodes, please contact the seller or manufacturer through the platform where the purchase was made. Provide your order number and a detailed description of your inquiry for prompt support.
