Introduction
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your OPT7 Aura Pro Underglow LED Lights. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Image: OPT7 Aura Pro Underglow LED Lights kit components and a vehicle with the lights installed.
What's in the Box
Verify that all components listed below are present in your package:
- 1 x OPT7 Glow Control Box
- 1 x Handheld Remote
- 2 x 48" LED Light Bar + Extension Wires Attached
- 2 x 36" LED Light Bar + Extension Wire Attached
- 1 x Inline Fuse Power Harness
- Mounting brackets and zip ties (as indicated in product images)

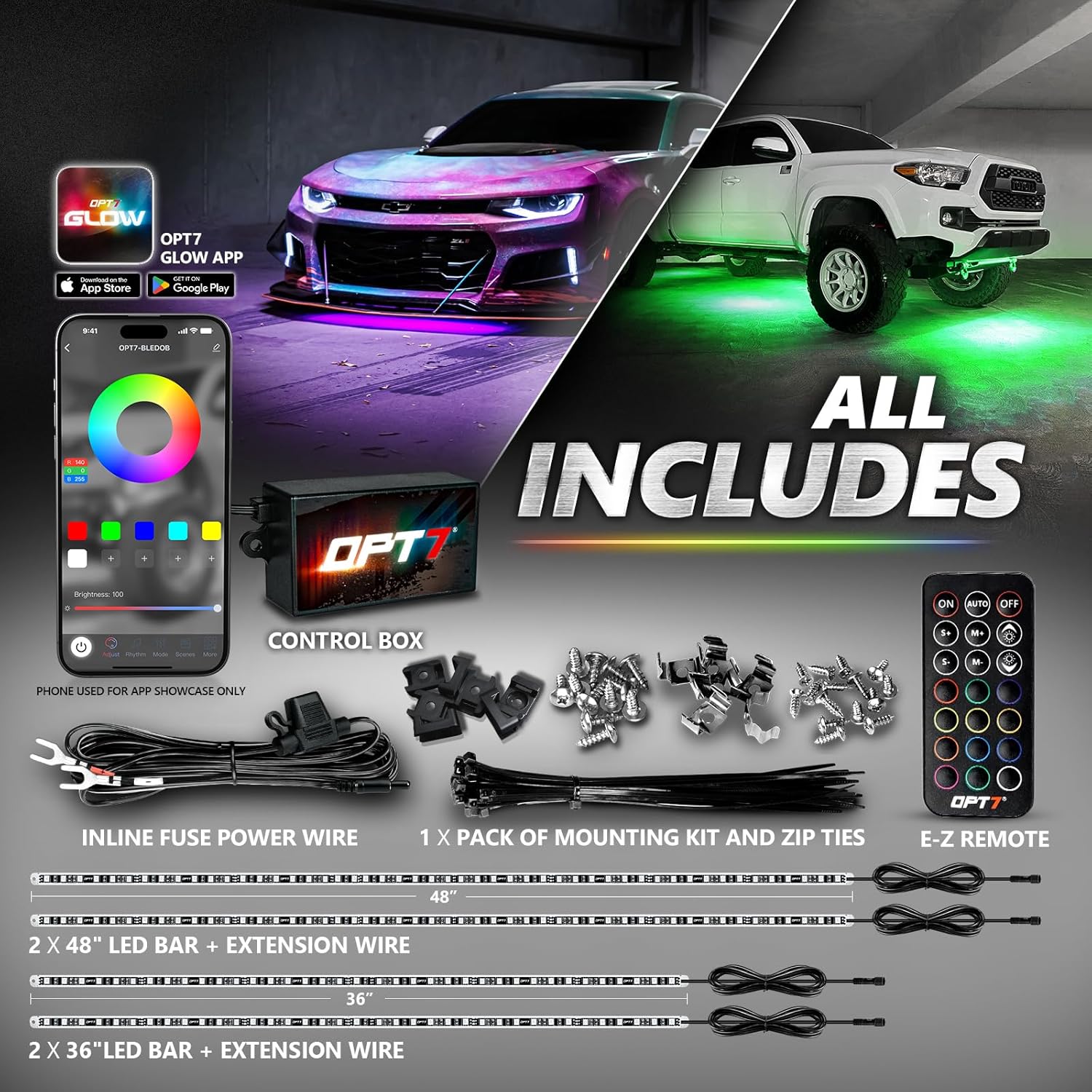

Image: All components included in the OPT7 Aura Pro Underglow LED Lights kit.
Setup and Installation
The OPT7 Aura Pro Underglow LED Lights are designed for straightforward installation. Follow these steps for optimal performance and safety.
1. Planning and Placement
Determine the ideal placement for the LED light bars under your vehicle. The kit includes two 48-inch and two 36-inch light bars. Consider the vehicle's undercarriage structure and potential obstructions.
Image: Recommended installation positions for the LED light bars.
2. Mounting the Light Bars
Secure the rigid aluminum light bars to the vehicle's undercarriage using the provided mounting brackets and zip ties. Ensure the bars are firmly attached and clear of moving parts or heat sources.

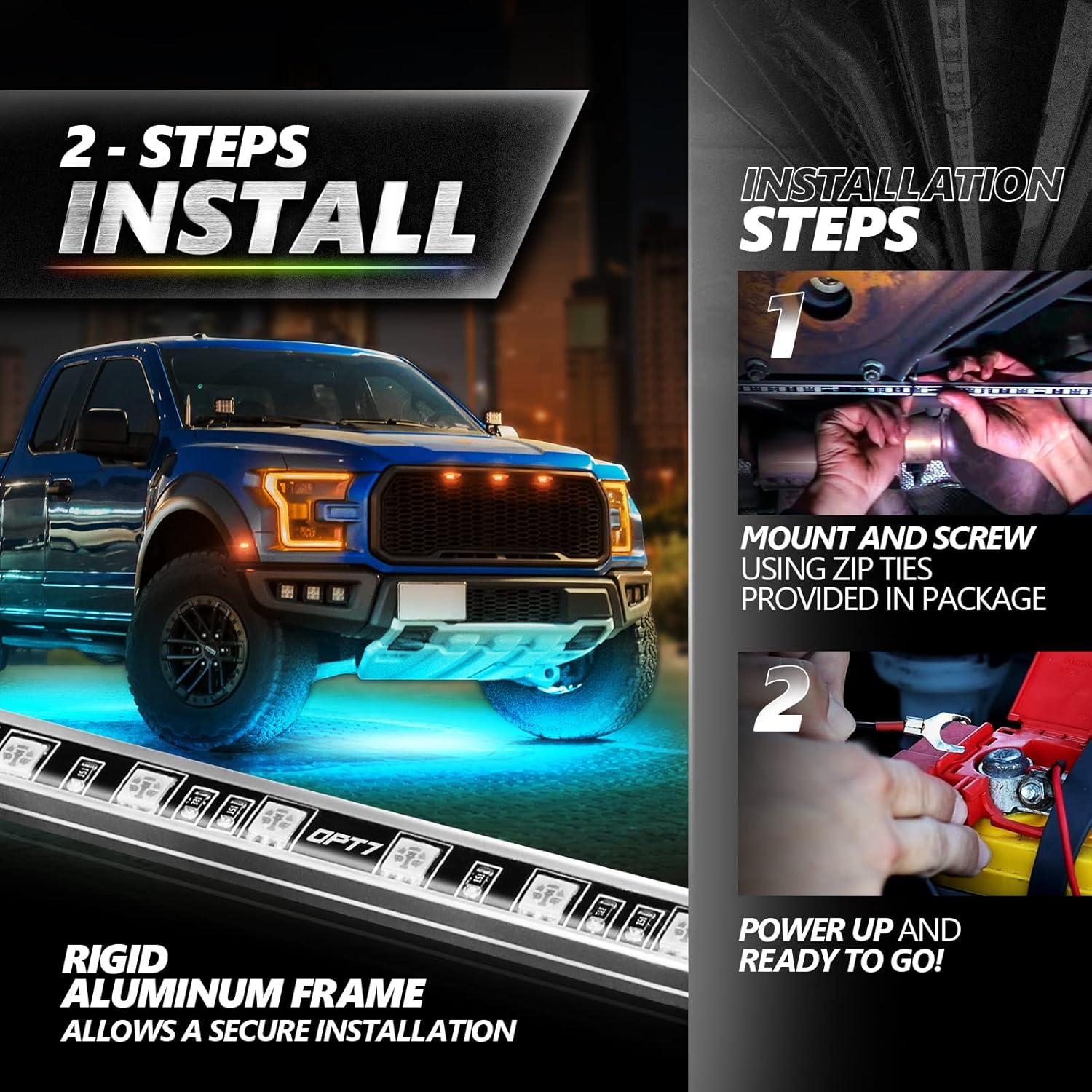

Image: Step-by-step visual guide for mounting and powering the lights.
3. Wiring and Power Connection
Connect the LED light bars to the OPT7 Glow Control Box. Pay attention to the connection arrows to ensure correct polarity and a secure, waterproof seal.
Image: Guide for proper waterproof connector alignment.
Connect the inline fuse 12V direct power battery harness to your vehicle's battery. This harness provides overdrawn protection. Ensure the control box is placed in a location protected from high temperatures and excessive moisture, such as the passenger compartment or a dry area under the hood, but not directly in the engine bay where heat and moisture are extreme.
Image: Inline fuse power wire for battery connection.
4. Remote Pairing
To pair the handheld remote with the control box:
- Ensure the control box is powered on.
- Reconnect the power to the control box.
- Aim the remote at the control box.
- Press and hold the "ON" button on the remote until the LED strips flash white. This indicates successful pairing.
Image: Instructions for pairing the remote control.
Operating Instructions
Your OPT7 Aura Pro Underglow LED Lights can be controlled via the OPT7 GLOW smartphone app or the included handheld remote.
Smartphone App Control (OPT7 GLOW)
Download the OPT7 GLOW app from the App Store (iOS 7+) or Google Play Store (Android 4.3+). The app provides comprehensive control over your lighting system.
- Color Selection: Choose from an extensive palette of colors to customize your vehicle's appearance.
- Brightness Adjustment: Adjust the intensity of the lights.
- Dynamic Light Effects: Select from various animated patterns and effects.
- Music Sync Mode: Synchronize the lights with music played through your phone's microphone or music playlists.
- Preset Modes: Utilize pre-configured lighting modes for different moods or occasions.
- Multi-Kit Control: The app allows connection and control of up to four OPT7 GLOW kits simultaneously.
Image: Overview of the OPT7 GLOW app features.
Image: App interface for color and style selection.
Image: App interface for animated light effects.
Image: App interface for music-activated lighting.
Image: App interface for preset lighting modes.
Image: App interface for connecting multiple OPT7 GLOW kits.
Handheld Remote Control
The included E-Z Remote provides basic control over your lights:
- Power On/Off
- Color selection buttons
- Brightness adjustment
- Mode selection
Image: Control options via app and remote.
Maintenance
The OPT7 Aura Pro Underglow LED Lights are designed for durability and minimal maintenance due to their robust construction.
- Durable Construction: The LED bars are crafted with premium-grade aluminum and dense silicone, offering resistance against corrosion and moisture damage. The control box and connectors are fully waterproof.
- Cleaning: Periodically inspect and clean the LED bars and control box to remove dirt, debris, or road salt. Use a soft cloth and mild automotive cleaner. Avoid high-pressure washing directly on the components.
- Connection Check: Regularly check all wiring connections to ensure they remain secure and free from damage.
Image: Features contributing to product durability.
Image: Rigid aluminum frame and waterproof design.
Image: Fully waterproof connectors and product in wet conditions.
Troubleshooting
If you encounter issues with your OPT7 Aura Pro Underglow LED Lights, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | No power, loose connection, blown fuse. | Check battery connection. Ensure all wires are securely connected. Inspect the inline fuse and replace if blown. |
| Remote control not working. | Remote not paired, dead battery in remote. | Re-pair the remote as per "Setup and Installation" section. Replace remote battery. |
| Bluetooth app connectivity issues. | Control box placement, interference, app not updated. | Ensure the control box is not in an area with extreme heat or moisture (e.g., deep in the engine bay) which can degrade Bluetooth signal. Move closer to the control box. Update the OPT7 GLOW app to the latest version. Restart your smartphone and the control box. |
| Lights are dim or flickering. | Low voltage, loose connection, damaged LED bar. | Check vehicle battery voltage. Verify all connections are tight. Inspect LED bars for physical damage. |
If problems persist, please contact OPT7 customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Model | AURAPRO-UNDERGLOW-UNIVERSAL-KIT |
| Brand | OPT7 |
| Color | RGB (Multi-Color) |
| Form Factor | Bar |
| Recommended Uses | Vehicle Exterior (Cars, SUVs, Vans, Trucks, RVs) |
| Auto Part Position | Bottom (Underbody) |
| Included Components | 1 x Handheld Remote, 1 x Inline Fuse Power Harness, 1 x OPT7 Glow Control Box, 2 x 36" LED Light Bar + Extension Wire Attached, 2 x 48" LED Light Bar + Extension Wires Attached |
| Special Features | 4pcs Rigid Aluminum Light Bar with 5050 LED, Memory, Multi-Color, Music Sync, Waterproof |
| Item Weight | 4.3 Pounds (approx. 1.95 kg) |
| Material | Aluminum |
| Water Resistance Level | Water Resistant (Fully Waterproof components) |
| Number of Pieces | 4 (LED Light Bars) |
| Automotive Fit Type | Universal Fit |
| Product Dimensions | 53 x 2.6 x 2.6 inches (overall package/kit dimensions) |
Warranty and Support
OPT7 provides a 1-year warranty for the Aura Pro Underglow LED Lights. For any assistance, technical support, or warranty claims, please contact OPT7's US-based customer service.
