Introduction
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Wings Crosshair 100 Wired Optical Gaming Mouse. Designed for optimal gaming performance, this mouse offers comfort, precision, and customizable features to enhance your computing and gaming experience.
Key Features
- Light and Comfortable: The Wings Crosshair 100 features an ambidextrous, comfortable design for ultra-smooth movement during extended use.
- Up to 3400 DPI: Experience precise control with adjustable DPI settings up to 3400 and a 125 Hz polling rate.
- 6 Button Functionality: Customize your gaming experience with 6 programmable buttons, offering default configurations straight out of the box.
- Wide Compatibility: Compatible with Windows XP/Vista/7/8/8.1/10/11 and Mac OS.
- Premium Build: Features multicolor LED lights, an ergonomic design, a golden-plated USB connector, and a durable braided cable.
Product Overview
Image: The Wings Crosshair 100 Wired Optical Gaming Mouse, showcasing its ergonomic design and LED lighting.
Image: The ergonomic design of the Wings Crosshair 100 mouse, providing a comfortable grip for extended use.

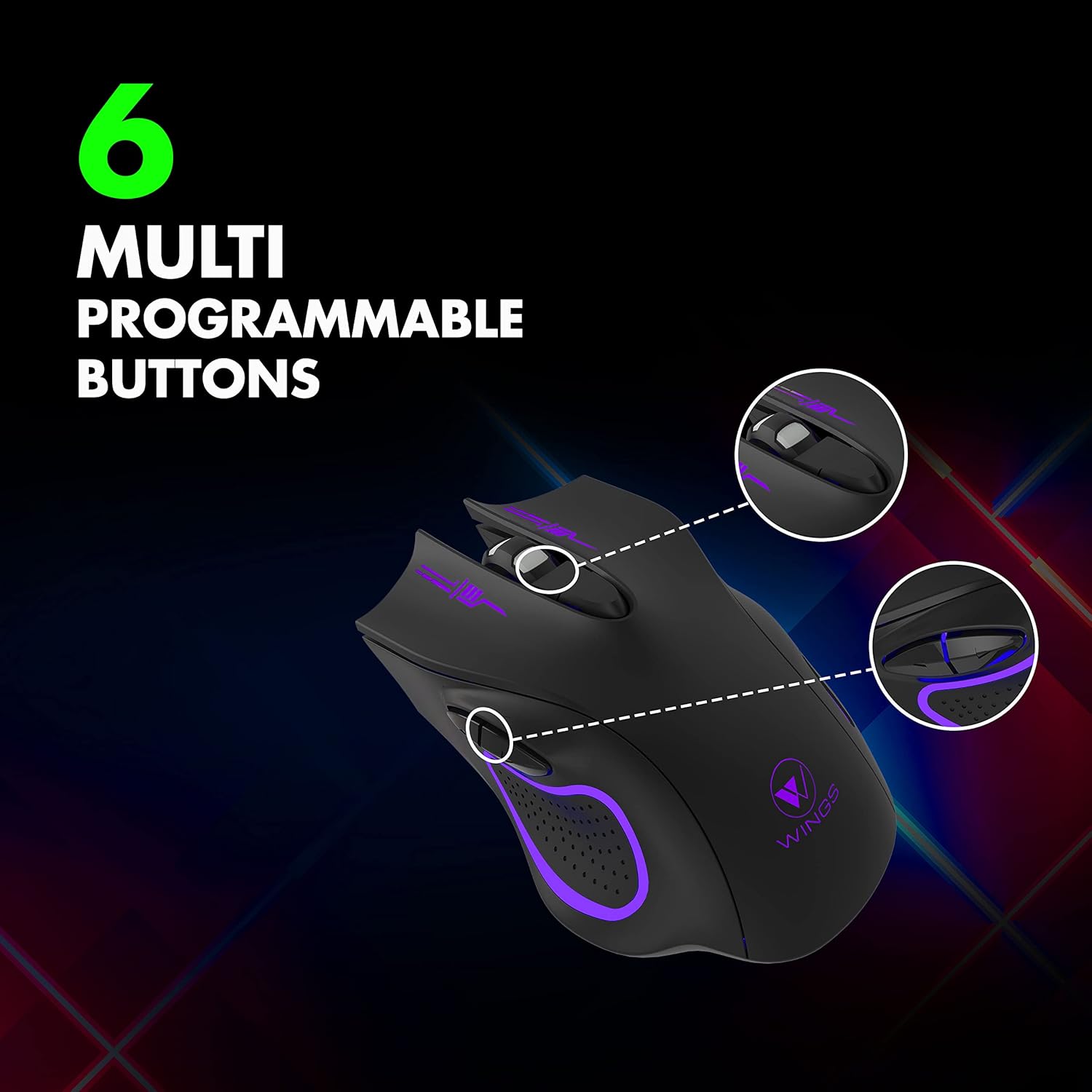

Image: Illustration of the 6 multi-programmable buttons on the Wings Crosshair 100 mouse.

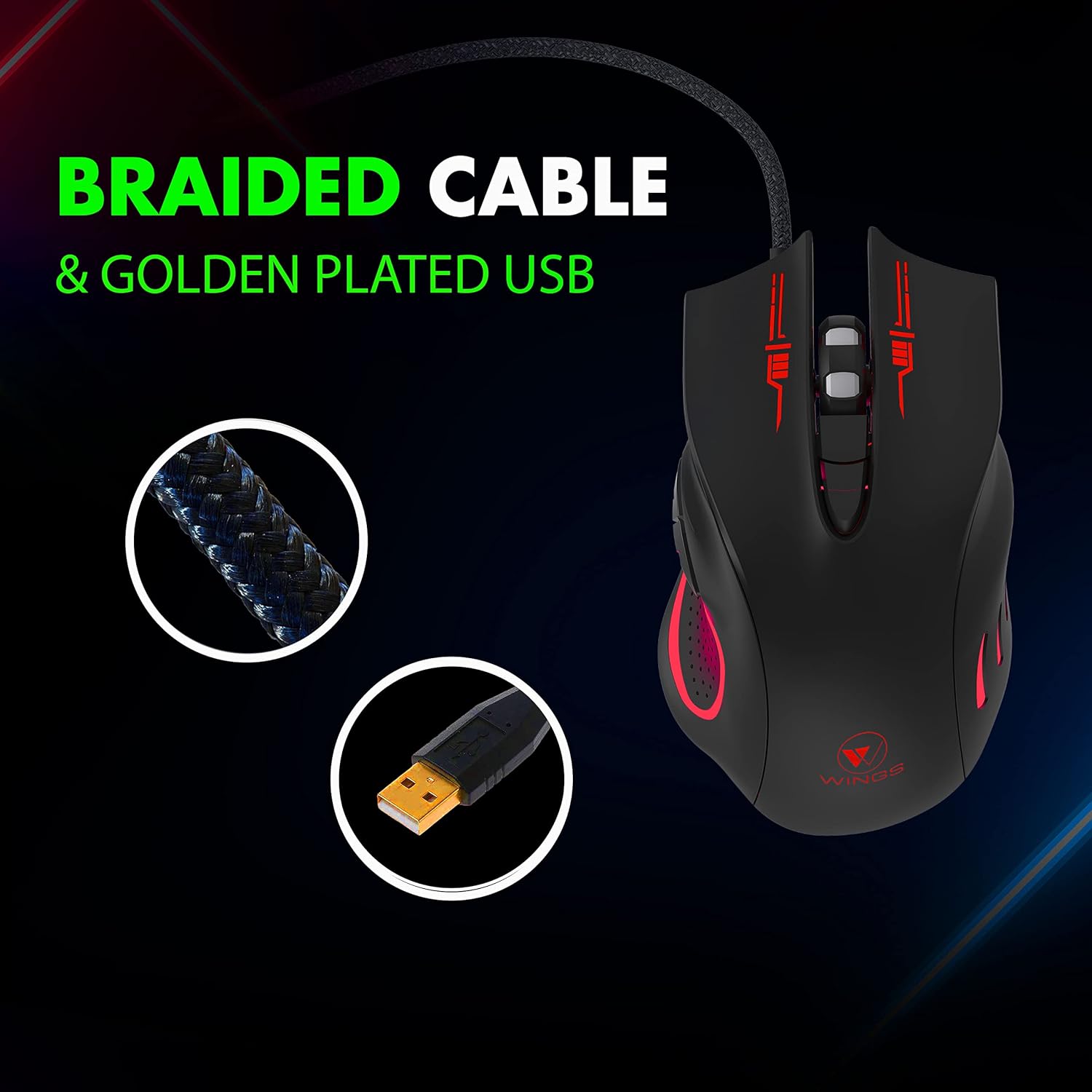

Image: Close-up of the durable braided cable and golden-plated USB connector of the Wings Crosshair 100 mouse.
Image: Demonstrating the adjustable DPI feature of the Wings Crosshair 100 mouse, with DPI levels of 1000, 1600, 2400, and 3200.
Image: The vibrant RGB LED lighting of the Wings Crosshair 100 mouse.
Image: A collage highlighting key features: compatibility with various OS, hyperfast scroll wheel, light and comfortable design, and ultra-smooth movement.
Setup
- Connect the Mouse: Insert the USB connector of the Wings Crosshair 100 mouse into an available USB 3.0 port on your computer.
- Driver Installation: The mouse is plug-and-play. Your operating system (Windows XP/Vista/7/8/8.1/10/11, Mac OS) will automatically detect and install the necessary drivers. No additional software installation is typically required for basic functionality.
- Initial Use: Once the drivers are installed, the mouse is ready for immediate use.
Operating Instructions
DPI Adjustment
The Wings Crosshair 100 features an adjustable DPI (Dots Per Inch) setting, allowing you to change cursor sensitivity on the fly.
To adjust DPI, press the dedicated DPI button located on the top of the mouse, usually behind the scroll wheel. Each press cycles through predefined DPI levels: 1000, 1600, 2400, and 3200.
6 Button Functionality
This mouse is equipped with 6 buttons for enhanced control:
- Left Click Button: Standard primary click.
- Right Click Button: Standard secondary click.
- Scroll Wheel Button: Clickable scroll wheel for middle-click functions.
- DPI Button: Cycles through DPI settings.
- Forward Button: (Side button) Default function for navigating forward in web browsers or file explorers.
- Backward Button: (Side button) Default function for navigating backward in web browsers or file explorers.
While default configurations are set, some operating systems or third-party software may allow for customization of these buttons.
Maintenance
- Cleaning: Use a soft, dry cloth to wipe the mouse surface. For stubborn dirt, slightly dampen the cloth with water. Avoid harsh chemicals or abrasive materials.
- Sensor Care: Keep the optical sensor on the bottom of the mouse clean and free from dust or debris to ensure accurate tracking.
- Cable Management: Avoid sharp bends or excessive pulling on the braided cable to prevent damage.
Troubleshooting
| Problem | Solution |
|---|---|
| Mouse not responding. | Ensure the USB cable is securely plugged into the computer. Try a different USB port. Restart your computer. |
| Cursor movement is erratic or jumpy. | Clean the optical sensor on the bottom of the mouse. Ensure you are using the mouse on a clean, non-reflective surface. |
| LED lights are not working. | Check the USB connection. If the mouse is otherwise functional, this might indicate a minor LED issue that does not affect performance. |
| DPI button not changing sensitivity. | Ensure the mouse is properly connected. Some applications or games may override mouse sensitivity settings. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Wings |
| Model | WL-CROSSHAIR100-BLK |
| Connectivity | Wired (USB) |
| Movement Detection Technology | Optical |
| DPI Levels | Up to 3400 (1000, 1600, 2400, 3200) |
| Polling Rate | 125 Hz |
| Buttons | 6 (Programmable) |
| Cable Type | Braided |
| USB Connector | Golden plated |
| Lighting | Multicolor LED (RGB) |
| Design | Ambidextrous, Ergonomic |
| Compatibility | Windows XP/Vista/7/8/8.1/10/11, Mac OS, Linux |
| Product Dimensions | 12 x 7 x 0.1 cm |
| Item Weight | 150 g |
Official Product Videos
Video: An official product video showcasing the features and design of the Wings Crosshair 100 Wired Optical Gaming Mouse.
Video: A brand film from Wings, featuring their products and brand ambassador.
Warranty and Support
The Wings Crosshair 100 Wired Optical Gaming Mouse comes with a 1-year warranty. For warranty claims, technical support, or further assistance, please refer to the contact information provided on the product packaging or the official Wings website.
For more information, you can visit the official Wings website or contact their customer support.
