WOLTU LS002be Foldable Sun Lounger Instruction Manual

1. Introduction

Thank you for choosing the WOLTU LS002be Foldable Sun Lounger. This manual provides essential information for the safe assembly, operation, and maintenance of your new sun lounger. Please read these instructions carefully before use and retain them for future reference.

The WOLTU LS002be is designed for comfortable outdoor relaxation, featuring a durable metal frame and breathable Textilene fabric. Its ergonomic design and foldable structure make it a versatile addition to your garden, balcony, terrace, or for use during camping and beach trips.

2. Safety Instructions

• Maximum Load Capacity: Do not exceed the maximum weight capacity of 160 kg (352 lbs). Overloading can cause damage and injury.
• Stable Placement: Always place the sun lounger on a flat, stable, and non-slippery surface to prevent tipping. Avoid sloped or uneven ground.
• Assembly: Ensure all components are correctly assembled and all screws are securely tightened before use. Periodically check all connections for tightness.
• Children: Keep children away from the lounger during assembly. Supervise children when they are near or using the lounger to prevent accidents.
• Sharp Objects: Avoid contact with sharp objects that could damage the Textilene fabric.
• Heat Sources: Keep the lounger away from open flames, heaters, and other high-temperature sources.
• Movement: Do not attempt to move the lounger while it is occupied.
• Folding/Unfolding: Exercise caution when folding or unfolding the lounger to avoid pinching fingers or hands.

3. Package Contents

Please check that all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact WOLTU customer service.

• Main frame components
• Textilene fabric seat
• Removable headrest
• Assembly hardware (screws, bolts, washers)
• Assembly tools (e.g., Allen key, wrench)
• Instruction manual

4. Setup and Assembly

Assembly of the WOLTU LS002be sun lounger is straightforward, but we recommend two people for easier and safer installation. Follow the steps below:

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches.
2. Assemble the Frame: Connect the main frame sections using the provided hardware. Ensure all connections are aligned correctly.
3. Attach Fabric Seat: Carefully slide the Textilene fabric seat onto the frame. Some users have noted that fitting the fabric onto the frame bars can be snug; gentle manipulation may be required.
4. Secure Connections: Use the thumbscrews located under the seat to reinforce the connection between the seat and the frame. Ensure these are tightened for stability.
5. Install Anti-Tipping Devices: Attach the anti-tipping devices to the designated points on the frame to enhance safety and prevent backward tilting.
6. Add Protective Sleeves: Place the plastic protective sleeves on the frame ends as indicated to prevent wear and provide anti-slip functionality.
7. Attach Headrest: Place the removable headrest in the desired position for optimal comfort.
8. Final Check: Before first use, ensure all screws and connections are tight and the lounger is stable.

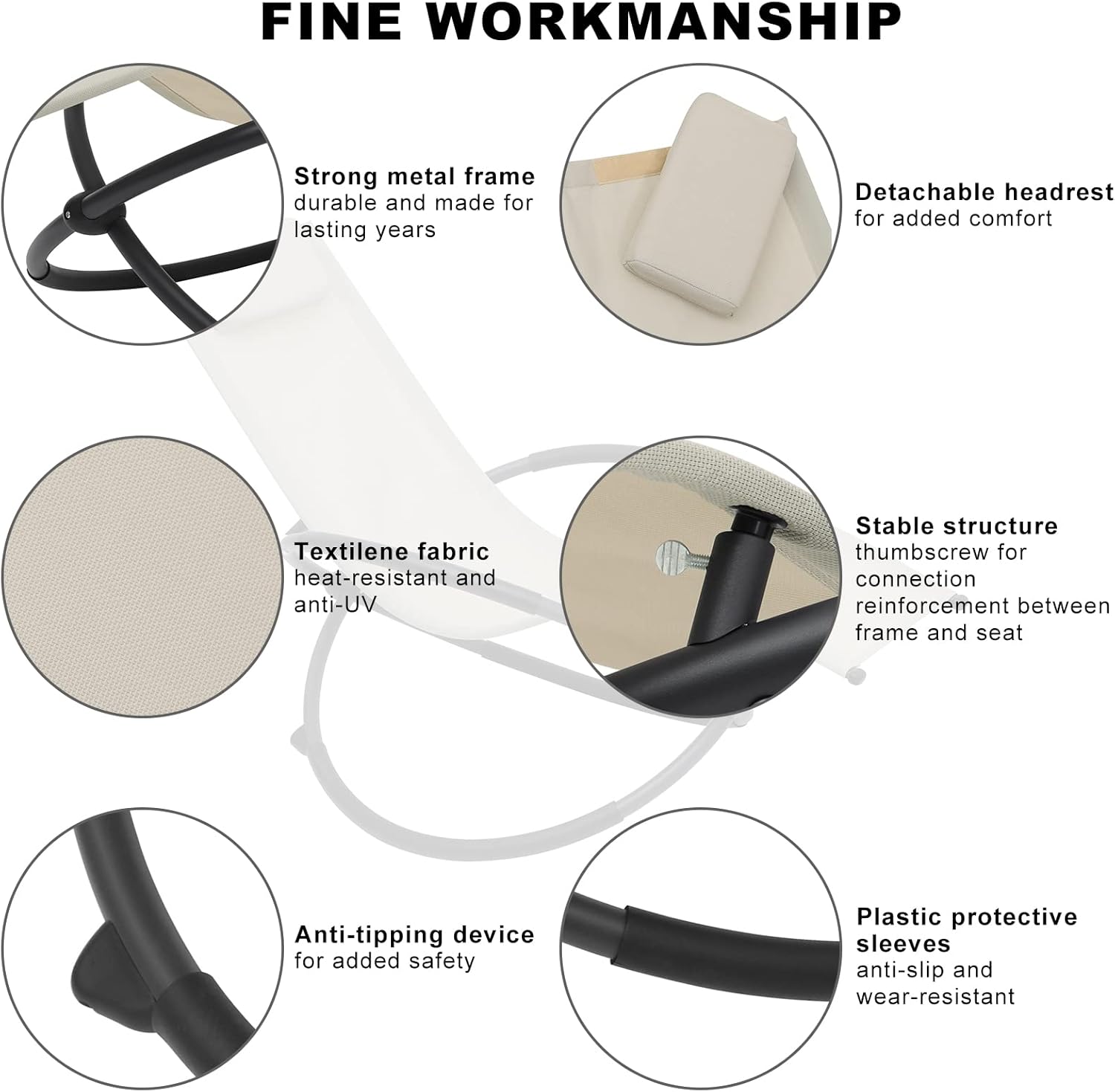

Image: Detailed view of the sun lounger's construction, highlighting key features like the metal frame, fabric, and safety components.

5. Operating and Usage

The WOLTU LS002be sun lounger is designed for comfort and versatility.

• Comfort: The curved seat is ergonomically designed to conform to your back, providing comfortable leg support. The removable headrest offers additional comfort for your head and neck, while the arc-shaped armrests provide arm support.
• Rocking Function: The unique curved frame allows for a gentle rocking motion, enhancing relaxation.
• Folding: To fold the lounger for storage or transport, carefully collapse the frame. Ensure no body parts are in the way of moving parts. Once folded, the lounger forms a compact circular shape, making it easy to store and carry.
• Applications: This sun lounger is ideal for various outdoor settings, including gardens, balconies, terraces, poolside areas, courtyards, beaches, and camping sites.

Image: The ergonomic design allows for a gentle rocking motion.

Image: The sun lounger is suitable for many outdoor scenarios.

6. Maintenance

Proper maintenance will extend the lifespan of your WOLTU LS002be sun lounger.

• Cleaning: Clean the Textilene fabric and metal frame with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners, which can damage the materials. Rinse thoroughly and allow to air dry completely.
• Storage: When not in use, especially during adverse weather conditions (heavy rain, strong winds, frost), it is recommended to fold and store the lounger indoors or under a protective cover to prevent premature wear and corrosion.
• Inspection: Periodically inspect all screws, bolts, and frame connections to ensure they remain tight. Tighten any loose fasteners as needed.
• Fabric Care: The Textilene fabric is designed to be breathable, waterproof, anti-UV, and resistant to aging, corrosion, and dirt. However, prolonged exposure to direct sunlight and harsh elements can still affect its longevity.

7. Troubleshooting

If you encounter any issues with your sun lounger, refer to the following common troubleshooting tips:

• Instability/Wobbling: Ensure the lounger is placed on a flat surface. Check all assembly screws and bolts for tightness. Retighten if necessary.
• Difficulty Folding/Unfolding: Check for any obstructions in the folding mechanism. Ensure all parts are aligned correctly. Apply a small amount of silicone lubricant to moving joints if they are stiff.
• Missing or Damaged Parts: If you find any parts missing or damaged upon unpacking, or if components fail prematurely, please contact WOLTU customer support for assistance.
• Fabric Damage: For minor tears or punctures in the Textilene fabric, repair kits may be available. For significant damage, contact customer support for replacement options.

8. Specifications

Image: Dimensions of the sun lounger, unfolded and folded.

9. Warranty and Support

For warranty information or customer support, please refer to the purchase documentation or contact WOLTU directly through their official website or the retailer where the product was purchased. Please have your model number (LS002be) and purchase date available when contacting support.
