ALLPOWERS Car Cigarette Lighter to XT60 Solar Extension Cable User Manual

1. Introduction

This manual provides essential instructions for the safe and effective use of your ALLPOWERS Car Cigarette Lighter to XT60 Solar Extension Cable. This cable is designed to connect your vehicle's 12V or 24V cigarette lighter socket to a solar generator or portable power station equipped with an XT60 input, facilitating convenient charging from your vehicle. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Information

• Ensure the cable is compatible with the voltage and current requirements of both your vehicle's cigarette lighter socket and your solar generator/power station.
• Do not exceed the maximum current rating of 12 Amps for the cigarette lighter adapter.
• Avoid bending or kinking the cable sharply, as this can damage the internal wiring.
• Keep the cable away from water, extreme temperatures, and direct sunlight for prolonged periods when not in use.
• Always ensure connections are secure before operating. Loose connections can lead to overheating or poor performance.
• Disconnect the cable from both the vehicle and the power station when not in use or before performing any maintenance.

3. Product Overview

The ALLPOWERS Car Cigarette Lighter to XT60 Solar Extension Cable is a robust 1.5-meter (approximately 5 feet) cable designed for efficient power transfer. It features a standard car cigarette lighter plug on one end and an XT60 connector on the other, allowing for versatile charging applications.

Figure 3.1: Overview of the ALLPOWERS Car Cigarette Lighter to XT60 Solar Extension Cable.

The cable is constructed with 12AWG wire, ensuring efficient current flow and durability. It also includes additional DC adapters for broader compatibility with various solar generators and power stations.

Figure 3.2: Close-up view of the car cigarette lighter plug and XT60 connector.

The package includes two additional DC adapters: a DC 5.5x2.5mm (compatible with 5.5x2.1mm) adapter and a DC 3.5x1.35mm adapter, expanding the range of devices you can connect.

4. Setup Instructions

Follow these steps to connect your ALLPOWERS cable for charging:

1. Locate the Cigarette Lighter Socket: Identify the 12V or 24V cigarette lighter socket in your car or truck.
2. Insert the Plug: Firmly insert the car cigarette lighter plug end of the cable into your vehicle's socket. Ensure it is fully seated. A small indicator light on the plug may illuminate to confirm power connection.
3. Connect to Power Station: Connect the XT60 end of the cable to the XT60 input port on your ALLPOWERS solar generator or compatible power station. If your power station uses a different DC input, select the appropriate adapter (DC 5.5x2.5mm or DC 3.5x1.35mm) and attach it to the XT60 connector before plugging into the power station.
4. Verify Connection: Once connected, your power station should indicate that it is receiving an input charge. Monitor the power station's display to confirm charging is active.

Figure 4.1: Step-by-step guide for connecting the cable to a vehicle and power station.

Figure 4.2: Example of the ALLPOWERS power station being charged inside a vehicle.

5. Operating Instructions

Once the cable is properly connected, your solar generator or power station will begin charging from your vehicle's power supply. The charging rate will depend on your vehicle's electrical system and the power station's input capabilities.

• Ensure your vehicle's engine is running to provide a stable power source for optimal charging.
• Monitor the charging status on your power station's display.
• Avoid leaving the cable connected to the vehicle's cigarette lighter for extended periods with the engine off, as this may drain your vehicle's battery.

Figure 5.1: Illustrates charging various ALLPOWERS generators from 12V and 24V vehicle cigarette lighters.

6. Maintenance

Proper maintenance ensures the longevity and reliable performance of your cable.

• Cleaning: Wipe the cable and connectors with a dry, clean cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the cable in a cool, dry place away from direct sunlight and extreme temperatures. Coil the cable loosely to prevent kinking.
• Inspection: Periodically inspect the cable for any signs of damage, such as cuts, fraying, or bent pins on the connectors. Do not use a damaged cable.

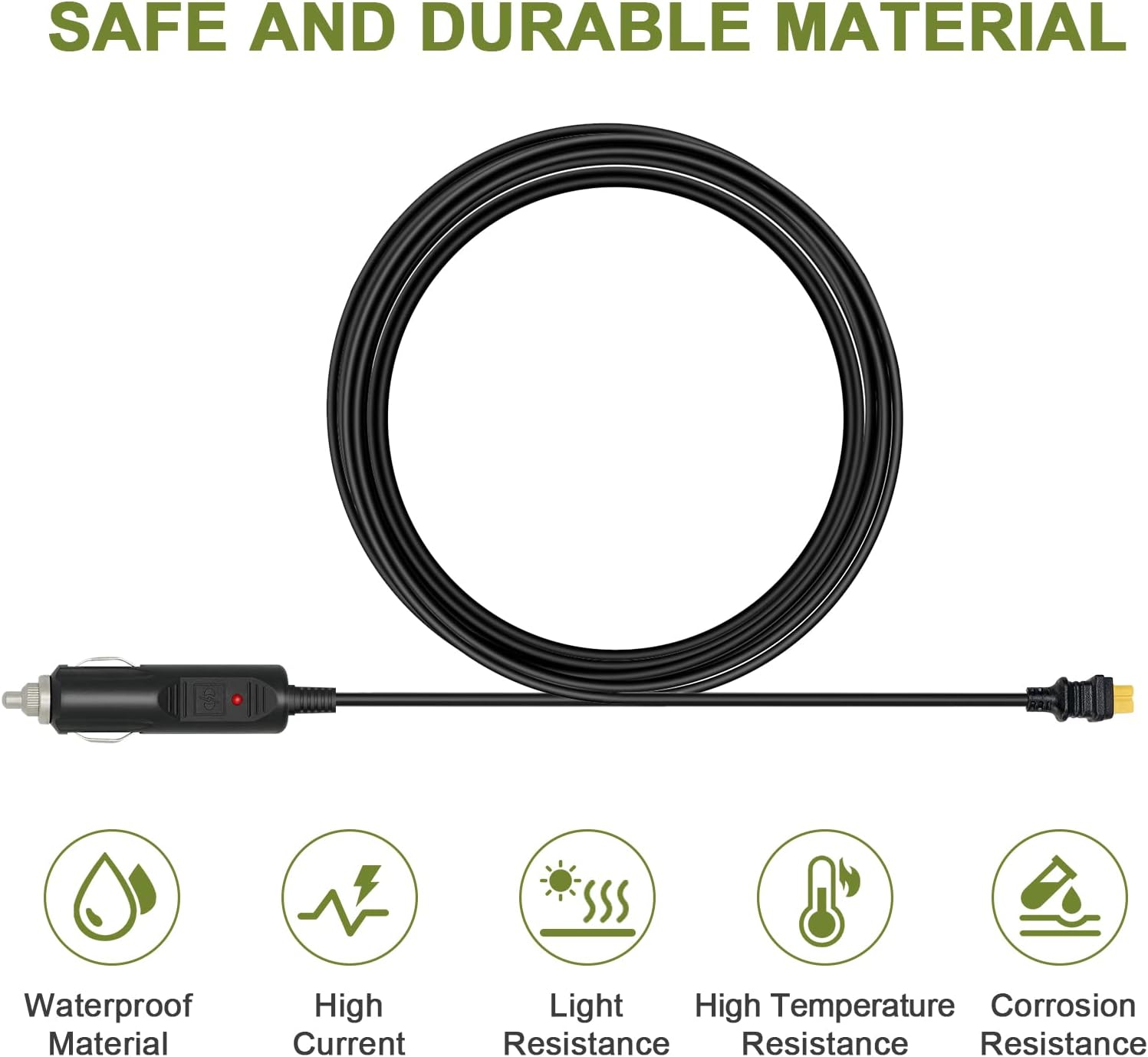

Figure 6.1: Features of the cable's durable construction, including resistance to water, high current, light, high temperatures, and corrosion.

7. Troubleshooting

• No Charging Indication:
  • Ensure both ends of the cable are securely connected.
  • Verify that your vehicle's cigarette lighter socket is active (some vehicles require the ignition to be on).
  • Check if the power station's input port is functioning correctly.
  • Confirm the correct DC adapter is used if not directly connecting to an XT60 port.
• Slow Charging:
  • Ensure your vehicle's engine is running to provide maximum output from the cigarette lighter.
  • Check for any other devices drawing power from the same circuit in your vehicle.
  • Verify the power station's input specifications and ensure they align with the cable's capabilities.
• Overheating:
  • Immediately disconnect the cable if you notice any signs of overheating (e.g., melting plastic, burning smell).
  • Ensure the cable is not overloaded beyond its 12 Amps rating.
  • Check for damaged wiring or connectors.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the official ALLPOWERS website or the product packaging. You may also contact the retailer where the product was purchased for assistance.
