1. Introduction
Thank you for choosing the INGCO 2000W Heavy-Duty Heat Gun. This powerful tool is designed for a variety of tasks requiring concentrated heat, such as paint stripping, PVC shrinking, and various craft applications. This manual provides essential information for safe operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
The heat gun features a robust 2000W motor for quick heating, multiple temperature settings, and overload protection for enhanced safety and durability. It comes with a set of four nozzles to adapt to different tasks.
2. Safety Instructions
Always observe basic safety precautions when using electrical tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions carefully before operation.
- General Warnings: Exercise caution with hot surfaces. Avoid exposure to high temperatures.
- Personal Protective Equipment: Always wear appropriate personal protective equipment, such as heat-resistant gloves and eye protection, especially when removing paint or floor tiles.
- Ventilation: Ensure adequate ventilation in the work area to disperse fumes, especially when stripping paint, which may contain lead.
- Flammable Materials: Keep the heat gun away from flammable materials and liquids.
- Cool Down: Allow the heat gun to cool down completely before storing. Do not touch the hot nozzle.
- Overload Protection: The device is equipped with overload protection to prevent damage to the heat gun and electrical circuit. If the tool stops working, allow it to cool down before attempting to restart.
- Power Source: Ensure the power source matches the specifications listed on the tool.
3. Product Overview
The INGCO Heat Gun is designed for durability and ease of use, featuring a powerful heating element and a comfortable grip.
Key Features:
- Powerful 2000W Motor: Provides strong heating power and rapid heat-up to 350°C in seconds.
- Three Temperature Settings: Adjustable heat settings at 50°C, 450°C, and 550°C for versatile applications.
- Variable Airflow: Airflow capacity ranges from 4 to 500 liters per minute.
- Overload Protection: Integrated ceramic and nickel heating element with overload protection for extended service life and circuit safety.
- Ergonomic Design: Features a comfortable, scientific handle design to prevent repetitive strain injuries.
- Included Accessories: Comes with one scraper and four specialized nozzles for various tasks.
Components:
The heat gun includes the main unit, a scraper, and four different nozzles to direct heat patterns (long and narrow) to the work surface.

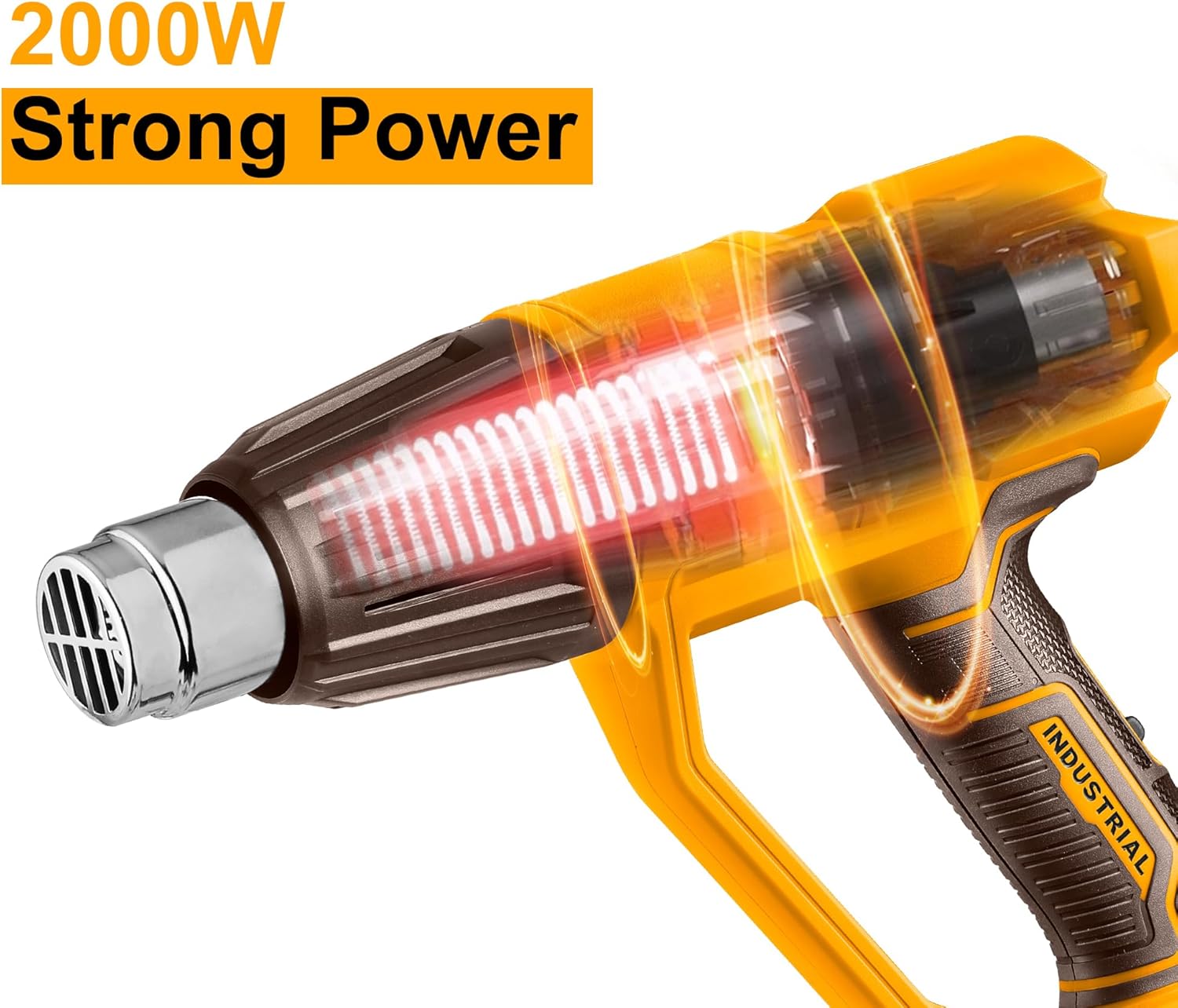

Image 1: The INGCO 2000W Heat Gun showcasing its powerful heating element.

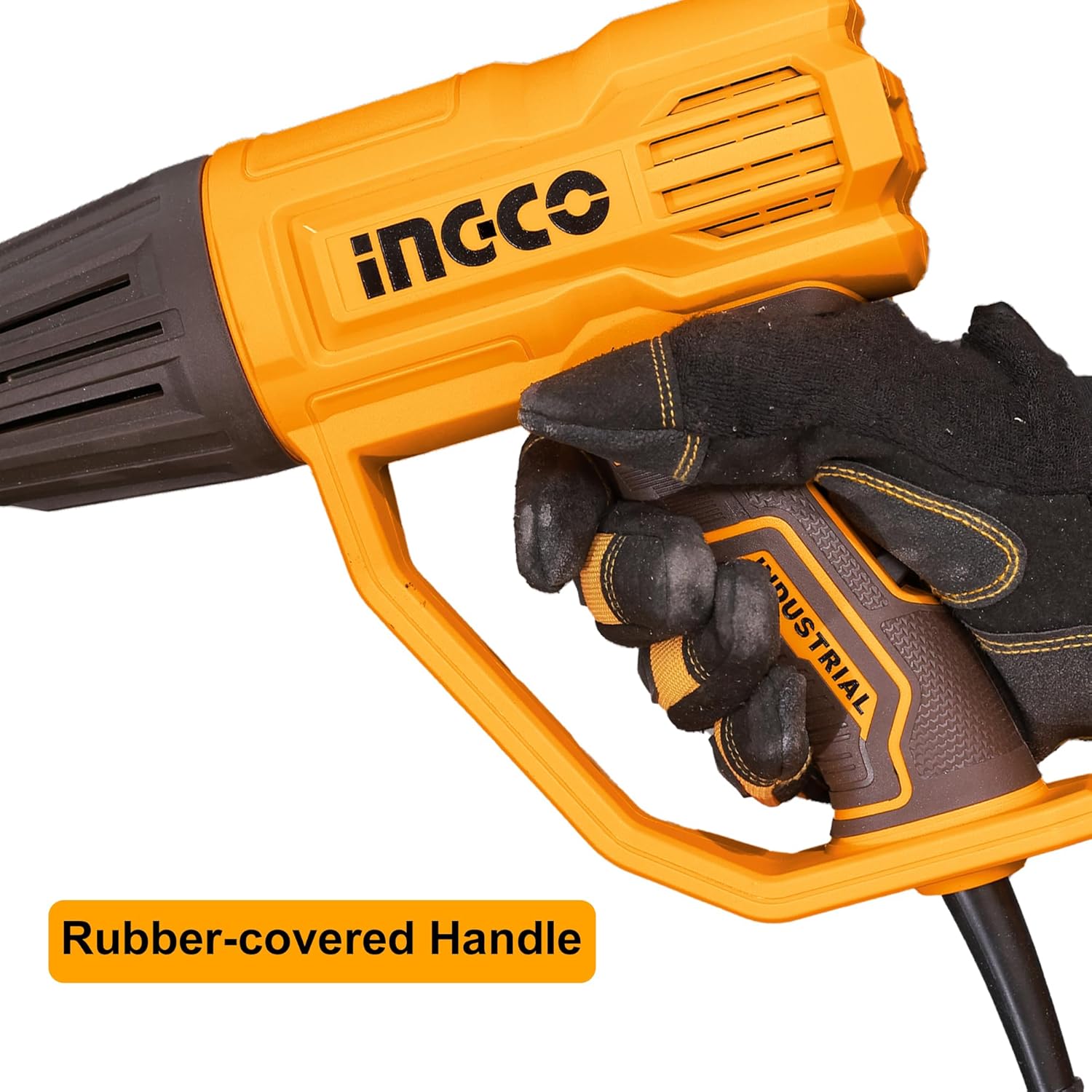

Image 2: Detail of the heat gun's ergonomic, rubber-covered handle for comfortable use.
4. Setup
- Unpacking: Carefully remove the heat gun and all accessories from the packaging. Inspect for any damage.
- Nozzle Selection: Choose the appropriate nozzle for your specific task. Attach it firmly to the heat gun's outlet.
- Power Connection: Plug the heat gun into a suitable power outlet. Ensure the voltage matches the tool's requirements.
- Work Area Preparation: Prepare your work area by ensuring it is clean, well-ventilated, and free of flammable materials. Secure the workpiece if necessary.
5. Operating Instructions
Follow these steps for effective and safe operation of your heat gun.
- Power On: Turn on the heat gun using the power switch.
- Temperature Selection: Select the desired temperature setting (50°C, 450°C, or 550°C) using the control switch. Allow a few seconds for the tool to reach the selected temperature.
- Application: Direct the hot air stream towards the work surface. Maintain a safe distance to avoid scorching or damaging the material. Move the heat gun continuously to ensure even heat distribution.
- Specific Uses:
- Paint Stripping: Apply heat to the paint until it softens and bubbles, then scrape it off with the included scraper.
- PVC Shrinking: Apply heat evenly around the PVC material until it shrinks to the desired fit.
- Bending Plastics: Heat the plastic evenly along the bend line until it becomes pliable, then carefully shape it.
- Thawing Pipes: Apply heat to frozen pipes, moving the gun constantly to prevent overheating and damage.
- Loosening Rusted Bolts: Heat the rusted bolt to expand the metal, making it easier to loosen.
- Power Off: After use, switch off the heat gun and unplug it from the power outlet.
- Cool Down: Place the heat gun on a heat-resistant surface and allow it to cool down completely before handling or storing.
Image 3: The heat gun's control panel showing the three distinct temperature settings.
Image 4: Demonstrating the heat gun's use for bending a PVC pipe.
Image 5: The heat gun in action, stripping paint from a surface with the aid of a scraper.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your heat gun.
- Cleaning: After each use, ensure the tool is unplugged and cool. Wipe the exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Air Vents: Keep the air intake and exhaust vents clear of dust and debris to prevent overheating. Use compressed air to clean if necessary.
- Cord Inspection: Regularly inspect the power cord for any signs of damage, cuts, or fraying. If damaged, have it replaced by a qualified technician.
- Storage: Store the heat gun in a dry, secure place, out of reach of children, when not in use.
7. Troubleshooting
If you encounter issues with your heat gun, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heat gun does not turn on. | No power supply; Faulty power cord; Overload protection activated. | Check power outlet and circuit breaker; Inspect power cord for damage; Allow tool to cool down and reset. |
| Insufficient heat output. | Blocked air vents; Incorrect temperature setting. | Clean air vents; Select a higher temperature setting. |
| Tool stops during operation. | Overload protection activated; Overheating. | Turn off, unplug, and allow the tool to cool down completely before restarting. Ensure air vents are clear. |
If the problem persists after attempting these solutions, contact customer support or a qualified service technician.
8. Specifications
| Specification | Value |
|---|---|
| Product Dimensions | 28 x 18 x 8 cm |
| Item Weight | 350 grams |
| Manufacturer | INGCO |
| ASIN | B09XHG82P5 |
| Model Number | HG200028 |
| Brand Name | INGCO |
| Color | Multi-color |
| Recommended Uses | Heating or melting purposes, paint and floor tile removal, mobile phone repair |
| Materials | Plastic, Metal |
| Product Dimensions (Width x Height) | 10 cm x 10 cm |
| Style | Wired Version (Suitable for home price) |
| Power Source | Corded Electric |
| Included Components | Scraper and 4 nozzles |
| Product Type Name | Heat Gun |
| Unit Count | 1 Count |
| Hose Length | 3 meters |
9. Warranty and Support
INGCO products are manufactured to high-quality standards. For warranty information, please refer to the documentation included with your purchase or contact your local INGCO distributor. Keep your purchase receipt as proof of purchase.
For technical support, spare parts, or service inquiries, please contact the authorized INGCO service center in your region. You can typically find contact information on the INGCO official website or through your retailer.
