1. Introduction
Thank you for purchasing the Sharp 122 Liter Mini Bar Refrigerator, Model SJ-K155XJ-SL. This manual provides important information regarding the installation, operation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.
Safety Information
- Ensure the refrigerator is placed on a stable, level surface.
- Do not block ventilation openings in the appliance enclosure or in the structure for building-in.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- This appliance is equipped with a child safety lock. Keep the key out of reach of children.
2. Product Features
The Sharp SJ-K155XJ-SL Mini Bar Refrigerator is designed for convenience and efficiency. Key features include:
- Capacity: 122 Liters total, with a 22 Liter freezer compartment and 100 Liter fresh food capacity.
- Defrost Feature: Automatic defrost system for easy maintenance.
- Design: Single-door, silver finish, built-in form factor with a comfortable handle.
- Interior: Equipped with interior lighting, two wire shelves, two removable bottle shelves, an egg tray, and a deep vegetable drawer.
- Temperature Control: Adjustable temperature control for optimal food preservation.
- Safety: Includes a child safety lock with a key.
- Efficiency: 'A' energy consumption class and Energy Star compliant for high efficiency and lower electricity consumption.
- Environmental: CFC-free design.
- Operation: Low noise tropical design, suitable for various climates.

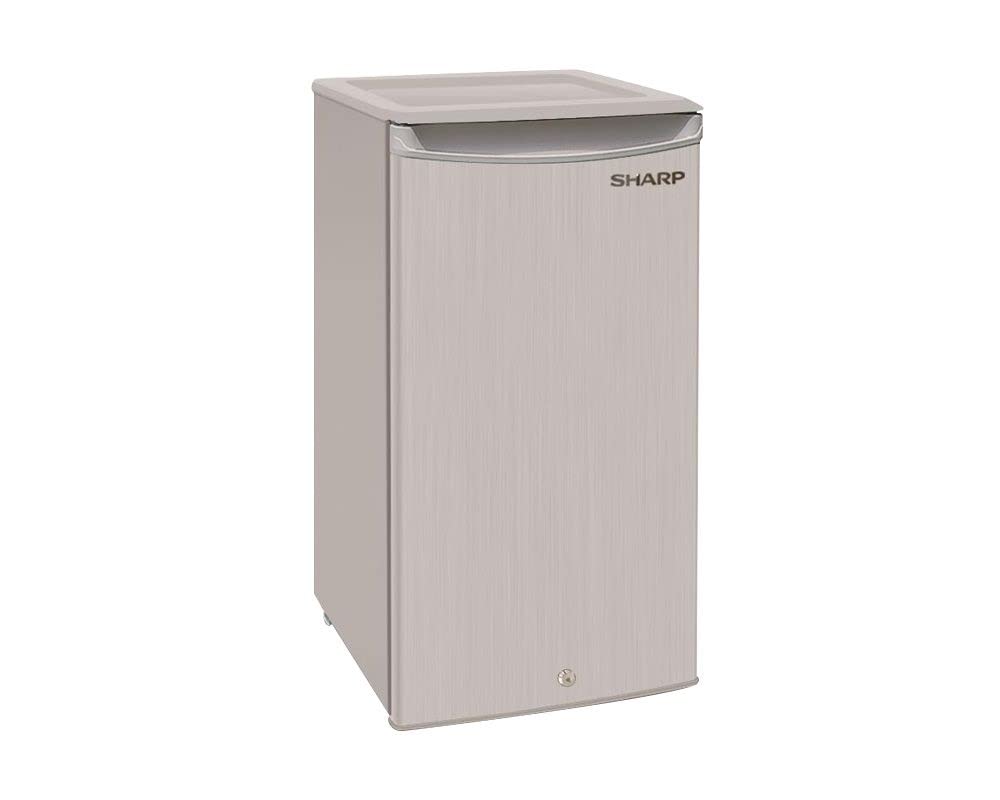

Image 1: Front view of the Sharp 122 Liter Mini Bar Refrigerator, Model SJ-K155XJ-SL, in silver color.
3. Setup
3.1 Unpacking
- Carefully remove all packaging materials, including tape and protective films.
- Check the appliance for any shipping damage. Report any damage to your retailer immediately.
- Keep packaging materials out of reach of children.
3.2 Placement
- Place the refrigerator on a firm, level floor that can support its weight when fully loaded.
- Allow at least 10 cm (4 inches) of space at the back and sides for proper air circulation.
- Avoid direct sunlight or heat sources (e.g., stoves, radiators) as these will increase energy consumption.
- Ensure the ambient temperature is within the tropical climate range for optimal performance.
3.3 Leveling
- Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
3.4 Power Connection
- Before plugging in, ensure the voltage (220V) matches your household power supply.
- Plug the appliance into an exclusive, grounded wall outlet. Do not use extension cords or multiple outlet adapters.
- Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
3.5 Initial Cooling
- After plugging in, allow the refrigerator to cool for 2-3 hours before placing food inside.
4. Operating Instructions
4.1 Temperature Control
- The temperature control dial is located inside the refrigerator compartment.
- Turn the dial to adjust the cooling intensity. Higher numbers typically indicate colder temperatures.
- Start with a medium setting and adjust as needed based on ambient temperature and food load.
4.2 Food Storage Guidelines
- Fresh Food Compartment: Ideal for fruits, vegetables, dairy products, and cooked foods. Use the deep vegetable drawer for produce.
- Freezer Compartment: Suitable for storing frozen foods. Do not store hot foods in the freezer.
- Ensure food items are properly sealed to prevent odor transfer and maintain freshness.
- Do not overload the shelves, allowing for proper air circulation.
4.3 Child Safety Lock
- The refrigerator is equipped with a key lock. Use it to secure the door and prevent unauthorized access, especially by children.
- Always keep the key in a safe place, out of reach of children.
5. Maintenance
5.1 Cleaning
- Interior: Clean the interior regularly with a solution of mild detergent and warm water. Wipe dry with a soft cloth.
- Exterior: Wipe the exterior with a soft, damp cloth. For stubborn stains, use a mild, non-abrasive cleaner.
- Door Gaskets: Clean door gaskets regularly to ensure a tight seal.
- Before Cleaning: Always unplug the refrigerator from the power outlet before cleaning.
5.2 Defrosting
- This refrigerator features an automatic defrost system for the fresh food compartment.
- The freezer compartment may accumulate frost over time. When the frost layer is about 5mm thick, manually defrost the freezer.
- To defrost the freezer: Unplug the appliance, remove all food, leave the door open, and place towels to absorb melted ice. Do not use sharp objects to remove ice.
5.3 Power Saving Tips
- Avoid opening the door frequently or for extended periods.
- Ensure the door seals are clean and intact.
- Do not place hot food directly into the refrigerator. Allow it to cool to room temperature first.
- Keep the condenser coils at the back clean for efficient operation.
6. Troubleshooting
Before contacting service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate | No power; Plug not fully inserted; Circuit breaker tripped. | Check power supply; Ensure plug is secure; Reset circuit breaker. |
| Refrigerator is not cold enough | Temperature setting too high; Door opened too frequently; Hot food placed inside; Poor ventilation. | Adjust temperature setting lower; Minimize door openings; Allow food to cool; Ensure adequate space around appliance. |
| Unusual noises | Appliance not level; Items vibrating inside; Compressor noise (normal). | Level the appliance; Rearrange items; Compressor noise is normal during operation. |
| Water on floor | Drain tube blocked; Excessive humidity. | Clear the drain tube; Reduce humidity if possible. |
7. Specifications
Detailed technical specifications for the Sharp SJ-K155XJ-SL Mini Bar Refrigerator:
- Brand: Sharp
- Model Number: SJ-K155XJ-SL
- Total Capacity: 122 Liters
- Fresh Food Capacity: 100 Liters
- Freezer Capacity: 22 Liters
- Color: Silver
- Number of Doors: 1
- Defrost System Type: Automatic (for fresh food compartment)
- Voltage: 220V
- Annual Energy Consumption: 220 Kilowatt Hours per year
- Energy Efficiency Class: A (BEE Star Rating: 3 Stars)
- Cooling Method: Air Compressor
- Number of Shelves: 3 (2 wire shelves, 2 removable bottle shelves)
- Door Orientation: Reversible
- Lock Type: Key
- Item Weight (Net): 26 Kilograms
- Dimensions (W x D x H): 526 mm x 530 mm x 831 mm
- Country of Origin: China
- Included Components: Refrigerator unit, 2 wire shelves, 2 removable bottle shelves, egg tray, deep vegetable drawer, child lock key.
8. Warranty and Support
8.1 Warranty Information
This Sharp Mini Bar Refrigerator (Model SJ-K155XJ-SL) comes with a 10-year full free warranty from the manufacturer, El-Araby. Please retain your purchase receipt as proof of purchase for warranty claims.
The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, improper installation, accidents, or unauthorized repairs.
8.2 Customer Support
For technical assistance, warranty claims, or to purchase spare parts, please contact Sharp customer service or your authorized dealer. Refer to the contact information provided with your purchase documentation.
