Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your SmartGyro Raptor Black C Electric Scooter. Please read this manual thoroughly before using the scooter to ensure proper handling and to maximize its lifespan.
The SmartGyro Raptor Black C is a powerful and robust electric scooter designed for adults, featuring a 52V motor, 18,000 mAh battery, hydraulic brakes, and 10-inch pneumatic wheels. It is DGT certified, ensuring compliance with current regulations.
Safety Information
Always prioritize safety when operating your electric scooter. Failure to follow safety guidelines can result in injury or damage to the scooter.
- Wear a helmet and appropriate protective gear (knee pads, elbow pads) at all times.
- Ensure all components are securely fastened before each ride.
- Do not exceed the maximum weight limit of 120 kg.
- Adhere to local traffic laws and regulations for electric scooters.
- Avoid riding in adverse weather conditions (heavy rain, snow, ice).
- Maintain a safe speed and distance from other vehicles and pedestrians.
- Familiarize yourself with the braking system before riding at higher speeds.
Setup
1. Unboxing and Initial Inspection
Carefully remove the scooter from its packaging. Inspect for any visible damage that may have occurred during transit. Ensure all parts are present according to the packing list.

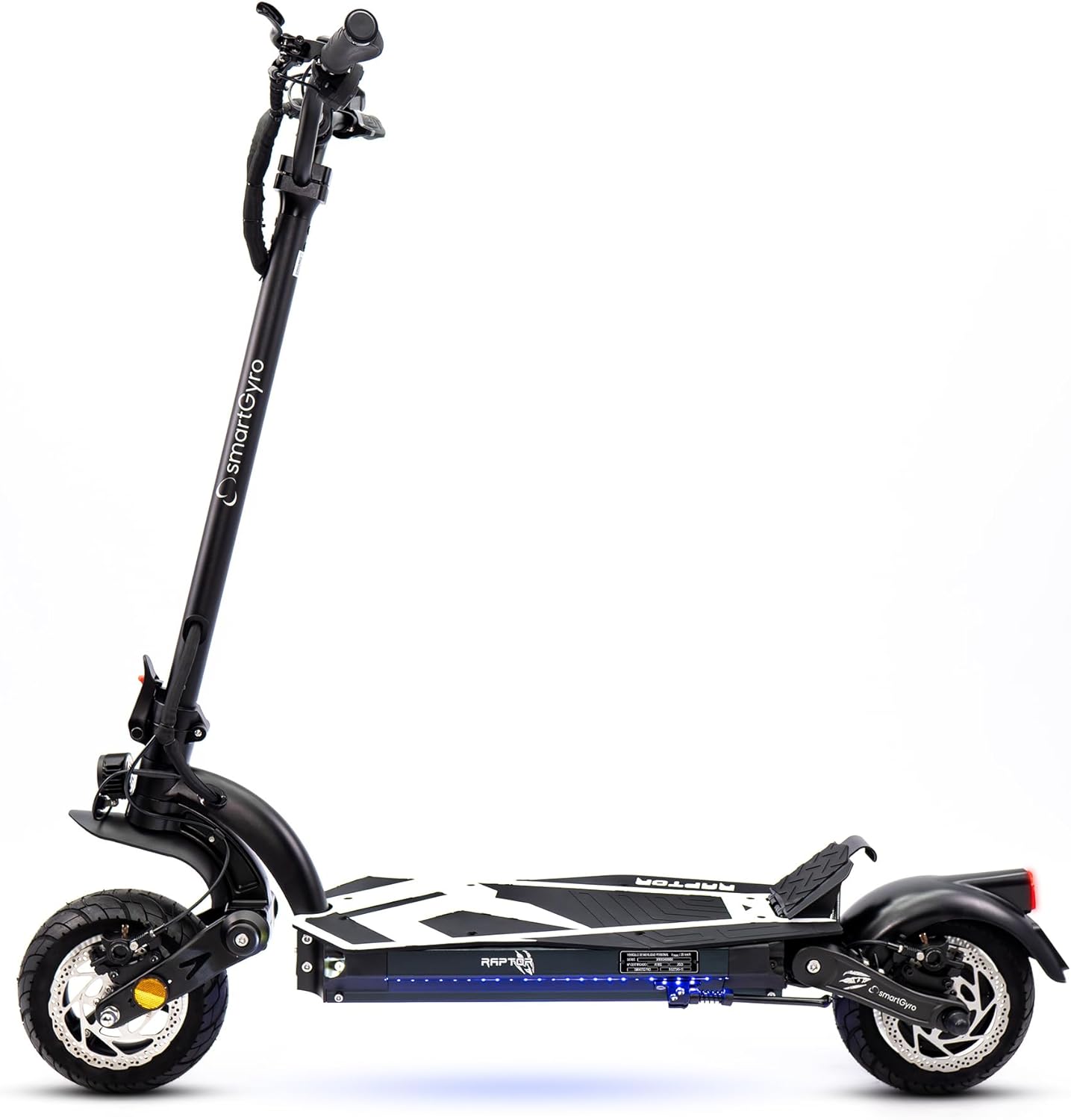

Image: Side view of the SmartGyro Raptor Black C Electric Scooter, showcasing its design and components.
2. Assembly (Handlebar and Minor Components)
Your SmartGyro Raptor Black C scooter may require minor assembly, typically involving attaching the handlebar. Follow the specific instructions provided in the separate assembly guide (if included) or refer to the quick start guide.
3. Initial Battery Charge
Before first use, fully charge the scooter's 18,000 mAh lithium-ion battery. Connect the charger to the scooter's charging port and then to a power outlet. The charging indicator will show when the battery is fully charged. A full charge typically takes 6-7 hours.
Image: Diagram illustrating the powerful lithium battery and regenerative braking system, with battery capacity options (13Ah, 18Ah, 23Ah) depending on the model. This specific model features an 18,000 mAh battery.
Operating Instructions
1. Power On/Off
To power on the scooter, press and hold the power button on the display. To power off, press and hold the power button again until the display turns off.
2. Display Functions
The full-color display provides various information including speed, battery level, and selected speed mode. Use the controls near the display to switch between the 3 available speed modes and access other settings.
3. Riding the Scooter
- Place one foot on the deck and push off with the other foot to gain initial momentum.
- Once moving, gently press the accelerator lever to engage the motor.
- Place both feet on the deck in a comfortable position.
- Maintain balance and steer by leaning and turning the handlebars.
Image: A person wearing a helmet and casual clothing is riding the SmartGyro Raptor Black C Electric Scooter on a paved path, demonstrating typical usage.
4. Braking System
The SmartGyro Raptor Black C features a triple braking system for enhanced safety:
- Front Hydraulic Brake: Activated by the left lever on the handlebar.
- Rear Hydraulic Brake: Activated by the right lever on the handlebar.
- Regenerative Braking: This system converts braking energy into electricity, which is then stored in the battery, extending the scooter's range.
Apply both hydraulic brakes simultaneously for optimal stopping power. Practice braking at low speeds to become familiar with the response.
Image: Diagram highlighting the triple braking system, showing the front and rear hydraulic brakes and the regenerative braking feature on the SmartGyro Raptor electric scooter.
5. Folding Mechanism
The scooter is designed to be foldable for easy storage and transport. Locate the folding latch mechanism on the stem. Follow the specific instructions for your model to safely fold and unfold the scooter. Ensure the mechanism is securely locked in both the folded and unfolded positions.
6. Lighting System
The scooter is equipped with powerful LED lighting for visibility and safety:
- Front Headlight: For illuminating the path ahead.
- Rear Brake Light: Illuminates when brakes are applied.
- Front and Rear Turn Signals: Use these to indicate your turning intentions.
- Base Lights: Additional lighting integrated into the scooter's base.
Image: Diagram detailing the powerful LED lighting system, including the front headlight, rear brake light, front and rear turn signals, and base lights for enhanced visibility.
Maintenance
Regular maintenance ensures the longevity and safe operation of your SmartGyro Raptor Black C scooter.
1. Battery Care
- Avoid completely draining the battery. Charge it regularly, even if not in use for extended periods.
- Store the scooter in a cool, dry place, away from direct sunlight and extreme temperatures.
- Use only the original charger provided with the scooter.
2. Tire Pressure
Check the pressure of the 10-inch pneumatic tires regularly. Proper tire pressure is crucial for ride comfort, efficiency, and safety. Refer to the tire sidewall for recommended pressure levels.
3. Brake Inspection
Periodically inspect the hydraulic brakes for wear on the pads and discs. Ensure the brake levers operate smoothly and provide adequate stopping power. If you notice any issues, consult a qualified technician.
4. Suspension Check
The scooter features front and rear elastomer suspension arms designed to absorb shocks. Periodically check these components for any signs of damage or excessive wear. Ensure they are clean and free from debris.
5. General Cleaning
Clean the scooter with a damp cloth. Avoid using high-pressure water jets or harsh chemicals, as these can damage electronic components or paintwork. Ensure the charging port cover is securely closed during cleaning.
Troubleshooting
This section addresses common issues you might encounter with your SmartGyro Raptor Black C scooter. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on. | Low or depleted battery. Loose battery connection. | Charge the battery fully. Check battery connections (if accessible and safe). |
| Reduced range or power. | Under-inflated tires. Battery degradation. Riding uphill frequently. | Check and inflate tires to recommended pressure. Ensure full battery charge. |
| Brakes feel weak. | Worn brake pads. Air in hydraulic line. | Inspect brake pads and replace if necessary. Consult a technician for hydraulic system bleeding. |
| Display shows incorrect time/data. | Internal clock synchronization issue. | This may be a known software issue. Contact SmartGyro support for potential firmware updates or solutions. |
| Rear fender breakage. | Vibration or material fatigue. | Contact SmartGyro support for replacement parts or warranty claim. |
Specifications
Key technical specifications for the SmartGyro Raptor Black C Electric Scooter (Model SG27-258):
- Motor: 52V Brushless Direct Drive Motor, 1000W Nominal Power
- Battery: 18,000 mAh Lithium-Ion (up to 70 km range per charge)
- Charging Time: Approximately 6-7 hours
- Brakes: Front and Rear Hydraulic Disc Brakes, Regenerative Braking
- Suspension: Front and Rear Elastomer Suspension Arms
- Wheels: 10-inch Pneumatic Tires
- Frame Material: Aluminum
- Max Load: 120 kg
- Dimensions (Unfolded): 130 cm (Length) x 62 cm (Width) x 122 cm (Height)
- Weight: 27 kg
- Display: Full-color display with 3 speed modes
- Certification: DGT Certified (Vehicle for Personal Mobility)
Image: Technical diagram illustrating the key dimensions of the SmartGyro Raptor Black C Electric Scooter, including length, height, and deck width.
Image: A person riding the SmartGyro Raptor electric scooter on a bike path, with an overlay highlighting key specifications such as autonomy (up to 90km), 1000W nominal power, 52V battery, and 7-12 hour charging time.
Warranty and Support
SmartGyro offers a comprehensive warranty and support network for its products.
- Motor Warranty: Up to 5 years or 100,000 km on motors.
- Service Network: An extensive network of over 100 workshops nationwide (Spain) is available for service and repairs.
- DGT Certification: The circulation certificate can be exchanged online.
- Original Spare Parts: SmartGyro provides a complete range of 100% original spare parts.
For warranty claims, technical assistance, or to locate an authorized service center, please visit the official SmartGyro website or contact their customer support directly. Keep your purchase receipt as proof of purchase.
