Kenmore 12-Cup Programmable Drip Coffee Maker

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the coffee maker.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or coffee maker in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Scalding may occur if the lid is removed during the brewing cycle.
• The carafe is designed for use with this appliance only. It must never be used on a range top.
• Do not place a hot carafe on a cold or wet surface.
• Do not use a cracked carafe or a carafe having a loose or weakened handle.
• Do not clean carafe with cleansers, steel wool pads, or other abrasive material.

Parts Identification

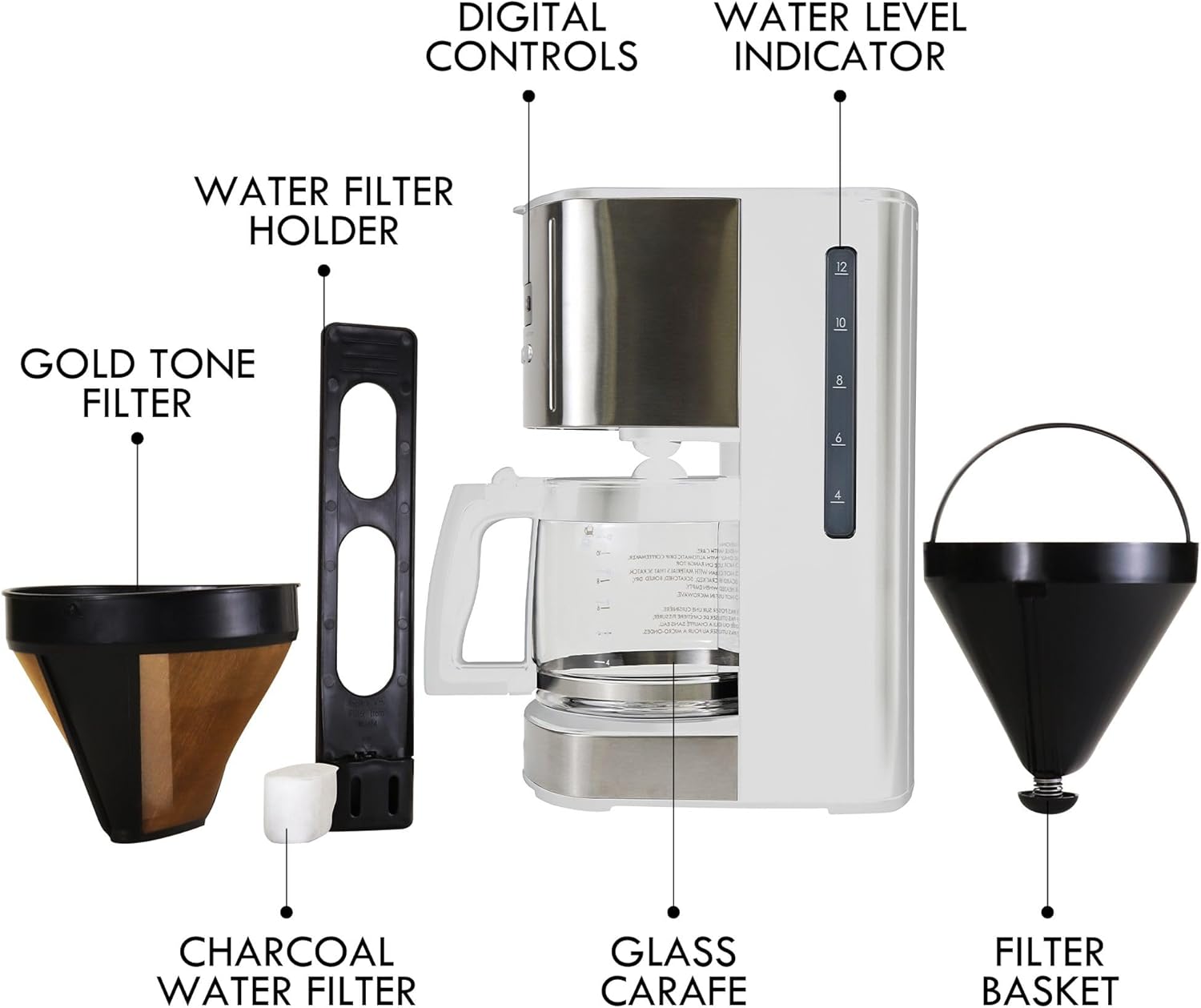

This image displays the various components of the Kenmore 12-Cup Drip Coffee Maker, including the water filter holder, charcoal water filter, gold-tone filter, glass carafe, filter basket, digital controls, and water level indicator.

• Water Reservoir Lid
• Water Reservoir
• Shower Head
• Filter Basket Holder
• Reusable Gold-Tone Filter
• Glass Carafe with Handle
• Warming Plate
• Control Panel with LCD Display
• Water Level Indicator
• Charcoal Water Filter (inside holder)

Before First Use

1. Unpack the coffee maker and remove all packaging materials.
2. Wash the glass carafe, reusable filter, and filter basket in warm, soapy water. Rinse thoroughly and dry.
3. Wipe the exterior of the coffee maker with a damp cloth.
4. Run a full cycle with only water to clean the internal components. Fill the water reservoir to the 12-cup mark, place the empty carafe on the warming plate, and press the START/STOP button. Discard the water after the cycle.

Setup

This image shows the Kenmore 12-Cup Drip Coffee Maker from the front, illustrating its compact design suitable for kitchen countertops.

1. Place the coffee maker on a flat, stable surface.
2. Ensure the power cord is securely plugged into a grounded electrical outlet.
3. Open the water reservoir lid and fill the reservoir with fresh, cold water using the carafe. Refer to the water level indicator on the side of the unit for desired cups. Do not exceed the 12-cup maximum fill line.
4. Insert the charcoal water filter into its holder (if not already installed).
5. Place the reusable gold-tone filter into the filter basket.
6. Add desired amount of ground coffee into the reusable filter. A general guideline is one tablespoon of ground coffee per cup, but adjust to personal preference.
7. Close the water reservoir lid securely.
8. Place the empty glass carafe onto the warming plate.

Operating Instructions

Setting the Clock

This close-up image highlights the digital display and control buttons, including 'Hr' and 'Min' for setting the time.

1. When the coffee maker is plugged in, the LCD display will flash '12:00 AM'.
2. Press the 'Hr' button to set the hour. Hold to advance quickly.
3. Press the 'Min' button to set the minutes. Hold to advance quickly.
4. The clock will automatically set after a few seconds of inactivity.

Brewing Coffee (Standard)

This image shows the coffee maker actively brewing, with coffee visible in the glass carafe, indicating a completed or in-progress brewing cycle.

1. Ensure the coffee maker is set up as described in the 'Setup' section.
2. Press the 'START/STOP' button. The indicator light will illuminate, and brewing will begin.
3. The coffee maker will automatically shut off after 2 hours of keeping warm.

Brewing Coffee (Bold)

For a stronger, richer coffee, use the 'Bold' setting.

1. After setting up the coffee maker, press the '1-4 Cup' button once. This button also functions as the 'Bold' setting for full pots. The indicator light for '1-4 Cup' will illuminate.
2. Press the 'START/STOP' button. The coffee maker will brew at a slower rate to extract more flavor.

Using the Programmable Timer

The programmable timer allows you to set the coffee maker to start brewing at a specific time.

1. Set the current time on the clock as described above.
2. Prepare the coffee maker with water and ground coffee.
3. Press the 'Program' button. The display will show 'Program Time'.
4. Use the 'Hr' and 'Min' buttons to set your desired brew time.
5. Press the 'Program' button again to confirm. The 'Auto On' indicator light will illuminate.
6. The coffee maker will automatically start brewing at the programmed time.

Pause and Pour Function

The automatic Pause and Pour function allows you to temporarily remove the carafe during the brewing cycle to pour a cup of coffee. The coffee flow will stop for approximately 20 seconds. Return the carafe to the warming plate within 20 seconds to prevent overflowing of the filter basket.

This video demonstrates the features of the Kenmore Aroma Control 12-Cup Programmable Coffee Maker, including its programmable settings and ease of use. It highlights how to set the timer and brew coffee, showcasing the product's functionality.

Maintenance and Cleaning

General Cleaning

• Always unplug the coffee maker before cleaning and allow it to cool completely.
• Wash the glass carafe, reusable filter, and filter basket in warm, soapy water. These parts are also top-rack dishwasher safe.
• Wipe the exterior of the coffee maker with a soft, damp cloth. Do not use abrasive cleaners or scouring pads.
• Do not immerse the coffee maker in water or any other liquid.

Replacing the Water Filter

This image shows the location of the charcoal water filter within its holder, indicating where it should be placed or replaced.

1. The charcoal water filter should be replaced every 60 days or after 60 brewing cycles, whichever comes first.
2. To replace, open the water reservoir lid.
3. Remove the old filter from its holder.
4. Soak the new charcoal water filter in cold water for 15 minutes.
5. Insert the soaked filter into the filter holder.
6. Press and hold the 'Filter Reset' button on the control panel for 3 seconds to reset the filter counter.

Troubleshooting

Specifications

This image provides a visual representation of the coffee maker's dimensions, showing its height, width, and depth for placement reference.

• Model Number: KKCM12W AZ 2
• Brand: Koolatron
• Capacity: 12 Cups (1.8 Liters / 1.9 Quarts)
• Power/Wattage: 1000 watts
• Voltage: 120 Volts
• Material: Stainless Steel
• Product Dimensions: 23.62 x 16.51 x 34.29 cm (9.3 x 6.5 x 13.5 inches)
• Item Weight: 2.49 kg (5.49 lbs)
• Special Features: Auto Shut-Off, Cool touch exterior, Programmable timer, Pause & Pour, Bold Brew Setting, Charcoal Water Filter, Reusable Gold-Tone Filter

Warranty and Support

For warranty information or product support, please refer to the contact details provided with your purchase documentation or visit the official Koolatron website. Keep your proof of purchase for any warranty claims.
