Bellababy Double Bottle Warmer Instruction Manual

Important Safeguards

Please read all instructions carefully before using the Bellababy Double Bottle Warmer. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not immerse the appliance, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use attachments not recommended by the appliance manufacturer.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always add water to the warmer before placing a bottle inside and turning it on.
• Exercise extreme caution when moving an appliance containing hot liquids.
• Ensure the water reservoir is filled to the appropriate level for warming.
• Always check the temperature of the milk or food before feeding to a baby.
• Do not warm bottles during the self-cleaning process, as the unit heats up very hot.

Product Overview

The Bellababy Double Bottle Warmer is designed to quickly and safely warm breastmilk, formula, and baby food. It features accurate temperature control and a 24-hour keep warm function.

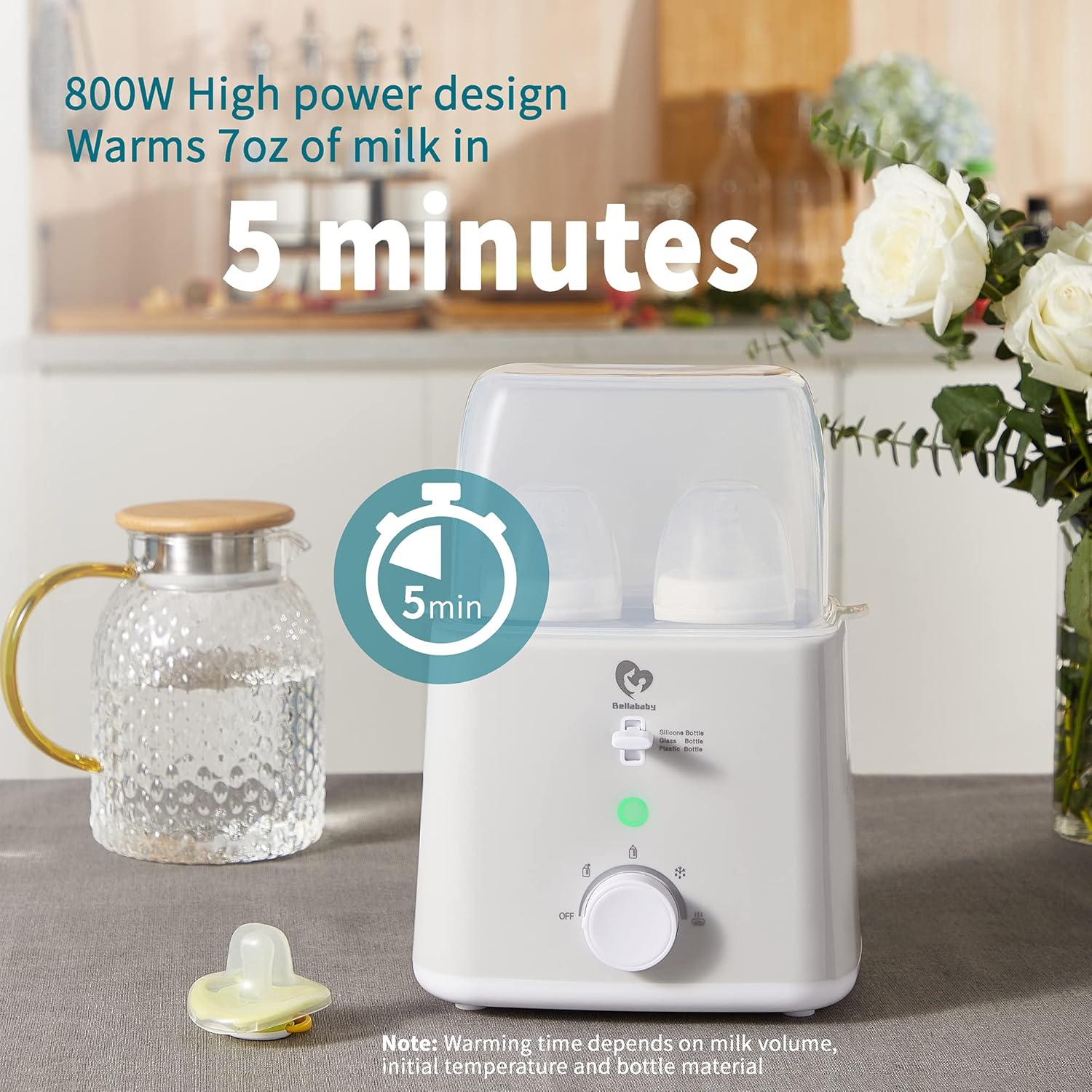

This image illustrates the Bellababy Double Bottle Warmer in operation, highlighting its ability to warm 7 ounces of milk in approximately 5 minutes. The warmer accommodates two bottles simultaneously.

Key Features:

• Fast Warming: Warms 7 ounces of milk in approximately 5 minutes.
• Even Heating: Milk circulates during warming for consistent temperature.
• Automatic Keep Warm: Switches to keep warm mode automatically when milk is ready, maintaining temperature for up to 24 hours.
• Large Capacity: Accommodates two bottles or storage bags simultaneously.
• Versatile: Suitable for breastmilk, formula, and baby food jars.
• Safety Features: Automatic shut-off when water dries out.

This image provides the physical dimensions of the Bellababy Double Bottle Warmer and a summary table of its key specifications, including voltage, power, and primary functions.

Setup

1. Unpack: Carefully remove all components from the packaging.
2. Clean: Before first use, clean the warmer according to the 'Maintenance' section.
3. Placement: Place the warmer on a stable, flat, heat-resistant surface, away from direct sunlight or heat sources.
4. Fill Water Reservoir: Open the lid and pour clean water into the water reservoir. Ensure the water level is between the MIN and MAX lines. Do not overfill.

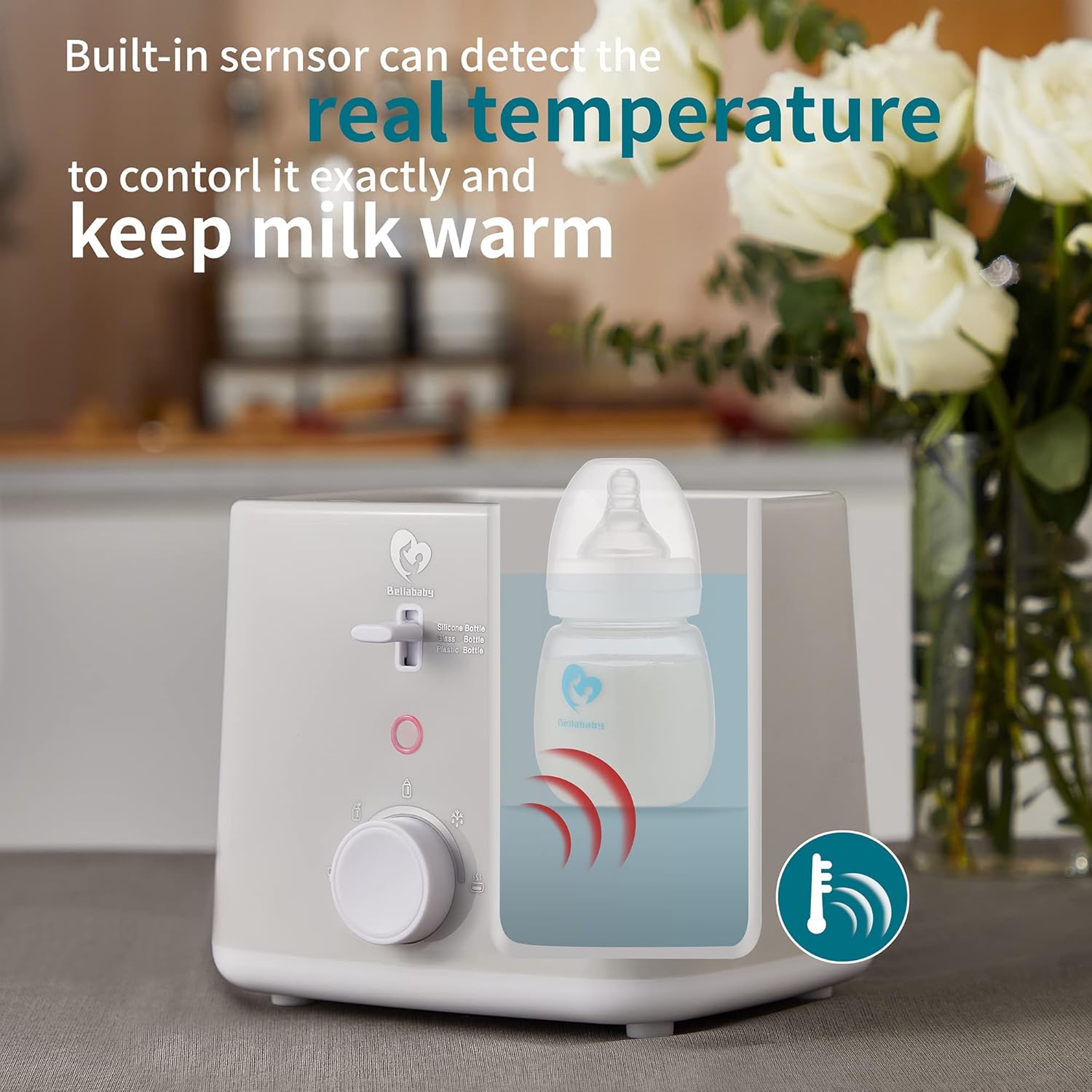

The image demonstrates the warmer's built-in sensor, which accurately detects the real temperature of the contents to ensure precise warming and maintain the desired temperature for extended periods. Ensure water is added to the reservoir as shown.

The warmer is compatible with various bottle materials. Select the correct setting based on your bottle type for optimal warming.

This diagram illustrates the compatibility of the warmer with various bottle materials, including silicone, glass, and plastic, allowing users to select the correct setting for precise temperature control.

Operating Instructions

General Operation:

1. Ensure the warmer is plugged into a 110-120V power outlet.
2. Place the bottle(s) or food jar(s) into the warming chamber.
3. Turn the dial to select the desired warming mode (Room Temperature Milk, Refrigerated Milk, Frozen Milk, Baby Food).
4. The indicator light will illuminate, and the warming process will begin.
5. When the warming cycle is complete, the indicator light will turn green, and a beep sound will alert you.
6. Carefully remove the bottle/jar. Always test the temperature of the contents before feeding.

Warming Milk (Fast Warming):

The warmer can heat 7 ounces of milk in approximately 5 minutes. Warming time varies based on milk volume, initial temperature, and bottle material.

This image illustrates the Bellababy Double Bottle Warmer in operation, highlighting its ability to warm 7 ounces of milk in approximately 5 minutes. The warmer accommodates two bottles simultaneously.

Keep Warm Mode:

Once the milk is ready, the warmer automatically switches to a keep warm mode, maintaining the temperature for up to 24 hours. This allows for convenient access to warm milk throughout the night.

This image highlights the warmer's indicator system, where a green light and an audible beep signal when the warming cycle is complete and the milk is ready.

Other Functions (Refrigerated Milk, Frozen Milk, Baby Food):

The Bellababy Double Bottle Warmer is versatile and can handle various warming needs:

• Warming Refrigerated Milk: Select the 'Refrigerated Milk' setting on the dial.
• Defrosting Frozen Milk: Select the 'Frozen Milk' setting on the dial. This function gently thaws and warms frozen breastmilk or formula.
• Warming Baby Food: Select the 'Baby Food' setting on the dial to warm baby food jars.

The image displays the multi-functional capabilities of the warmer, suitable for warming milk from various temperatures (room temperature, refrigerated, frozen) and heating baby food.

Maintenance

Cleaning:

1. Always unplug the warmer and allow it to cool completely before cleaning.
2. Wipe the exterior of the warmer with a damp cloth. Do not use abrasive cleaners or scourers.
3. The warming chamber can be cleaned by wiping with a damp cloth. Ensure no water enters the electrical components.
4. Do not immerse the warmer in water.

Descaling:

Mineral deposits (limescale) can build up in the warming chamber over time, especially in areas with hard water. Regular descaling is recommended to maintain efficiency.

1. Mix 10ml of white vinegar with 100ml of cold water.
2. Pour the solution into the warming chamber.
3. Turn the warmer on to the 'Room Temperature Milk' setting and let it run for 5-10 minutes.
4. Unplug the warmer and let the solution sit for 30 minutes.
5. Pour out the solution and rinse the warming chamber thoroughly with clean water.
6. Wipe dry with a clean cloth.

Caution: The warmer may initiate a self-cleaning process when first plugged in or after being unplugged, which involves heating to a very high temperature. Do not place bottles in the warmer during this process.

Troubleshooting

Specifications

Warranty and Support

The Bellababy Double Bottle Warmer comes with a 2-year global warranty. For warranty claims, technical support, or any questions regarding your product, please contact Bellababy customer service.

Please refer to the official Bellababy website or your purchase documentation for specific contact details and warranty terms.
