1. Introduction
Thank you for choosing the WLIVE ASNG098 11-Drawer Fabric Dresser. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new storage unit. Please read these instructions carefully before assembly and retain them for future reference.
1.1 Safety Warnings
- Maximum Weight Capacity: Do not exceed the recommended weight capacity for each drawer or the top surface to prevent damage or injury. Overstuffing drawers can affect their shape and functionality.
- Anti-Tip Device: For your safety, it is highly recommended to anchor the dresser to the wall using the provided anti-tip kit. This prevents accidental tipping, especially in households with children or pets.
- Assembly: Ensure all parts are correctly assembled and tightened before use. Do not use power tools for tightening screws unless explicitly instructed, as this may strip threads or damage components.
- Placement: Place the dresser on a flat, stable surface. Adjustable feet are provided to help stabilize the unit on uneven floors.
2. Package Contents
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Steel Frame Components
- Wood Top Panel
- 11 Fabric Drawers (various sizes)
- Drawer Handles
- Adjustable Feet
- Assembly Hardware (screws, Allen wrench, etc.)
- Anti-Tip Kit

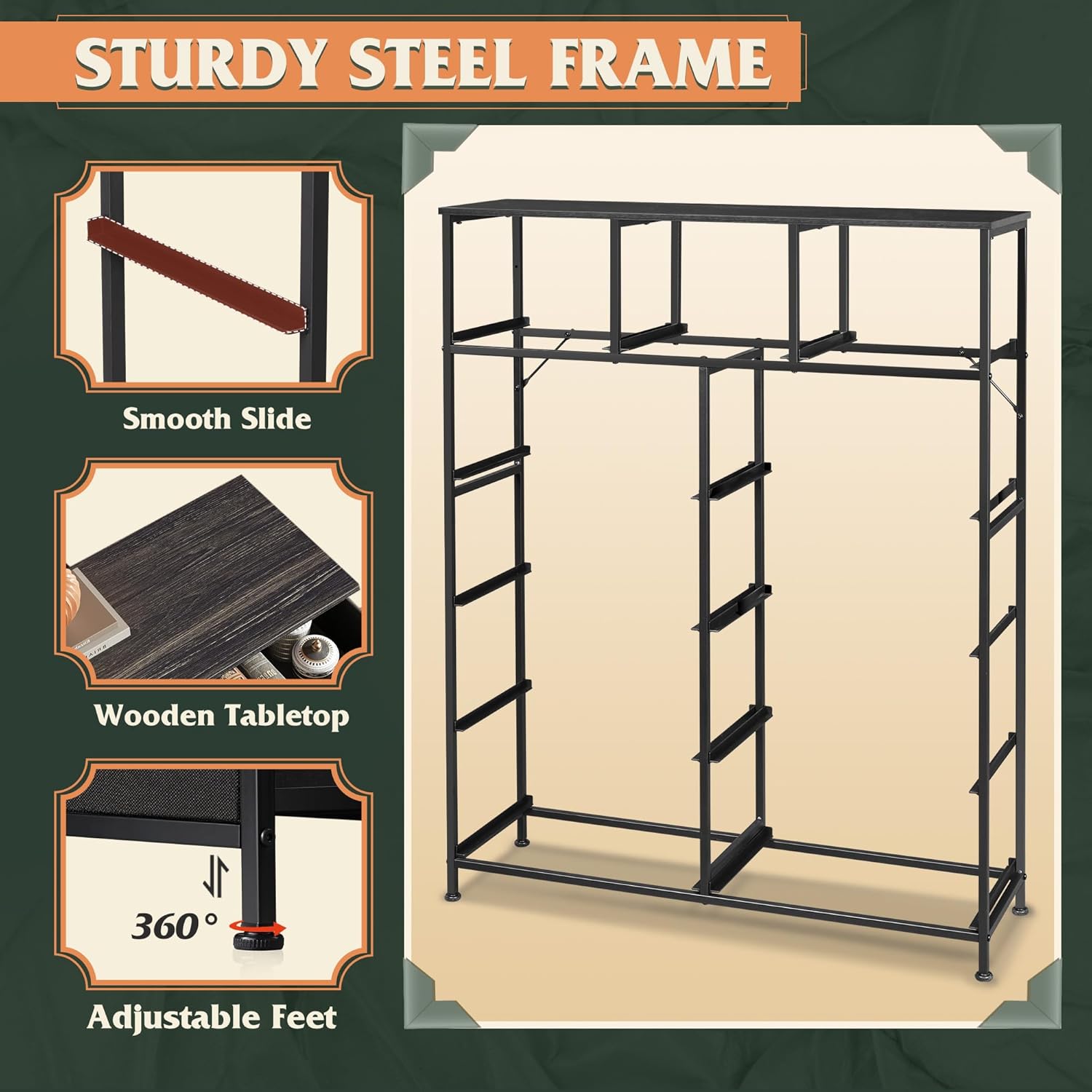

Figure 2.1: Key components including the steel frame, wooden tabletop, and adjustable feet.
3. Setup & Assembly
Assembly is designed to be straightforward and can typically be completed within an hour. Follow the detailed assembly guide provided in your package. Ensure all screw parts are clearly marked, and use the reserved holes and tools for quick setup.
3.1 Assembly Steps (General Overview)
- Unpack all components and verify against the package contents list.
- Assemble the steel frame according to the diagram in your instruction manual, ensuring all connections are secure.
- Attach the wooden top panel to the assembled frame.
- Insert the fabric drawers into their designated slots.
- Attach the handles to each fabric drawer. Use a standard Phillips screwdriver for better tightening if the provided tool is insufficient.
- Install the adjustable feet at the bottom of the frame and adjust for stability.
- Secure the dresser to the wall using the anti-tip kit.
Video 3.1: This video demonstrates the assembly process for the WLIVE dresser, highlighting how easy it is to put together.
4. Operating Instructions
The WLIVE ASNG098 dresser is designed for versatile storage in various rooms, including bedrooms, closets, entryways, and living rooms.
4.1 Drawer Usage
- The 11 detachable fabric drawers are equipped with smooth slide tracks and curved handles for easy opening and closing.
- The dresser features a combination of smaller and larger drawers to accommodate various items.
- The spacious wood top provides additional display space for artwork, small ornaments, or other personal items.
Figure 4.1: Example of large storage capacity within the drawers.
Figure 4.2: Estimated storage capacity for various clothing items.
Video 4.1: A general overview of the black tall dresser, demonstrating the functionality and capacity of its drawers.
5. Maintenance
Proper care will ensure the longevity and appearance of your WLIVE dresser.
5.1 Cleaning Instructions
- Wood Top: The desktop is made of P2 grade artificial wood, which is scratch-resistant and easy to clean. Wipe with a dry cloth to remove dust and spills. Avoid harsh chemicals or abrasive cleaners.
- Fabric Drawers: The drawers are made of easy-to-clean and breathable non-woven fabric. For light cleaning, wipe with a damp cloth. For tougher stains, a mild soap solution can be used, followed by wiping with a clean, damp cloth and air drying. Do not machine wash.
- Frame: Wipe the steel frame with a dry or slightly damp cloth.
Figure 5.1: High-quality wood board top features.
6. Troubleshooting
Here are solutions to common issues you might encounter:
- Drawer Handles Difficult to Tighten: If the provided tool makes it difficult to fully tighten the drawer handles, use a standard Phillips screwdriver for better leverage and a secure fit.
- Drawer Slides Not Smooth: Ensure the drawer is inserted correctly into the frame's slide tracks. The bottom of the drawer should be in the bottom slot first, then carefully snap the top into the top slot. Improper insertion can cause drawers to be uneven or stick.
- Dresser Wobbles: Adjust the four all-directional adjustable feet at the base of the dresser until the unit is stable on your floor surface.
- Warning Label Residue: If a warning label leaves residue on the wood top, gently clean with a mild adhesive remover or a damp cloth with a small amount of rubbing alcohol, then wipe dry.
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | WLIVE |
| Model Name | ASNG098 |
| Material | Wood, Fabric, Metal |
| Finish Type | Polished |
| Product Dimensions (D x W x H) | 11.73" x 35.63" x 42.24" |
| Number of Drawers | 11 |
| Item Weight | 28.5 Pounds |
| Color | Charcoal Black |
| Mounting Type | Freestanding (with optional wall anchor) |
| Required Assembly | Yes |
Figure 7.1: Product dimensions.
Figure 7.2: Detailed view of the 3-tier drawer structure.
8. Warranty & Support
WLIVE is committed to providing high-quality products and excellent customer service. For any questions, concerns, or assistance with your product, please refer to the contact information provided in your product packaging or visit the official WLIVE website. Our professional after-sales team is ready to assist you.
