1. Important Safety Instructions
Read all instructions before using the appliance. Basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- A fire may occur if the appliance is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
- Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
- Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
- Do not cover the crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
- The appliance is designed with a cool-touch handle and an auto shut-off feature for safety.
2. Product Overview
The Equator AF 500 is a versatile countertop appliance designed for multi-function cooking. It combines the capabilities of an air fryer, convection oven, pizza oven, grill, and dehydrator into a single unit. Its stainless steel exterior ensures durability and a sleek appearance.
Key features include:
- 5-in-1 Multi-Function Cooking: Air fryer, convection oven, pizza oven, grill, and dehydrator.
- 15 One-Touch Cooking Functions: Pre-programmed settings for various foods like wings, fish, shrimp, cake, bread, pizza, cookies, and more.
- 360° Air Circulation System: Utilizes top and bottom heating elements with a high-speed fan for even cooking and crisping without excessive oil.
- Spacious 0.93 cu.ft Capacity: Compact exterior with ample interior space for family-sized meals.
- Auto Light & LCD Touch Display: Interior light activates when the door opens, paired with an intuitive control panel.
- Cool-Touch Handle & Auto Shut-Off: Enhanced safety features for user protection.
- Dehydration Function: An eight-hour setting for preparing dried fruits and herbs.

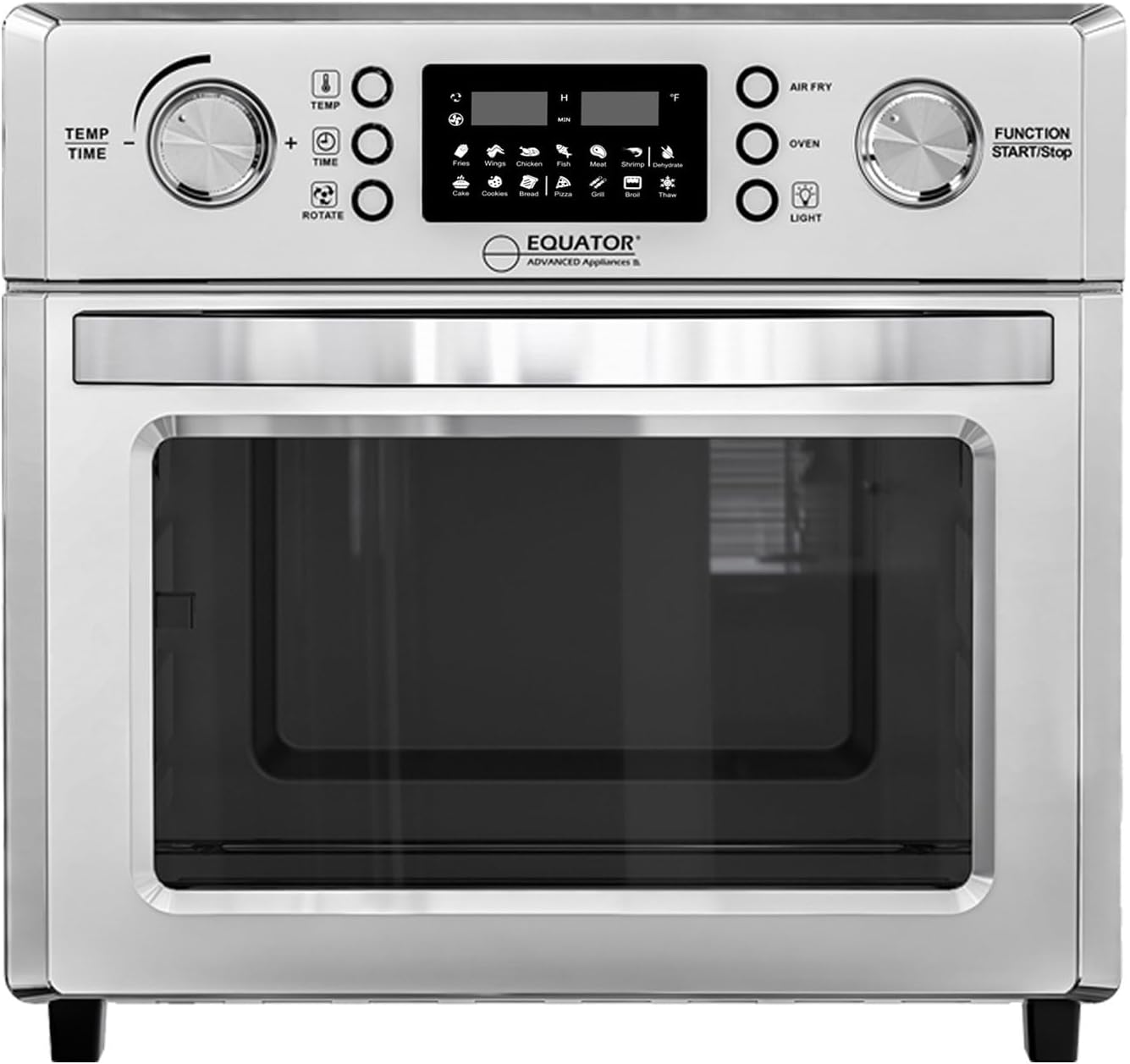

Image 1: Front view of the Equator AF 500 Countertop 5-in-1 Air Fryer Oven, showcasing its control panel and glass door.
3. Package Contents
Carefully unpack your new appliance and ensure all items are present. If any items are missing or damaged, contact customer support immediately.
- Air fry basket
- Wire rack
- Baking tray
- Drip/crumb tray
- Rotisserie cage
- Rotisserie fork
- Handle (for rotisserie and basket removal)

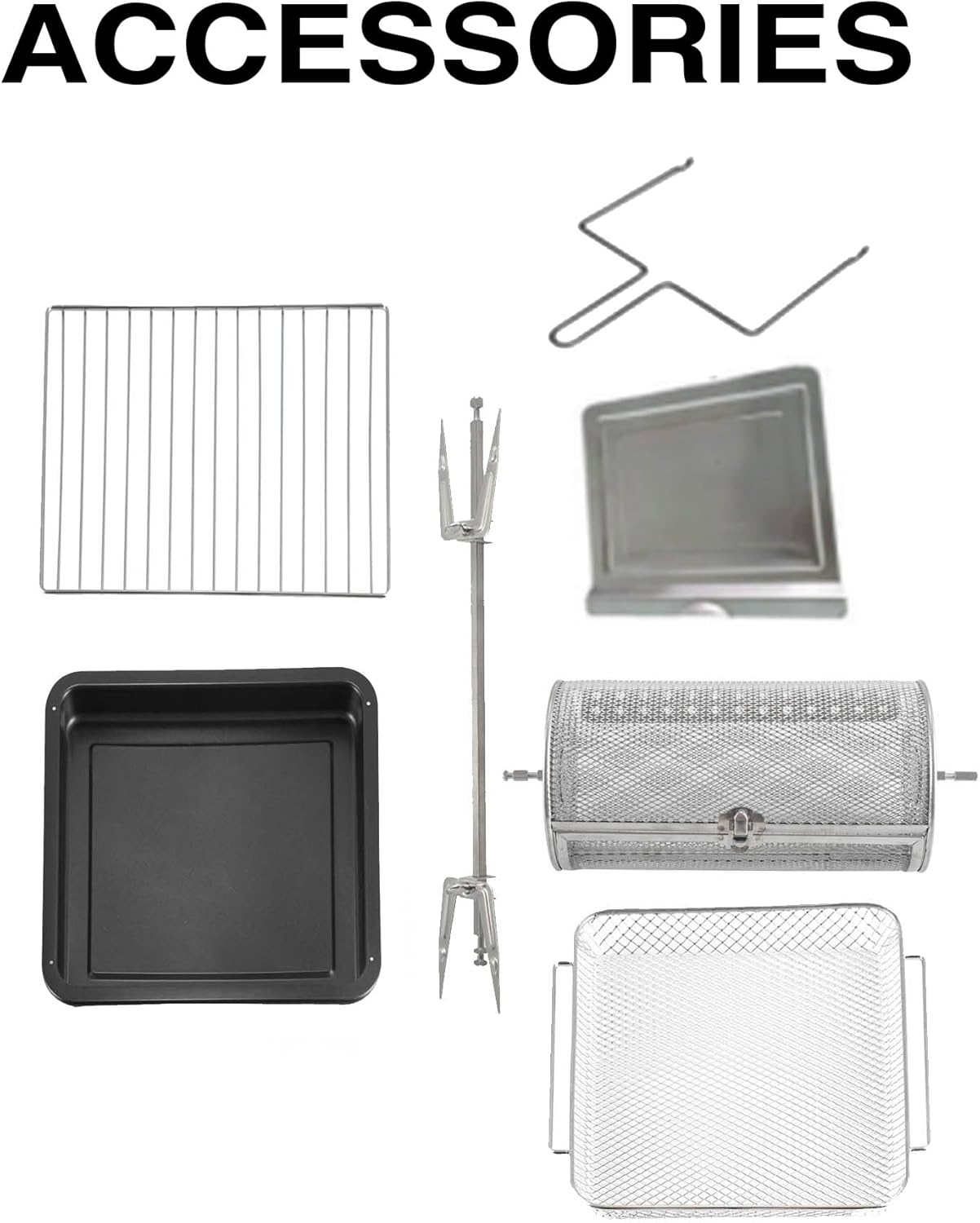

Image 2: All included accessories: air fry basket, wire rack, baking tray, drip/crumb tray, rotisserie cage, rotisserie fork, and handle.
4. Specifications
| Feature | Detail |
|---|---|
| Model Name | AF 500 |
| Brand | Equator Advanced Appliances |
| Color | Stainless |
| Product Dimensions (D x W x H) | 15.15" x 17" x 15.74" |
| Capacity | 0.93 cu.ft |
| Item Weight | 19 pounds |
| Power Source | Corded Electric |
| Voltage | 120 Volts |
| Control Type | Knob Control |
| Special Features | 360° Air Circulation, Anti-Rust/Corrosion Exterior, Dehydration Feature, Heat Resistant Handle, Up & Bottom Dual Heating Elements |
Image 3: Diagram showing the product dimensions: 15.15" (D), 17" (W), 15.74" (H).
5. Setup and First Use
- Unpacking: Remove all packaging materials, including any protective films or stickers from the appliance and accessories.
- Placement: Place the appliance on a stable, heat-resistant, and level surface. Ensure there is adequate clearance (at least 4-6 inches) on all sides and above the unit for proper ventilation. Do not place it near flammable materials.
- Initial Cleaning: Before first use, wipe the interior and exterior of the appliance with a damp cloth. Wash all accessories (air fry basket, wire rack, baking tray, drip/crumb tray, rotisserie cage, rotisserie fork, handle) with warm, soapy water. Rinse thoroughly and dry completely.
- First Burn-Off: To eliminate any manufacturing odors, operate the appliance empty for approximately 15-20 minutes at 400°F (200°C) in Air Fry mode. Ensure the area is well-ventilated during this process. A slight odor or smoke is normal during initial use.
- Power Connection: Plug the power cord into a grounded 120V AC electrical outlet.
6. Operating Instructions
The Equator AF 500 features an intuitive LCD touch display and knob controls for easy operation.
Control Panel Overview
The control panel consists of two rotary knobs and a central LCD display with touch buttons for various functions.
- Left Knob (TEMP/TIME): Used to adjust temperature and time settings.
- Right Knob (FUNCTION/START/STOP): Used to select cooking functions and to start or stop the cooking process.
- LCD Display: Shows selected function, temperature, time, and other indicators.
- Function Buttons: Dedicated buttons for Air Fry, Oven, Light, and Rotate (for rotisserie).
- Pre-set Icons: Icons on the display represent 15 one-touch cooking functions.
General Operation
- Power On: Plug the appliance into a power outlet. The display will illuminate.
- Select Function: Turn the right knob (FUNCTION) to cycle through the available cooking modes (Air Fry, Convection, Pizza, Grill, Dehydrator) or select one of the 15 pre-set cooking functions by touching the corresponding icon on the LCD display.
- Adjust Temperature and Time: Once a function is selected, use the left knob (TEMP/TIME) to adjust the desired temperature and cooking time. Press the TEMP or TIME button next to the knob to toggle between adjusting temperature and time.
- Start Cooking: Press the right knob (START/STOP) to begin the cooking cycle.
- Pause/Stop Cooking: Press the right knob (START/STOP) again to pause or stop the cooking process.
- Interior Light: Press the LIGHT button to illuminate the interior of the oven. The light automatically activates for 30 seconds when the door is opened.
- Rotisserie Function: If using the rotisserie fork or cage, ensure it is properly installed. Press the ROTATE button to activate the rotation during cooking.
Using Specific Functions
- Air Fry: Ideal for crispy foods like fries, chicken wings, and vegetables. Use the air fry basket for best results.
Image 4: The appliance in operation, air frying french fries and chicken simultaneously using multiple racks.
- Convection Oven: For baking, roasting, and general oven cooking. Use the baking tray or wire rack.
- Pizza Oven: Optimized for cooking pizzas. Place pizza on the wire rack or baking tray.
- Grill: For grilling meats and vegetables. Use the wire rack or baking tray.
- Dehydrator: For drying fruits, vegetables, and herbs. Select the Dehydrate function and set the desired time (up to 8 hours). Arrange food on the wire racks.
Image 5: Illustration of the dehydration feature, showing various dried fruits next to the appliance.
Image 6: Close-up of the control panel highlighting the 15 one-touch cooking functions for easy selection.
7. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your appliance.
- Before Cleaning: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
- Exterior: Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the stainless steel finish.
- Interior: Wipe the interior walls with a damp cloth and mild detergent. For stubborn food residue, a non-abrasive sponge can be used. Avoid spraying water directly into the oven.
- Heating Elements: The heating elements are located at the top and bottom of the oven. Do not attempt to clean the top heating elements directly, as this can be difficult and may cause damage. For the bottom element, ensure it is cool before gently wiping around it.
- Drip/Crumb Tray: Remove and empty the drip/crumb tray after each use. Wash it with warm, soapy water, rinse, and dry thoroughly.
- Accessories: All included accessories (air fry basket, wire rack, baking tray, rotisserie cage, rotisserie fork, handle) should be washed by hand with warm, soapy water. Do not wash these accessories in a dishwasher, as this may cause damage or discoloration. Rinse and dry completely before storing or re-using.
- Storage: Ensure the appliance is clean and dry before storing. Store it in a cool, dry place.
8. Troubleshooting
If you encounter issues with your Equator AF 500, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outlet malfunction; main unit error. | Ensure the power cord is securely plugged into a working 120V outlet. Try a different outlet. If the issue persists, contact customer support. |
| Food is not cooking evenly. | Overcrowding; incorrect temperature/time; accessories placement. | Do not overcrowd the basket/tray; cook in smaller batches if necessary. Ensure correct temperature and time settings. Rotate food or accessories halfway through cooking for even results. |
| White smoke coming from the appliance. | Grease/oil residue; fatty foods. | This is usually normal for fatty foods. Ensure the drip tray is clean. If excessive, unplug and allow to cool, then clean the interior. |
| Appliance stops during operation (Error). | Internal sensor error; overheating. | Unplug the appliance, wait for a few minutes, then plug it back in and restart. Ensure proper ventilation around the unit. If errors persist, contact customer support. |
| Exterior gets very hot. | Normal operation for some parts; insufficient clearance. | Some exterior surfaces will become hot during operation. Always use the cool-touch handle. Ensure adequate clearance around the appliance for ventilation. |
9. Warranty and Support
The Equator AF 500 is ETL certified and comes with a 1-year parts and labor warranty. For warranty claims, technical assistance, or to access additional manuals and support resources, please refer to the QR code provided with your product or visit the official Equator Advanced Appliances website.
For further assistance, you may contact Equator Advanced Appliances customer service.
