Introduction
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your EMKE Bathroom Radiator Towel Warmer (Model: SFTR7650X1A-ADR). Please read this manual thoroughly before installation and retain it for future reference.
Figure 1: EMKE Bathroom Radiator Towel Warmer (762x500mm, Anthracite)
The EMKE bathroom radiator is designed to provide efficient heating and towel drying. Constructed from high-quality steel with an environmentally friendly coating, it offers durability and resistance to rust and leaks, making it suitable for humid bathroom environments.
Setup and Installation
The radiator is designed for easy wall mounting and flexible connection. Professional installation is recommended to ensure proper function and safety.
Included Components
Figure 2: Included Mounting Accessories
- 4x Wall Brackets
- 4x Long Screws
- 4x Rubber Rings
- 4x Small Screws
Note: The product does not include valves. These must be purchased separately.
Mounting Instructions
Refer to the detailed mounting diagram for precise measurements and drilling points. Ensure the wall is suitable for supporting the weight of the radiator when filled with water.
Figure 3: Mounting Diagram with Dimensions (Unit: mm)
- Product Dimensions (H x W): 762 x 500 mm
- Adjustable Wall Distance: 99-115 mm
- Connection Thread: G1/2"
- Connection Dimension: 50 mm
Flexible Installation and Connection
The radiator can be installed with the connections on either the left or right side by rotating the unit 180 degrees. This flexibility allows for optimal placement in your bathroom.
Figure 4: Left and Right Side Connection Options
Ensure all connections are securely tightened to prevent leaks. The valve should always be connected at the bottom.
Operating Instructions
The EMKE bathroom radiator operates using hot water, providing efficient and uniform heat distribution throughout your bathroom.
Heat Distribution and Performance
The flat tubes of the radiator are designed to maximize the contact surface, ensuring rapid and effective drying of towels while simultaneously warming the room.
Figure 5: High Heat Conductivity and Room Warming
- Recommended Water Inlet Temperature: 75 °C
- Recommended Water Outlet Temperature: 65 °C
- Application Area: Approximately 4 m²
For optimal performance, ensure your heating system is properly maintained and bled regularly to remove any air pockets that may hinder heat circulation.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your EMKE radiator.
Cleaning and Care
The radiator features an environmentally friendly coating designed to protect against rust and water leaks. To maintain its appearance and integrity:
- Clean the surface regularly with a soft, damp cloth.
- Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the coating.
- For stubborn marks, use a mild soap solution and wipe dry immediately.

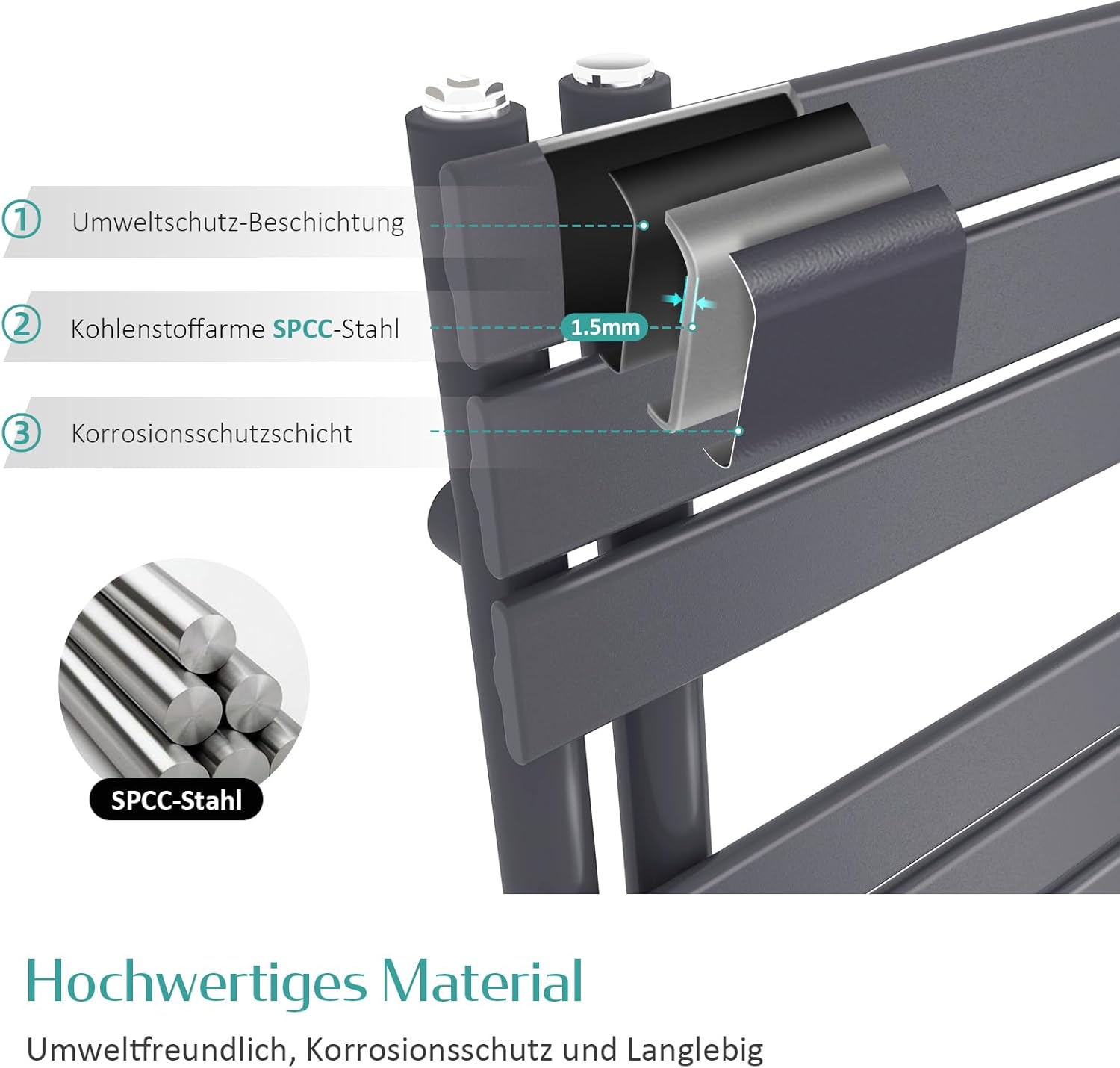

Figure 6: Radiator Material Layers and Protective Coating
System Maintenance
- Periodically check all connections for any signs of leaks.
- Bleed the radiator annually, or as needed, to release trapped air and ensure efficient heat transfer.
- Ensure your central heating system is serviced according to manufacturer recommendations.
Troubleshooting
If you encounter issues with your EMKE radiator, consider the following common problems and solutions:
- Radiator not heating evenly: This is often caused by trapped air. Try bleeding the radiator using a radiator key.
- No heat from the radiator: Check if the valves are fully open. Ensure your central heating system is operational and the thermostat is set correctly.
- Leaking connections: Turn off the water supply to the radiator and carefully tighten any loose connections. If the leak persists, professional assistance may be required.
- Low heat output: Ensure the recommended water temperatures (75 °C inlet / 65 °C outlet) are being met by your heating system.
For persistent problems or issues not covered here, please contact customer support.
Specifications
Detailed technical specifications for the EMKE Bathroom Radiator Towel Warmer.
Figure 7: Radiator Specifications Summary
| Feature | Specification |
|---|---|
| Manufacturer | EMKE |
| Product Dimensions (L x W x H) | 76.2 x 50 x 5.9 cm |
| Reference / Item Model Number | SFTR7650X1A-ADR |
| Size | 762x500 mm |
| Color | Anthracite |
| Material | Steel |
| Quantity of items | 1 |
| Included Components | Towel warmer, mounting kit, mounting manual (German) |
| Battery(ies) required | No |
| Weight | 9.7 Kilograms |
| Country of origin | China |
| Heating Method | Hot Water |
| Connection Thread | G1/2" |
| Connection Dimension | 50 mm |
| Installation Method | Wall Mounting |
| Recommended Temperature (Inlet/Outlet) | 75 °C / 65 °C |
Warranty and Support
EMKE is committed to providing high-quality products and excellent customer service.
Warranty Information
Your EMKE Bathroom Radiator Towel Warmer comes with a 2-year repair service from the date of purchase. This warranty covers manufacturing defects and material faults under normal use.
Return Policy
A 14-day return policy is offered to ensure your satisfaction. Please refer to the retailer's specific return terms and conditions for details on how to initiate a return.
Customer Support
For any questions, technical assistance, or warranty claims, please contact EMKE customer support through the retailer where the product was purchased. Please have your model number (SFTR7650X1A-ADR) and proof of purchase ready when contacting support.
