Yaheetech 27.4-inch Round Patio Bistro Table

Introduction

Thank you for choosing the Yaheetech 27.4-inch Round Patio Bistro Table. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor table. Please read these instructions carefully before use and retain them for future reference.

This round outdoor coffee table features a tempered glass top with a 1.7-inch umbrella hole and a sturdy iron frame. Its design is suitable for various outdoor settings such as balconies, backyards, lawns, and gardens.

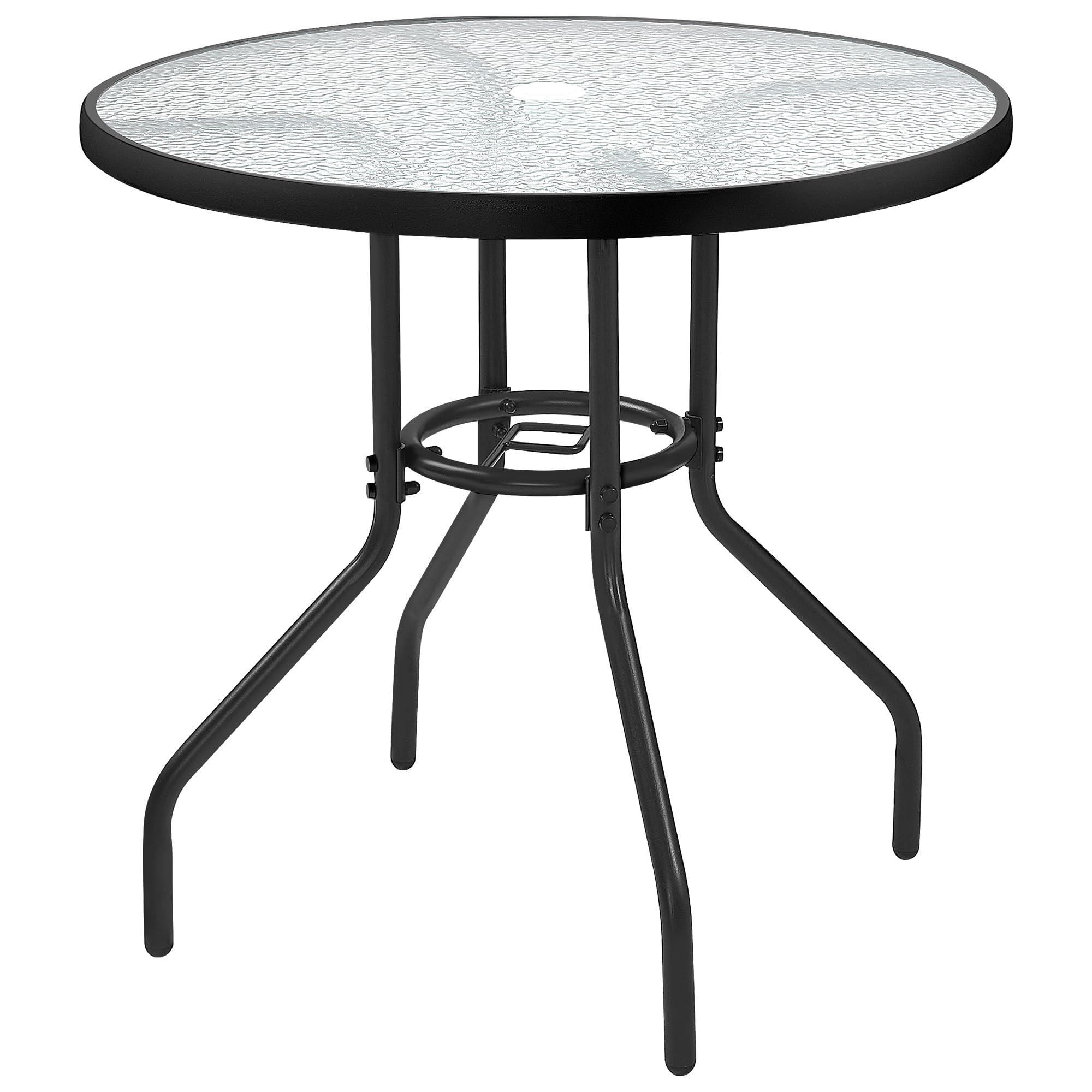

Image: The Yaheetech 27.4-inch Round Patio Bistro Table, showcasing its design and suitability for outdoor use.

Safety Information

Please observe the following safety guidelines to ensure safe use and prevent injury or damage:

• Always follow the assembly instructions provided.
• Do not exceed the maximum weight limit of 99 pounds (45 kg).
• Ensure the table is properly assembled and stable before each use.
• Keep the table away from areas prone to high winds or tipping hazards.
• Regularly inspect all connections and components for tightness and wear.

Package Contents

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• A: Tempered Glass Tabletop (1 piece)
• B: Table Legs (4 pieces)
• C: Bottom Ring / Umbrella Holder (1 piece)
• D: Screws (for legs to bottom ring, 4 pieces)
• E: Screws (for tabletop to legs, 4 pieces)
• F: Washers (for D, 4 pieces)
• G: Washers (for E, 4 pieces)
• H: Nuts (for D, 4 pieces)
• I: Nuts (for E, 4 pieces)
• J: Plastic Caps (for nuts, 8 pieces)
• K: Plastic Caps (for screws, 8 pieces)
• L: Allen Key & Wrench (1 set)

Image: Detailed view of the table's components, highlighting the durable tempered glass, heavy-duty metal frame, parasol pole fixing hole, and anti-slip/anti-scratch foot pads.

Setup and Assembly

Assembly is required for this product. Please follow the steps below carefully. It is recommended to assemble the table on a soft, clean surface to prevent scratches.

1. Attach Legs to Tabletop: Carefully place the tempered glass tabletop (A) upside down on a protected surface. Align the four table legs (B) with the pre-drilled holes on the underside of the tabletop frame. Secure each leg using screws (E), washers (G), and nuts (I). Do not fully tighten yet.
2. Install Bottom Ring: Position the bottom ring/umbrella holder (C) between the table legs (B). Align the holes on the bottom ring with the corresponding holes on the legs. Secure using screws (D), washers (F), and nuts (H). Do not fully tighten yet.
3. Final Tightening: Once all components are loosely assembled, carefully turn the table upright. Ensure the table is level and stable, then progressively tighten all screws and nuts using the provided Allen key and wrench (L). Avoid over-tightening.
4. Apply Plastic Caps: Cover all exposed screw heads and nuts with the plastic caps (J and K) for a finished look and added protection.

Operating Instructions

Your Yaheetech Patio Bistro Table is designed for versatile outdoor use. It can serve as a coffee table, side table, or dining table for two.

• Placement: Place the table on a flat, stable surface in your desired outdoor area, such as a patio, balcony, garden, or poolside.
• Umbrella Usage: The table features a central umbrella hole with a diameter of 1.7 inches (4.4 cm). To insert a patio umbrella, remove the plastic cap from the tabletop. Ensure your umbrella pole fits within this diameter. For added stability, it is recommended to use an umbrella base (not included) that can be placed on the bottom ring of the table frame.

Image: A detailed view of the table's central umbrella hole, measuring 1.7 inches in diameter, designed to accommodate standard patio umbrellas.

Image: This collage illustrates the versatility of the bistro table, showing it in a garden, by a pool, against a wall, and within a gazebo, demonstrating its adaptability to different outdoor environments.

Maintenance

Proper care and maintenance will extend the life and appearance of your patio bistro table.

• Cleaning: Wipe the tempered glass tabletop and iron frame with a damp cloth and mild soap. Rinse thoroughly and dry completely to prevent water spots and rust. Avoid using harsh chemicals or abrasive cleaners.
• Weather Resistance: The table is designed with weather-resistant materials, including a black powder-coated iron frame and tempered glass. While it can withstand outdoor conditions, covering the table during extreme weather or prolonged periods of non-use is recommended to preserve its condition.
• Regular Inspection: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain stability.

Image: This graphic highlights the table's key durability features, including its anti-UV, waterproof, and oxidation-resistant properties, ensuring longevity in outdoor environments.

Troubleshooting

If you encounter any issues with your patio bistro table, refer to the following common solutions:

• Table is Wobbly: Ensure all screws and nuts are securely tightened. If the table is still wobbly, check that it is placed on a level surface. Adjust the position if necessary.
• Umbrella Does Not Fit: Verify that your umbrella pole diameter is 1.7 inches (4.4 cm) or less. Ensure the plastic cap in the table's center hole has been removed.
• Difficulty During Assembly: Double-check the assembly instructions and ensure you are using the correct hardware for each step. Sometimes, leaving screws slightly loose until all parts are aligned can help, then tighten them progressively.

Specifications

Warranty and Support

Yaheetech products are manufactured to high-quality standards. For warranty information, product support, or to report missing/damaged parts, please contact Yaheetech customer service through the retailer where the product was purchased. Please have your model number (YT-00113799) and purchase details ready.
