1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Denali by SKIL 20V Brushless 12-Inch Chain Saw Kit. Please read all instructions carefully before use and retain this manual for future reference.

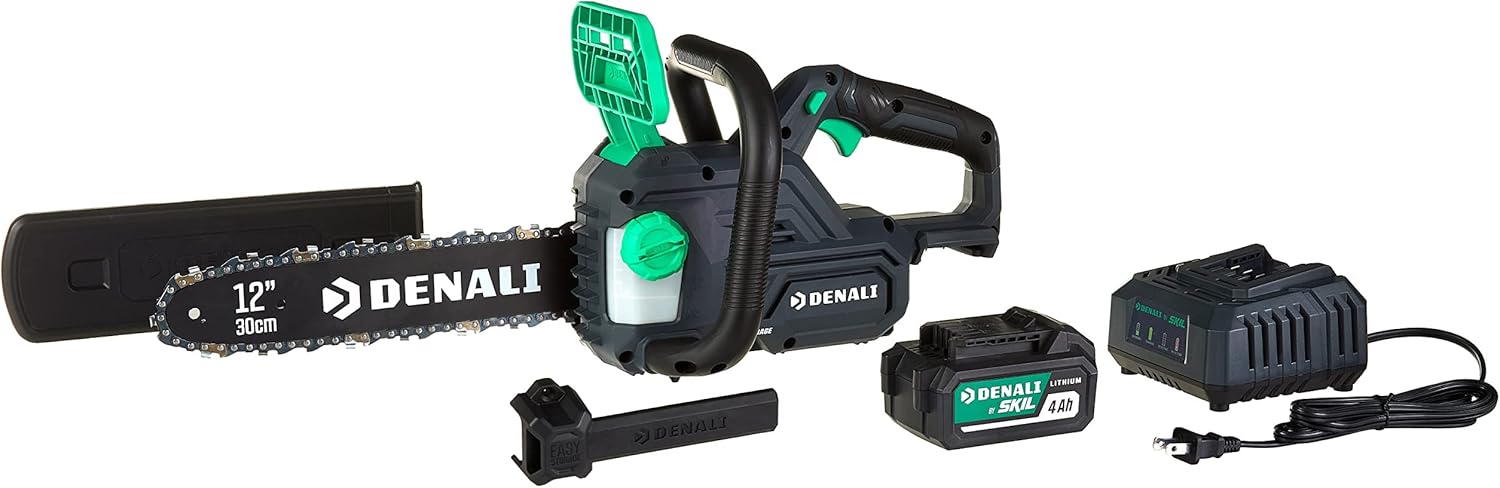

Image 1: Denali by SKIL 20V Brushless 12-Inch Chain Saw Kit, including the chainsaw, battery, and charger.
2. Safety Information
Always prioritize safety when operating power tools. Wear appropriate personal protective equipment (PPE) including safety glasses, gloves, hearing protection, and sturdy footwear. Ensure the work area is clear of bystanders and obstacles. Familiarize yourself with the anti-kickback brake and proper cutting techniques to prevent injury.
3. Package Contents
Your Denali by SKIL 20V Brushless 12-Inch Chain Saw Kit includes the following items:
- 20V Brushless 12-inch Chain Saw
- 4.0Ah Denali by SKIL Lithium-Ion Battery
- 2.4A Charger
- Easy Storage Bracket
- Guide Bar Cover
- Saw Chain
Image 2: All components included in the Denali by SKIL 20V Brushless 12-Inch Chain Saw Kit.
4. Setup
- Battery Charging: Before first use, fully charge the 4.0Ah lithium-ion battery using the provided 2.4A charger. The charger indicates charging status.
Video 1: Demonstrates battery charging and insertion into the chainsaw. This video also highlights key features like auto-lubrication and tool-free chain tensioning.
- Chain Oil: Fill the oil tank with appropriate bar and chain oil (not included). The chainsaw features auto-lubrication for reduced friction during operation.
- Chain Tensioning: Adjust the chain tension using the tool-free dial. Ensure the chain is snug but can still be pulled freely around the guide bar. Refer to the detailed instructions in the separate manual for precise tensioning.
- Battery Insertion: Insert the charged battery into the chainsaw until it clicks securely into place.
5. Operating Instructions
To operate the chainsaw, ensure the anti-kickback brake is disengaged. Press the safety button and then pull the trigger to start the chain. The digital brushless motor delivers efficient power for cutting tasks. This cordless top-handle chainsaw is suitable for cutting down trees, pruning, and harvesting firewood.
Image 3: A user demonstrating the Denali by SKIL 20V Brushless 12-Inch Chain Saw in use for cutting branches.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your chainsaw. Keep the chain sharp and properly tensioned. Regularly check and refill the oil tank to ensure the auto-lubrication system functions correctly. Clean the saw after each use to remove sawdust and debris.
7. Troubleshooting
If the chainsaw does not start, ensure the battery is charged and properly inserted, and the anti-kickback brake is disengaged. If the chain is not cutting effectively, check the chain tension and sharpness. For other issues, consult the comprehensive troubleshooting section in the full instruction manual.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | ACS4562B-10 |
| Power Source | Battery Powered (20V) |
| Bar Length | 12 inches |
| Battery Capacity | 4.0Ah Lithium-Ion |
| Charger | 2.4A |
| Oil Tank Size | 6.09 ounces |
| Product Dimensions (LxWxH) | 12.4 x 7.9 x 9.4 inches |
| Item Weight | 4.52 pounds |
Image 4: Visual representation of key product specifications.
9. Warranty and Support
This product is covered by the Power Tool 2-Year Battery and 5-Year Tool Warranty. For warranty claims or technical support, please refer to the contact information provided in the full instruction manual or visit the official Denali by SKIL website.
