CRAFTSMAN CMXZVBE38779 Wet/Dry Vac Replacement Filter Instruction Manual

1. Overview

This manual provides instructions for the CRAFTSMAN CMXZVBE38779 filter combo pack, which includes one General Purpose Dry Filter and one Wet Application Filter. These filters are designed to maintain optimal performance for your 5 to 20 gallon CRAFTSMAN wet/dry shop vacuum, manufactured from 1988 onwards.

The General Purpose Dry Filter is suitable for trapping everyday debris such as dirt and sawdust. The Wet Application Filter is specifically designed for high-volume liquid and wet debris cleanup.

Included in this package:

• 1 x General Purpose Dry Filter (Red Stripe)
• 1 x Wet Application Filter (Black Foam)

Image 1.1: CRAFTSMAN CMXZVBE38779 filter pack, including both the General Purpose Dry Filter and the Wet Application Filter.

Image 1.2: Overview of filter types and their primary applications.

2. Installation

The CRAFTSMAN CMXZVBE38779 filters feature the patented Qwik Lock Filter Fastening System, designed for quick, easy, and secure installation and removal. Always ensure your vacuum is unplugged before attempting to change filters.

2.1 Swapping Filters

To swap between a dry filter and a wet filter, follow these general steps:

1. Unplug the wet/dry vacuum from the power source.
2. Remove the power head from the collection tank.
3. Locate the filter on the filter cage.
4. Twist the Qwik Lock cap counter-clockwise to unlock and remove the current filter.
5. Carefully remove the used filter.
6. Place the desired new filter (either General Purpose or Wet Application) onto the filter cage.
7. Align the Qwik Lock cap with the filter and twist clockwise until it locks securely in place.
8. Replace the power head onto the collection tank and secure it.

Image 2.1: Step-by-step visual guide for swapping filters using the Qwik Lock system.

2.2 Installing the General Purpose Dry Filter

This filter is pleated paper material and is designed for dry pickup only. Ensure it is dry before installation.

Image 2.2: Proper installation of the General Purpose Dry Filter.

2.3 Installing the Wet Application Filter

This filter is made of foam material and is designed for wet pickup only. It can be installed when damp or dry.

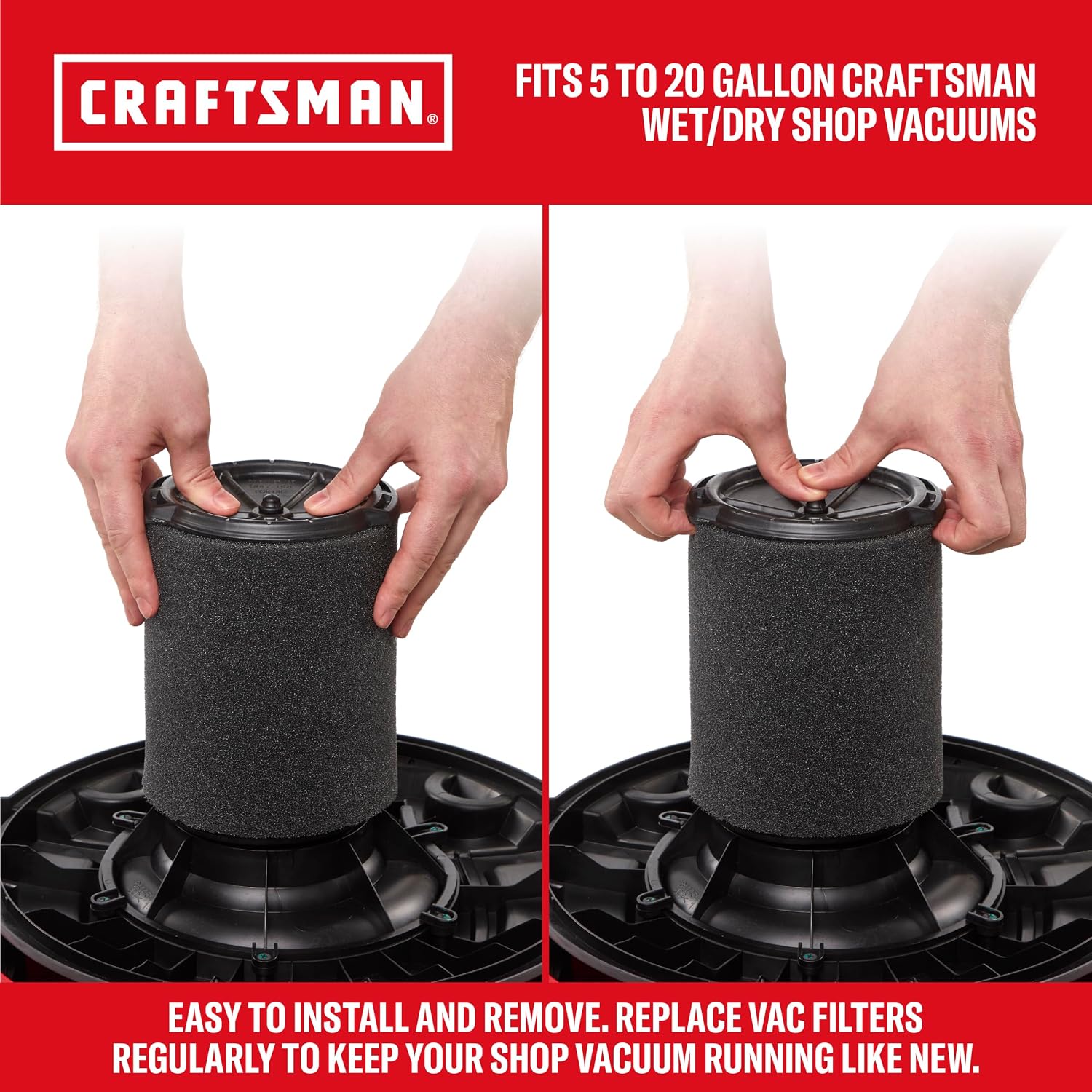

Image 2.3: Proper installation of the Wet Application Filter.

3. Operating

Selecting the correct filter for your task is crucial for efficient cleaning and to protect your vacuum's motor.

3.1 Dry Pickup

Use the General Purpose Dry Filter (Red Stripe) for dry debris such as:

• Wood chips and sawdust
• General dirt and dust
• Automotive debris

Image 3.1: Visual guide for using the correct filter for wet versus dry applications.

Image 3.2: Examples of dry pickup applications including automotive, general debris, and wood.

3.2 Wet Pickup

Use the Wet Application Filter (Black Foam) exclusively for liquid spills and wet debris. Do not use the General Purpose Dry Filter for wet applications, as this can damage the filter and the vacuum motor.

Image 3.3: Shop vacuum in use for wet applications, demonstrating liquid cleanup.

4. Maintenance

Both the General Purpose Dry Filter and the Wet Application Filter are washable and reusable. Regular cleaning and timely replacement are essential for maintaining your shop vacuum's suction performance and extending its lifespan.

4.1 Cleaning Filters

• General Purpose Dry Filter: Tap off loose debris. For heavier dirt, rinse the pleated paper material under running water. Allow the filter to air dry completely before reinstallation for dry use.
• Wet Application Filter: Rinse the foam material thoroughly with water to remove collected liquids and debris. Squeeze out excess water and allow to air dry, or reinstall while damp for wet applications.

Image 4.1: Close-up of filters, emphasizing washable and reusable materials.

4.2 Filter Replacement

Even with regular cleaning, filters will eventually wear out or become clogged. Replace your wet/dry vac filters and dust collection bags regularly to ensure maximum performance of your shop vacuum cleaner.

5. Compatibility

The CRAFTSMAN CMXZVBE38779 filter pack is compatible with CRAFTSMAN 5 to 20 gallon shop vacuums manufactured in 1988 and after. This includes models prefixed by "CMXEVBE" or "113.".

Compatible CRAFTSMAN Wet/Dry Vac Models:

• CMXEVBE17925
• CMXEVBE17584
• CMXEVBE17590
• CMXEVBE18590
• CMXEVBE18690
• CMXEVBE17155
• CMXEVBE17594
• CMXEVBE17595
• CMXEVBE17606
• CMXEVBE17607
• CMXEVBE17596
• CMXEVBE17656
• CMXEVBE18595
• CMXEVBE18695

Image 5.1: Detailed compatibility chart for CRAFTSMAN filters and vacuum models.

6. Specifications

7. Troubleshooting

If your wet/dry vacuum experiences reduced suction or decreased performance, consider the following:

• Clogged Filter: The most common cause of reduced suction is a dirty or clogged filter. Refer to the Maintenance section (4.1) for cleaning instructions.
• Incorrect Filter for Application: Ensure you are using the appropriate filter (dry for dry debris, wet for liquids). Using a dry filter for wet pickup can quickly clog it and damage the vacuum.
• Damaged Filter: Inspect filters for tears, holes, or excessive wear. A damaged filter will not provide adequate filtration and should be replaced.
• Improper Installation: Verify that the filter is securely installed using the Qwik Lock system, and that the power head is properly sealed onto the collection tank.

Regular inspection and maintenance of your filters will prevent most performance issues.

8. Warranty and Support

8.1 Warranty Information

This product is sold without an explicit warranty. Please refer to the retailer's return policy for details on returns or exchanges.

8.2 Customer Support

For further assistance or inquiries regarding CRAFTSMAN products, please visit the official CRAFTSMAN store or contact their customer service department.
