Vistefly V15 Cordless Vacuum Cleaner User Manual

Introduction

Thank you for choosing the Vistefly V15 Cordless Vacuum Cleaner. This powerful 500W, 33Kpa stick vacuum is designed for efficient cleaning of hardwood floors, carpets, and pet hair, offering up to 60 minutes of runtime. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Image: The Vistefly V15 Cordless Vacuum Cleaner shown with its main body, extension wand, floor brush, and various attachments, demonstrating its versatile configurations for different cleaning needs.

Package Contents

Please check the package contents to ensure all items are present:

• Main Body (Motor Unit with Dustbin)
• Telescopic Tube
• Motorized Brush (Floor Head)
• Crevice Tool
• 2-in-1 Brush
• Mini Motorized Brush
• Wall Mount
• Extra HEPA Filter
• Adapter (Charger)
• Instruction Manual

Image: A visual representation of all components included in the Vistefly V15 package, with each part clearly labeled for easy identification.

Assembly

The Vistefly V15 is designed for easy assembly and disassembly, allowing for versatile cleaning configurations.

1. Main Assembly: Connect the telescopic tube to the main body (motor unit) until it clicks into place. Then, attach the motorized brush to the other end of the telescopic tube, ensuring a secure connection.
2. Attachment Use: For handheld cleaning, detach the telescopic tube and motorized brush from the main body. You can then directly attach the crevice tool, 2-in-1 brush, or mini motorized brush to the main body for targeted cleaning of upholstery, tight spaces, or pet hair.

Image: The Vistefly V15 main unit shown with different attachments (2-in-1 brush, mini motorized brush, long crevice tool) highlighting its adaptability for various cleaning scenarios, including handheld use and reaching high areas.

Charging the Battery

The Vistefly V15 features a removable Lithium-Ion battery for convenient charging.

1. Direct Charging: You can charge the battery while it is attached to the main body by connecting the adapter directly to the charging port.
2. Detached Charging: To charge the battery separately, press the release button on the battery pack and slide it out from the main body. Connect the adapter to the battery pack.
3. Wall Mount Charging: Install the provided wall mount in a convenient location. The wall mount has a charging port. Simply hang the vacuum on the wall mount, and it will begin charging automatically if connected to power.

A full charge takes approximately 2.5 hours. The LED touch screen will display the battery percentage during charging and operation.

Image: The removable battery pack of the Vistefly V15 being detached from the main unit, illustrating the ease of separate charging or replacement.

Image: The Vistefly V15 vacuum cleaner mounted on its wall charging station, demonstrating a convenient storage and charging solution.

Operation

The Vistefly V15 offers intuitive controls and powerful suction for effective cleaning.

Powering On/Off and Suction Modes

Press the power button on the handle to turn the vacuum on or off. The LED touch screen provides real-time information and allows you to adjust suction power.

• LED Touch Screen: Displays battery level, suction power indicator, and error indicators.
• Control Buttons: Use the '+' and '-' buttons on the touch screen to increase or decrease suction power. There is also an Auto/Manual button to switch between modes.
• Suction Levels: The vacuum offers multiple suction modes (Auto, Eco, Normal, Max) to suit different cleaning needs, from light dust to stubborn debris.

Image: Close-up of the Vistefly V15's LED touch screen, showing battery percentage, manual suction level adjustment, gear change, and ambient light indicators.

Image: Detailed view of the Vistefly V15's touch screen interface, highlighting buttons for suction power adjustment, battery level display, and auto/manual mode selection.

Cleaning Performance

The V15 is equipped with a powerful 500W motor and 33Kpa suction, capable of handling various types of debris.

• Floor Head: The motorized brush is effective on both hardwood floors and carpets, with LED headlights to illuminate dust and debris in dark areas.
• Flexible Maneuverability: The floor head features a flexible joint, allowing it to swivel 90 degrees vertically and 180 degrees horizontally, making it easy to clean around furniture and in tight corners.

Image: The Vistefly V15's floor head effectively cleaning different types of debris, including dust, hair, crumbs, pet food, and nut shells, showcasing its strong suction capabilities.

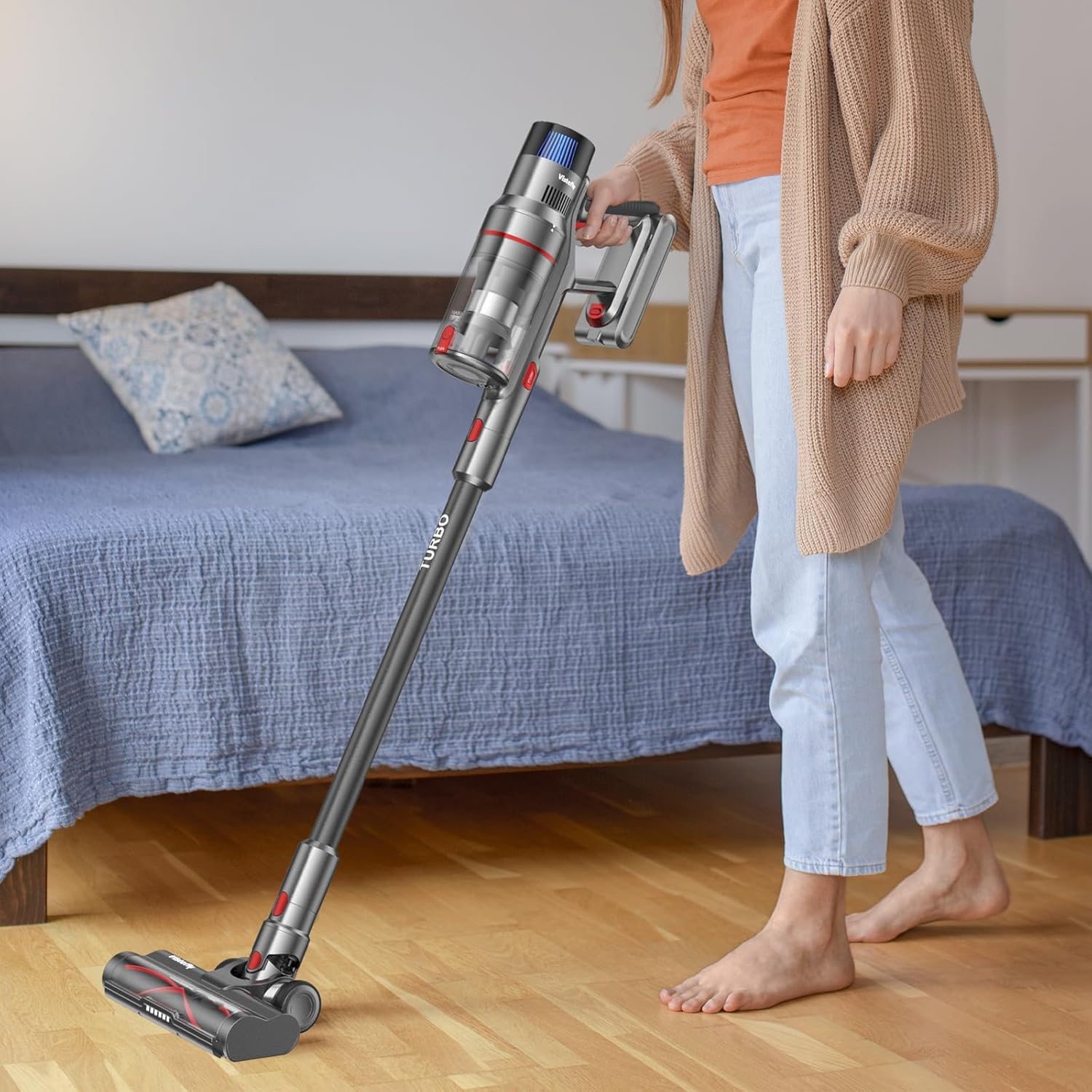

Image: The Vistefly V15's floor head demonstrating its flexible 90-degree vertical and 180-degree horizontal rotation, allowing for easy maneuverability under furniture and around obstacles.

Official Product Video

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your Vistefly V15.

Emptying the Dustbin

To empty the dustbin, hold the main body over a trash can and press the release button on the dustbin. The bottom flap will open, allowing debris to fall out. Close the flap securely after emptying.

Image: The Vistefly V15's dustbin being emptied into a trash can, illustrating the simple and hygienic process of disposing of collected debris.

Cleaning Filters

The Vistefly V15 features a six-layer filtration system, including a HEPA filter, stainless steel filter, cyclone system, sponge filter, and cyclone filter with 10 cones. Regular cleaning of these filters is crucial for maintaining suction power.

• Filter Removal: Twist the top of the main body to access and remove the filter components.
• Cleaning: Tap off loose dust from the filters. For thorough cleaning, rinse the filters under running water. Ensure they are completely dry before reassembling to prevent damage to the motor.

Image: A diagram illustrating the Vistefly V15's advanced six-layer filtration system, including HEPA, stainless steel, cyclone, and sponge filters, designed for high-efficiency dust separation.

Image: A hand demonstrating the removal and cleaning of the Vistefly V15's filter components, emphasizing the ease of maintenance for sustained performance.

Troubleshooting

If you encounter issues with your Vistefly V15, please refer to the following common problems and solutions:

Specifications

Warranty and Support

Vistefly is committed to providing high-quality products and excellent customer service.

• Warranty Information: For specific warranty details and terms, please refer to the product page on Amazon or contact Vistefly customer support directly.
• Customer Support: Vistefly offers 7*24 customer support to assist with any questions, concerns, or issues you may have regarding your vacuum cleaner.
• Components and Accessories: Replacement components and accessories can be purchased through authorized Vistefly channels.
• Service and Repair: For service or repair needs, please contact Vistefly customer support for guidance. Do not attempt to repair the unit yourself.
