1. Introduction and Overview
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Elica HILIGHT-X H16 Ceiling Hood, model PRF0173443A. This ceiling-mounted extractor hood is designed to effectively remove cooking fumes and odors from your kitchen environment.
Key features include:
- Ceiling-mounted design for discreet integration.
- Constructed from durable stainless steel.
- Efficient LED panel lighting (2 x 7 W).
- Remote control operation with 3 speeds + 2 boost settings.
- Powerful extraction capacity.
- Equipped with an aluminum grease filter.
2. Safety Information
Important: Please read this entire manual carefully before attempting to install, operate, or maintain the appliance. Keep this manual for future reference.
- Installation must be carried out by a qualified technician in accordance with local regulations and electrical codes.
- Ensure the power supply matches the specifications on the appliance rating plate.
- Do not modify the appliance.
- Regular cleaning of the grease filters is crucial for optimal performance and fire safety.
- Ensure adequate ventilation in the room when the hood is operating simultaneously with other combustion appliances.
3. Package Contents
Verify that all components are present and undamaged upon unpacking:
- Elica HILIGHT-X H16 BL/A/100 Ceiling Hood (PRF0173443A)
- Stainless steel cover (Black)
- Remote control
- Aluminum grease filter(s)
- Instruction Manual
4. Setup and Installation
The Elica HILIGHT-X H16 is designed for ceiling mounting and ducted/vented operation. Professional installation is highly recommended due to the nature of ceiling integration and electrical connections.
4.1. Pre-Installation Checks
- Ensure the ceiling structure can support the weight of the hood (approximately 15.5 kg).
- Confirm availability of appropriate electrical wiring and ducting for air extraction.
- Measure the required false ceiling cut-out (refer to dimensions below).
4.2. Mounting
The hood requires integration into a false ceiling. The recommended false ceiling cut-out dimensions are 550 x 980 mm.

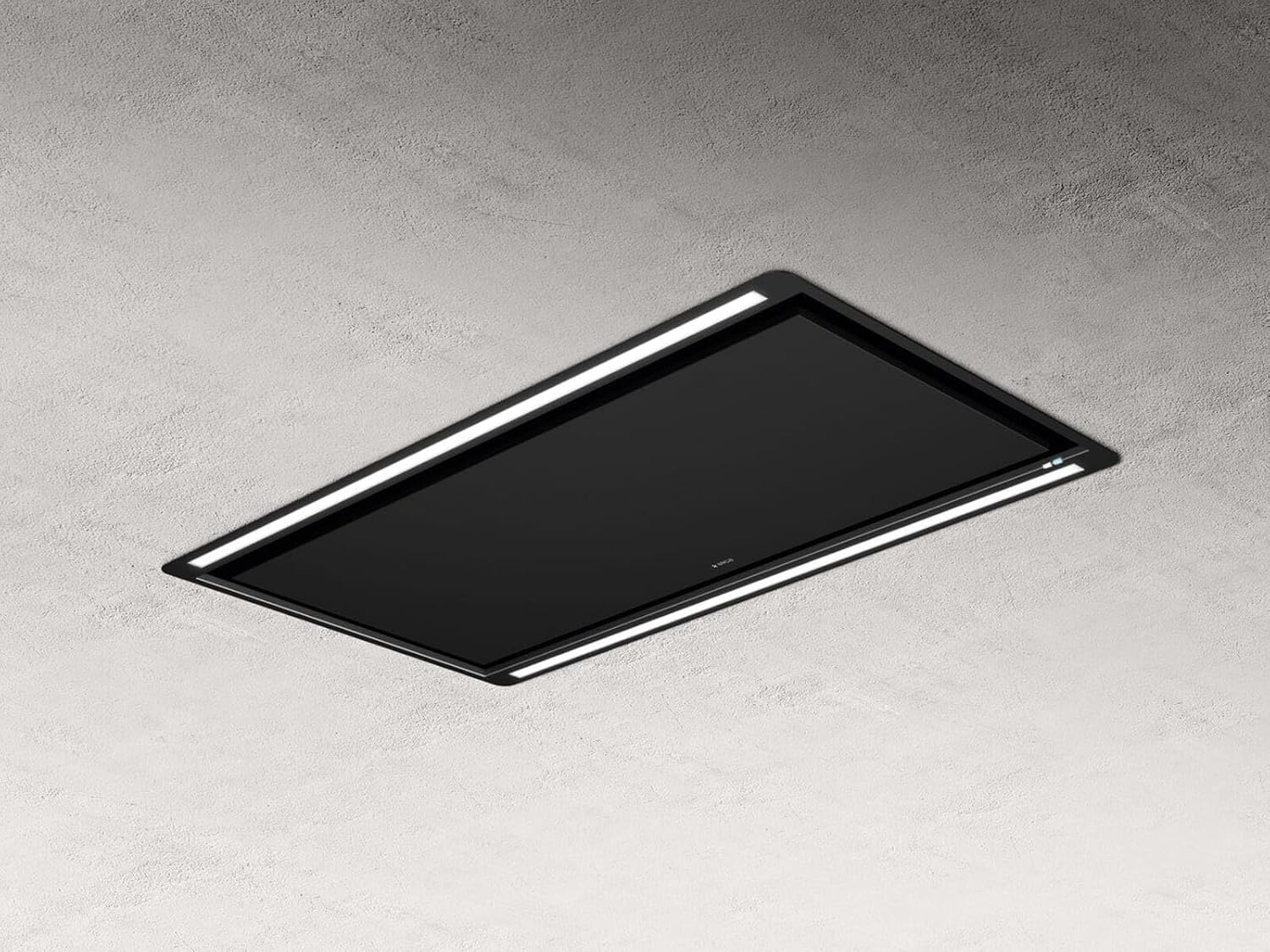

Image 1: The Elica HILIGHT-X H16 Ceiling Hood seamlessly integrated into a kitchen ceiling, showcasing its sleek, minimalist design.
Image 2: A detailed view of the Elica HILIGHT-X H16, highlighting the perimeter extraction and integrated LED lighting along the edges.
Image 3: Technical diagram illustrating the dimensions of the Elica HILIGHT-X H16 hood (570x1000x160 mm) and the recommended false ceiling cut-out of 550x980 mm.
Follow the detailed instructions provided in the separate installation guide for precise mounting steps, electrical connections, and ducting setup.
5. Operating Instructions
The Elica HILIGHT-X H16 is operated via the supplied remote control.
5.1. Remote Control Functions
- Power On/Off: Press the designated button to turn the hood on or off.
- Fan Speed Adjustment: Cycle through 3 standard fan speeds to adjust extraction power.
- Boost Function: Two additional boost settings are available for intensive extraction during heavy cooking. These typically operate for a set period before returning to the previous speed.
- Light Control: Activate or deactivate the LED lighting panel.
5.2. LED Lighting
The hood features two 7W LED panels, providing efficient and bright illumination over your cooking area. Use the remote control to switch the lights on or off independently of the fan.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Elica HILIGHT-X H16 hood.
6.1. Cleaning the Grease Filters
The aluminum grease filters capture airborne grease particles. They should be cleaned regularly (approximately every 2-4 weeks, depending on usage) to prevent grease buildup and maintain extraction efficiency.
- Removal: Carefully unlatch and remove the grease filters from the hood.
- Cleaning: Wash the filters by hand in hot soapy water or in a dishwasher on a low-temperature cycle. Ensure they are completely dry before re-installing.
- Re-installation: Insert the dry filters back into their positions, ensuring they are securely latched.
6.2. Exterior Cleaning
Clean the stainless steel surfaces with a soft cloth and a non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals or abrasive pads that could scratch the finish.
6.3. LED Light Replacement
LED lights have a long lifespan and typically do not require frequent replacement. If a light fails, contact qualified service personnel for replacement to ensure compatibility and safety.
7. Troubleshooting
If you encounter issues with your Elica HILIGHT-X H16 hood, refer to the following common troubleshooting steps. For complex problems, contact customer support or a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on | No power supply; Remote control battery low/dead | Check circuit breaker; Replace remote control batteries. |
| Poor extraction performance | Clogged grease filters; Obstruction in ducting; Insufficient room ventilation | Clean grease filters; Check ducting for blockages; Ensure adequate air intake in the kitchen. |
| Excessive noise | Loose components; Obstruction in fan; Incorrect installation | Check for loose parts; Inspect fan for foreign objects; Consult installation guide or technician. |
| Lights not working | LED panel failure; Electrical connection issue | Contact service for LED replacement; Check electrical connections (qualified technician only). |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | PRF0173443A |
| Type of Mounting | Ceiling Mounting |
| Material | Stainless Steel, Steel Alloy |
| Color | Black |
| Product Dimensions (L x W x H) | 100 x 57 x 16 cm |
| Item Weight | 15.5 Kilograms |
| Type of Controls | Remote Control (3S + 2B) |
| Lighting Type | LED Panel (2 x 7 W) |
| Voltage | 240 V |
| Ventilation Type | Ducted/Vented |
| Filter Type | Aluminum Grease Filter |
| Noise Level | 51 Decibels (minimum) |
| Energy Efficiency Rating | A |
| Manufacturer | Elica |
| Country of Origin | Italy |
9. Warranty and Support
For warranty information and details regarding returns or defective products, please refer to the specific terms and conditions provided by your retailer or Elica. Generally, if you wish to return a product within 30 days of receipt because you have changed your mind, consult the retailer's help page. If you have received a defective or damaged product, consult the retailer's help page on returns and refunds.
For technical support, spare parts, or service requests, please contact Elica customer service or your authorized dealer. Ensure you have your model number (PRF0173443A) and purchase date available when contacting support.
