Product Overview
The MEEDEN Studio H-Frame Easel is a professional-grade, adjustable art easel crafted from high-quality beech wood. Designed for versatility, it accommodates various painting styles and techniques, supporting canvases up to 77 inches. Its robust construction and thoughtful features ensure stability, ease of use, and convenient storage.
Figure 1: Front and side view of the assembled MEEDEN Studio H-Frame Easel in Walnut finish. This image illustrates the overall structure and design of the easel.
Setup and Assembly
The MEEDEN Studio H-Frame Easel is designed for straightforward assembly. Main components are pre-assembled, and all parts are clearly labeled. Necessary tools are included.
Required Tools (Included):
- Wrench (marked 'G')
- Phillips Head Screwdriver
Assembly Steps:
- Assemble the Base:
Identify the base components. Attach the side pieces to the main base frame using the provided screws and nuts. Ensure the nuts are inserted into their designated slots before fully tightening the screws with the screwdriver.
Figure 2: Detailed view of the easel's hardware, including rust-proof galvanized metal screws and knob designs for stability. This image also shows the two front rolling wheels for portability.
- Attach Support Brackets:
Secure the hinged support brackets to the base frame using the provided screws. These brackets provide stability for the easel's upright structure.
- Install Main Upright Section:
Insert the main upright wooden piece into the designated slot on the base. Secure it using the brass clip and the large knob at the back. This knob allows for angle adjustments later.
- Attach Canvas Holders:
The easel features three canvas holders. Attach the lower and middle canvas holders by sliding them onto the main upright section. Secure them with the provided bolts and washers. These holders are designed to accommodate two canvases simultaneously for reference or comparison.

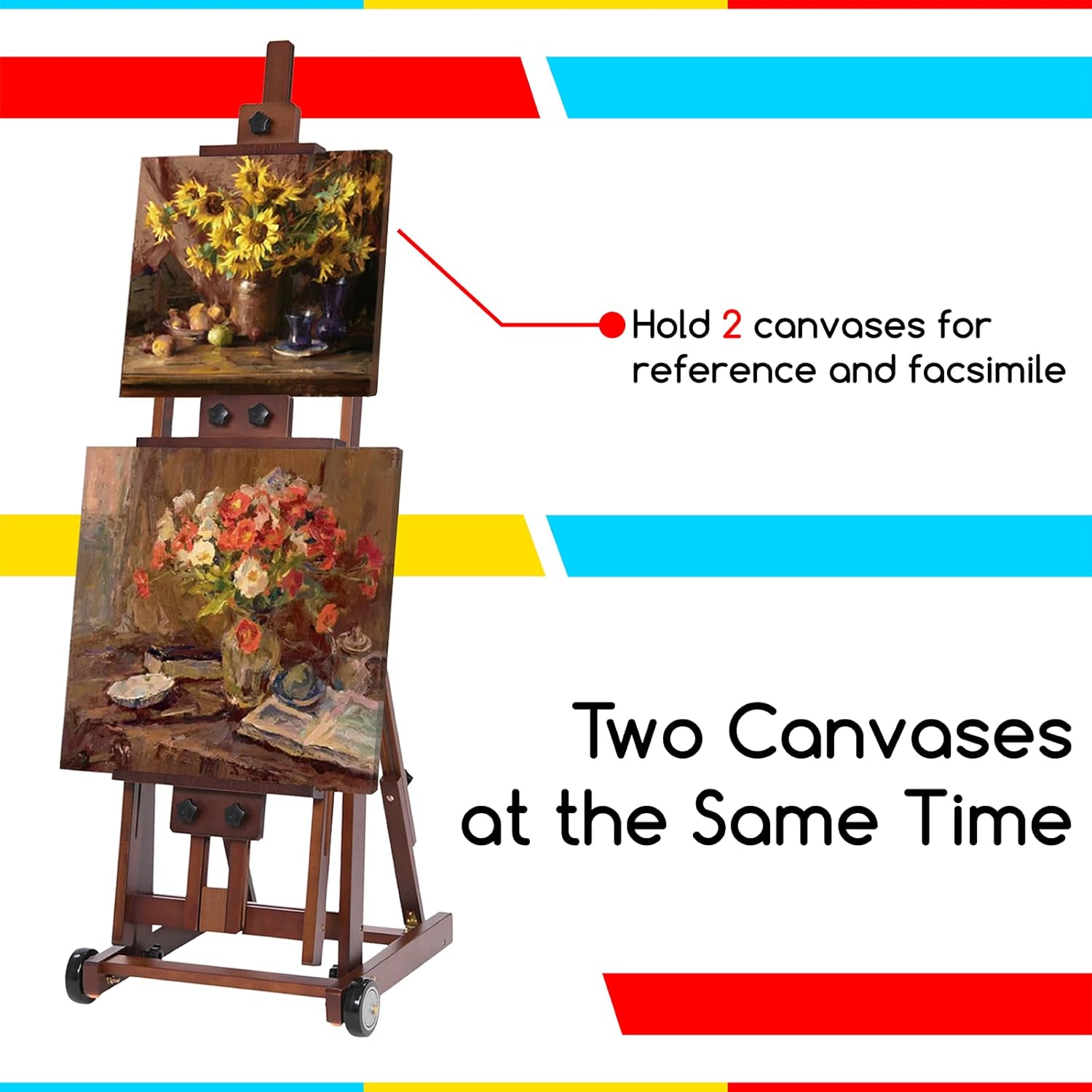

Figure 3: The easel's capability to hold two canvases at the same time, useful for reference or working on multiple pieces.
- Install Top Canvas Holder:
Slide the top canvas holder onto the upper part of the main upright. Secure it with its respective bolt. This holder helps to firmly secure the top of your canvas.
- Attach Wheels:
Install the two front rolling wheels to the base of the easel. These wheels enhance mobility, allowing for easy repositioning of the easel.
For visual guidance, refer to the step-by-step assembly illustrations provided in the included manual.
Operating Instructions
Adjusting Height:
The easel's height is adjustable from 59 inches to 95 inches, accommodating both sitting and standing painting positions. Loosen the knobs on the main upright section, adjust the canvas holders to your desired height, and then firmly tighten the knobs to secure the position.

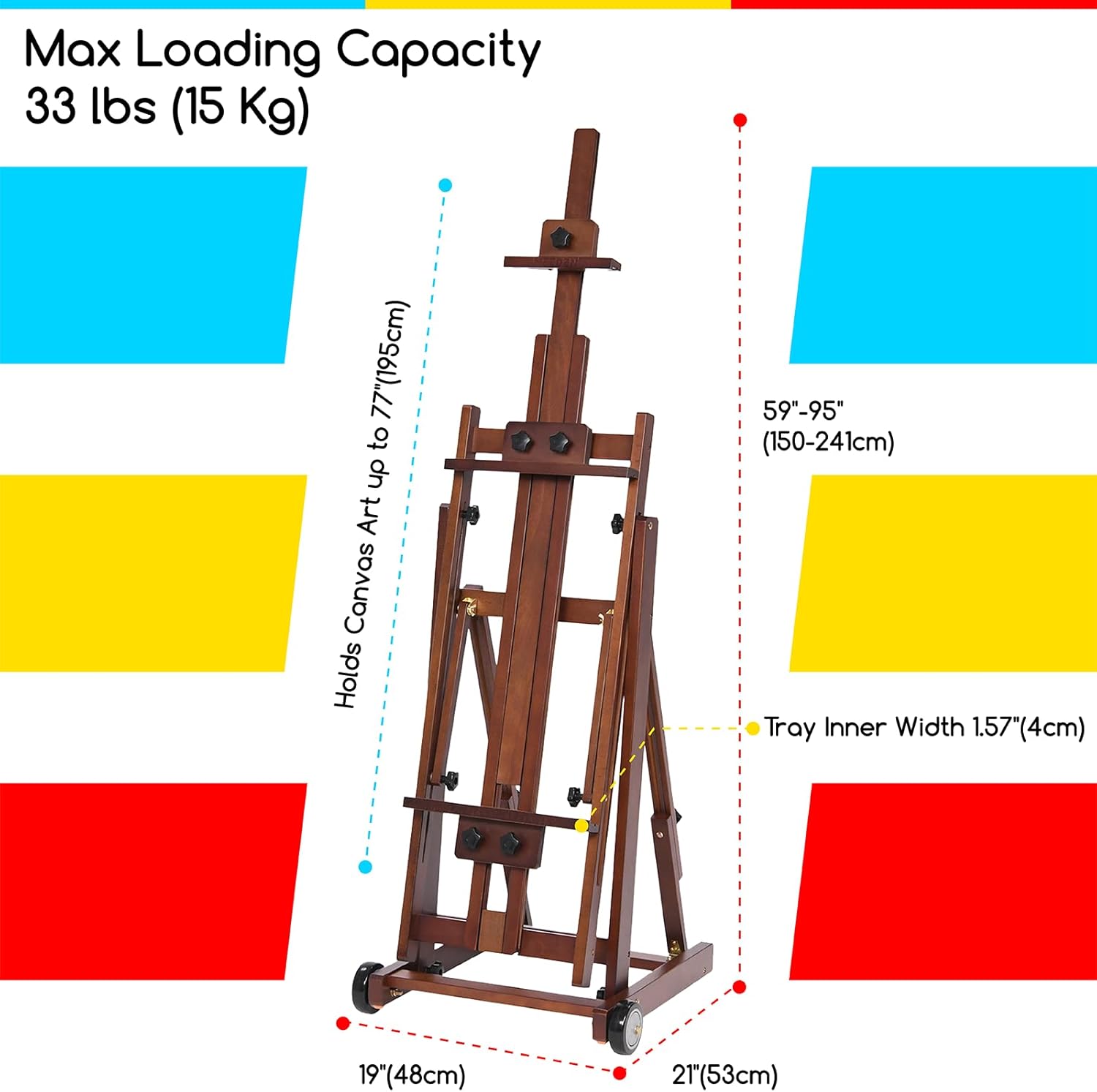

Figure 4: Easel dimensions, showing adjustable height from 59" to 95" and a maximum loading capacity of 33 lbs (15 kg).
Adjusting Angle:
The easel offers adjustable angles from fully vertical to horizontal, suitable for various mediums like oil, acrylic, watercolor, and pastel. To change the angle, loosen the large ergonomics knob at the back of the easel, tilt the easel to your preferred angle, and then re-tighten the knob to lock it in place. The easel can also tilt flat, reaching a height of 35 inches (90 cm) from the floor when fully horizontal.
Figure 5: Illustration of the easel's multiple adjustable angles, demonstrating its flexibility from vertical to a flat horizontal position.
Canvas Placement:
Place your canvas on the lower canvas holder. Adjust the upper canvas holder to firmly secure the top of your canvas. The easel is designed with three sliders, allowing it to hold two canvases simultaneously, which can be useful for referencing other artworks.
Mobility and Storage:
The easel is equipped with two front large rolling wheels and rubber feet for easy mobility and stability. To move the easel, simply tilt it slightly onto its wheels. For storage or transport, the easel can be folded flat. This feature allows it to be easily accommodated in narrow spaces or for travel.
Figure 6: An artist utilizing the MEEDEN Studio H-Frame Easel in its flat, horizontal configuration, demonstrating its versatility for different artistic needs.
Maintenance
To ensure the longevity and optimal performance of your MEEDEN Studio H-Frame Easel, follow these maintenance guidelines:
- Cleaning: Wipe down the beech wood surfaces with a soft, dry cloth. For stubborn marks, use a slightly damp cloth and dry immediately. Avoid harsh chemical cleaners that may damage the polished oil finish.
- Hardware Inspection: Periodically check all screws, bolts, and knobs to ensure they are tight. Re-tighten as necessary to maintain stability. The galvanized hardware is designed to be rust-proof.
- Wood Care: The easel is made of Germany thickened beech wood with a polished oil finish. To preserve the wood's quality and appearance, avoid prolonged exposure to direct sunlight or extreme humidity.
- Mobility: Keep the rolling wheels free of debris to ensure smooth movement.
Troubleshooting
If you encounter any issues with your easel, refer to the following common problems and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Easel feels wobbly or unstable. | Loose connections or uneven surface. | Ensure all screws and knobs are securely tightened. Place the easel on a flat, level surface. |
| Canvas holders are difficult to adjust. | Knobs are too tight or mechanism is stiff. | Loosen the adjustment knobs sufficiently before attempting to move the holders. If stiff, apply a small amount of wood-safe lubricant to the sliding mechanisms. |
| Easel does not fold flat easily. | Components are not aligned or knobs are not fully loosened. | Ensure all relevant knobs are fully loosened. Check for any obstructions or misaligned parts preventing the folding mechanism. |
Specifications
- Brand: MEEDEN
- Model Name: W14-MBF
- Item Model Number: AFE-6019-QHT
- Color: Walnut
- Material: Beech Wood
- Easel Type: H-Frame Easel
- Adjustable Height: 59 inches to 95 inches
- Max Canvas Height: Up to 77 inches
- Tilting Capability: Fully vertical to horizontal (lays flat at 35 inches from floor)
- Canvas Capacity: Holds 2 canvases simultaneously
- Mobility: Two front large rolling wheels
- Stability: Rubber feet
- Assembly Required: Yes
- Item Weight: 29.8 pounds (13.54 Kilograms)
- Product Dimensions: 18.9 x 20.87 x 94.88 inches
- Manufacturer: MEEDEN GROUP CO., LTD
Warranty and Support
MEEDEN provides a three-year warranty for this easel, covering quality, design, features, and workmanship. For any support inquiries, product assistance, or warranty claims, please contact MEEDEN customer service through their official channels or the retailer where the product was purchased.
