PENN Slammer IV Spinning Reel (Model SLAIV5500BLS) User Manual

1. Product Overview

The PENN Slammer IV Spinning Reel, model SLAIV5500BLS, is engineered for robust performance in demanding fishing environments. Designed with durability and smooth operation in mind, this reel is suitable for various fishing techniques, particularly spinning. Its construction features a blend of high-quality materials, including stainless steel for critical components, ensuring longevity and resistance to the elements.

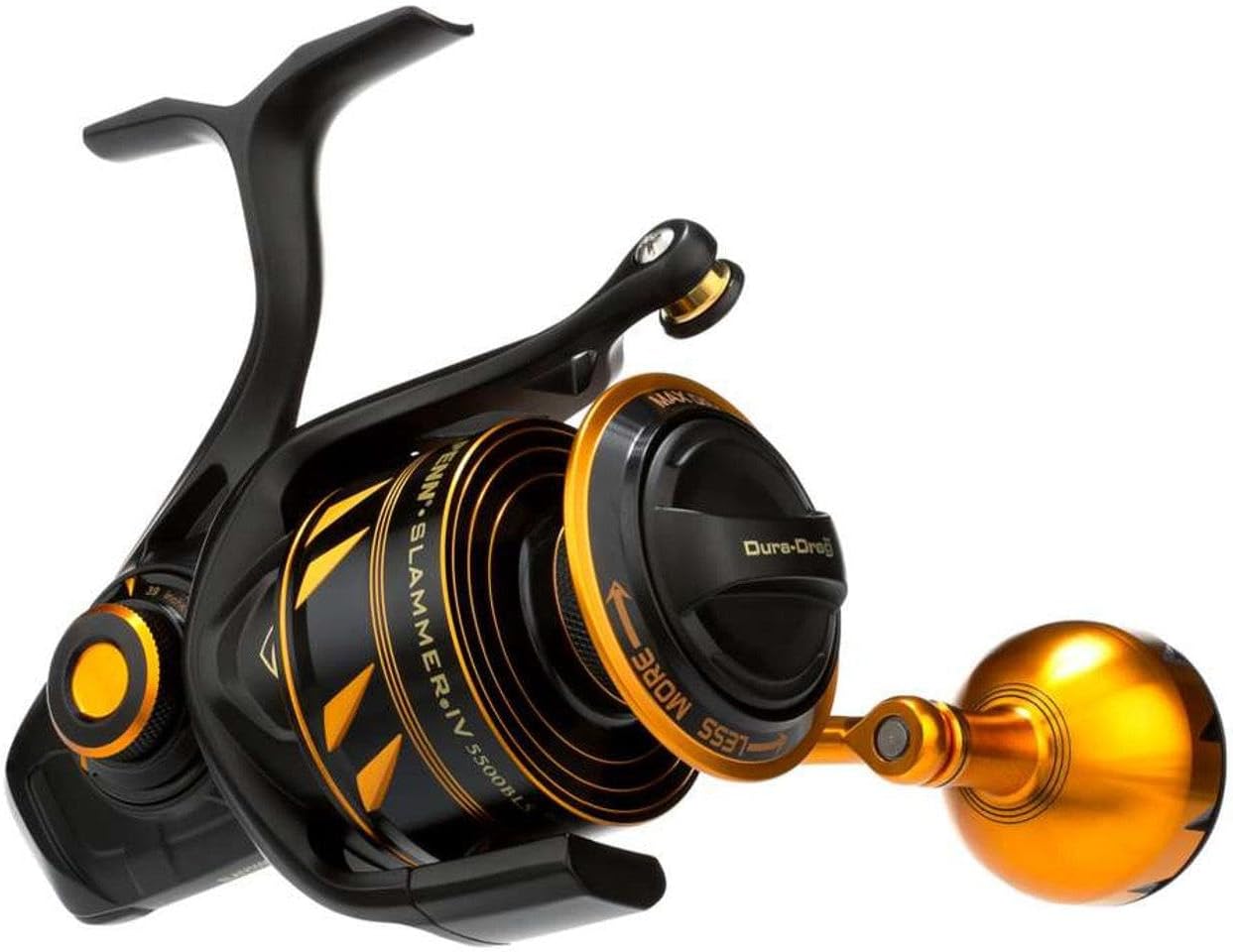

Figure 1: Front view of the PENN Slammer IV Spinning Reel.

2. Initial Setup

2.1 Attaching the Handle

The handle can be attached to either side of the reel to accommodate both left and right-handed users. To attach, simply screw the handle into the desired side of the reel body until it is secure. Ensure it is tightened firmly to prevent wobbling during use.

2.2 Spooling Fishing Line

Properly spooling your fishing line is crucial for optimal performance and to prevent tangles. Begin by securing the end of your chosen line to the spool using an arbor knot or similar secure knot. Wind the line onto the spool evenly, maintaining moderate tension. Avoid overfilling the spool, as this can lead to line management issues. Refer to the line capacity specifications for guidance.

Figure 2: Close-up view of the reel spool, showing line capacity markings.

3. Operating Your Reel

3.1 Casting

1. Open the bail arm.
2. Hold the line against the rod with your index finger.
3. Execute your cast, releasing the line from your finger at the appropriate moment.
4. Close the bail arm manually or by turning the handle to engage the retrieve mechanism.

3.2 Retrieving

Turn the handle to retrieve the line. The smooth gear system ensures consistent and efficient line retrieval. Adjust your retrieve speed based on the lure type and target species.

3.3 Drag Adjustment

The drag system is located on the top of the spool. Turn the drag knob clockwise to increase drag tension and counter-clockwise to decrease it. Set the drag appropriate for your line strength and the size of fish you anticipate catching. A properly set drag allows the line to pay out smoothly under pressure, preventing line breaks.

Figure 3: The PENN Slammer IV reel with the handle and drag system visible.

4. Care and Maintenance

To ensure the longevity and optimal performance of your PENN Slammer IV reel, especially after saltwater use, follow these maintenance guidelines:

• Rinse Thoroughly: After each use, particularly in saltwater, rinse the entire reel with fresh, cool water. Do not use hot water or high-pressure sprays, as this can force water into sealed areas.
• Dry Properly: Allow the reel to air dry completely in a shaded, well-ventilated area. Avoid direct sunlight or excessive heat.
• Lubrication: Periodically apply a small amount of high-quality reel oil to moving parts such as the handle knob, bail arm pivot points, and line roller. Use reel grease for gears if performing a deeper service. Consult a professional if unsure.
• Storage: Store your reel in a dry, cool place away from direct sunlight and corrosive chemicals. Consider using a reel cover for added protection.

The PENN Slammer IV features IPX6 Sealed construction, providing excellent protection against water intrusion into the gearbox and drag system. However, proper rinsing and care are still recommended to prevent salt crystal buildup on external surfaces.

5. Troubleshooting Common Issues

If you encounter any issues with your PENN Slammer IV reel, consider the following common troubleshooting steps:

• Line Tangles or Loops: This often indicates overfilling the spool or improper line lay. Ensure the spool is filled to the recommended capacity and check for even line distribution.
• Stiff or Grinding Retrieve: This could be due to dirt, sand, or lack of lubrication. Thoroughly clean and lubricate the reel. If the issue persists, internal components may require professional inspection.
• Inconsistent Drag: Check if the drag washers are dry, dirty, or worn. Ensure the drag knob is tightened correctly. Clean the drag system if necessary.
• Bail Arm Not Closing Properly: Inspect the bail spring and mechanism for obstructions or damage. Clean any debris and ensure smooth movement.

For complex issues or repairs, it is recommended to contact PENN customer support or an authorized service center.

6. Technical Specifications

7. Warranty and Customer Support

For information regarding the product warranty, please refer to the documentation included with your purchase or contact the manufacturer directly. PENN is committed to providing quality products and support.

If you require assistance, have questions, or need to report an issue, please contact PENN customer support through their official website or the contact information provided in your product packaging.
