Introduction
Welcome to the user manual for your EVRider Gypsy Q2 Folding Travel Mobility Scooter. This manual provides essential information for the safe and efficient operation, maintenance, and care of your scooter. The Gypsy Q2 is designed for portability and ease of use, making it an ideal companion for travel and daily activities.
We recommend reading this manual thoroughly before operating your scooter to ensure you understand all features and safety precautions.
Safety Precautions
Your safety is paramount. Please observe the following safety guidelines:
- Always operate the scooter on stable, level surfaces.
- Do not exceed the maximum weight capacity of 250 lbs. Exceeding this limit can compromise stability and performance.
- Ensure the scooter is fully unfolded and locked into position before use.
- Avoid operating the scooter in heavy rain or through standing water.
- Keep hands and feet clear of moving parts during operation and folding/unfolding.
- Always use caution when navigating inclines or uneven terrain.
Legal Disclaimer: Statements regarding this product have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.
Product Features
The EVRider Gypsy Q2 is engineered with several key features to enhance your mobility experience:
- Motor/Transaxle System: Provides power to both rear wheels, enhancing agility and power compared to single-motor designs.
- Redesigned Removable Battery Pack: The 24V 11.6Ah Lithium-Ion battery can be easily removed from the scooter for convenient charging, either on or off the unit.
- Larger Rear Wheels: Improved wheel size allows for better navigation over varied surfaces, not limiting use to only smooth, flat areas.
- Adjustable Lugging Handle: Features three locking positions to accommodate users of different heights, making it comfortable to transport the folded scooter.

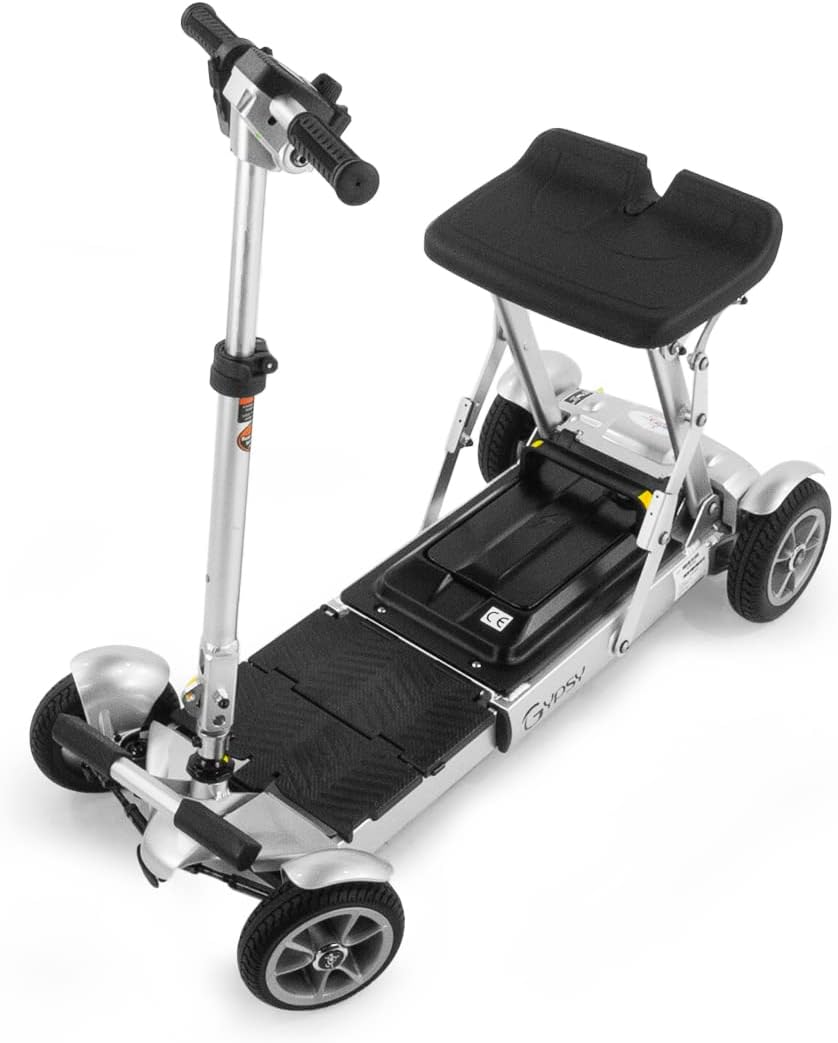

Image: The EVRider Gypsy Q2 scooter fully unfolded, showcasing its compact yet robust design.
Setup and Unfolding
Follow these steps to unfold your Gypsy Q2 scooter:
- Place the folded scooter on a flat, stable surface.
- Grasp the handlebars and gently lift upwards. The scooter will begin to unfold.
- Continue to lift until the main frame locks into its fully extended position. You should hear an audible click.
- Adjust the lugging handle to one of the three locking positions for comfortable transport when folded, or ensure it is securely stowed for operation.
- Ensure all locking mechanisms are engaged before attempting to operate the scooter.
Image: Side view of the EVRider Gypsy Q2 in its unfolded state, ready for use.
Charging the Battery
The Gypsy Q2 features a convenient removable battery pack that can be charged on or off the scooter.
- Charging On-Scooter: Locate the charging port on the scooter. Plug the charger into the port, then into a standard wall outlet.
- Charging Off-Scooter: The battery pack can be easily removed. Once removed, connect the charger directly to the battery pack and then to a wall outlet.
- The battery indicator lights on the charger will show the charging status. Ensure the battery is fully charged before initial use and after each significant period of use.
- A full charge provides a driving range of 7-10 miles, depending on terrain and user weight.
Image: The scooter's battery compartment, designed for easy removal and charging.
Operating the Scooter
To operate your EVRider Gypsy Q2 scooter:
- Ensure the battery is charged and properly installed.
- Insert the key into the ignition on the control panel and turn it to the 'ON' position.
- The control panel will display the battery level.
- Use the throttle control on the handlebars to accelerate. The scooter has a top speed of approximately 4 mph.
- Steer by turning the handlebars.
- To stop, release the throttle. The scooter will automatically brake. For immediate stopping, use the manual brake lever if equipped.
- Always maintain a safe speed and be aware of your surroundings.
Image: Close-up of the control panel and handlebars, showing the key ignition and battery indicator.
Folding and Storage
The Gypsy Q2 is designed to fold compactly for easy transportation and storage, similar to a carry-on bag.
- Ensure the scooter is powered off and the key is removed.
- Locate the folding release mechanism (refer to your scooter's specific design for exact location, typically near the base of the steering column or seat).
- Engage the release mechanism and gently push the handlebars downwards, allowing the scooter to collapse.
- Continue folding until the scooter is in its most compact form and locks into place.
- Once folded, you can use the adjustable lugging handle to comfortably pull the scooter.
- Store the scooter in a dry, cool place away from direct sunlight and extreme temperatures.
Image: The EVRider Gypsy Q2 scooter in its compact, folded configuration.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your scooter.
- Cleaning: Wipe down the scooter with a damp cloth. Avoid using abrasive cleaners or excessive water.
- Battery Care: Charge the battery regularly, even if the scooter is not in frequent use, to maintain battery health. Do not allow the battery to fully discharge for extended periods.
- Tires: Periodically check tire pressure (if applicable) and inspect for wear or damage.
- Moving Parts: Inspect all moving parts, including the folding mechanisms and wheels, for any signs of wear, looseness, or damage.
- Storage: When storing for extended periods, ensure the battery is fully charged and stored in a cool, dry place.
Troubleshooting
This section addresses common issues you might encounter with your scooter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Battery is low or not connected; Key not fully inserted/turned | Charge battery; Ensure battery is properly seated; Turn key fully to 'ON' |
| Scooter moves slowly or loses power | Low battery charge; Overloaded; Rough terrain | Recharge battery; Reduce load; Operate on smoother surfaces |
| Scooter does not fold/unfold smoothly | Mechanism obstructed or dirty; Latch not fully released | Check for obstructions; Clean mechanism; Ensure release latch is fully engaged |
If you experience issues not listed here, or if troubleshooting steps do not resolve the problem, please contact customer support.
Specifications
Key specifications for the EVRider Gypsy Q2 Folding Travel Mobility Scooter:
| Specification | Detail |
|---|---|
| Model Name | EVRider Gypsy Q2 |
| Item Model Number | WT-T4Q2-SILVER |
| Brand | EV RIDER |
| Color | Silver |
| Item Weight | 37 lbs (including battery) / 45 lbs (shipping weight) |
| Weight Capacity | 250 lbs |
| Battery Type/Size | 24V 11.6Ah Lithium-Ion |
| Driving Range | 7 – 10 miles |
| Package Dimensions | 31.25 x 22 x 16 inches |
| Manufacturer | EV Rider |
Warranty Information
For detailed warranty information regarding your EVRider Gypsy Q2 Folding Travel Mobility Scooter, please refer to the warranty card included with your product packaging or visit the official EV Rider website. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.
Keep your proof of purchase for any warranty claims.
Customer Support
If you require assistance, have questions, or need to report an issue with your EVRider Gypsy Q2 scooter, please contact EV Rider customer support. Contact details can typically be found on the product packaging, the official EV Rider website, or through your retailer.
When contacting support, please have your model number (WT-T4Q2-SILVER) and purchase date readily available.
