KADAX Modular Composter 1260L Instruction Manual

Introduction

The KADAX Modular Composter 1260L is designed to facilitate efficient composting of organic waste, transforming it into natural fertilizer for your garden. This composter features a robust, modular design with thermal walls and a hinged lid, promoting rapid decomposition and easy access to finished compost. Made from 100% recycled plastic, it is an environmentally friendly solution for managing organic waste and enriching soil.

This manual provides detailed instructions for the assembly, operation, and maintenance of your KADAX composter to ensure optimal performance and longevity.

Product Features

• Efficient Decomposition: Geometric design with special openings and channels ensures proper air circulation and biomass hydration, accelerating the decomposition process.
• Easy Access: Features a hinged lid with two reinforced flaps and wide doors with comfortable handles for convenient opening and compost retrieval.
• Durable and Eco-Friendly Material: Constructed from 100% recycled plastic, resistant to deformation, cracking, frost, wind, and UV radiation, suitable for year-round use.
• Thermal Insulation: The material provides adequate thermal insulation for the compost, aiding in efficient decomposition.
• Modular Design: Simple and intuitive assembly using a clamp system. Additional modules can be added to increase capacity.
• Security Option: Holes in the lid allow for securing the composter with a padlock (not included) to prevent unwanted opening.

Assembly Instructions

The KADAX Modular Composter is designed for simple and intuitive assembly using a clamp system. It is recommended to assemble the composter close to its final location due to its size.

1. Unpack Components: Carefully unpack all parts. Ensure all panels, lid sections, and any included fasteners are present.
2. Connect Side Panels: Begin by connecting the side panels using the integrated clamp system. Align the grooves and press firmly until they click into place.


   Image: Composter components ready for assembly, including side panels, lid parts, and fasteners.



   Image: Detailed view of the interlocking clamp system for connecting panels.
3. Form the Base: Continue connecting panels to form the desired shape and height of the composter. The system is modular, allowing for expansion.
4. Install Access Doors: Attach the lower access doors. These are designed for easy removal of finished compost. Ensure they slide smoothly into their designated slots.
5. Attach the Lid: Position the hinged lid sections onto the top of the composter. Secure them using the provided hinges or by snapping them into place if they are part of the clamp system. Ensure the lid opens and closes freely.


   Image: The composter with its hinged lid open, illustrating the top opening for adding materials.

6. Secure to Ground (Optional): The composter can be secured to the ground using stakes (not included) through designated holes at the base to prevent tipping.


   Image: Detail of the composter's base, showing a stake for ground anchoring.

If you make a mistake during assembly, panels can be disassembled by pressing the fixing clips with a screwdriver.

Operating Instructions

What to Compost:

The KADAX composter is suitable for a wide range of organic materials. Ideal materials include:

• Healthy plant residues
• Weeds (non-seeding)
• Fruit and vegetable peels
• Tea leaves and coffee grounds
• Grass clippings and small twigs

How to Add Materials:

Open the hinged lid at the top of the composter to add new organic waste. Distribute materials evenly to promote consistent decomposition.

Image: A user adding organic waste into the composter.

Compost Retrieval:

Once the compost is ready, it can be easily retrieved from the lower access doors. Open the doors and scoop out the mature compost.

Image: Ready compost being accessed through the lower doors.

Maintenance

The KADAX Modular Composter requires minimal maintenance due to its durable construction from 100% recycled plastic. The material is resistant to deformation, cracking, frost, wind, and UV radiation, allowing for year-round outdoor use without significant degradation.

• Cleaning: Periodically clean the exterior with water and a mild detergent if desired. Avoid abrasive cleaners.
• Inspection: Regularly check the integrity of the panels and lid for any signs of damage. Ensure the clamp system remains secure.
• Airflow: Ensure the ventilation openings are not blocked to maintain proper air circulation for efficient composting.

Troubleshooting

This section addresses common issues you might encounter with your composter.

• Slow Decomposition:
  • Ensure a good mix of "green" (nitrogen-rich) and "brown" (carbon-rich) materials.
  • Check moisture levels; the compost should be damp like a wrung-out sponge. Add water if too dry, or dry materials if too wet.
  • Turn the compost regularly to introduce air.
• Unpleasant Odors:
  • Odors often indicate too much "green" material or insufficient aeration. Add more "brown" materials (e.g., dry leaves, wood chips) and turn the pile.
  • Avoid adding meat, dairy, or oily foods, which can attract pests and cause odors.
• Pests (Rodents, Insects):
  • Ensure the lid is securely closed.
  • Bury food scraps deep within the pile.
  • Avoid composting meat, dairy, and oily foods.
• Difficulty with Panel Assembly:
  • Ensure panels are correctly aligned before applying pressure.
  • If a panel needs to be detached, use a screwdriver to gently release the fixing clips.

Specifications

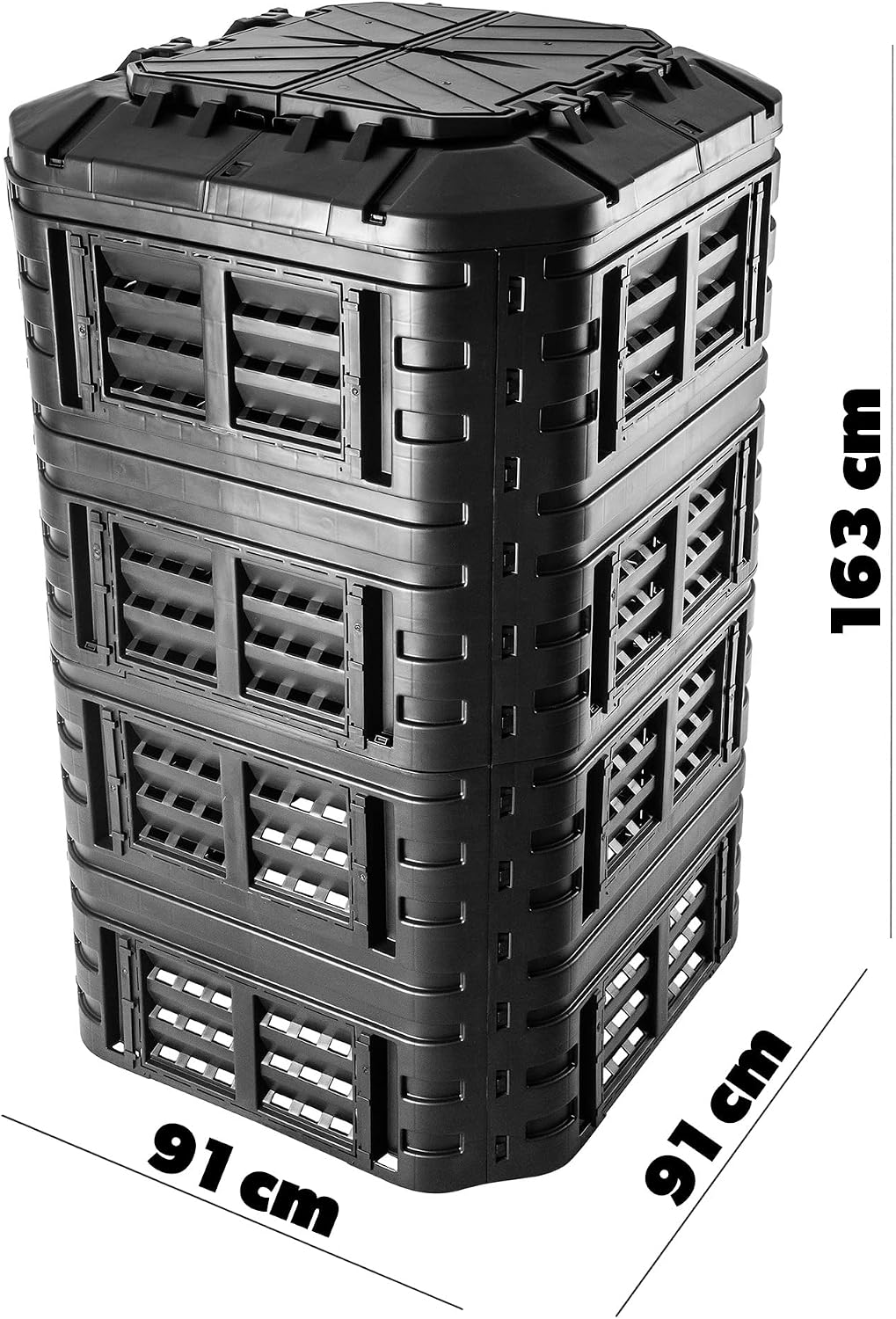

Image: Dimensional overview of the KADAX Modular Composter.

Warranty and Support

For any questions, support, or warranty inquiries regarding your KADAX Modular Composter, please contact the manufacturer directly. While specific warranty details are not provided in this manual, KADAX products are designed for durability and customer satisfaction.

You can find additional information and contact details on the official KADAX store page: KADAX Store.

A user guide in PDF format is also available for download: User Guide (PDF).
