BOOKOO Car Battery Jump Starter 4000A (Model Q6) User Manual

1. Introduction

The BOOKOO Car Battery Jump Starter 4000A (Model Q6) is a portable device designed to jump start 12V vehicles, including cars, trucks, vans, motorcycles, boats, and more. It features a powerful 4000A peak current and a 16000mAh battery capacity, capable of starting engines up to 8.0L gas or 7.0L diesel. Beyond jump starting, it also functions as a power bank for mobile devices and includes a multi-mode LED flashlight for emergency situations.

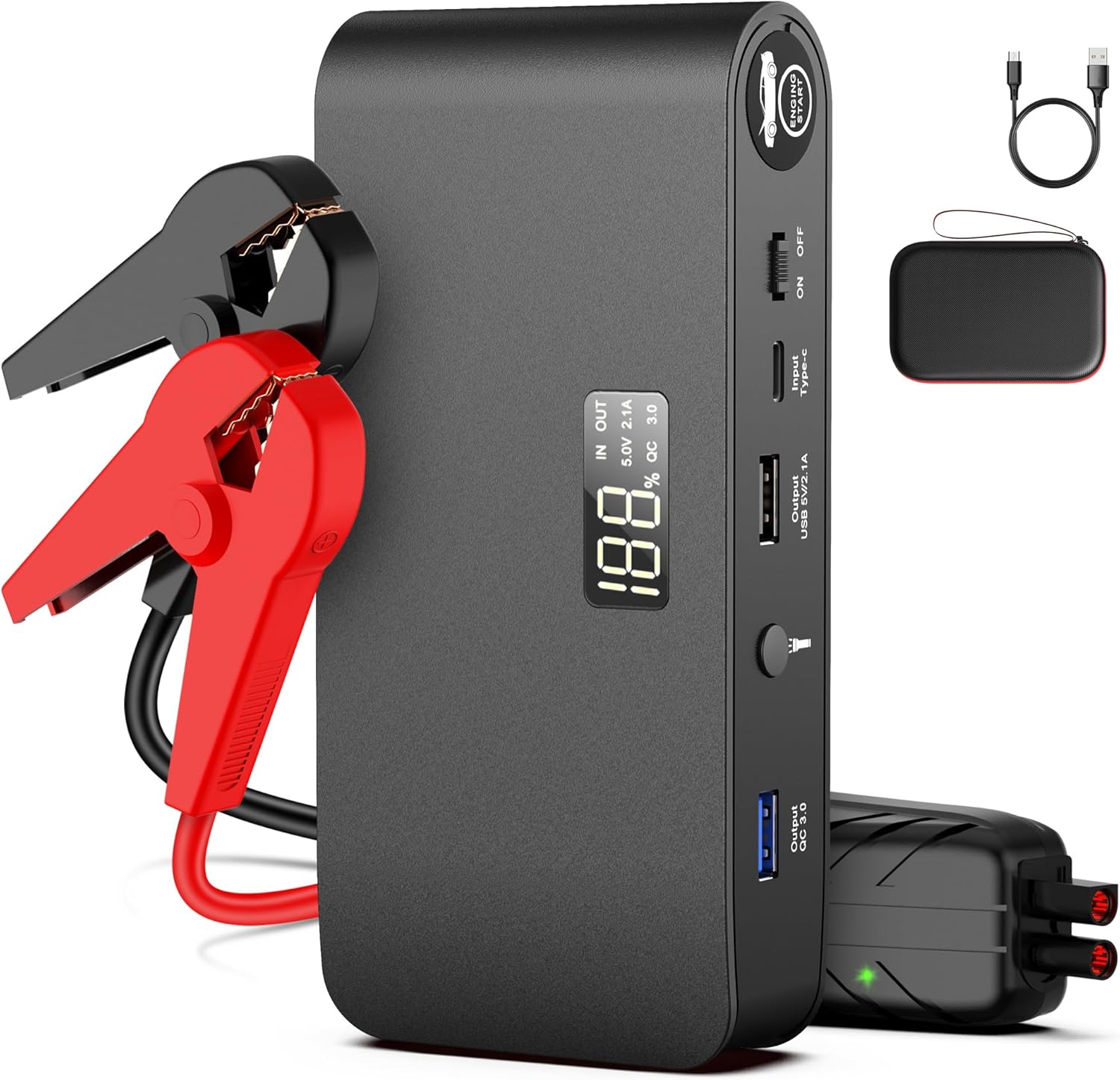

Figure 1: BOOKOO Car Battery Jump Starter 4000A (Model Q6) with included accessories.

2. Package Contents

Please verify that all items are present in your package:

• BOOKOO Car Battery Jump Starter (Model Q6) x1
• Portable Car Jumper Cable x1
• USB A to USB C cable x1
• User Manual x1
• Hard Carrying Case x1

Figure 2: All components included in the BOOKOO Car Battery Jump Starter package.

3. Product Overview and Features

The BOOKOO Q6 is a versatile device with multiple functionalities:

• Powerful Jump Starter: Delivers 4000A peak current to start 12V vehicles with up to 8.0L gas or 7.0L diesel engines.
• High Capacity Power Bank: Integrated 16000mAh battery with dual USB output ports (including QC 3.0) and a USB Type-C input/output for charging mobile devices.
• 3-in-1 LED Flashlight: Features Lighting, Strobe, and SOS modes for various emergency and outdoor needs.
• Intelligent Protection: Equipped with smart jumper clamps offering multiple safety protections including short circuit, over-current, reverse polarity, over-voltage, overcharge, spark-proof, overload, and over-temperature protection.
• Durable Design: Sturdy, waterproof, dustproof, and shockproof construction for reliable use in diverse conditions.

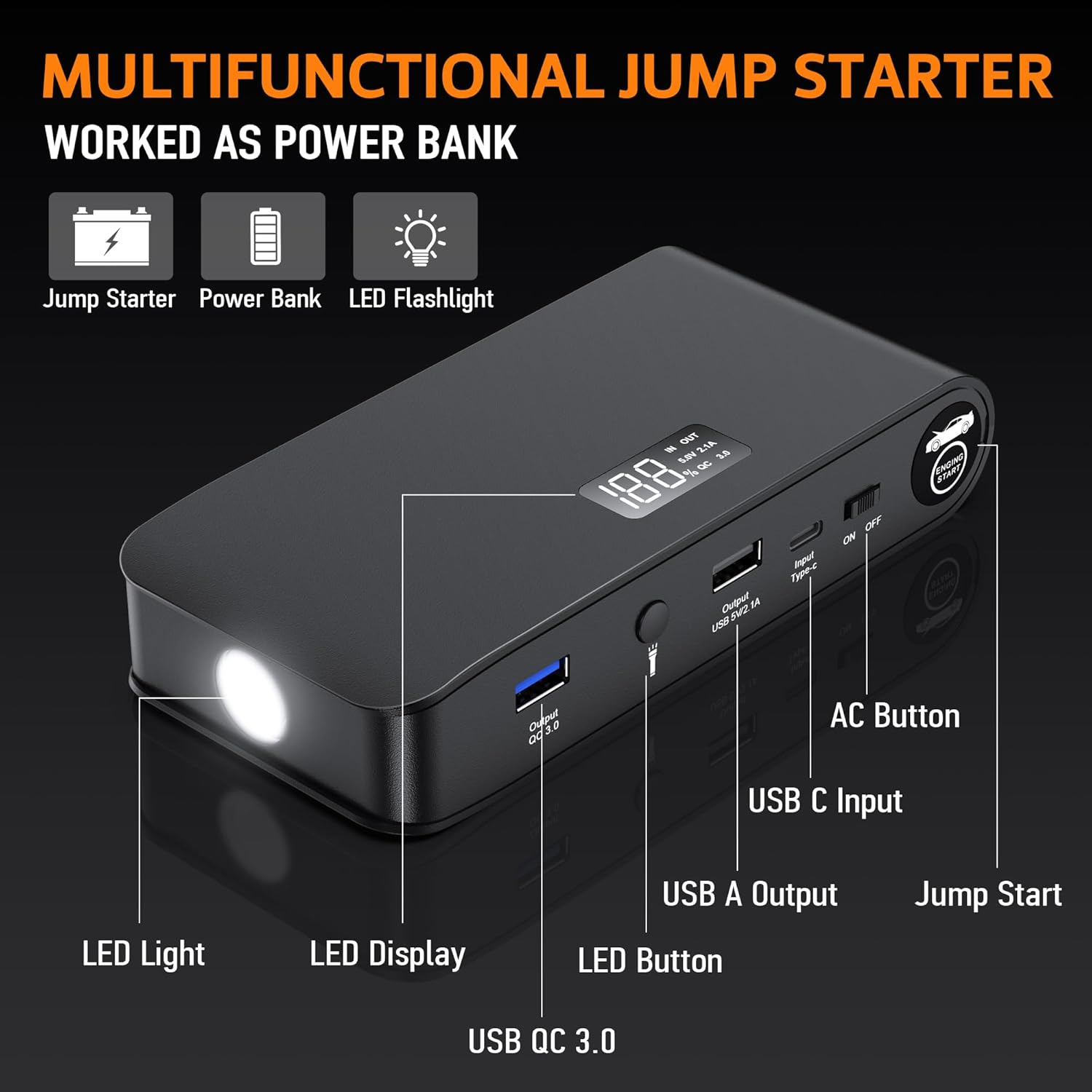

Figure 3: The BOOKOO Q6 functions as a jump starter, power bank, and LED flashlight.

4. Setup and Charging

4.1 Initial Charge

Before first use, fully charge the BOOKOO Q6 jump starter. Connect the provided USB A to USB C cable to the jump starter's USB Type-C input port and plug the other end into a suitable USB power adapter (not included). The LED display will show the charging progress. A full charge typically takes approximately 4 hours.

4.2 Checking Battery Level

Press the power button on the jump starter to view the current battery level on the LED display. Ensure the device is sufficiently charged before attempting to jump start a vehicle.

Figure 4: The jump starter can charge multiple devices and displays its own battery level.

5. Operating Instructions

5.1 Jump Starting a Vehicle

Follow these steps carefully to safely jump start your vehicle:

1. Step 1: Ensure the jump starter is adequately charged.
2. Step 2: Insert the blue plug of the jumper cable into the jump starter's EC5 port. Ensure a tight connection.
3. Step 3: Connect the red (+) clamp to the positive (+) terminal of the vehicle's battery.
4. Step 4: Connect the black (-) clamp to the negative (-) terminal of the vehicle's battery.
5. Step 5: Once connected, the indicator light on the jumper cable will turn green, indicating it's ready. If the battery is extremely low, you may need to press the "Boost" button on the jumper cable block for a few seconds until the green light illuminates.
6. Step 6: Start your vehicle's engine.
7. Step 7: Once the engine starts, immediately remove the jumper clamps from the vehicle battery, then disconnect the jumper cable from the jump starter.

Figure 5: Step-by-step guide for jump starting a vehicle.

Official Product Video: How to Jump Start Your Car

Video 1: This video demonstrates the correct procedure for using the BOOKOO Car Battery Jump Starter to start a vehicle with a dead battery.

5.2 Using as a Power Bank

The BOOKOO Q6 can charge various portable electronic devices:

• Connect your device's USB charging cable to one of the USB output ports (USB-A or QC 3.0) on the jump starter.
• The jump starter will automatically begin charging your device.
• The USB Type-C port can also be used as an output to charge compatible devices.

5.3 Using the LED Flashlight

The built-in LED flashlight has three modes:

1. To turn on: Press and hold the flashlight button for a few seconds.
2. To cycle modes: Briefly press the flashlight button to switch between Lighting, Strobe, and SOS modes.
3. To turn off: Press and hold the flashlight button again.

Figure 6: The LED flashlight offers multiple modes for different situations.

6. Safety Information and Intelligent Protection

The BOOKOO Q6 is designed with advanced safety features to protect both the user and the vehicle:

• Short Circuit Protection: Prevents damage from accidental short circuits.
• Over-current Protection: Safeguards against excessive current flow.
• Reverse Polarity Protection: Alerts and prevents damage if clamps are connected incorrectly.
• Over-voltage Protection: Protects against voltage surges.
• Overcharge Protection: Prevents battery damage from overcharging.
• Spark-proof Protection: Ensures safe connection without sparks.
• Overload Protection: Shuts down if overloaded to prevent damage.
• Over-temperature Protection: Monitors and regulates internal temperature.

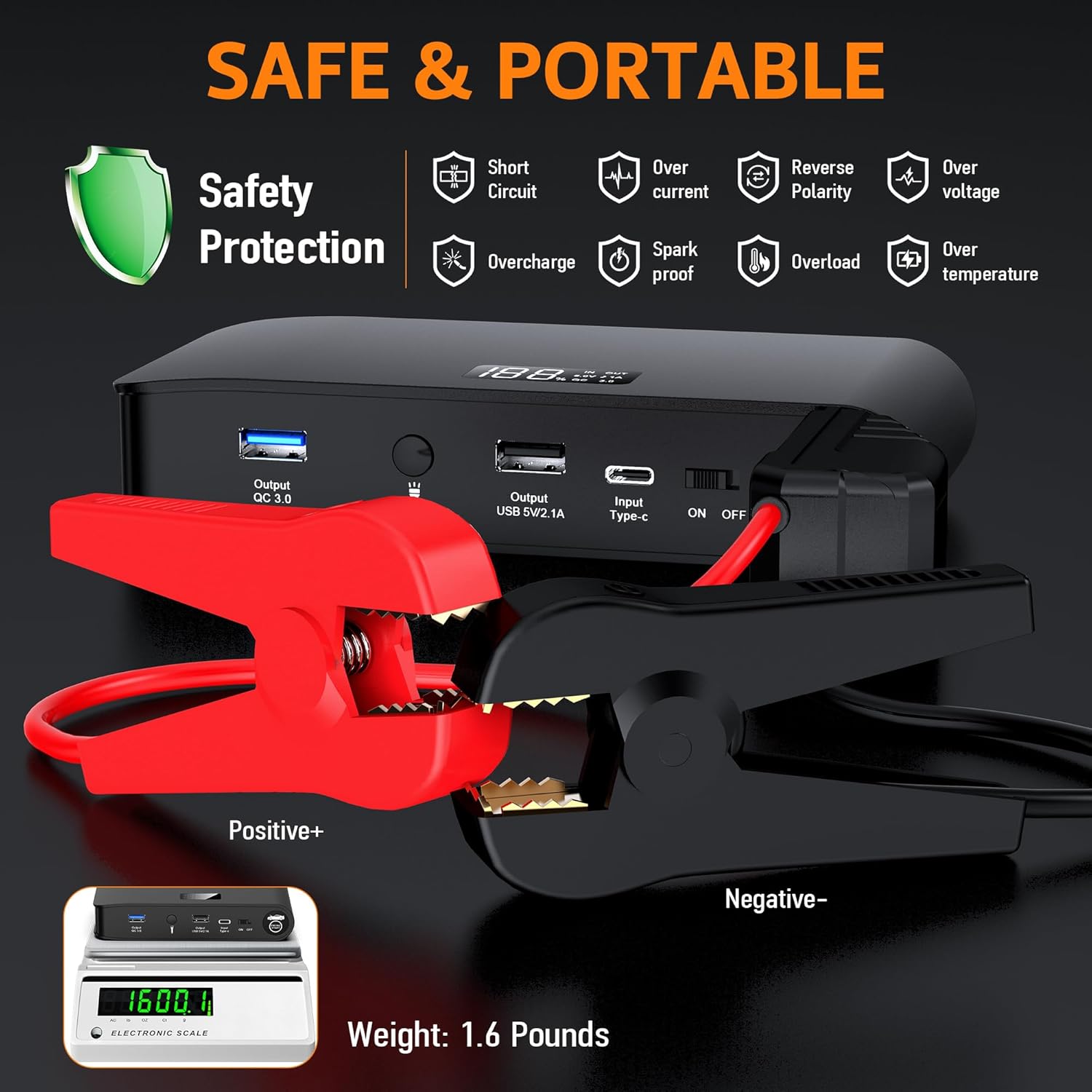

Figure 7: The intelligent protection system ensures safe operation.

7. Maintenance

• Recharging: It is recommended to recharge the jump starter every 3 months, even if not in use, to maintain optimal battery health.
• Storage: Store the device in a cool, dry place. Avoid extreme temperatures.
• Cleaning: Use a soft, dry cloth to clean the device. Do not use harsh chemicals or abrasive materials.

8. Troubleshooting

• Device not turning on: Ensure the device is charged. If the battery is completely drained, it may take a few minutes of charging before the display activates.
• Vehicle not starting in cold weather: The battery may not perform optimally in extreme cold. Keep the jump starter in a warmer place before use.
• Jumper cable indicator light not green: Check connections to the vehicle battery terminals. Ensure the jump starter is adequately charged. If the vehicle battery is extremely low, use the "Boost" function as described in section 5.1.

9. Specifications

10. Warranty and Support

BOOKOO provides lifetime technical support for its power booster jump starters. For any questions or assistance, please contact BOOKOO customer service.

For more information or to contact support, please visit the official BooKoo Store.
