Furinno Jaya Kitchen Storage Shelf with Cabinet, Model 21031CWN Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Furinno Jaya Kitchen Storage Shelf with Cabinet, Model 21031CWN. Please read all instructions carefully before assembly and use to ensure safe and proper operation. Keep this manual for future reference.

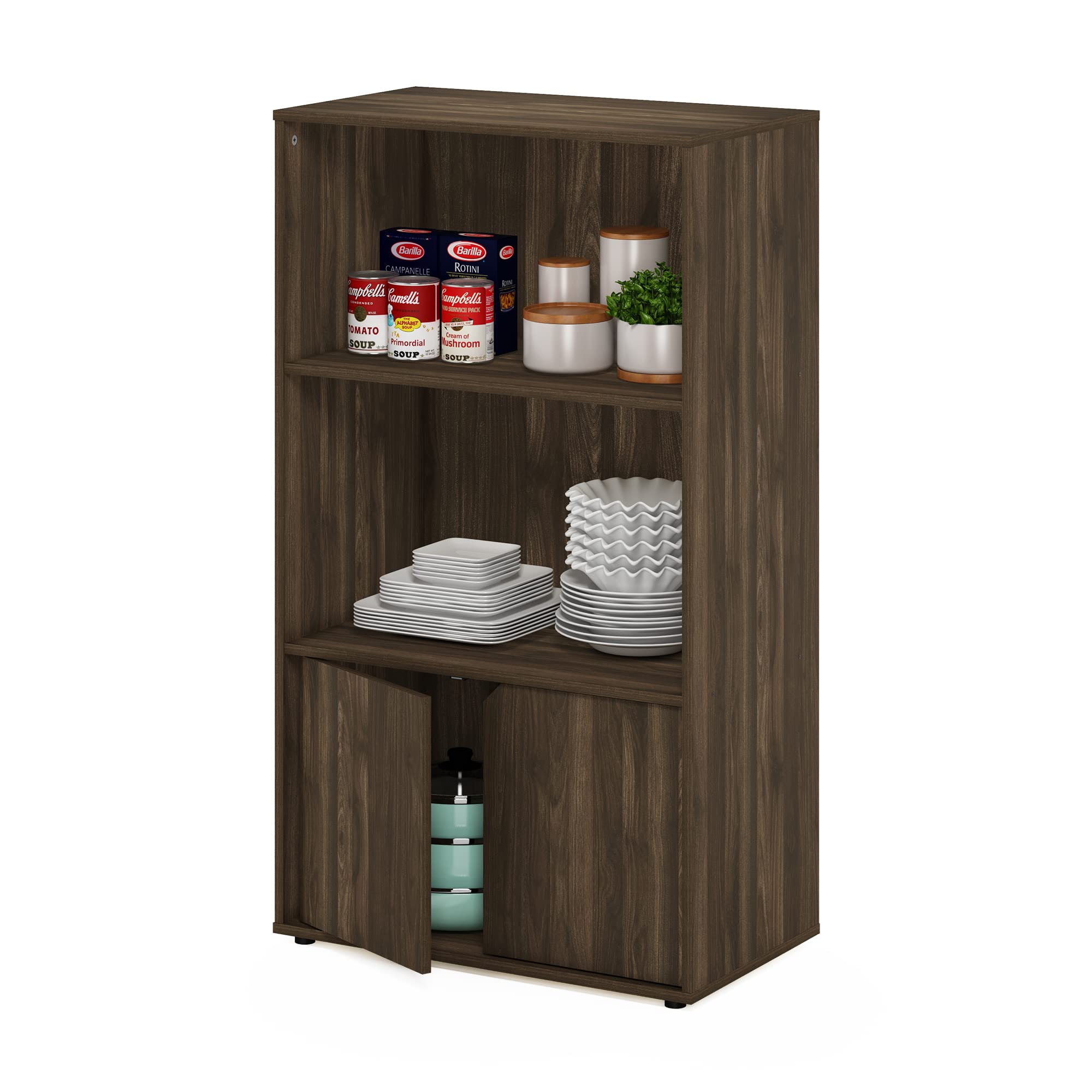

Image: The Furinno Jaya Kitchen Storage Shelf with Cabinet, Columbia Walnut finish.

Safety Information

Important Safety Precautions:

• Keep away from naked flame or direct heat sources.
• Ensure all parts are securely fastened before use.
• Do not overload shelves; adhere to maximum weight recommendations.
• Place the unit on a flat, stable surface to prevent tipping.
• Keep small parts away from children during assembly.

Product Overview

The Furinno Jaya Kitchen Storage Shelf with Cabinet is a versatile unit designed for kitchen organization. It features open shelving for easy access and a closed cabinet for concealed storage. Constructed from engineered wood, it offers a durable and functional solution for various items.

Key Features:

• Versatile Storage: 3-tier design with open shelves and a double-door cabinet.
• Smart Layout: Two open shelves (approx. 26" wide with 13.9" clearance) for appliances and dishes.
• Durable Construction: Made from engineered wood with a reinforced back and non-scratch feet.
• Easy Assembly: Includes step-by-step instructions and labeled parts.
• Dimensions: 15.55" (D) x 27.36" (W) x 47.99" (H).

Image: The storage shelf with various kitchen items, demonstrating its capacity.

Setup and Assembly

Assembly of the Furinno Jaya Kitchen Storage Shelf is designed to be straightforward. Please follow the included step-by-step instructions and ensure all parts are accounted for before beginning.

Before You Begin:

• Unpack all components and lay them out on a clean, soft surface to prevent scratches.
• Verify that all hardware and panels listed in the assembly instructions are present.
• You may need a Phillips head screwdriver (not included).

Assembly Steps:

1. Attach the cam locks and dowels to the designated panels as per the instruction diagram.
2. Connect the side panels to the base and top panels using the cam locks and studs.
3. Insert the fixed shelves into their respective slots.
4. Assemble the back panel by sliding it into the grooves and securing it with small nails or screws.
5. Attach the hinges to the cabinet doors and then to the main unit. Adjust hinges for proper door alignment.
6. Install the door handles.
7. Attach the non-scratch feet to the bottom of the unit.

Image: Dimensional drawing of the storage shelf, showing overall and internal measurements.

For detailed visual guidance, refer to the assembly instructions included in your package. If any parts are missing or damaged, please contact customer support.

Operating Instructions

The Furinno Jaya Kitchen Storage Shelf is designed for organizing various kitchen and pantry items. Its open shelves provide easy access, while the cabinet offers discreet storage.

Usage Guidelines:

• Open Shelves: Ideal for frequently used items such as small appliances (microwaves, coffee makers), dishes, cookbooks, or decorative items. Ensure items fit within the 13.9-inch clearance.
• Closed Cabinet: Use the double-door cabinet to store bulkier items, pantry staples, or anything you prefer to keep out of sight.
• Weight Distribution: Distribute weight evenly across shelves. Avoid placing excessively heavy items on the top shelf to maintain stability. The maximum weight recommendation is 35 pounds per shelf.

Image: The storage shelf organized with canned goods, dishes, and other kitchen essentials.

Maintenance

Proper care will extend the life and appearance of your storage shelf.

Cleaning Instructions:

• Wipe clean with a clean, damp cloth.
• Avoid using harsh chemicals, abrasive cleaners, or polishes, as these can damage the laminate finish.
• Immediately wipe up any spills to prevent moisture damage.

General Care:

• Periodically check all fasteners and tighten if necessary to ensure stability.
• Avoid exposing the unit to direct sunlight or extreme temperature changes to prevent warping or fading.

Troubleshooting

If you encounter any issues with your Furinno Jaya Kitchen Storage Shelf, refer to the following common solutions:

Common Issues and Solutions:

• Unit is wobbly: Ensure all cam locks and screws are fully tightened. Check that the unit is placed on a level surface.
• Cabinet doors do not align: Adjust the hinges on the cabinet doors. Most hinges allow for minor adjustments to align the doors horizontally and vertically.
• Difficulty during assembly: Re-read the assembly instructions carefully. Ensure you are using the correct hardware for each step. If a part seems forced, double-check the orientation.
• Missing or damaged parts: Do not attempt to assemble with missing or damaged parts. Contact Furinno customer support for replacements.

Specifications

Warranty and Support

Manufacturer Warranty:

This product comes with a 1-year limited manufacturer's warranty. Please retain your proof of purchase for warranty claims.

Customer Support:

For assistance with assembly, missing parts, or any product-related inquiries, please contact Furinno customer support. You can typically find contact information on the manufacturer's website or through the retailer where the product was purchased.

If purchased through Amazon, the seller is OJCommerce. For order-specific support, please refer to your Amazon order details.
