ET2 Modular E30170-BK LED Outdoor Wall Mount: Installation and Operation Manual

1. Product Overview

The ET2 Modular E30170-BK is a 16W 2 LED outdoor wall mount fixture designed for both indoor and outdoor applications. It features a streamlined cast aluminum disc with a slight curve and integrated LED lights, providing functional illumination. The fixture is constructed from high-quality aluminum for durability and weather resistance.

Key features include a Color Rendering Index (CRI) of 90 for enhanced color accuracy and customizable shade options, including Dark Sky compliant down-lights and various glass lens designs.

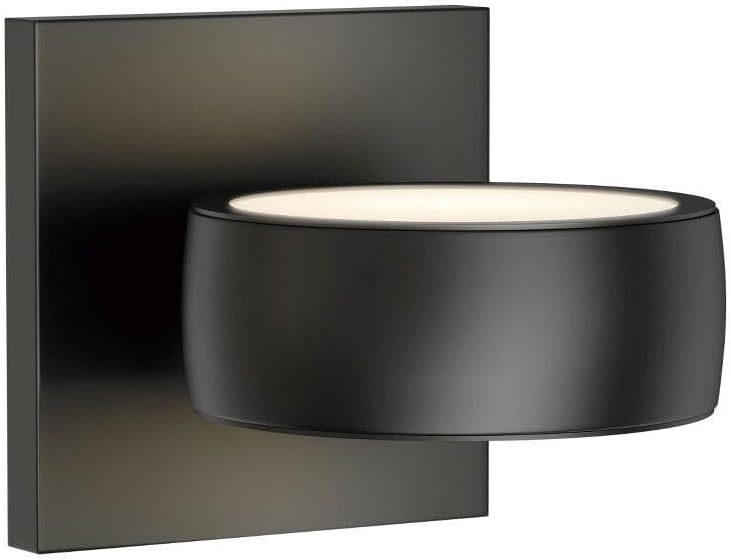

Image 1.1: ET2 Modular E30170-BK LED Outdoor Wall Mount, front view. This image shows the black aluminum disc with the illuminated LED light source.

2. Safety Information

WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.

• Read all instructions carefully before beginning installation.
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
• Use only UL/cUL listed wire connectors suitable for the size, type, and number of conductors.
• Ensure all electrical connections are secure and comply with local codes and ordinances.
• Do not install near combustible materials.
• Wear safety glasses and gloves during installation.
• This fixture is rated for outdoor use. Ensure all seals and gaskets are properly seated to prevent water intrusion.

3. Package Contents

Verify that all components are present before beginning installation. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support for assistance.

• LED Wall Mount Fixture (1)
• Mounting Plate (1)
• Mounting Screws (2)
• Wire Connectors (3)
• Instruction Manual (1)

4. Setup and Installation

Professional installation is recommended for this product. Ensure power is disconnected at the circuit breaker before proceeding.

1. Prepare the Installation Area: Turn off power at the main circuit breaker. Ensure the wall surface is clean, dry, and structurally sound.
2. Attach Mounting Plate: Secure the mounting plate to the junction box using the provided mounting screws. Ensure the plate is flush against the wall.
3. Make Electrical Connections:
   • Connect the black fixture wire to the black supply wire (Live) using a wire connector.
   • Connect the white fixture wire to the white supply wire (Neutral) using a wire connector.
   • Connect the green or bare copper fixture wire to the green or bare copper supply wire (Ground) using a wire connector.

   Ensure all connections are tight and no bare wire is exposed.

4. Mount the Fixture: Carefully align the fixture with the mounting plate and secure it using the provided screws. Ensure the fixture is firmly attached and sealed against the wall to maintain its outdoor rating.
5. Restore Power: Once the fixture is securely installed and all connections are checked, restore power at the circuit breaker.

Image 4.1: Side view of the ET2 Modular E30170-BK fixture, illustrating its profile for mounting reference. This image shows the depth of the fixture and how it extends from the wall.

5. Operating Instructions

The ET2 Modular E30170-BK LED Outdoor Wall Mount operates by standard electrical power. Once installed and power is restored, the fixture can be controlled via a standard wall switch connected to the circuit.

• Turning On/Off: Use the wall switch connected to the fixture's power supply to turn the light on or off.
• Integrated LED: This fixture uses integrated LED technology, meaning there are no bulbs to replace. The LEDs are designed for long-term performance.
• Control Method: While the product specifications mention "App" and "Remote Control" as control methods, these features are typically dependent on additional smart home integration or specific product variants not detailed here. For the standard E30170-BK model, operation is primarily via a wall switch. Consult your smart home system's manual for integration if applicable.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your ET2 Modular E30170-BK LED Outdoor Wall Mount.

• Cleaning:
  • Ensure power is off before cleaning.
  • Wipe the fixture with a soft, damp cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
  • Avoid spraying water directly onto the fixture.
• Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. Ensure the seals for outdoor use remain intact.
• LED Care: The integrated LEDs do not require replacement. If the light output diminishes or fails, contact customer support.

7. Troubleshooting

If you experience issues with your ET2 Modular E30170-BK fixture, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, contact customer support or a qualified electrician.

8. Specifications

9. Warranty Information

This ET2 Modular E30170-BK LED Outdoor Wall Mount is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.

For warranty claims or further details, please retain your proof of purchase and contact ET2 customer support.

10. Customer Support

If you have any questions, require technical assistance, or need to report a missing or damaged part, please contact ET2 customer support.

For the most up-to-date contact information, please visit the official ET2 website or refer to the packaging.

Online Resources: ET2 Store on Amazon
