1. Product Overview
The IKEA GENOMSNITT Digital Kitchen Scale (Model 004.964.25) is designed for precise measurement of ingredients up to 2 kg. Its compact and simple design makes it a practical addition to any kitchen.

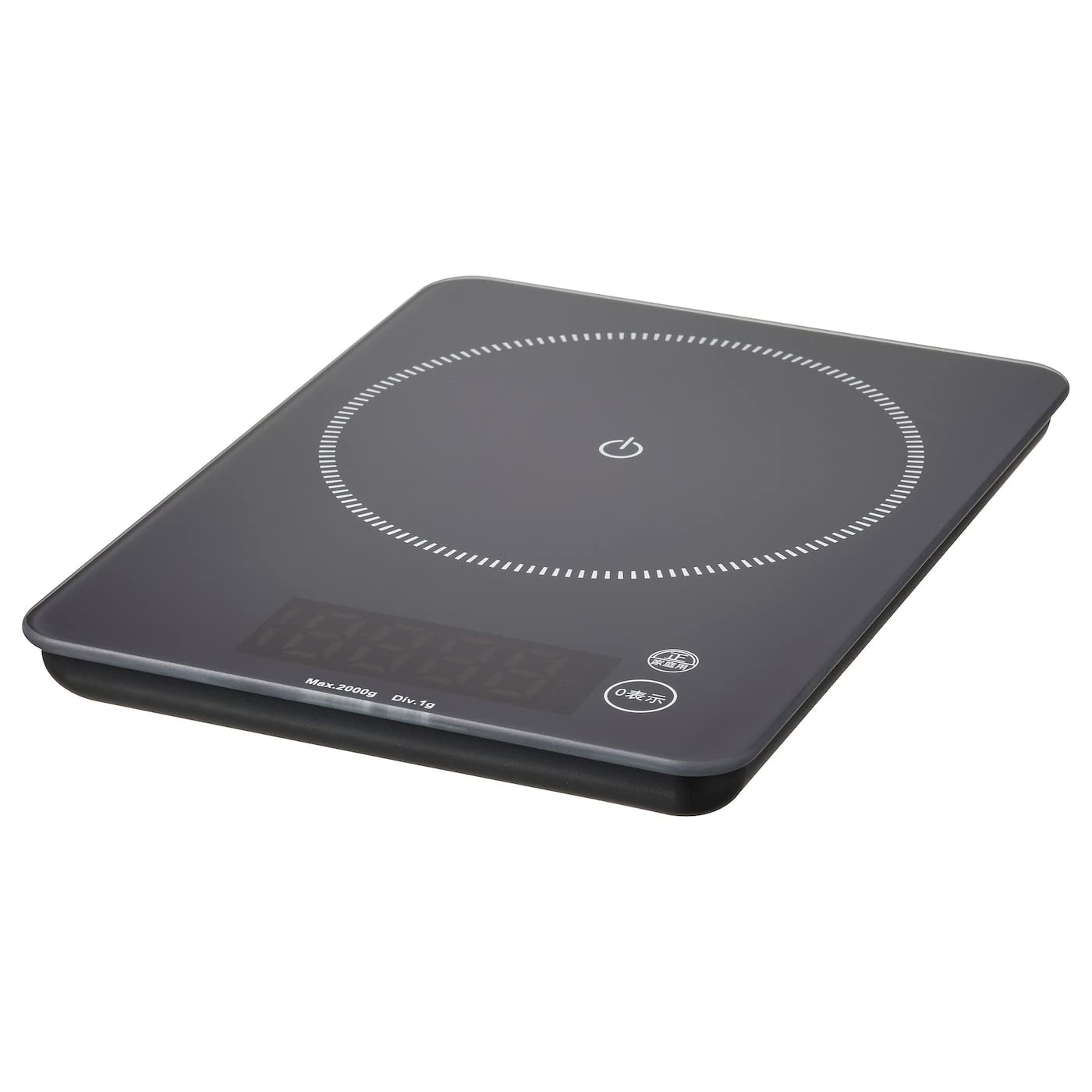

Figure 1: IKEA GENOMSNITT Digital Kitchen Scale. This image shows the scale from a top-down perspective, highlighting its minimalist design and digital display.
2. Setup
2.1 Unpacking
Carefully remove the kitchen scale from its packaging. Ensure all components are present: the scale unit and any included batteries (if applicable).
2.2 Battery Installation
Locate the battery compartment on the underside of the scale. Open the compartment cover, insert the required batteries (type not specified, but typically AAA or button cell), ensuring correct polarity. Close the compartment cover securely.
2.3 Placement
Place the scale on a flat, stable, and level surface to ensure accurate measurements. Avoid placing it near heat sources, strong vibrations, or in direct sunlight.
3. Operation
3.1 Powering On/Off
Press the ON/OFF button to turn the scale on. The display will show "0g" when ready for use. To turn off, press and hold the ON/OFF button, or the scale will automatically shut off after a period of inactivity to conserve battery life.
3.2 Measuring Ingredients (Tare Function)
- Place an empty container on the scale.
- Press the TARE button (or "0 Display" button as per product description) to reset the display to zero. This function allows you to measure ingredients without including the weight of the container.
- Add your ingredients to the container. The display will show the net weight of the ingredients.
- To measure additional ingredients in the same container, press the TARE button again after adding each ingredient to reset the display to zero before adding the next.
3.3 Weight Capacity and Accuracy
- Maximum weight capacity: 2 kg.
- Measurement increments: 1g.
- Tolerance:
- 0-500g: +/- 2g
- 501-2000g: +/- 3g
4. Maintenance
4.1 Cleaning
Wipe the scale clean with a damp cloth. Do not immerse the scale in water or use abrasive cleaners, as this can damage the electronic components.
4.2 Storage
Store the scale in a dry place at room temperature. Avoid storing it in areas with extreme temperatures or high humidity. The compact design allows for easy storage in drawers or on shelves.
5. Specifications
| Feature | Detail |
|---|---|
| Model Number | 004.964.25 |
| Brand | IKEA |
| Color | Black |
| Maximum Weight Capacity | 2 kg |
| Measurement Increment | 1g |
| Measurement Tolerance (0-500g) | +/- 2g |
| Measurement Tolerance (501-2000g) | +/- 3g |
| Materials (Top) | Tempered glass |
| Materials (Bottom) | Polystyrene plastic |
| Materials (Feet) | Synthetic rubber |
| Product Weight (approx.) | 0.42 kg |
| Package Dimensions (Width) | 16 cm |
| Package Dimensions (Height) | 2 cm |
| Package Dimensions (Length) | 21 cm |
6. Troubleshooting
6.1 Inaccurate Readings
- Ensure a stable surface: The scale must be placed on a flat, hard, and stable surface. Uneven surfaces can lead to inaccurate measurements.
- Check battery level: Low batteries can affect accuracy. Replace batteries if the display is dim or shows an error message.
- Avoid overloading: Do not exceed the maximum weight capacity of 2 kg. Overloading can damage the scale and lead to incorrect readings.
- Tare function: Always use the tare function to zero out the weight of containers before adding ingredients.
6.2 Scale Does Not Turn On
- Check batteries: Ensure batteries are correctly installed and not depleted. Replace with new batteries if necessary.
- Battery compartment: Make sure the battery compartment cover is securely closed.
7. Warranty & Support
For information regarding warranty coverage and customer support, please refer to the documentation provided with your purchase or visit the official IKEA website. Keep your proof of purchase for warranty claims.
Manufacturer: IKEA of Sweden
