Introduction
This manual provides essential information for the safe and efficient operation of your Hisense 1.6 cu. ft. Compact Refrigerator. Please read these instructions thoroughly before installation and use, and retain them for future reference. This compact refrigerator is designed for convenient storage of beverages and food items in small spaces.
Safety Information
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
- Ensure the refrigerator is properly grounded.
- Do not operate the refrigerator with a damaged power cord or plug.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the refrigerator before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator.
Unpacking
Remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any damage. Keep packaging materials out of reach of children.
Placement
Place the refrigerator on a flat, stable surface strong enough to support the unit when fully loaded. Allow at least 5 inches (12.7 cm) of space on the back and sides for proper air circulation and heat dissipation.
Image: Front view of the Hisense compact refrigerator with its dimensions (47cm width, 44cm depth, 50cm height) clearly indicated.
Adjustable Legs
The refrigerator is equipped with adjustable leveling legs. Turn the legs clockwise to raise the unit or counter-clockwise to lower it. Ensure the refrigerator is level to prevent vibrations and ensure proper door sealing.
Image: A diagram illustrating the adjustable leveling legs at the bottom of the refrigerator, highlighting their function for stability on uneven floors.
Reversible Door
This unit features a reversible door hinge, allowing you to change the door swing direction from right to left, or left to right, to best suit your space and preference. Refer to the detailed instructions in the full manual for the door reversal procedure.
Image: A visual representation of the reversible door feature, showing how the door can be configured to open from either the left or the right side.
Initial Power-On
After placement and leveling, wait at least 2-4 hours before plugging the refrigerator into a power outlet. This allows the refrigerant to settle. Once plugged in, the compressor will start, and the interior will begin to cool.
Operating Instructions
Temperature Control
Your refrigerator is equipped with a mechanical thermostat for temperature adjustment. The control dial is located inside the unit. Turn the dial to adjust the cooling level. Settings typically range from 'MIN' (least cool) to 'MAX' (most cool). 'OFF' will stop cooling.

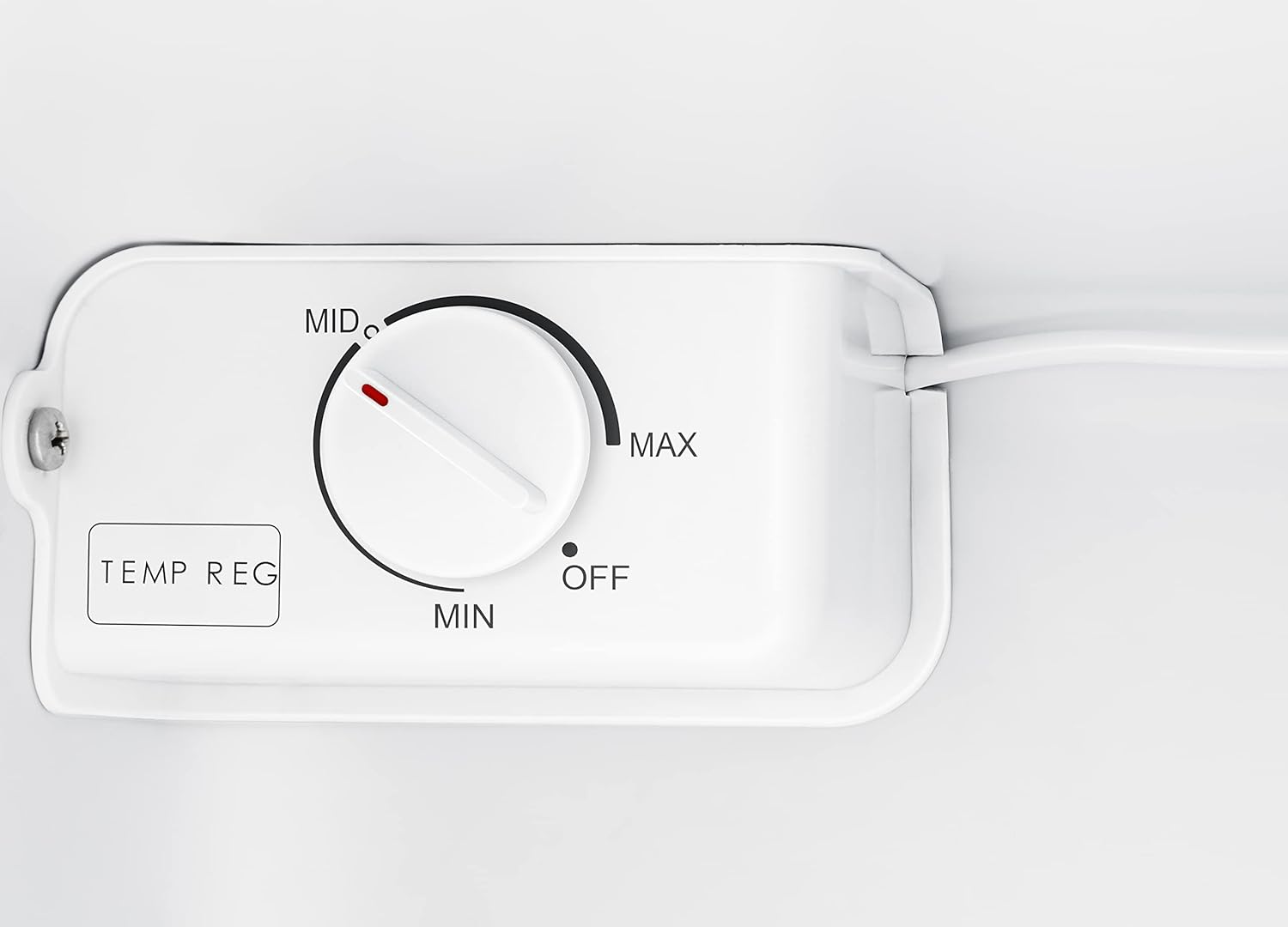

Image: A close-up view of the internal mechanical temperature control dial, showing settings from MIN to MAX and OFF.
Storage Capacity
The refrigerator offers a 1.6 cubic feet capacity, providing optimal space for storing various items. It includes a dedicated 2-liter beverage storage rack, allowing you to store large bottled drinks efficiently and free up shelf space.
Image: The interior of the compact refrigerator, showcasing its capacity with various items like fruits, bottled water, and a 2-liter soda bottle in the door rack.
Image: A diagram emphasizing the dedicated 2-liter beverage storage area within the refrigerator door, designed for larger bottles.
Low Noise Operation
Equipped with a high-quality compressor, this unit is designed to operate quietly while maintaining highly efficient cooling performance, minimizing disturbance in your living space.
Image: The compact refrigerator positioned in a living area next to a chair with a cat, visually representing its low noise operation suitable for quiet environments.
Energy Efficiency
This refrigerator is Energy Star certified, meaning it meets strict energy efficiency guidelines. This helps reduce energy consumption, leading to lower utility bills and a reduced environmental impact.
Image: A graphic featuring the Energy Star logo alongside a stylized tree, symbolizing the refrigerator's energy efficiency and environmental benefits.
Maintenance
Cleaning
Regular cleaning helps maintain the efficiency and appearance of your refrigerator. Unplug the unit before cleaning. Use a soft cloth with a mild detergent and warm water to clean the interior and exterior surfaces. Do not use abrasive cleaners or harsh chemicals. Dry thoroughly after cleaning.
Defrosting
This refrigerator features an automatic defrost system, which minimizes the need for manual defrosting. However, if ice buildup occurs in the freezer compartment, unplug the unit and allow the ice to melt naturally. Do not use sharp objects to remove ice.
Troubleshooting
Before contacting service, please check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate | Not plugged in; circuit breaker tripped; temperature control set to 'OFF'. | Ensure plug is secure; reset circuit breaker; turn temperature control to desired setting. |
| Temperature is not cold enough | Door opened too frequently; warm food placed inside; poor ventilation; temperature control set too low. | Minimize door openings; allow hot food to cool before placing inside; ensure adequate clearance around unit; adjust temperature control to a colder setting. |
| Excessive noise | Refrigerator is not level; objects vibrating against the unit. | Adjust leveling legs; ensure nothing is touching the refrigerator. |
| Moisture buildup inside | Door not closed properly; high humidity; food not covered. | Check door seal and ensure it closes completely; cover food items. |
Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Hisense |
| Product Model Number | RC16C1GBE |
| Product Dimensions | 47 x 44 x 50 cm (18.5 x 17.3 x 19.7 inches) |
| Weight | 13 kg (28.7 lbs) |
| Brand | Hisense |
| Capacity | 1.6 Cubic Feet |
| Color | Black |
| Special Feature | Compact Design |
| Installation Type | Freestanding |
| Number of Doors | 1 |
| Defrost System | Automatic |
| Voltage | 115 Volts |
| Finish Type | Matte |
| Freezer Capacity | 2 Liters |
Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Hisense website. Keep your purchase receipt as proof of purchase for any warranty claims.
For further assistance, you may contact Hisense customer service directly. Contact details are typically available on the Hisense website or in the product packaging.
