ENGiNDOT 1500W 4-Function Rotary Hammer Drill

1. Introduction

Thank you for choosing the ENGiNDOT 1500W 4-Function Rotary Hammer Drill, Model TRH01A. This powerful and versatile tool is designed for a wide range of drilling and chiseling tasks in various materials, including concrete, metal, wood, and masonry. Please read this manual carefully before operation to ensure safe and efficient use of the product. Keep this manual for future reference.

2. Safety Instructions

Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury.

• Work Area Safety: Keep the work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
• Electrical Safety: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges, and refrigerators.
• Personal Safety: Always wear eye protection (safety goggles) and hearing protection (earplugs or earmuffs). Use a dust mask if operations create dust. Dress properly; avoid loose clothing or jewelry. Secure long hair.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools.
• Vibration Damping Technology (VDT): This tool features VDT to reduce vibration. However, prolonged use can still cause vibration-related injuries. Take regular breaks and use appropriate gloves.
• Safety Clutch: The integrated safety clutch reduces sudden kickback if the drill bit jams. Always maintain a firm grip on the tool.
• Double Insulation: This tool is double-insulated for enhanced electrical safety. Do not bypass or modify this feature.

3. Package Contents

Upon unpacking, please verify that all items listed below are present and undamaged. If any parts are missing or damaged, contact customer support.

Image: Package contents including the rotary hammer drill, various bits, and accessories.

• 1 x ENGiNDOT 1500W Rotary Hammer Drill (TRH01A)
• 1 x Carrying Case (PA6-GF30 plastic)
• 3 x SDS-Plus Drill Bits (8mm, 10mm, 12mm)
• 1 x Flat Chisel
• 1 x Pointed Chisel
• 1 x SDS-Plus Chuck
• 1 x 360° Rotatable Auxiliary Handle
• 1 x Metal Depth Gauge
• 1 x Chuck Key
• 1 x Machine Oil Tube
• 1 x Dust Guard
• 2 x Carbon Brushes
• 1 x User Manual
• 1 x Warranty Certificate

4. Product Features

The ENGiNDOT TRH01A Rotary Hammer Drill is engineered with advanced features for optimal performance and user experience.

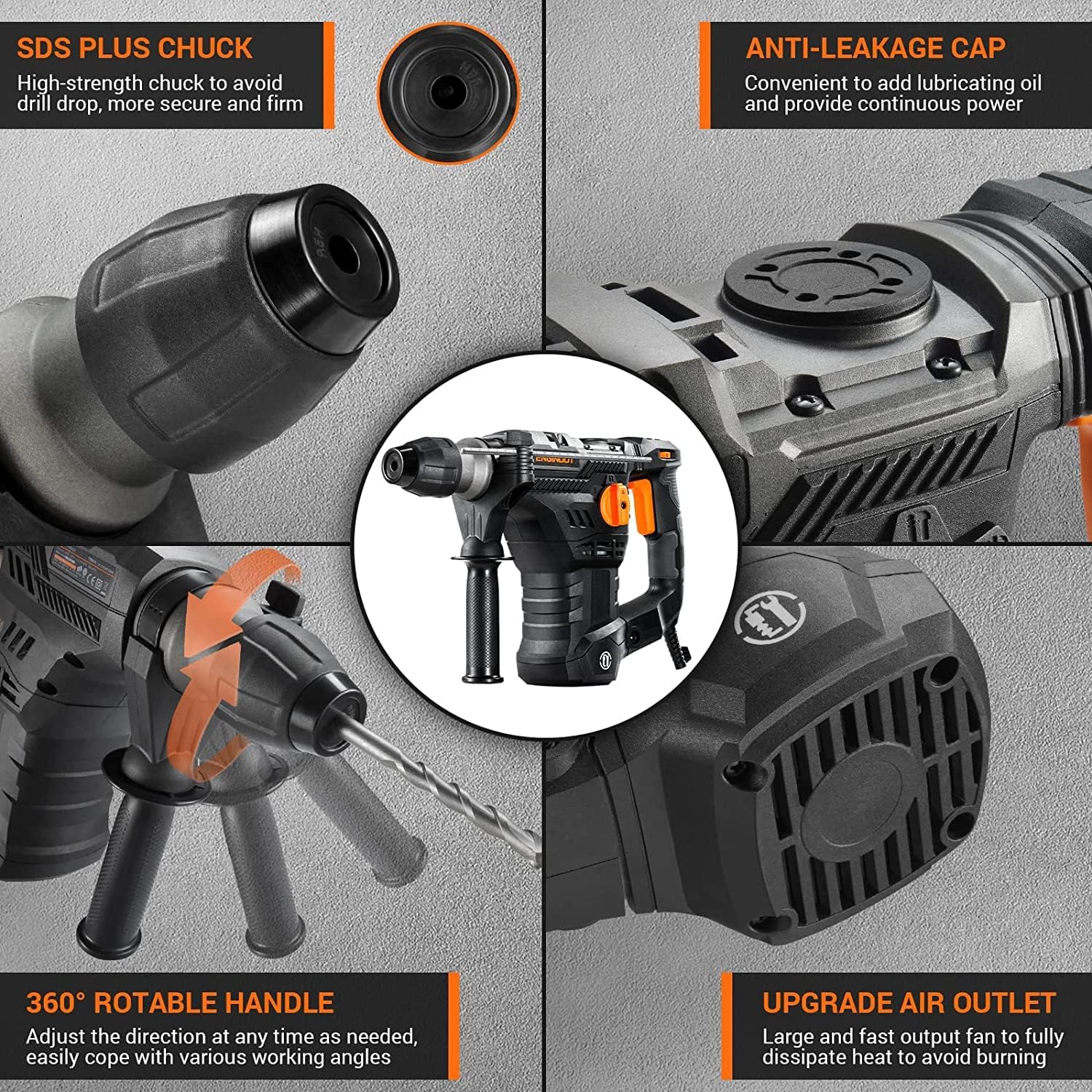

Image: Key features and components of the rotary hammer drill.

• Powerful 1500W Motor: Delivers 7 Joules of impact energy, 4350 BPM (blows per minute), and 900 RPM (revolutions per minute) for efficient work on tough materials.
• 4-Function Selector: Easily switch between Drilling, Hammer Drilling, Chiseling, and Chisel Angle Adjustment modes with a single button.
• Vibration Damping Technology (VDT): Advanced system in the handle effectively reduces vibrations, enhancing user comfort and control during extended use.
• SDS-Plus Keyless Chuck: Allows for quick and secure bit changes without the need for additional tools. An interchangeable chuck is included for standard drill bits.
• Safety Clutch: Integrated clutch protects the user and the tool by disengaging the drive if the bit jams, preventing sudden torque reactions.
• 360° Rotatable Auxiliary Handle: Provides optimal grip and control for various working angles and applications.
• Efficient Cooling System: Designed to prevent motor overheating, ensuring durability and consistent performance.
• Dust Guard: Helps prevent dust from entering the eyes during overhead drilling, improving safety.

5. Setup and Assembly

Before starting any work, ensure the tool is unplugged from the power source.

5.1 Attaching the Auxiliary Handle

The 360° rotatable auxiliary handle provides better control. Loosen the handle by twisting it counter-clockwise, slide it onto the tool's neck, adjust to the desired position, and tighten by twisting clockwise.

Image: Detail of the 360° rotatable handle adjustment.

5.2 Installing SDS-Plus Bits

1. Clean the shank of the SDS-Plus bit.
2. Insert the bit into the SDS-Plus chuck until it clicks into place. Pull on the bit to ensure it is securely locked.
3. To remove, pull back the chuck collar and pull the bit out.

5.3 Installing Standard Drill Bits (with adapter)

1. Attach the SDS-Plus adapter chuck to the rotary hammer drill as described in 5.2.
2. Insert the standard drill bit into the adapter chuck.
3. Tighten the chuck using the provided chuck key. Ensure the bit is centered and secure.
4. To remove, loosen the chuck with the key and pull the bit out.

5.4 Attaching the Depth Gauge

Insert the metal depth gauge into the hole on the auxiliary handle. Adjust it to the desired drilling depth and secure it by tightening the handle.

6. Operating Instructions

The ENGiNDOT TRH01A offers four operating modes for various applications.

Image: The 4-function selector switch and its corresponding modes.

6.1 Selecting Operating Mode

Use the multi-function selector button located on the side of the tool to choose the desired mode. Rotate the button to align with the icon for each function.

• Drilling Mode (Drill Icon): For drilling in materials like wood, metal, and plastic. Use with the standard chuck adapter and appropriate drill bits.
• Hammer Drilling Mode (Drill & Hammer Icon): For drilling in hard materials such as concrete, stone, and masonry. Use with SDS-Plus drill bits.
• Chiseling Mode (Chisel Icon): For light chiseling, chipping, or breaking concrete and masonry. Use with SDS-Plus chisels.
• Chisel Angle Adjustment Mode (Chisel with Arrow Icon): Allows you to rotate and lock the chisel at different angles for optimal working positions. This mode does not engage the hammer action.

6.2 Speed Control

The tool features 6-speed settings. Adjust the speed dial to match the material and application. Lower speeds are suitable for larger diameters or softer materials, while higher speeds are for smaller diameters or harder materials.

6.3 General Operation Tips

• Always hold the tool firmly with both hands, using the main handle and the auxiliary handle.
• Apply steady, even pressure. Do not force the tool.
• Ensure the workpiece is securely clamped or stable before drilling or chiseling.
• For hammer drilling and chiseling, allow the tool's impact mechanism to do the work.
• Regularly check the depth gauge to ensure accurate drilling depth.

Image: User operating the rotary hammer drill for chiseling.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your ENGiNDOT rotary hammer drill. Always unplug the tool before performing any maintenance.

7.1 Cleaning

• After each use, clean the tool's ventilation slots and housing with a soft brush or compressed air to remove dust and debris.
• Wipe the chuck and bit shank clean.
• Do not use water or chemical cleaners.

7.2 Lubrication

Periodically apply a small amount of the provided machine oil to the SDS-Plus chuck mechanism to ensure smooth operation and prevent wear. Use the anti-leakage cap for convenient application.

7.3 Carbon Brush Replacement

The carbon brushes are wear-resistant for approximately 120 hours of use. When the motor performance decreases or sparks become excessive, the carbon brushes may need replacement. Refer to the diagram for location. Replace both brushes at the same time. If unsure, consult a qualified technician.

Image: Internal components, including the disc shape carbon brush.

7.4 Storage

Store the tool and its accessories in the provided carrying case in a dry, secure place, out of reach of children.

8. Troubleshooting

If you encounter issues with your rotary hammer drill, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact ENGiNDOT customer support.

9. Specifications

Technical specifications for the ENGiNDOT TRH01A Rotary Hammer Drill.

Image: Dimensions and detailed specifications of the TRH01A model.

10. Warranty and Support

Your ENGiNDOT 1500W 4-Function Rotary Hammer Drill (Model TRH01A) comes with a 24-month warranty certificate, covering defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical assistance, troubleshooting, or warranty inquiries, please contact ENGiNDOT customer support through the retailer where the product was purchased or visit the official ENGiNDOT website for contact information.

Please note that the warranty does not cover damage caused by misuse, neglect, unauthorized repairs, or normal wear and tear.
