1. Introduction
Thank you for choosing the NATERIAL Horali Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new pergola. Please read it thoroughly before installation and keep it for future reference.
The Horali Pergola is designed to provide optimal protection from sun, wind, and light rain, creating a comfortable outdoor living space. Its robust aluminum and steel structure, combined with a water-repellent and UV-protective fabric, ensures durability and enjoyment for years to come.
Figure 1: Front view of the NATERIAL Horali Pergola.
2. Safety Information
- Always follow all assembly instructions carefully.
- Ensure all bolts and fasteners are securely tightened before use.
- Do not use the pergola in extreme weather conditions such as strong winds, heavy snow, or thunderstorms. The fabric canopy should be retracted or removed during such conditions to prevent damage.
- Regularly inspect the structure for any signs of wear, damage, or loose connections.
- Keep children and pets away from the assembly area.
- Do not hang heavy objects from the pergola frame.
- This pergola is intended for outdoor use only.
3. Components List
Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer service immediately.
| Part No. | Description | Quantity |
|---|---|---|
| A | Main Support Posts (Aluminum) | 4 |
| B | Top Frame Beams (Steel) | 4 |
| C | Retractable Canopy Fabric (Polyester 180 g/m²) | 1 |
| D | Canopy Support Rods | (Varies by design) |
| E | Mounting Hardware (Bolts, Nuts, Washers) | 1 Set |
| F | Tools (Wrench, Allen Key) | 1 Set |
4. Setup and Assembly
Assembly typically requires two people. Ensure you have enough space and a level surface for installation.
- Unpack and Identify Parts: Carefully unpack all components and lay them out. Refer to the Components List to ensure everything is present.
- Assemble the Base Frame: Connect the main support posts (A) to the top frame beams (B) using the provided mounting hardware (E). Ensure all connections are finger-tight at this stage.
- Raise the Frame: With assistance, carefully lift the assembled frame into its upright position.
- Secure the Frame: Once upright, fully tighten all bolts and fasteners. Ensure the frame is stable and square.
- Install the Canopy Support Rods: Attach the canopy support rods (D) to the top frame beams according to the diagram in your specific product manual (not provided here, but implied).
- Attach the Canopy Fabric: Slide or attach the retractable canopy fabric (C) onto the support rods. Ensure the fabric is correctly oriented for retraction and extension.
- Final Check: Double-check all connections for tightness and stability.

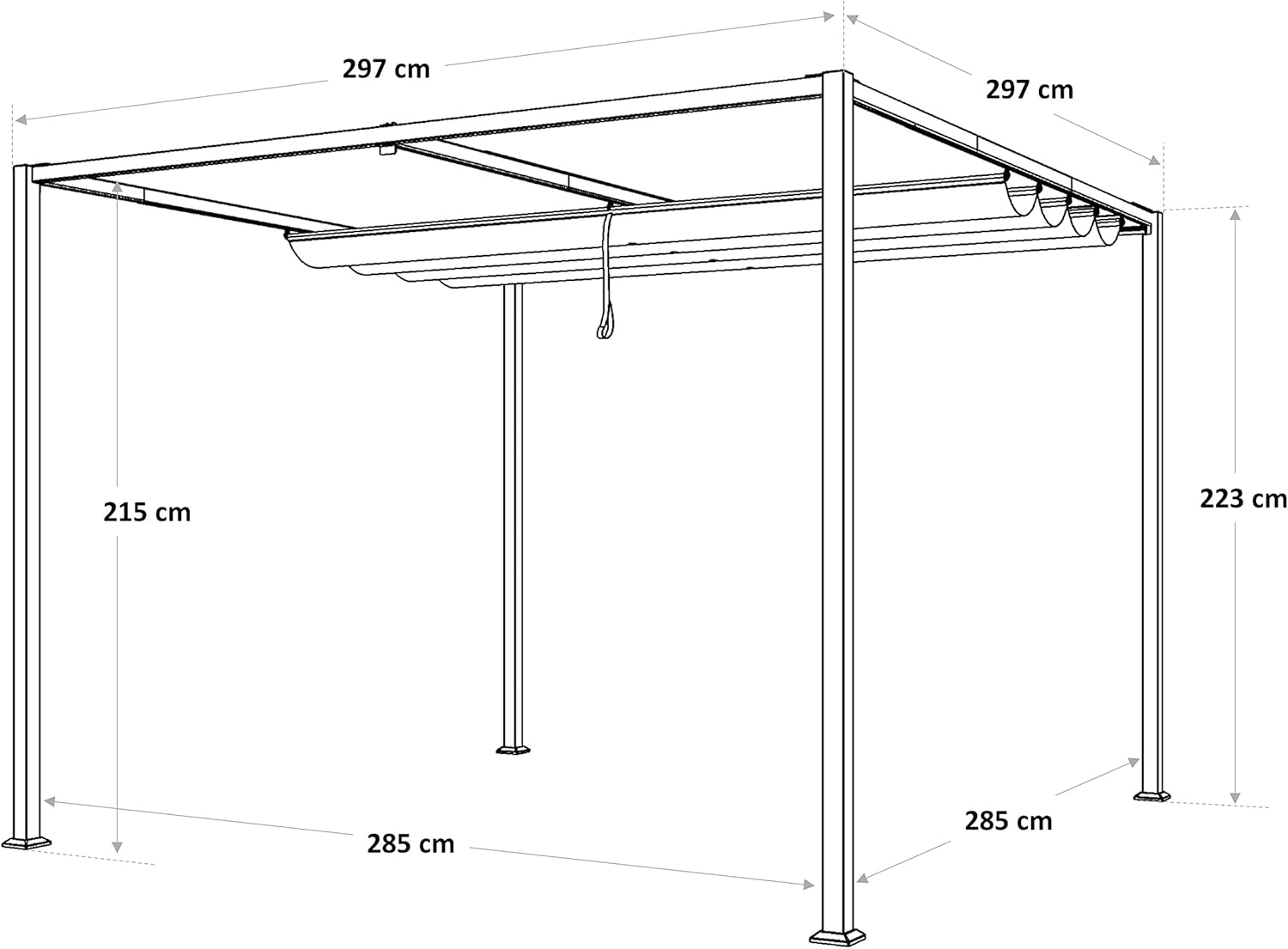

Figure 2: Dimensional drawing of the Horali Pergola, showing overall dimensions of 297 x 297 x 215 cm.
5. Operating Instructions
The Horali Pergola features a retractable canopy for adjustable shade and protection.
- To Extend the Canopy: Gently pull the designated cord or handle to slide the fabric canopy outwards, covering the desired area.
- To Retract the Canopy: Gently pull the designated cord or handle in the opposite direction to slide the fabric canopy inwards, exposing the area to sun.
- Weather Considerations: Always retract the canopy during strong winds, heavy rain, or snow to prevent damage to the fabric and frame.
Figure 3: The Horali Pergola providing shade over an outdoor seating area.
6. Maintenance
- Cleaning the Frame: Clean the aluminum and steel frame with a soft cloth and mild soapy water. Rinse thoroughly with clean water and dry. Avoid abrasive cleaners.
- Cleaning the Canopy Fabric: The polyester fabric can be cleaned with a soft brush and mild soapy water. Do not use harsh chemicals or bleach. Allow the fabric to air dry completely before retracting or storing.
- Seasonal Storage: For prolonged periods of non-use or during harsh winter conditions, it is recommended to remove the fabric canopy and store it in a dry, protected area.
- Regular Inspection: Periodically check all bolts and connections for tightness. Lubricate moving parts of the retraction mechanism if necessary.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Canopy difficult to retract/extend | Dirt in tracks, misaligned fabric, lack of lubrication. | Clean tracks, ensure fabric is aligned, apply silicone lubricant to moving parts. |
| Pergola feels unstable | Loose bolts, uneven ground. | Tighten all assembly bolts. Ensure the pergola is placed on a level surface. Consider anchoring if in a windy area. |
| Water pooling on canopy | Canopy not taut, heavy rain. | Ensure canopy is fully extended and taut. Retract canopy during very heavy rainfall. |
8. Specifications
- Model: Horali Pergola
- Manufacturer Reference: 3276000690948
- Brand: NATERIAL (by ADEO)
- Dimensions (L x W x H): 297 x 297 x 215 cm (9 m² coverage)
- Frame Material: Aluminum and Steel
- Canopy Material: 180 g/m² Polyester
- Color: Grey (Anthracite frame)
- UV Protection: Blocks 90% of UV rays
- Water Resistance: Water-repellent
- Assembly Required: Yes
9. Warranty and Support
For warranty information and customer support, please refer to the documentation provided at the time of purchase or visit the official NATERIAL website. Keep your proof of purchase for any warranty claims.
Manufacturer: ADEO
First Available Date: March 8, 2022
