Introduction
Thank you for choosing the Bloody M30 TWS True Wireless Earbuds. This manual provides detailed instructions for the proper use, setup, and maintenance of your earbuds. Please read this manual carefully before use to ensure optimal performance and longevity of your device.
What's in the Box
The Bloody M30 TWS True Wireless Earbuds package includes the following components:
- Bloody M30 True Wireless Earbuds (Left and Right)
- Charging Case
- User Manual
- Ear Sleeves (Multiple Sizes)
Setup
1. Charging the Earbuds and Case
Before first use, fully charge the earbuds and the charging case. Place the earbuds into the charging case. Connect the charging case to a power source using a compatible USB-C cable. The charging indicator lights on the case will show the charging status. A full charge typically takes approximately 1.5 hours.
2. Pairing with Your Device
The Bloody M30 earbuds feature one-step pairing for convenience.
- Open the charging case and take out both earbuds. They will automatically enter pairing mode.
- On your device (smartphone, tablet, etc.), navigate to the Bluetooth settings.
- Select "Bloody M30" from the list of available devices to connect.
- Once connected, the earbuds are ready for use.
Image: Illustration of the one-step pairing process, showing earbuds being taken out of the case and the Bluetooth settings on a phone displaying "Bloody M30" as connected.
3. Selecting the Right Ear Sleeves
For optimal sound quality and comfort, choose the ear sleeves that best fit your ears. The package includes multiple sizes (S, M, L). Gently insert the earbuds into your ear canal and twist slightly to secure them.
Image: A person wearing the Bloody M30 earbuds, demonstrating a comfortable and secure fit. Various ear sleeve sizes (S, M, L) are shown for selection.
Operating Instructions
Touch Controls
The Bloody M30 earbuds feature intuitive touch controls on each earbud. Refer to the diagram below for specific functions:
Image: Diagram illustrating the touch control functions for the Bloody M30 earbuds, including Volume -, Volume +, Play/Call, Previous Track, Next Track, and Voice Assistant, with corresponding tap gestures.
- Volume -: Long tap the left earbud for 2 seconds.
- Volume +: Long tap the right earbud for 2 seconds.
- Play/Pause/Answer Call: Single tap either earbud.
- End Call: Single tap either earbud during a call.
- Reject Call: Long tap either earbud for 2 seconds during an incoming call.
- Previous Track: Double tap the left earbud.
- Next Track: Double tap the right earbud.
- Activate Voice Assistant: Triple tap either earbud.
Power On/Off
- Power On: The earbuds automatically power on when removed from the charging case.
- Power Off: The earbuds automatically power off when placed back into the charging case and the lid is closed.
Maintenance
Cleaning
Regularly clean your earbuds and charging case to maintain optimal performance and hygiene. Use a soft, dry, lint-free cloth. Do not use abrasive cleaners or solvents. For ear tips, remove them and clean with a mild soap solution, then rinse and dry thoroughly before reattaching.
Water Resistance (IPX4)
The Bloody M30 earbuds are rated IPX4, meaning they are resistant to splashing water from any direction. This makes them suitable for exercise and light rain. However, they are not designed for submersion in water. Avoid exposing them to strong jets of water or swimming.

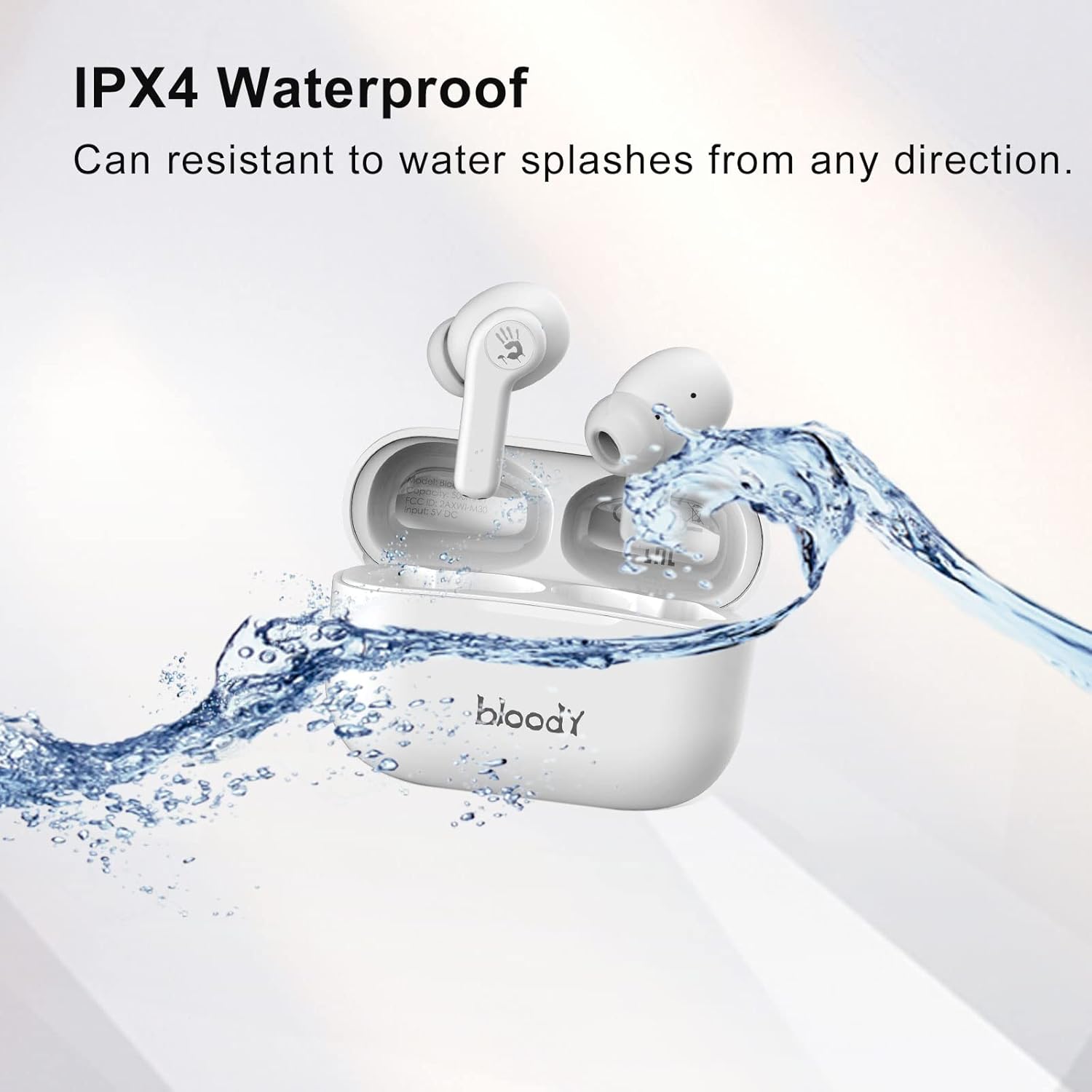

Image: The Bloody M30 earbuds and charging case being splashed with water, illustrating their IPX4 water resistance rating.
Storage
When not in use, store the earbuds in their charging case to protect them and keep them charged. Store the case in a cool, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
If you encounter issues with your Bloody M30 earbuds, try the following solutions:
| Problem | Solution |
|---|---|
| Earbuds not pairing |
|
| No sound or low volume |
|
| Earbuds not charging |
|
| One earbud not working |
|
Specifications
| Feature | Detail |
|---|---|
| Model Name | M30 |
| Connectivity Technology | Bluetooth 5.0 |
| Bluetooth Range | Up to 10 meters (33 feet) |
| Battery Life (Earbuds) | Approx. 4 hours continuous playtime |
| Total Playtime (with Charging Case) | Up to 22 hours |
| Charging Time | Approx. 1.5 hours (earbuds and case) |
| Water Resistance Rating | IPX4 (Splash Resistant) |
| Control Type | Touch Control |
| Audio Driver Type | Hybrid Driver |
| Noise Control | Passive Noise Control / Sound Isolation |
| Earbud Weight | Lightweight (specific weight not provided for single earbud) |
| Charging Case Weight | 37 Grams |
| Material | Plastic, Silicone |
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Bloody website. Keep your proof of purchase for warranty claims.
If you require further assistance or have questions not covered in this manual, please contact Bloody customer service through their official channels.
