1. Introduction
The Bosch AdvancedHedgeCut 36V-65-28 is a powerful cordless hedge trimmer designed for efficient and comfortable trimming of dense hedges and bushes. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your tool.
Image 1.1: The Bosch AdvancedHedgeCut 36V-65-28 cordless hedge trimmer, shown with its battery and charger, ready for use.
2. Safety Information
Always observe basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Read and understand all instructions before operating the hedge trimmer.
- Personal Protective Equipment: Always wear safety glasses, sturdy gloves, and hearing protection. Long pants and closed-toe shoes are recommended.
- Work Area: Keep the work area clean and well-lit. Do not operate the hedge trimmer in wet or damp conditions. Ensure bystanders, especially children and pets, are kept at a safe distance.
- Tool Handling: Hold the hedge trimmer firmly with both hands. Ensure proper footing and balance. Never operate the tool with one hand.
- Battery Safety: Use only Bosch 36V Lithium-ion batteries and chargers specified for this tool. Do not expose batteries to extreme heat or fire.
- Blade Safety: The blades are sharp. Handle with care. Always use the blade cover when the tool is not in use or during transport.
- Inspection: Before each use, inspect the hedge trimmer for any damage, loose parts, or worn blades. Do not use a damaged tool.
3. Package Contents
Verify that all items are present upon unpacking your Bosch AdvancedHedgeCut 36V-65-28.
- Bosch AdvancedHedgeCut 36V-65-28 Cordless Hedge Trimmer
- 1 x 2.0 Ah Lithium-ion Battery (36V)
- AL 36V-20 Battery Charger
- Blade Cover
- Instruction Manual (this document)
Image 3.1: The Bosch AdvancedHedgeCut 36V-65-28 hedge trimmer as packaged in its retail box.
4. Setup
4.1 Charging the Battery
- Connect the AL 36V-20 charger to a suitable power outlet.
- Slide the 36V 2.0 Ah Lithium-ion battery into the charger until it clicks into place.
- The charging indicator light on the charger will illuminate to show charging status. A full charge typically takes approximately 60 minutes.
- Once fully charged, remove the battery from the charger.
4.2 Installing the Battery
- Ensure the hedge trimmer is switched off.
- Align the charged battery with the battery slot on the hedge trimmer handle.
- Push the battery firmly into the slot until it locks securely.
- To remove the battery, press the release button and pull the battery out.
Image 4.1: A hand inserting the battery into the hedge trimmer. The battery features a status indicator to show the remaining charge.
5. Operating Instructions
5.1 Starting and Stopping
- Ensure the battery is securely installed.
- To start, press and hold the safety switch (usually on the front handle) and then squeeze the trigger switch (on the rear handle). Both switches must be engaged for the tool to operate.
- To stop, release either the safety switch or the trigger switch.
5.2 Trimming Techniques
The AdvancedHedgeCut 36V-65-28 is equipped with a brushless motor for high power and efficiency, and a 65 cm Swiss precision blade for clean cuts. Its ergonomic design ensures comfortable handling during extended use.
- General Trimming: Move the hedge trimmer in a smooth, sweeping motion along the hedge. For best results, cut the sides of the hedge first, then the top.
- Cutting Thicker Branches: The tool can cut branches up to 28 mm in diameter. For thicker branches, use the integrated sawing function by positioning the blade teeth around the branch and applying steady pressure.
- Anti-Blocking System: This system prevents the blades from jamming when cutting tougher material, ensuring continuous operation and reducing downtime. If a jam occurs, the system will automatically reverse the blade direction briefly to clear the obstruction.

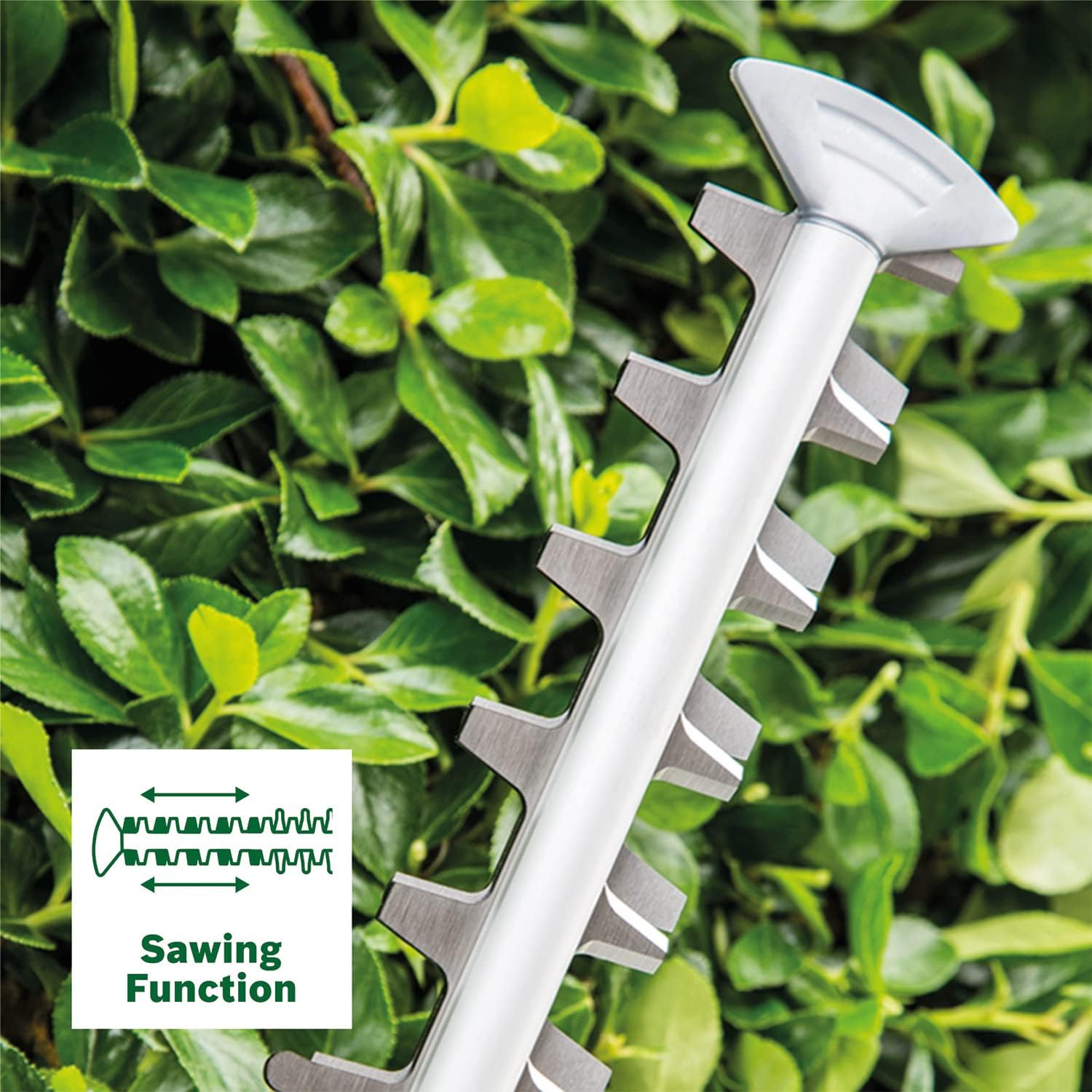

Image 5.1: A close-up view of the hedge trimmer blade, highlighting the specialized teeth designed for the sawing function to cut thicker branches.

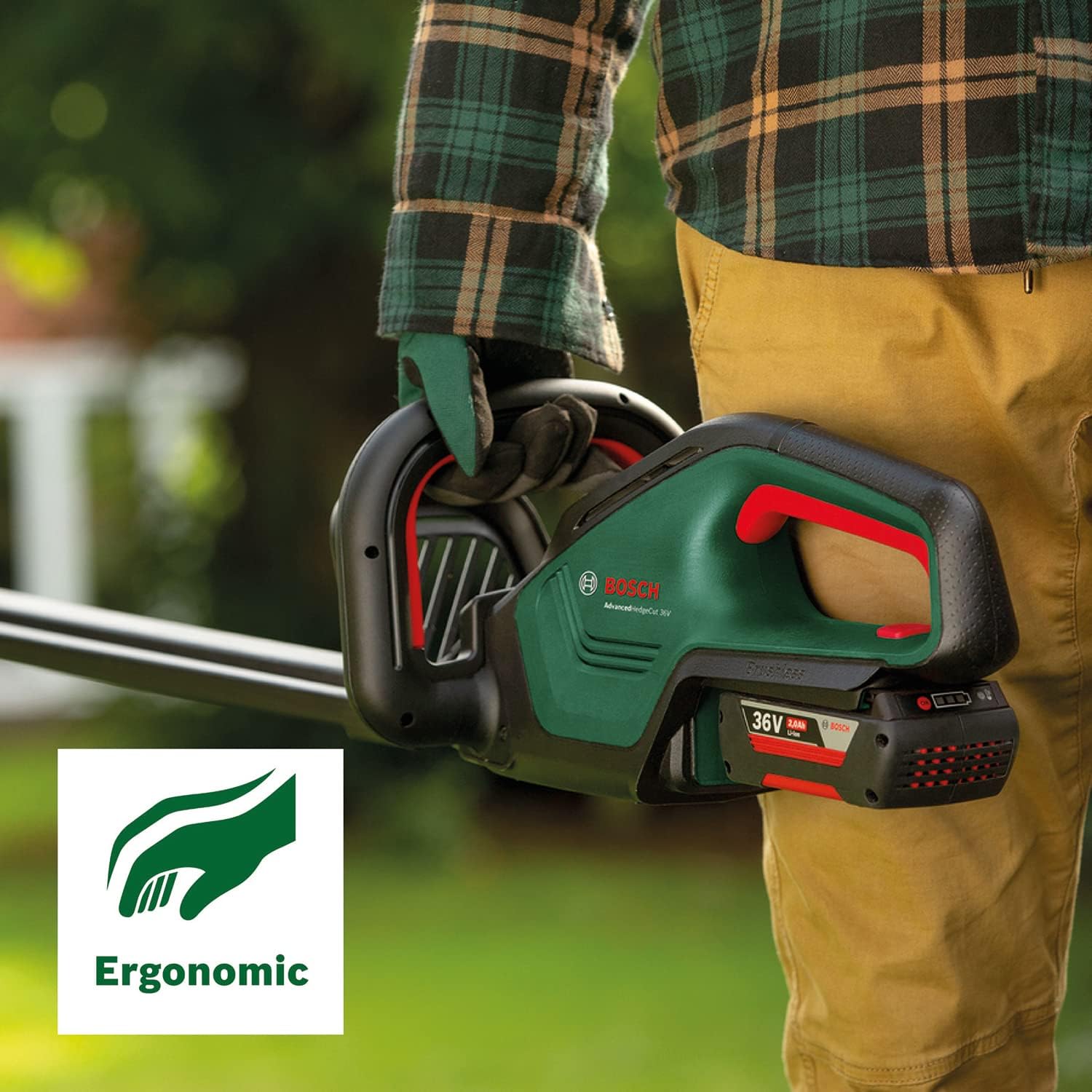

Image 5.2: A user holding the hedge trimmer, illustrating its ergonomic design for comfortable and balanced operation.

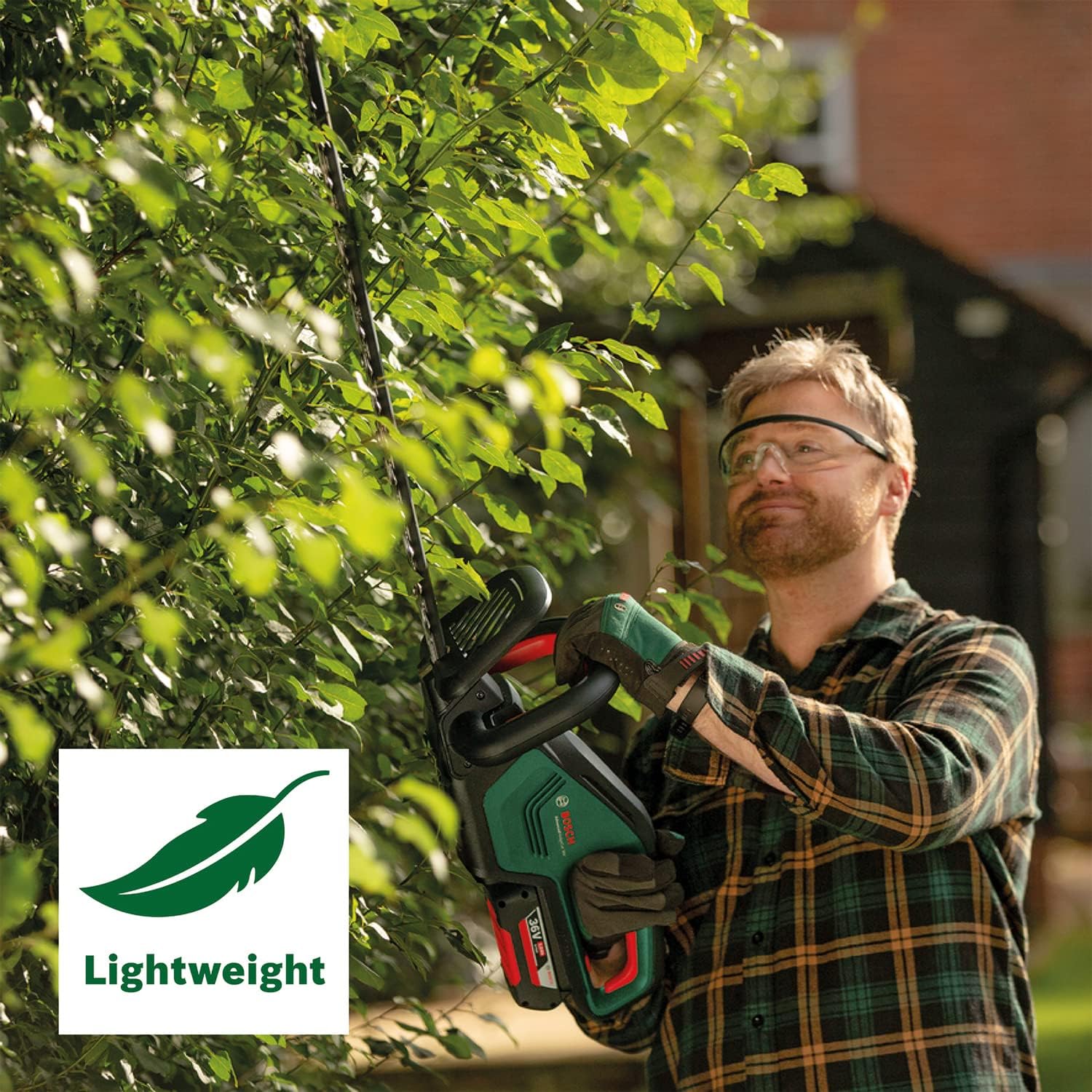

Image 5.3: A user trimming a hedge, demonstrating the lightweight nature of the Bosch AdvancedHedgeCut 36V-65-28 for easier handling.
Image 5.4: An illustration of the brushless motor technology, which provides superior performance and a longer motor lifetime for the hedge trimmer.
6. Maintenance
6.1 Cleaning
- Always remove the battery before cleaning or performing any maintenance.
- Clean the blades after each use to remove sap and debris. Use a stiff brush and a suitable blade cleaning spray or light oil.
- Wipe down the housing with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Ensure all ventilation openings are clear of debris.
6.2 Blade Care
- Regularly check the blades for sharpness and damage. Dull or damaged blades can reduce cutting efficiency and increase strain on the motor.
- If necessary, have the blades sharpened by a qualified service technician.
- Apply a thin layer of rust-preventative oil to the blades before storing the tool for extended periods.
7. Troubleshooting
This section addresses common issues you might encounter with your hedge trimmer.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hedge trimmer does not start | Battery not charged or improperly installed; Safety switch/trigger not fully engaged; Tool malfunction. | Ensure battery is fully charged and correctly inserted. Engage both safety and trigger switches simultaneously. If problem persists, contact Bosch service. |
| Blades jam frequently | Cutting material too thick; Blades are dull or dirty; Anti-blocking system engaged. | Do not attempt to cut branches exceeding 28 mm. Clean and sharpen blades. Allow the anti-blocking system to clear the jam; do not force the blades. |
| Reduced cutting performance | Dull blades; Low battery charge. | Sharpen or replace blades. Recharge the battery. |
| Unusual noise or vibration | Loose components; Damaged blades or motor. | Stop the tool immediately. Inspect for loose parts. If damage is suspected, do not use and contact Bosch service. |
8. Specifications
Detailed technical specifications for the Bosch AdvancedHedgeCut 36V-65-28.
| Feature | Specification |
|---|---|
| Model Number | 060084A300 |
| Battery Voltage | 36 V |
| Battery Type | Lithium-ion |
| Battery Capacity (Included) | 2.0 Ah |
| Blade Length | 65 cm |
| Tooth Opening / Max. Cutting Diameter | 28 mm (from description '28 mm d'épaisseur') / 30 mm (from 'Nombre de dents : 30 mm') |
| No-load Speed | 3200 rpm |
| Motor Type | Brushless |
| Anti-Blocking System | Yes |
| Weight (with battery) | 4.2 kg |
| Product Dimensions (L x W x H) | 50 x 60 x 10 cm |
| Material | Stainless Steel, Plastic |
| Country of Origin | Hungary |
9. Warranty and Support
For warranty information, service, or to order replacement parts, please refer to the official Bosch website or contact Bosch customer support in your region. Keep your proof of purchase for warranty claims.
Information regarding the availability of spare parts is not provided in this document. Please consult Bosch's official channels for further assistance.
