Baomain JQX-62F-2Z 12V 80A DPDT High Power Electronic Relay User Manual

1. Introduction

This manual provides essential information for the safe and effective use of the Baomain JQX-62F-2Z 12V 80A DPDT High Power Electronic Relay. Please read this manual thoroughly before installation and operation to ensure proper function and to prevent damage or injury.

2. Safety Information

WARNING: Electrical shock hazard. Always disconnect power before installing, servicing, or removing this device.

• Installation should only be performed by qualified personnel.
• Ensure the relay's voltage and current ratings match your application requirements.
• Do not operate the relay in wet or damp conditions.
• Verify all connections are secure and properly insulated.
• Avoid touching live terminals.

3. Product Overview

The Baomain JQX-62F-2Z is a high-power, general-purpose electronic relay designed for various industrial and domestic control applications. It features a Double Pole Double Throw (DPDT) contact configuration, meaning it has two independent sets of contacts, each with a common terminal, a normally open (NO) terminal, and a normally closed (NC) terminal. The relay operates with a 12V DC coil voltage and can handle up to 80A per contact.

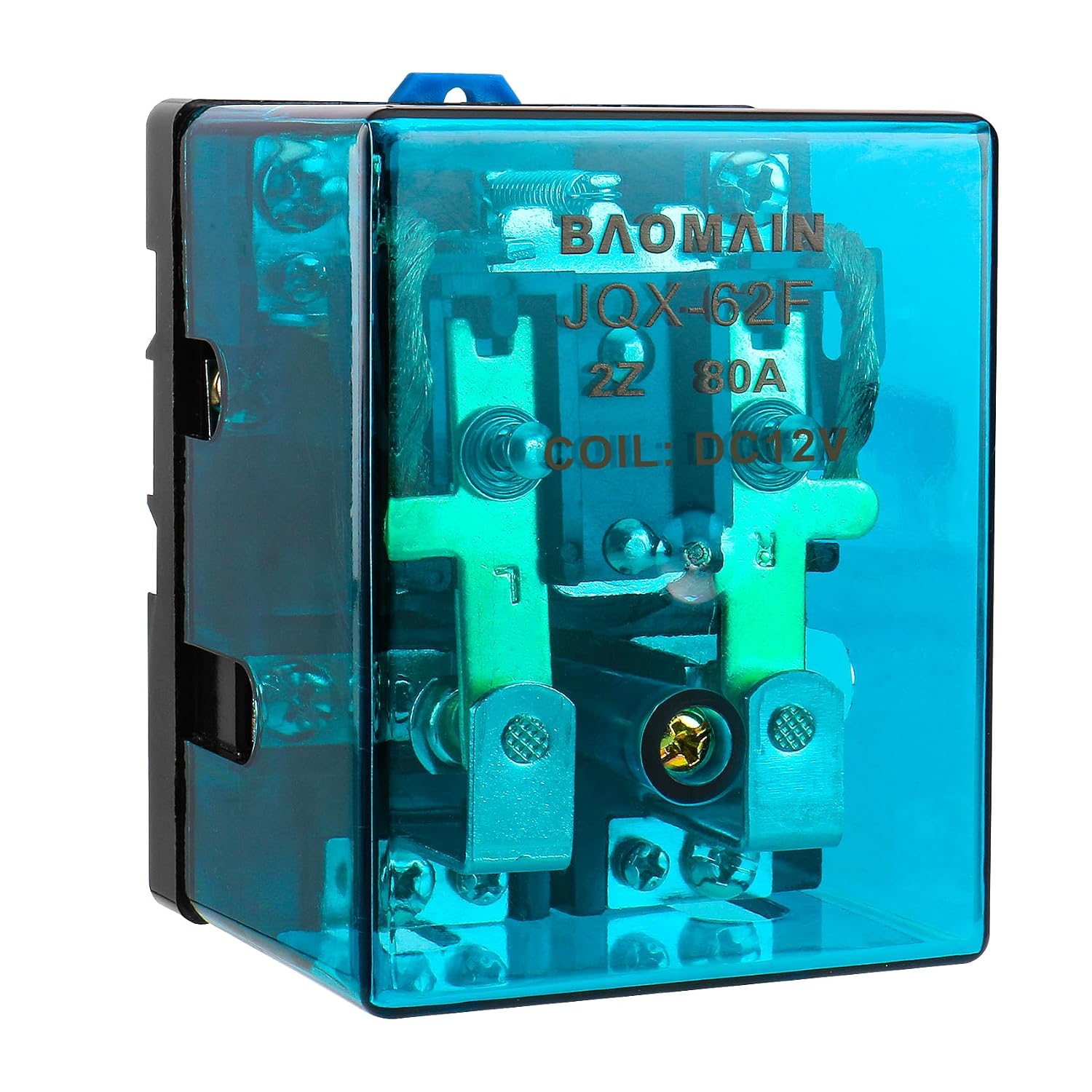

Figure 3.1: Front view of the Baomain JQX-62F-2Z relay with its protective clear blue cover.

Figure 3.2: The relay with its cover removed, revealing the internal contact structure and coil wiring.

Figure 3.3: A detailed close-up of the relay's silver contacts and screw terminals for secure wiring.

4. Setup and Installation

4.1 Mounting

The JQX-62F-2Z relay is designed for DIN rail mounting. Ensure the DIN rail is securely fastened in a suitable enclosure, away from excessive heat, moisture, and vibration. Align the relay's mounting clips with the DIN rail and press firmly until it clicks into place.

4.2 Wiring

Refer to the wiring diagram below for correct terminal connections. The relay features a 12V DC coil. Connect the appropriate control voltage to the coil terminals (typically labeled 7 and 8). The DPDT contacts provide flexibility for switching two separate circuits. Identify the Common (COM), Normally Open (NO), and Normally Closed (NC) terminals for your load connections.

Figure 4.1: Wiring Diagram. Terminals 7 and 8 are for the 12V DC coil. Terminals 1, 2, 3, 4, 5, 6 are for the DPDT contacts.

• Coil Connections: Apply 12V DC to terminals 7 and 8 to energize the coil.
• Contact Connections:
  • When the coil is de-energized, the common terminals are connected to the Normally Closed (NC) terminals.
  • When the coil is energized, the common terminals switch to connect to the Normally Open (NO) terminals.
• Ensure all wires are of appropriate gauge for the 80A current rating and are securely fastened to the screw terminals.

5. Operating Principles

The Baomain JQX-62F-2Z relay operates on the principle of electromagnetism. When a 12V DC voltage is applied across the coil terminals (7 and 8), an electromagnetic field is generated. This field attracts an armature, causing the movable contacts to switch their position. The DPDT configuration allows for simultaneous switching of two separate circuits.

• De-energized State: Without power to the coil, the common terminals are connected to the Normally Closed (NC) terminals.
• Energized State: With 12V DC applied to the coil, the common terminals switch and connect to the Normally Open (NO) terminals.

This switching action allows the relay to control high-power loads using a low-power control signal.

6. Maintenance

The JQX-62F-2Z relay is designed for reliable operation with minimal maintenance. However, periodic inspection can help ensure its longevity and performance.

• Visual Inspection: Regularly check the relay for any signs of physical damage, discoloration, or loose connections.
• Cleaning: Keep the relay and its surroundings free from dust and debris. Use a dry, soft cloth for cleaning. Do not use solvents or abrasive cleaners.
• Terminal Tightness: Periodically verify that all terminal screws are tight to prevent overheating due to poor contact.
• Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges.

7. Troubleshooting

If you encounter issues with your Baomain JQX-62F-2Z relay, consider the following troubleshooting steps:

• Relay Not Switching:
  • Check if 12V DC is correctly applied to the coil terminals (7 and 8). Use a multimeter to verify voltage.
  • Ensure the coil connections are secure.
  • Inspect the coil for any visible damage or open circuits.
• Load Not Receiving Power (or Not Disconnecting):
  • Verify the load connections to the correct NO or NC terminals.
  • Check for continuity across the contacts when the coil is energized/de-energized.
  • Ensure the load current does not exceed the 80A contact rating, which can cause contact welding or damage.
  • Inspect contacts for signs of pitting or burning.
• Overheating:
  • Confirm the load current is within the relay's specifications.
  • Check for loose terminal connections, which can cause resistance and heat.
  • Ensure adequate ventilation around the relay.

If problems persist after troubleshooting, consult a qualified electrician or contact Baomain customer support.

8. Specifications

The following table details the technical specifications for the Baomain JQX-62F-2Z High Power Electronic Relay:

Figure 8.1: Dimensional drawing of the Baomain JQX-62F-2Z relay.
