1. Introduction
This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your ZAFRO 8,000 BTU Portable Air Conditioner (Model A4217-8K-ZA). Please read this manual thoroughly before using the appliance and retain it for future reference.
2. Safety Information
To reduce the risk of fire, electrical shock, or injury when using your portable air conditioner, follow these basic precautions:
- Ensure the unit is placed on a flat, stable surface to prevent tipping.
- Do not operate the unit with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
- Do not block air inlets or outlets. Maintain at least 20 inches of clearance around the unit for proper airflow.
- Do not insert fingers or foreign objects into the air inlets or outlets.
- Always unplug the unit before cleaning or servicing.
- Do not use the unit near flammable gases or combustible materials.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
3. Package Contents
Verify that all items are included in the package:
- Portable Air Conditioner Unit
- Remote Control
- User Manual
- Exhaust Hose (Length: 1.5m)
- Hose Connector
- Window Kit Adapter
- Window Kit (Adjustable)
- Water Pipe (Drain Hose, Length: 1m)
Figure 3.1: Package Contents Diagram. This image illustrates the portable air conditioner unit and all its accompanying accessories, including the exhaust hose, window kit, remote control, and drainage pipe, with their respective labels and dimensions.
4. Product Features and Overview
The ZAFRO 8,000 BTU Portable Air Conditioner is designed for efficient cooling and air treatment in rooms up to 350 square feet. It offers multiple operating modes and user-friendly controls.
- 4-in-1 Functionality: Cool, Dehumidifier, Fan, and Sleep modes.
- Fast Cooling: Capable of dropping indoor temperatures to 61°F.
- Energy-saving: Features a CEER of 6.3 for efficient operation.
- Low Noise Operation: Operates at ≤45dB, suitable for night use.
- Adjustable Temperature Setting: Allows precise control over room temperature.
- LED Digital Display & Remote Control: For convenient operation.
- 1-24 Hours Timer: Program the unit to turn on or off automatically.
- Self-Evaporating System: Enhances efficiency by recycling condensed water.
- Auto Shut-off: Activates when the water tank is full.
- Automatic Restart: Unit resumes operation after a power outage.
- Auto Defrosting Function: Prevents ice buildup at low ambient temperatures.
- 2-Speed Fan: High and Low fan speed settings.
- Portability: Equipped with 4 rolling casters and 2 built-in handles for easy movement.
- Washable Air Filter: Double-layer filter for improved air quality.

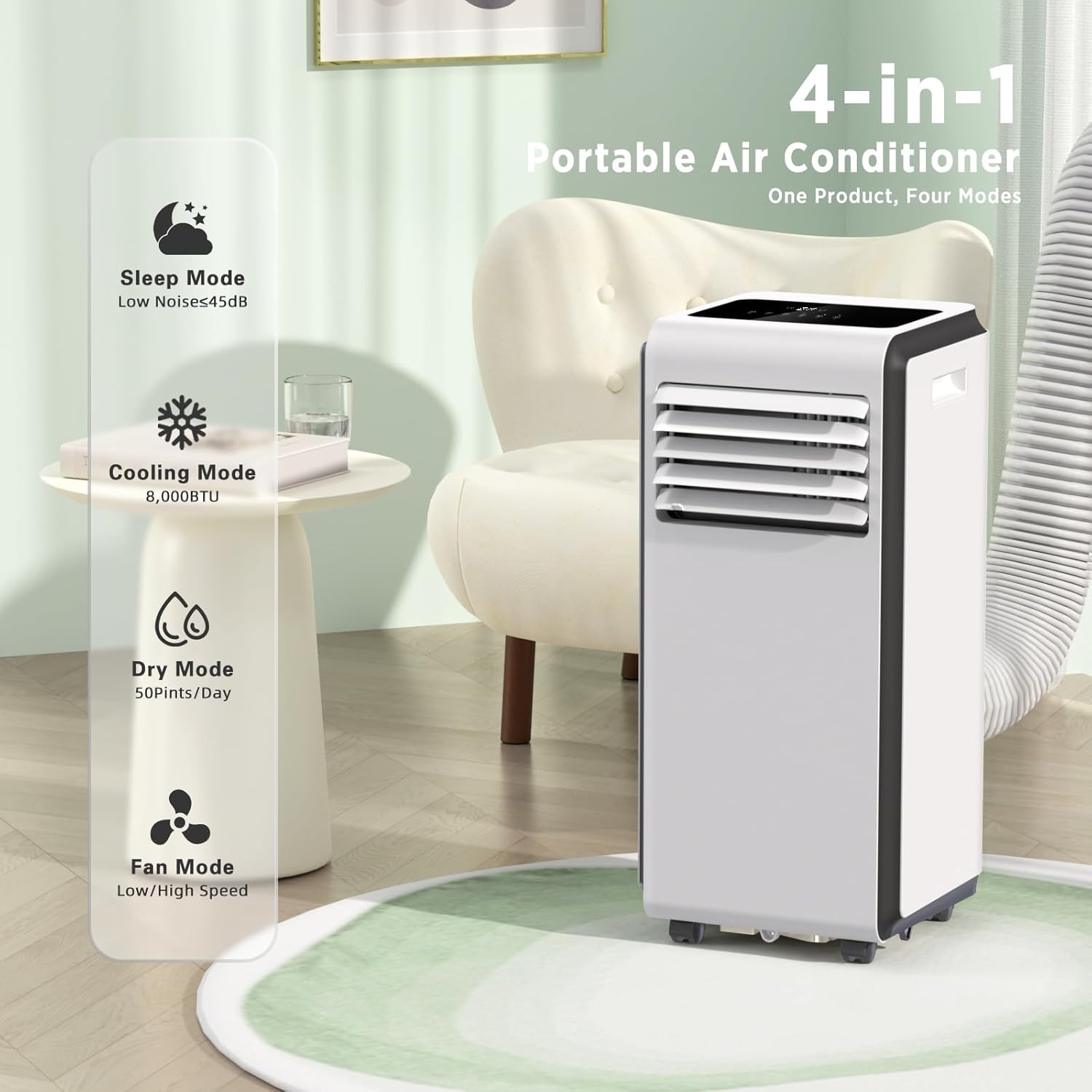

Figure 4.1: Overview of the 4-in-1 functionality of the portable air conditioner, highlighting Sleep, Cooling, Dry (Dehumidifier), and Fan modes.

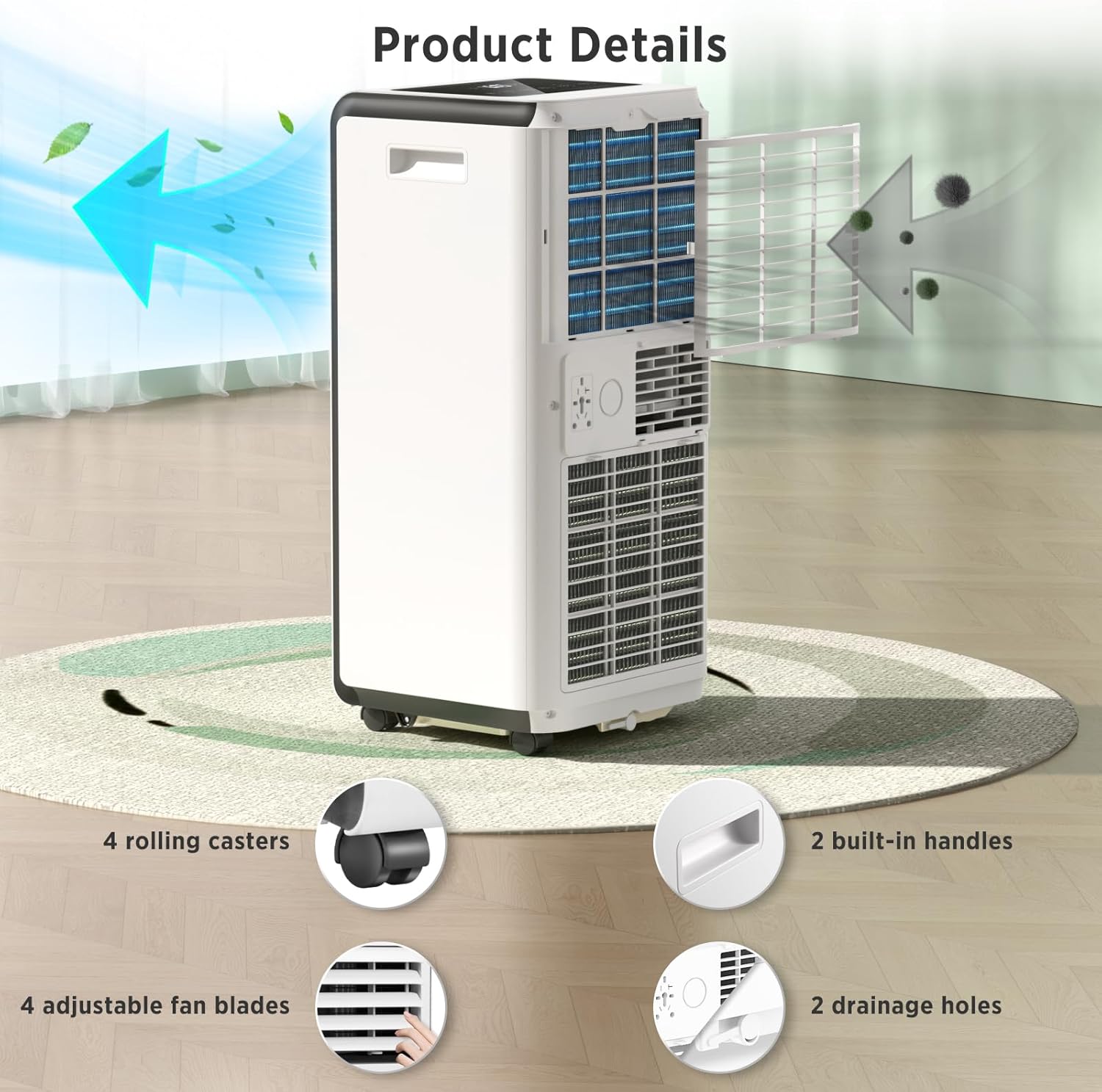

Figure 4.2: Product details illustrating key physical features such as rolling casters for mobility, integrated handles, adjustable fan blades, and drainage points.
5. Setup and Installation
Proper installation is crucial for the efficient operation of your portable air conditioner. This unit is designed for use with hung windows or sliding windows.
5.1 Window Kit Installation
- Connect the hose connector to one end of the exhaust hose.
- Connect the window kit adapter to the other end of the exhaust hose.
- Extend the adjustable window kit to fit the width or height of your window opening. Secure it in place.
- Attach the hose connector to the exhaust air outlet on the back of the air conditioner.
- Extend the exhaust hose and insert the window kit adapter into the opening of the installed window kit. Ensure a tight seal to prevent hot air from re-entering the room.
- Plug the unit into a power outlet.
Figure 5.1: Step-by-step guide for installing the exhaust hose and window kit. This image details connecting the hose, adapter, fitting the window kit, attaching to the AC, and sealing the window.
Figure 5.2: Illustration of how the portable air conditioner can be installed in both sliding and double/single-hung window types, showing the adjustable window kit and exhaust hose.
Important Note: The exhaust hose must be connected to discharge hot air outside during use to improve cooling effectiveness. Ensure the hose is not bent or obstructed.
6. Operating Instructions
Your ZAFRO portable air conditioner can be operated using the control panel on the unit or the included remote control.
6.1 Control Panel and Remote Control

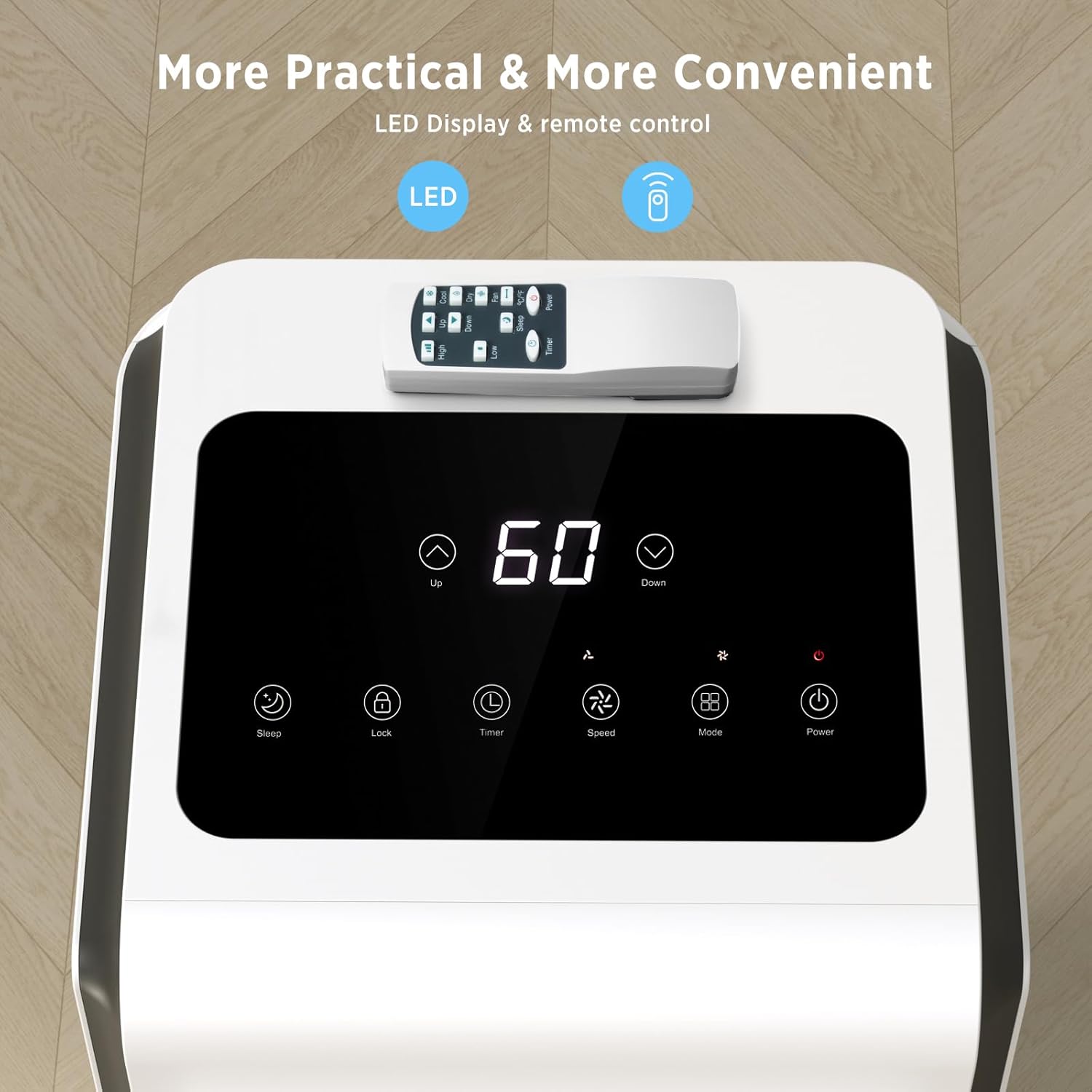

Figure 6.1: The unit's LED digital display and the compact remote control, showing various function buttons.
6.2 Operating Modes
- Cool Mode: Provides powerful cooling. Set your desired temperature using the Up/Down buttons.
- Dehumidifier Mode (Dry): Reduces humidity in the room. The fan speed is automatically set to low in this mode.
- Fan Mode: Circulates air without cooling. Select High or Low fan speed.
- Sleep Mode: Operates quietly for comfortable sleep. The temperature may gradually increase by a few degrees over several hours to conserve energy.
6.3 Timer Function
The 24-hour timer allows you to schedule the unit to turn on or off automatically. Press the "Timer" button and use the Up/Down buttons to set the desired time.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your air conditioner.
7.1 Cleaning the Air Filter
The unit features a removable and washable double-layer air filter. It is highly recommended to clean the air filter every two weeks of operation to maintain performance and protect against dust.
- Unplug the air conditioner from the power outlet.
- Remove the air filter from its housing (refer to the product diagram for location).
- Wash the filter with warm, soapy water. Rinse thoroughly.
- Allow the filter to air dry completely before reinstalling. Do not expose to direct sunlight or high heat.
- Reinstall the dry filter into the unit.
7.2 Drainage
The ZAFRO AC unit is designed with a self-evaporative system, which typically handles condensed water. However, during periods of high humidity or frequent use, it is recommended to connect the drain hose to prevent excessive water collection and potential leakage.
- Locate the drainage hole at the bottom rear of the unit.
- Connect the provided water pipe (drain hose) to the drainage outlet.
- Direct the other end of the drain hose to a suitable container or floor drain. Ensure the hose is positioned lower than the drainage outlet for gravity drainage.
8. Troubleshooting
Review the following common issues and solutions before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power, power cord unplugged, full water tank. | Check power connection, empty water tank if full. |
| Insufficient cooling | Exhaust hose not properly installed or blocked, dirty air filter, windows/doors open, room size too large. | Ensure exhaust hose is correctly installed and unobstructed. Clean air filter. Close all windows and doors. Verify unit BTU matches room size (refer to Section 9.1). |
| Water leakage | Drain hose not connected or improperly positioned, water tank full. | Connect drain hose and ensure it's lower than the drainage outlet. Empty water tank. |
| Unit is noisy | Unit not on a level surface, fan speed too high. | Place unit on a level surface. Select a lower fan speed. |
9. Specifications
| Feature | Detail |
|---|---|
| Model Number | A4217-8K-ZA |
| Cooling Capacity | 8,000 BTU |
| Coverage Area | Up to 350 sq.ft. (Optimal) |
| Product Dimensions (D x W x H) | 12.4" x 12.2" x 27.56" |
| Item Weight | 46 pounds |
| Voltage | 115 Volts |
| Noise Level | ≤45 Decibels |
| Seasonal Energy Efficiency Ratio (CEER) | 6.3 |
| Refrigerant | R-32 |
| Drainage Capacity | 19 Liters (Internal Tank) |
9.1 Cooling Capacity Guide
Use the following table to determine the appropriate cooling capacity for your room size. Adjustments may be necessary based on environmental factors.
Figure 9.1: Cooling Capacity Guide. This table provides recommended BTU values for various room sizes and includes factors for adjusting capacity based on room conditions (e.g., shade, sun exposure, number of occupants, kitchen location).
10. Warranty and Customer Support
10.1 Warranty Information
This ZAFRO portable air conditioner comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
10.2 Customer Support
ZAFRO is committed to providing premium products and thoughtful service. If you have any questions or encounter issues with your product, please contact ZAFRO customer service immediately. We aim to resolve issues within 6 hours.
For support, please refer to the contact information provided on the ZAFRO official website or your purchase documentation.
