1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Weehom Full Size 16-Inch Metal Platform Bed Frame. Please read all instructions carefully before assembly and retain this manual for future reference.
Image 1.1: Assembled Weehom Full Size 16-Inch Metal Platform Bed Frame.
2. Safety Information
WARNING: Failure to follow these safety guidelines may result in injury or damage to the product.
- Do not exceed the maximum weight limit of 500 lbs (227 kg).
- Ensure all parts are securely fastened during assembly to prevent instability.
- Keep small parts away from children during assembly to avoid choking hazards.
- Periodically check all connections and tighten as necessary to maintain stability.
- Do not stand or jump on the bed frame.
Image 2.1: Diagram showing the 770 lbs weight capacity and key dimensions of the bed frame.
3. Package Contents
Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact customer support.
- Bed Frame Components (various metal beams and legs)
- Instruction Manual
- Hardware Set (screws, bolts, Allen wrench, etc.)
4. Assembly Instructions
The Weehom Full Size 16-Inch Metal Platform Bed Frame is designed for easy assembly. All necessary tools are included. It is recommended to assemble the frame with two people.
- Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface (like a rug or blanket) to prevent scratches. Identify each part using the provided parts list in the hardware set.
- Assemble the Side Rails: Connect the long side rails to the head and foot end frames using the designated bolts and nuts. Do not fully tighten bolts until all connections are made.
- Attach Center Support Beams: Secure the center support beams to the pre-drilled holes on the side rails. These beams provide crucial stability.
- Install Support Legs: Attach the support legs to the center beams and any other designated points on the frame. Ensure all legs are oriented correctly and firmly attached.
- Place Slats: Position the metal slats across the frame. The slats are designed to fit into specific slots or attach with screws. Ensure even spacing and secure attachment for optimal mattress support.
- Final Tightening: Once all components are in place and aligned, systematically tighten all bolts and screws using the provided Allen wrench. Ensure all connections are snug but do not overtighten.
Image 4.1: Detail of a secure metal slat connection point.
5. Usage
This platform bed frame is designed to support your mattress directly, eliminating the need for a box spring. The sturdy steel slat support system ensures proper mattress ventilation and prevents sagging, extending mattress life.
Underbed Storage
The 16-inch height of this bed frame provides approximately 14 inches of clearance underneath, offering significant space for storage. This feature helps keep your room organized and maximizes living space.

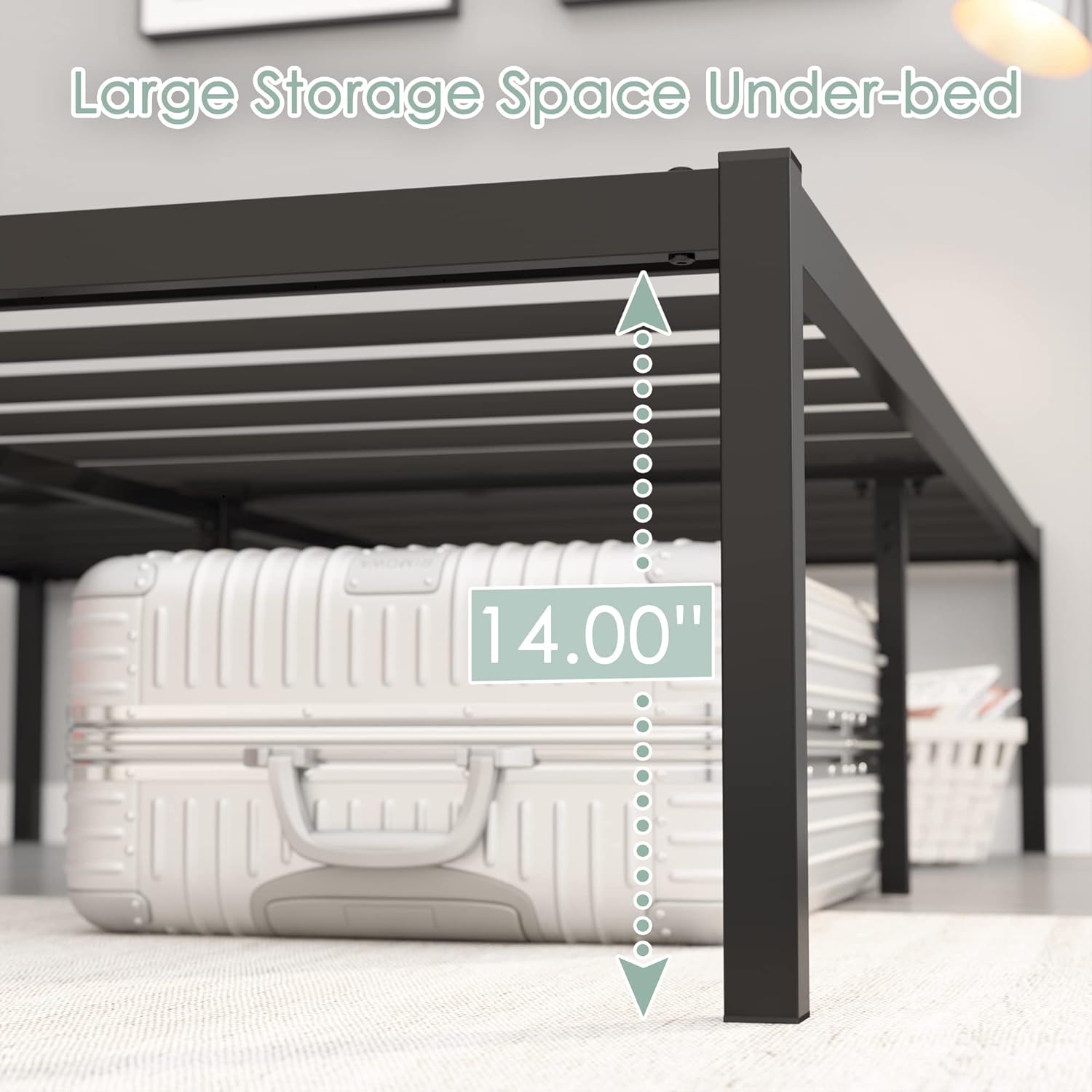

Image 5.1: Visual representation of the 14-inch underbed storage clearance.
Image 5.2: Example of underbed storage with various items.
6. Maintenance
To ensure the longevity and optimal performance of your bed frame, follow these maintenance guidelines:
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Regular Inspection: Periodically (e.g., every 3-6 months) inspect all bolts and connections. Tighten any loose hardware to maintain stability and prevent squeaking.
- Floor Protection: The bed frame legs are equipped with protective caps to prevent scratching your floors. Ensure these caps remain in place.
Image 6.1: Detail of the protective cap on a bed frame leg.
7. Troubleshooting
If you encounter any issues with your bed frame, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Squeaking noises | Loose bolts or connections; metal-on-metal friction. | Tighten all bolts and screws. Apply a small amount of lubricant (e.g., silicone spray) to connection points if necessary. |
| Bed frame feels wobbly/unstable | Incomplete tightening of hardware; uneven floor; damaged component. | Ensure all bolts are fully tightened. Check if the floor is level; use shims if needed. Inspect for any bent or damaged parts and contact support if found. |
| Slats do not fit or are difficult to install | Frame not fully squared during assembly; manufacturing variation. | Loosen frame bolts slightly, adjust the frame to be perfectly square, then re-tighten. Apply gentle pressure or slightly twist slats to fit if minor adjustment is needed. |
8. Specifications
| Feature | Detail |
|---|---|
| Model | Full 16Inch |
| Size | Full |
| Product Dimensions (L x W x H) | 76.77" x 55.91" x 16" |
| Material | Metal (Alloy Steel) |
| Color | Black |
| Weight Capacity | 500 lbs |
| Underbed Clearance | 14 inches |
| Assembly Required | Yes |
| Included Components | Bed Frame, Instruction Manual, Hardware Set |
9. Warranty and Support
For warranty information or customer support, please refer to the contact details provided with your purchase or visit the official Weehom website. Please have your model number (Full 16Inch) and purchase date available when contacting support.
