Moulinex Turbo Cuisine & Fry CE7788 Electric Pressure Cooker and Air Fryer User Manual

1. Introduction

Welcome to the user manual for your new Moulinex Turbo Cuisine & Fry CE7788. This innovative 2-in-1 appliance combines the functions of an electric pressure cooker and an air fryer, offering versatility for a wide range of cooking methods. With its 1450W power, non-stick spherical bowl, and multiple automatic programs, it is designed to simplify your cooking process and deliver delicious results, from tender stews to crispy fried foods. Please read this manual thoroughly before first use to ensure safe and optimal operation.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons.

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse the cord, plugs, or heating unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance cooks under pressure. Improper use may result in scalding injury. Make certain unit is properly closed before operating. See "Operating Instructions".
• Do not fill the unit over 2/3 full. When cooking foods that expand during cooking, such as rice or dehydrated vegetables, do not fill the unit over 1/2 full. Overfilling may cause a risk of clogging the vent pipe and developing excess pressure. See "Operating Instructions".
• Be aware that certain foods, such as applesauce, cranberries, pearl barley, oatmeal or other cereals, split peas, noodles, macaroni, rhubarb, or spaghetti can foam, froth, and sputter, and clog the pressure release device. These foods should not be cooked in a pressure cooker.
• Always check the pressure release device for clogging before use.
• Do not open the pressure cooker until the unit has cooled and internal pressure has been released. If the handles are difficult to push apart, this indicates that the cooker is still pressurized. Do not force it open. Any pressure in the cooker can be dangerous. See "Operating Instructions".
• Do not use this pressure cooker for pressure frying with oil.

3. Product Overview

The Moulinex Turbo Cuisine & Fry CE7788 is designed for ease of use and versatility. Familiarize yourself with its main components.

Image: The Moulinex Turbo Cuisine & Fry CE7788 with the pressure cooking lid being lifted, revealing the inner pot. This image shows the main unit, control panel, and the removable lid.

Main Components:

• Main Unit: Houses the heating element and control panel.
• Spherical Non-Stick Inner Pot: Removable cooking pot for even heat distribution.
• Pressure Cooking Lid: For pressure cooking functions.
• Extra Crisp Air Fry Lid: Separate lid for air frying functions.
• Control Panel: Digital display and rotary dial for program selection and adjustments.
• Accessories: May include a steam basket, measuring cup, and spatula (check packaging for exact contents).

Image: An exploded view of the Moulinex Turbo Cuisine & Fry, showing the main unit, the spherical non-stick inner pot, the pressure cooking lid, and the separate Extra Crisp air fry lid with its base. This illustrates how the different parts fit together.

4. Initial Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or transport.
2. Cleaning: Before first use, wash the inner pot, pressure cooking lid (excluding the main unit), and any accessories in warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Assembly:
   • Place the spherical non-stick inner pot into the main unit. Ensure it is seated correctly.
   • For pressure cooking, place the pressure cooking lid onto the main unit and rotate it until it locks securely.
   • For air frying, ensure the pressure cooking lid is removed, then place the Extra Crisp air fry lid onto the main unit.
4. Placement: Place the appliance on a stable, level, heat-resistant surface, away from walls and other appliances to allow for proper ventilation.
5. Power Connection: Plug the power cord into a grounded electrical outlet. The display will illuminate.

5. Operating Instructions

The Moulinex Turbo Cuisine & Fry offers two primary cooking methods: pressure cooking and air frying, along with various automatic programs.

5.1. Using the Control Panel

Image: A hand turning the rotary dial on the control panel of the Moulinex Turbo Cuisine & Fry. The digital display shows a timer, indicating active operation or program selection.

• Rotary Dial: Use the central rotary dial to navigate through the cooking programs and adjust settings (time, temperature).
• Display: The digital display shows selected program, cooking time, temperature, and status indicators.
• Start/Stop Button: Initiates or cancels a cooking program.
• Program Buttons: Dedicated buttons for common functions or categories of programs.

5.2. Pressure Cooking

Image: The Moulinex Turbo Cuisine & Fry with the pressure cooking lid securely closed, ready for operation. The control panel is visible, displaying a timer.

1. Ensure the spherical inner pot is in place. Add ingredients and liquid according to your recipe. Do not exceed the MAX fill line (2/3 full, or 1/2 full for expanding foods).
2. Place the pressure cooking lid onto the main unit and rotate clockwise until it locks. Ensure the pressure release valve is in the sealed position.
3. Select a pressure cooking program using the rotary dial or program buttons. The appliance features 10 automatic programs for various dishes.
4. Adjust cooking time if necessary using the dial.
5. Press the Start button. The appliance will preheat and then begin pressure cooking.
6. Once cooking is complete, the appliance will beep. Allow pressure to release naturally or use the quick release method (refer to safety instructions for proper procedure).
7. Once pressure is fully released, carefully open the lid by rotating counter-clockwise.

5.3. Air Frying with Extra Crisp Lid

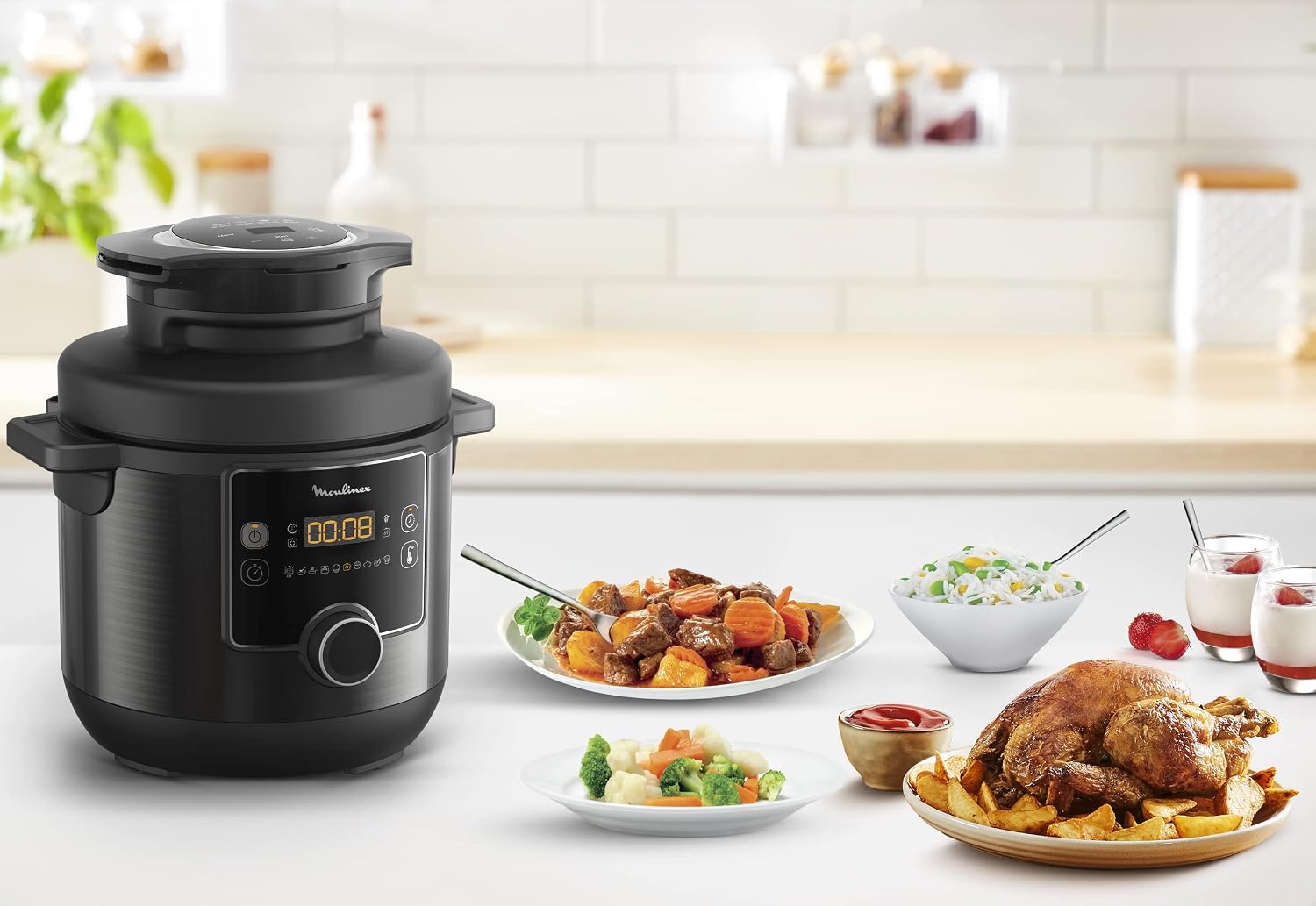

Image: The Moulinex Turbo Cuisine & Fry with the Extra Crisp air fry lid placed on top of the main unit. This lid is used for air frying functions, providing a crispy finish to dishes.

1. Ensure the pressure cooking lid is removed. Place the spherical inner pot into the main unit.
2. Add ingredients to the inner pot. For best air frying results, use a single layer or a dedicated air fry basket (if included).
3. Place the Extra Crisp air fry lid securely onto the main unit.
4. Select an air frying program (e.g., "Air Fry," "Roast," "Bake") using the rotary dial. The appliance offers 5 Air Fry programs.
5. Adjust cooking time and temperature as needed.
6. Press the Start button. The air fry lid will begin heating and circulating hot air.
7. During cooking, you may lift the air fry lid to shake or turn food. The appliance will pause and resume when the lid is replaced.
8. Once cooking is complete, carefully remove the hot air fry lid using its handle and place it on a heat-resistant surface.

5.4. Recipe Inspiration

Image: The Moulinex Turbo Cuisine & Fry appliance positioned next to a smartphone displaying a recipe application. This highlights the integration with digital recipes for cooking inspiration.

The Moulinex Turbo Cuisine & Fry is compatible with an application that provides over 150 recipes and personalized services. Download the official Moulinex app for daily inspiration and detailed cooking instructions tailored to your appliance.

6. Cleaning and Maintenance

Regular cleaning ensures the longevity and optimal performance of your appliance.

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Inner Pot and Accessories: The spherical non-stick inner pot and most accessories (e.g., steam basket) are dishwasher safe. Alternatively, wash them by hand with warm, soapy water and a non-abrasive sponge. Rinse and dry thoroughly.
3. Lids:
   • Pressure Cooking Lid: Remove the sealing gasket and pressure release valve components for thorough cleaning. Wash all parts in warm, soapy water. Ensure the vent pipe is clear of any food debris. Reassemble correctly after drying.
   • Extra Crisp Air Fry Lid: Wipe the exterior with a damp cloth. The heating element area should be cleaned with a soft brush to remove food residue. Do not immerse the air fry lid in water.
4. Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not use abrasive cleaners or scouring pads. Never immerse the main unit in water or any other liquid.
5. Storage: Ensure all parts are clean and dry before storing the appliance. Store in a cool, dry place.

7. Troubleshooting Guide

If you encounter issues with your Moulinex Turbo Cuisine & Fry, consult the following table for common problems and solutions.

8. Technical Specifications

• Model Number: CE7788
• Brand: Moulinex
• Power: 1450 Watts
• Capacity: 7.6 Litres
• Material: Stainless Steel (main unit), Non-stick (inner pot)
• Color: Black
• Weight: Approximately 12 Kilograms
• Voltage: 230 Volts
• Control Method: Touch / Rotary Dial
• Dishwasher Safe Parts: Inner pot and accessories (refer to cleaning section for details)

9. Warranty and Customer Support

Your Moulinex Turbo Cuisine & Fry CE7788 comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage.

For technical assistance, spare parts, or any questions not covered in this manual, please contact Moulinex customer support. Contact details can typically be found on the official Moulinex website or on your product's warranty documentation.

You can also visit the official Moulinex store for more information: Moulinex Store.
