BLACK+DECKER BXTO6001IN 60 L Oven Toaster Grill (OTG) Instruction Manual

1. Introduction

Thank you for choosing the BLACK+DECKER BXTO6001IN 60 L Oven Toaster Grill (OTG). This appliance is designed for versatile cooking, including grilling, baking, and rotisserie functions, enhanced by convection technology. Please read this manual thoroughly before initial use to ensure safe and efficient operation. Retain this manual for future reference.

Image 1.1: The BLACK+DECKER BXTO6001IN 60 L OTG, showcasing its rotisserie function with food cooking inside.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversize foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in the oven.
• Do not place cardboard, plastic, paper, or similar materials in the oven.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Always wear protective, insulated oven mitts when inserting or removing items from the hot oven.

3. Product Overview and Components

Familiarize yourself with the parts of your BLACK+DECKER OTG before operation.

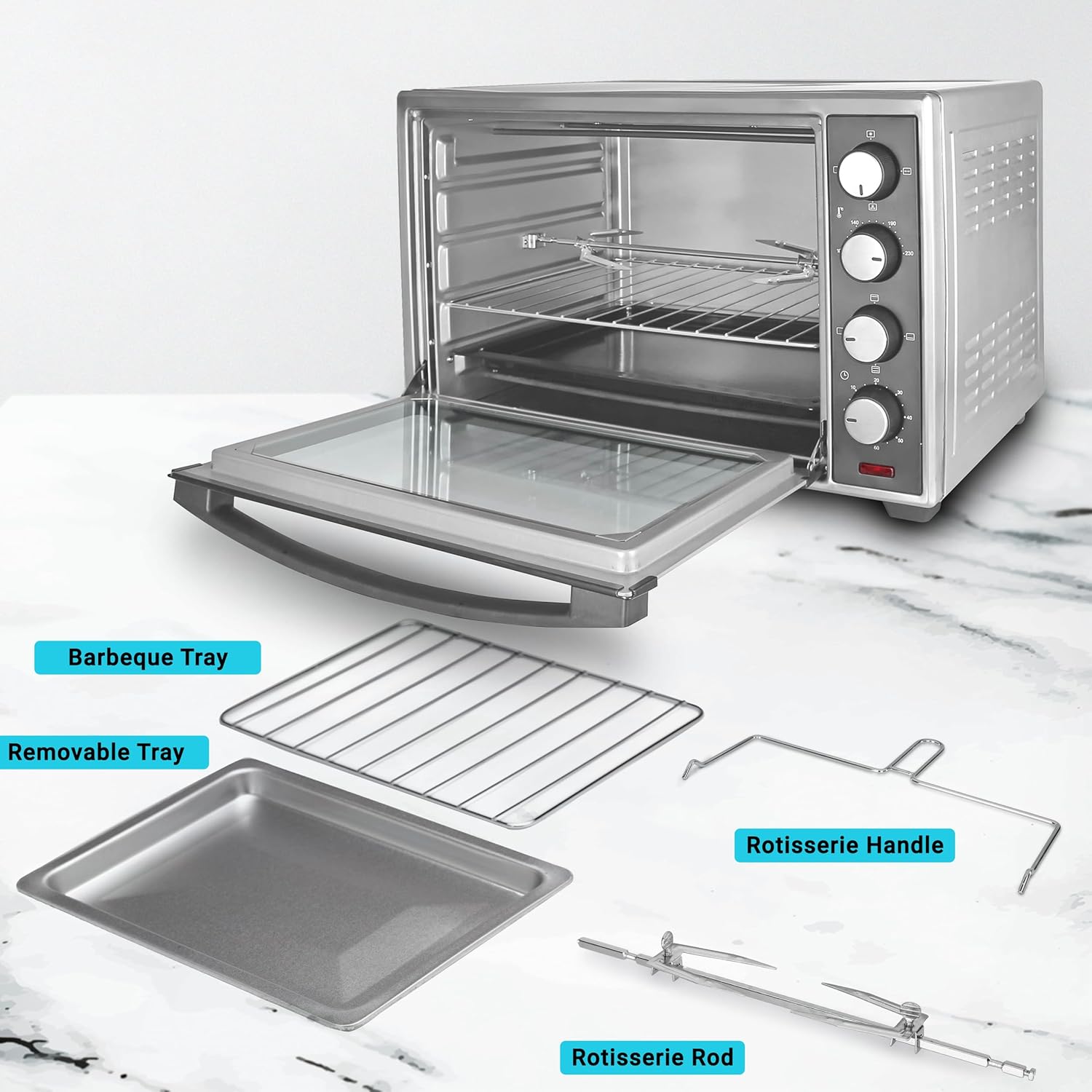

Image 3.1: The BLACK+DECKER BXTO6001IN OTG with its included accessories: barbeque tray, removable wire rack, rotisserie handle, and rotisserie rod.

3.1 Main Components:

• Oven Unit: Main body with stainless steel housing and double heat-resistant tempered glass window.
• Control Panel: Located on the right side, featuring various knobs.
• Heating Elements: Upper and lower heating elements for even cooking.
• Interior Light: For monitoring cooking progress.

3.2 Included Accessories:

• Barbeque Tray: For grilling and collecting drippings.
• Wire Rack: For baking and general use.
• Rotisserie Rod with Skewers: For rotisserie cooking.
• Rotisserie Handle: For safe insertion and removal of the rotisserie rod.
• Bake Pan: Can also be used as a crumb tray.

3.3 Control Knobs:

Image 3.2: A detailed view of the control panel, showing the temperature, function, and timer knobs.

1. Temperature Control Knob: Adjusts temperature from 100°C to 230°C.
2. Operation Selector Function Knob: Selects heating elements (upper, lower, both), convection, and rotisserie functions.
3. Element Selector Function Knob: Further refines heating element selection.
4. Cooking Timer Knob: Sets cooking time up to 60 minutes with an auto shut-off and ready bell.

4. Setup and First Use

4.1 Unpacking:

• Remove all packaging materials and accessories.
• Wipe the exterior with a damp cloth. Clean all accessories (barbeque tray, wire rack, rotisserie rod, bake pan) with warm, soapy water. Rinse and dry thoroughly.

4.2 Placement:

• Place the OTG on a stable, heat-resistant, and level surface.
• Ensure adequate clearance (at least 10-15 cm) on all sides and above the appliance for proper ventilation.
• Do not place near flammable materials or heat sources.

Image 4.1: The BLACK+DECKER BXTO6001IN OTG, showing its compact design suitable for kitchen countertops.

4.3 First Use (Burn-in):

Before cooking food, operate the oven for approximately 15 minutes to burn off any manufacturing residues. This may produce a slight odor or smoke, which is normal.

1. Plug the power cord into a suitable electrical outlet (AC 220-240 V, 50/60 Hz).
2. Set the Temperature Control Knob to 230°C.
3. Set the Operation Selector Function Knob to both upper and lower heating elements.
4. Set the Cooking Timer Knob to 15 minutes.
5. After 15 minutes, the oven will automatically shut off and ring a bell. Allow the oven to cool completely before opening the door.

5. Operating Instructions

This section details how to use the various functions of your OTG.

5.1 General Operation:

1. Place food on the appropriate accessory (wire rack, bake pan, or rotisserie rod).
2. Insert the accessory into the desired rack position inside the oven.
3. Close the oven door securely.
4. Set the Temperature Control Knob to the desired temperature (100-230°C).
5. Select the desired cooking function using the Operation Selector Function Knob.
6. Set the Cooking Timer Knob to the required cooking duration (up to 60 minutes). The oven will begin heating.
7. When the timer reaches zero, the oven will automatically turn off and a bell will sound.
8. Carefully remove cooked food using oven mitts.

5.2 Grilling:

• Place food directly on the wire rack or in the barbeque tray.
• Insert the tray/rack into the upper or middle rack position.
• Set the Temperature Control Knob to 230°C.
• Set the Operation Selector Function Knob to the upper heating element icon (for top grilling).
• Set the timer and monitor food closely to prevent overcooking.

5.3 Baking:

• Place food in the bake pan or on an oven-safe dish placed on the wire rack.
• Insert into the middle or lower rack position.
• Set the Temperature Control Knob to the desired baking temperature.
• Set the Operation Selector Function Knob to both upper and lower heating elements.
• Set the timer according to your recipe.

5.4 Rotisserie:

• Securely skewer the food (e.g., whole chicken) onto the rotisserie rod using the provided forks. Ensure the food is centered and balanced.
• Place the barbeque tray or bake pan on the bottom rack to catch drippings.
• Using the rotisserie handle, carefully insert the rotisserie rod into the designated slots inside the oven.
• Set the Temperature Control Knob to 200-230°C.
• Set the Operation Selector Function Knob to the rotisserie icon (often combined with upper heating).
• Set the timer for the required cooking duration. The rotisserie will rotate automatically.

5.5 Convection:

• The convection fan circulates hot air for faster and more even cooking.
• To activate convection, select the convection icon on the Operation Selector Function Knob, often in combination with other heating elements (e.g., convection with both upper and lower heating for baking).
• When using convection, you may need to reduce cooking time and/or temperature slightly compared to conventional methods.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your appliance.

Image 6.1: The interior of the OTG, illustrating the removable racks and heating elements for cleaning.

1. Always unplug the oven from the electrical outlet and allow it to cool completely before cleaning.
2. Exterior: Wipe the exterior surfaces with a damp cloth and mild detergent. Do not use abrasive cleaners or metal scouring pads, as they may scratch the stainless steel finish.
3. Interior: Wipe the interior walls with a damp cloth and mild detergent. For stubborn stains, a non-abrasive liquid cleaner can be used. Avoid spraying cleaners directly onto the heating elements.
4. Glass Door: Clean the tempered glass door with a glass cleaner or a damp cloth.
5. Accessories: Wash the wire rack, barbeque tray, rotisserie rod, and bake pan in warm, soapy water. These accessories are generally not dishwasher safe unless specified. Rinse thoroughly and dry before storing or reusing.
6. Crumb Tray: The bake pan can be used as a crumb tray. Remove and clean it regularly to prevent grease buildup and potential fire hazards.

7. Troubleshooting

If you encounter issues with your OTG, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

Technical details for the BLACK+DECKER BXTO6001IN OTG.

Image 8.1: Side profile of the BLACK+DECKER BXTO6001IN OTG, highlighting its stainless steel construction.

9. Warranty and Support

Your BLACK+DECKER BXTO6001IN OTG comes with a 2-year warranty period from the date of purchase. This warranty covers manufacturing defects under normal household use.

For warranty claims, service, or technical assistance, please contact BLACK+DECKER customer support. Keep your purchase receipt as proof of purchase for warranty validation.

Manufacturer Information:

BLACK+DECKER, Stovekraft Limited

81/1 Harohalli Industrial Area, Kanakapura Taluk, Bangalore, Kanakapura, Bengaluru, Karnataka 562112

Phone: 080 26985800
