1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Alpicool CR65 Compressor Fridge Freezer. Please read this manual thoroughly before using the appliance and retain it for future reference.
Figure 1: Alpicool CR65 Compressor Fridge Freezer (closed view).
The Alpicool CR65 is a high-quality 12V compressor fridge freezer designed for campervans and similar mobile applications. It features an efficient LG compressor, a reversible door, battery protection, and an interactive control panel.
2. Safety Instructions
- Ensure the appliance is installed in a well-ventilated area.
- Do not block ventilation openings.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- This appliance is intended for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
3. Installation and Setup
The CR65 is designed for built-in installation. Proper ventilation around the compressor unit is crucial for optimal performance and longevity.
3.1 Unpacking
Carefully remove the appliance from its packaging. Inspect for any damage during transit. Report any damage to your supplier immediately.
3.2 Placement
Position the fridge freezer in a location that allows for adequate airflow around the rear and sides, especially where the compressor is located. Avoid direct sunlight or heat sources.
Figure 2: Product dimensions and key features for installation planning.
3.3 Electrical Connection
The CR65 operates on 12 Volts DC. Ensure your power supply is stable and capable of providing the necessary current. Connect the appliance to a suitable 12V DC power source, observing correct polarity.
3.4 Door Reversal
The door of the CR65 is reversible, allowing it to open from either the left or right side to suit your installation requirements. Refer to the detailed instructions provided in the separate door reversal guide (if applicable) or consult the manufacturer's website for specific steps.
Figure 3: Interior view of the Alpicool CR65, showing shelves and door bins.
4. Operating Instructions
4.1 Control Panel
The appliance features an interactive control panel, typically located at the top front. This panel allows you to adjust temperature settings and monitor the fridge's status.

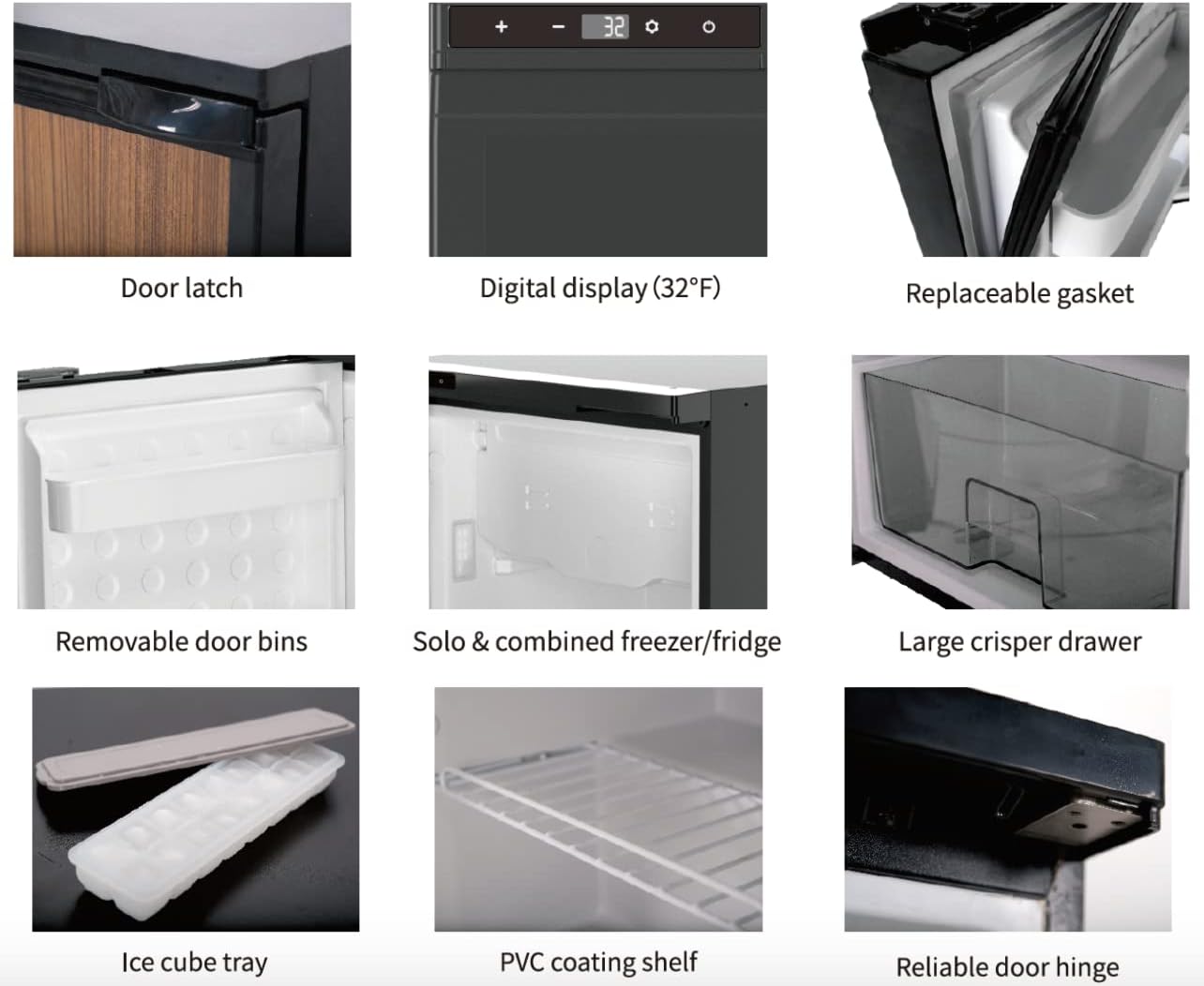

Figure 4: Close-up of the digital display and other internal features.
4.2 Temperature Settings
The Alpicool CR65 can operate as a fridge, a freezer, or a combination of both. The temperature range for the fridge compartment is typically 0°C to 8°C (32°F to 46°F), while the freezer can reach below -18°C (0°F). Use the control panel to set your desired temperature.
4.3 Battery Protection
The unit includes a battery protection feature to prevent excessive discharge of your vehicle's battery. This system automatically cuts off power to the fridge if the battery voltage drops below a certain level. Consult the control panel settings for adjustable battery protection levels.
5. Maintenance and Care
5.1 Cleaning
Regular cleaning of your fridge freezer will ensure hygienic operation and prolong its lifespan. Use a soft cloth with a mild detergent and warm water. Avoid abrasive cleaners or solvents.
- Interior: The removable drawers and shelves can be taken out for easy cleaning.
- Gasket: Regularly inspect and clean the door gasket to ensure a tight seal. A replaceable gasket is featured for long-term performance.
5.2 Defrosting
If ice builds up in the freezer compartment, defrost the unit. Turn off the appliance, remove all contents, and allow the ice to melt naturally. Wipe away melted water with a cloth.
5.3 Long-Term Storage
If the appliance will not be used for an extended period, clean it thoroughly, leave the door slightly ajar to prevent odors and mold, and disconnect it from the power supply.
6. Troubleshooting
Before contacting customer support, please refer to the following common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance not cooling | No power; incorrect temperature setting; poor ventilation; door not closed properly. | Check power connection; adjust temperature; ensure adequate airflow; close door firmly. |
| Excessive noise | Appliance not level; objects touching the compressor; fan obstruction. | Ensure appliance is level; clear any obstructions; check fan for debris. |
| Water accumulation inside | Drain hole blocked; door gasket not sealing properly. | Clear the drain hole; inspect and clean door gasket. |
7. Specifications
Detailed technical specifications for the Alpicool CR65 Compressor Fridge Freezer:
| Feature | Specification |
|---|---|
| Model | CR65 |
| Brand | Alpicool (Generic) |
| Total Capacity | 65 Litres (2.4 cu. Ft.) |
| Freezer Capacity | Approx. 18 Litres (0.6 cu. Ft.) |
| Product Dimensions (D x W x H) | 47 x 43.1 x 63 cm (18.5 x 17 x 24.8 inches) |
| Item Weight | 22.2 kg (48.9 lbs) |
| Voltage | 12 Volts DC |
| Installation Type | Built-In |
| Special Features | Reversible door, Battery protection, Interactive control panel, Removable shelves/drawers |
| Colour | Black |
| Compressor | LG Compressor |
| Fridge Temperature Range | 0°C to 8°C (32°F to 46°F) |
| Freezer Temperature Range | Below -18°C (0°F) |
Figure 5: Manufacturer's specification table for the CR65 model.
8. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for warranty claims.
Manufacturer: Alpicool
