KINGSMAN 3000W Gasoline Electric Generator User Manual

Introduction

This user manual provides essential information for the safe and efficient operation, setup, maintenance, and troubleshooting of your KINGSMAN 3000W Gasoline Electric Generator. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.

The KINGSMAN portable generator is designed to provide reliable power wherever you need it. Its 4-stroke gasoline engine offers exceptional efficiency and proven durability, capable of continuous operation for up to 10 hours. With its AC outlets, you can power a variety of tools, electronic devices, and small appliances, ensuring you have power available for extended periods.

Figure 1: KINGSMAN 3000W Gasoline Electric Generator.

Product Overview and Components

Familiarize yourself with the main components of your generator for safe and effective operation.

Figure 2: Generator Main Components. Note that the gasoline and oil have independent tanks and should not be mixed.

• Gasoline Tank: Holds the fuel for the engine.
• Oil Tank: Contains the engine oil. Ensure oil and gasoline are kept separate.
• Choke: Used for starting a cold engine.
• Fuel Valve: Controls the flow of fuel to the engine.
• Pull Start: Manual recoil starter for the engine.

Figure 3: Control Panel. Understand the functions of each control and outlet.

• On/Off Button (ENG. SW): Powers the generator on or off.
• Voltmeter: Displays the output voltage.
• Circuit Breakers: Protects the generator from overload.
• AC 220V Outlet (12.7 A): One outlet for 220V AC power.
• AC 110V Outlets (25.4 A): Two outlets for 110V AC power.
• 12V DC Output (5.3A): For charging batteries.
• Ground Connection: For safety grounding.

Specifications

Detailed technical specifications for the KINGSMAN 3000W Gasoline Electric Generator.

Figure 4: Technical Specifications. Key performance and physical characteristics.

The KINGSMAN generator features a copper winding, which offers superior performance compared to aluminum generators. This includes higher electrical conductivity, enhanced durability and resistance, better energy efficiency with less power loss, and improved heat dissipation, reducing the risk of overheating. Maintenance is also less frequent with copper windings.

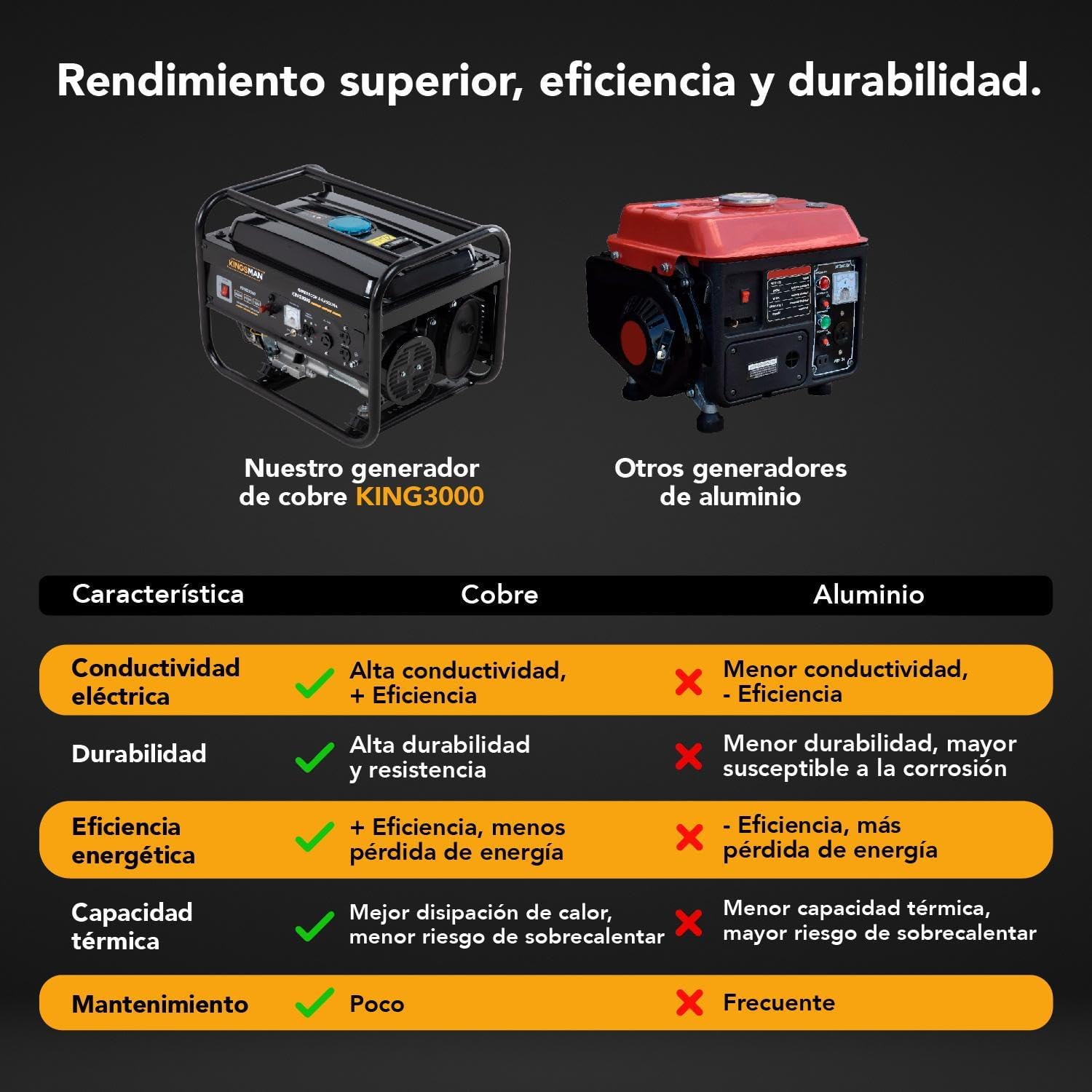

Figure 5: Copper vs. Aluminum Generator Comparison.

Setup

Before starting your generator, ensure it is properly set up and prepared for operation.

1. Unpacking and Inspection: Carefully remove the generator from its packaging. Inspect for any visible damage during shipping. Ensure all included components are present: 1 spark plug wrench, 3 grounded plugs, and 1 instruction manual.
2. Placement: Place the generator on a firm, level surface outdoors in a well-ventilated area, away from windows, doors, and vents. Ensure at least 3 feet (1 meter) of clearance on all sides to allow for proper ventilation and exhaust dispersion. Never operate indoors.
3. Add Engine Oil: Locate the oil fill cap/dipstick. Add the recommended engine oil (10W30 or 15W40) up to the full mark on the dipstick. The oil capacity is 0.6 liters. Do not overfill.
4. Add Fuel: Fill the gasoline tank with fresh, unleaded gasoline (92 # or 10% ethanol recommended). The tank capacity is 15 liters. Do not overfill and ensure the fuel cap is securely tightened.
5. Grounding: Connect a grounding wire from the generator's ground terminal to a suitable earth ground. This is crucial for safety.

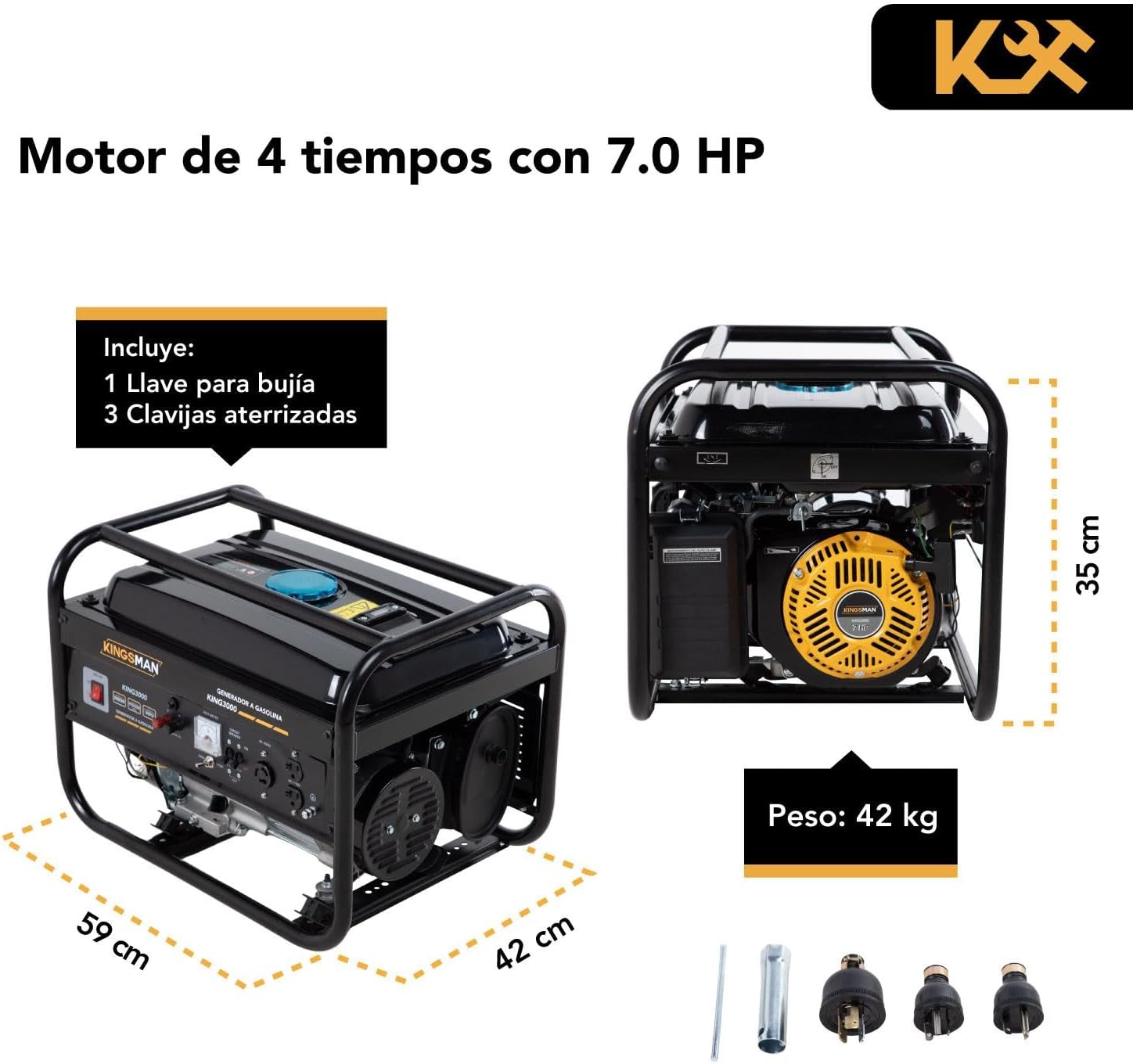

Figure 6: Generator Dimensions and Included Accessories. The generator weighs 44 kg and measures 59 cm (length) x 42 cm (width) x 35 cm (height).

Operating Instructions

Follow these steps to safely start and operate your KINGSMAN generator.

Figure 7: Quick Start Guide. Visual steps for starting the generator.

1. Step 1: Verify Fuel and Oil. Ensure the gasoline tank is filled and the engine oil level is correct.
2. Step 2: Turn Fuel Valve ON. Locate the fuel valve and turn it to the "ON" position.
3. Step 3: Set Choke to OFF (Closed). For a cold engine, move the choke lever to the "OFF" (closed) position.
4. Step 4: Turn Engine Switch ON. Press the engine switch to the "ON" position.
5. Step 5: Use Pull Start. Firmly pull the recoil starter handle until the engine starts.
6. Step 6: Set Choke to ON (Open). Once the engine has started and warmed up slightly, gradually move the choke lever to the "ON" (open) position.

Connecting Devices

The generator is ideal for domestic use and can power various appliances. It is suitable for connecting one appliance to the 220V AC outlet or two appliances to the 110V AC outlets (not simultaneously for maximum load).

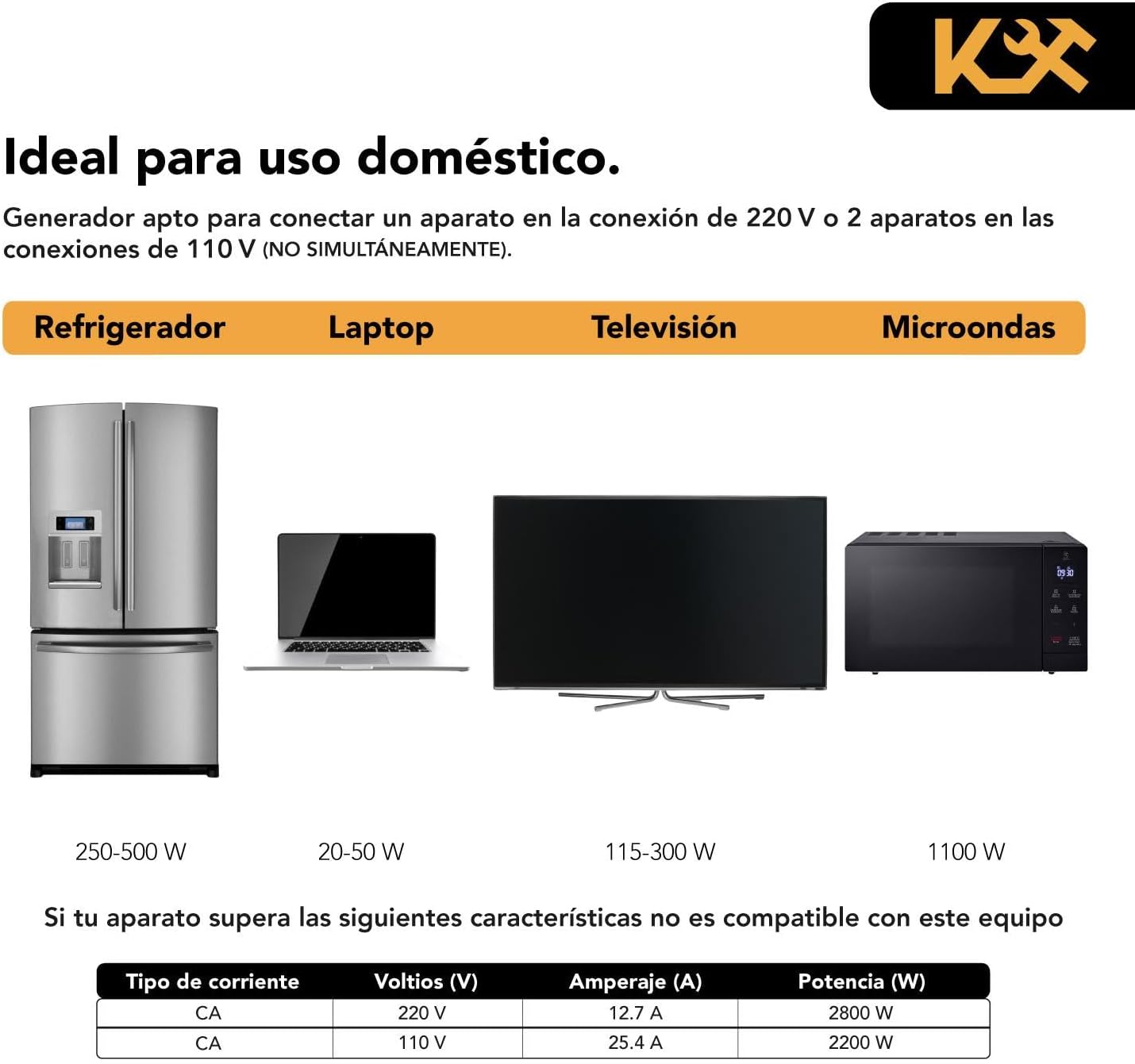

Figure 8: Ideal for Domestic Use. Examples of compatible appliances and their power requirements.

Before connecting any device, ensure its power requirements do not exceed the generator's output capacity. Refer to the table below for maximum current and power for each voltage output:

If your appliance exceeds these characteristics, it is not compatible with this equipment.

Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your generator.

• Check Oil Level: Regularly check the engine oil level before each use. Add oil if necessary, ensuring it is within the recommended range.
• Clean/Replace Air Filter: Inspect the air filter periodically. Clean it if dirty or replace it if heavily soiled or damaged. A clogged air filter can reduce engine performance and increase fuel consumption.
• Spark Plug Inspection: Check the spark plug for wear or carbon buildup. Clean or replace as needed to ensure proper ignition.
• Fuel System: If storing the generator for an extended period, drain the fuel tank and carburetor to prevent fuel degradation and carburetor clogging.
• General Cleaning: Keep the generator clean from dirt, dust, and debris. Ensure cooling fins are clear for proper heat dissipation.

Troubleshooting

This section provides solutions to common issues you might encounter with your generator.

Figure 9: Problem-Solution Guide.

*General indications may vary depending on the model and its components.

Warranty and Support

For warranty information and technical support, please refer to the documentation included with your product at the time of purchase. Typically, manufacturer warranty details and contact information are provided in a separate warranty card or within the full instruction manual.

For additional assistance or to purchase replacement parts, please contact Kingsman customer service or visit their official website. Keep your purchase receipt as proof of purchase for any warranty claims.
